Quick-Connex™ 14 AWG Mini Receptacles (3 & 4 Pole)

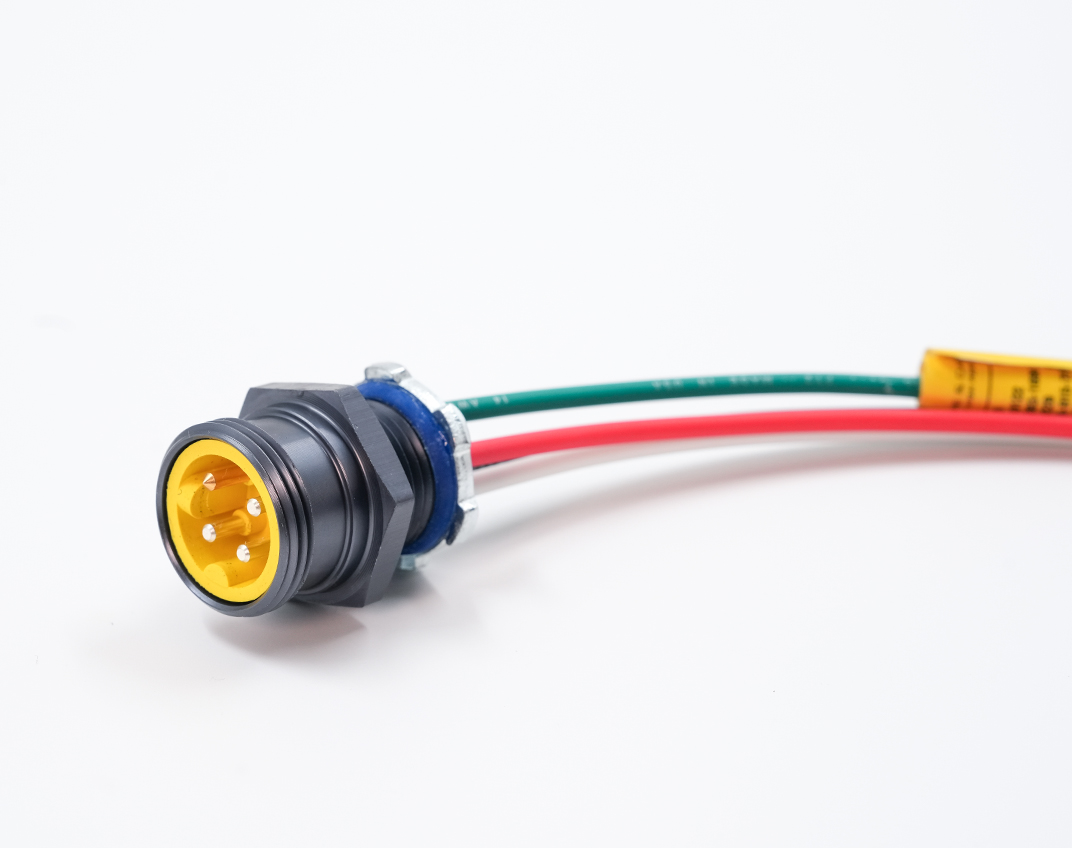

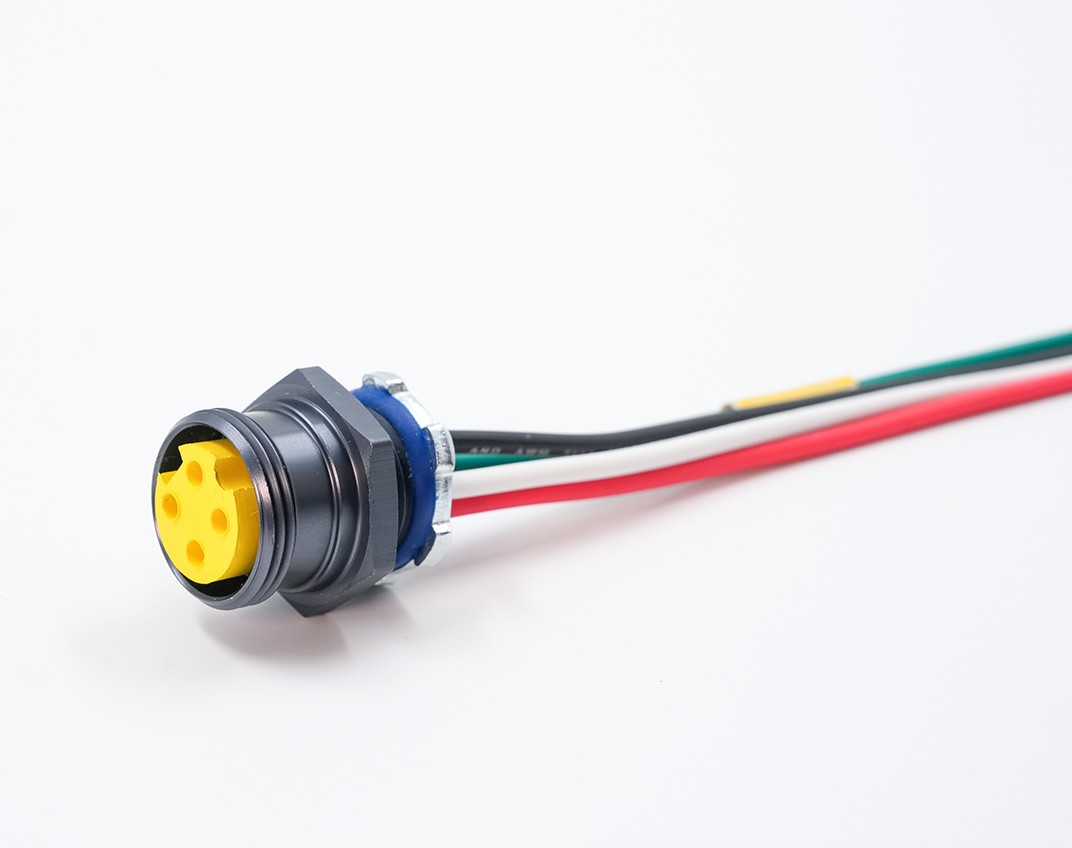

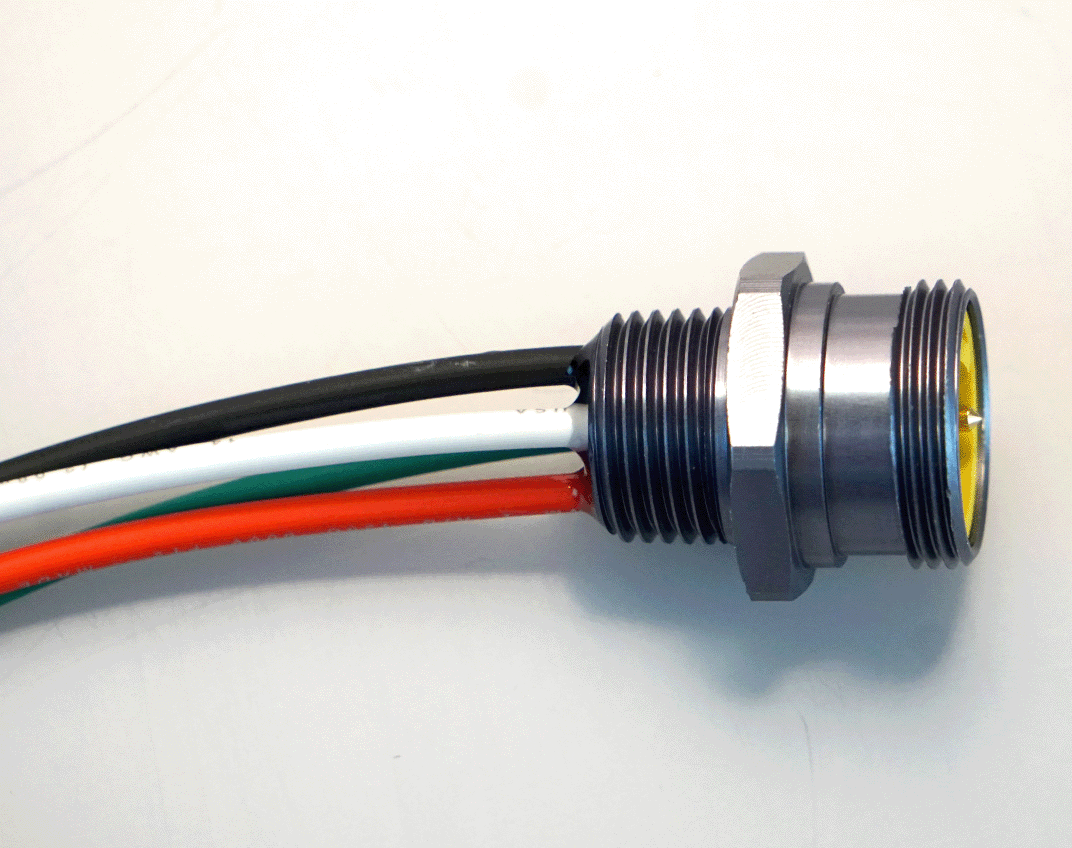

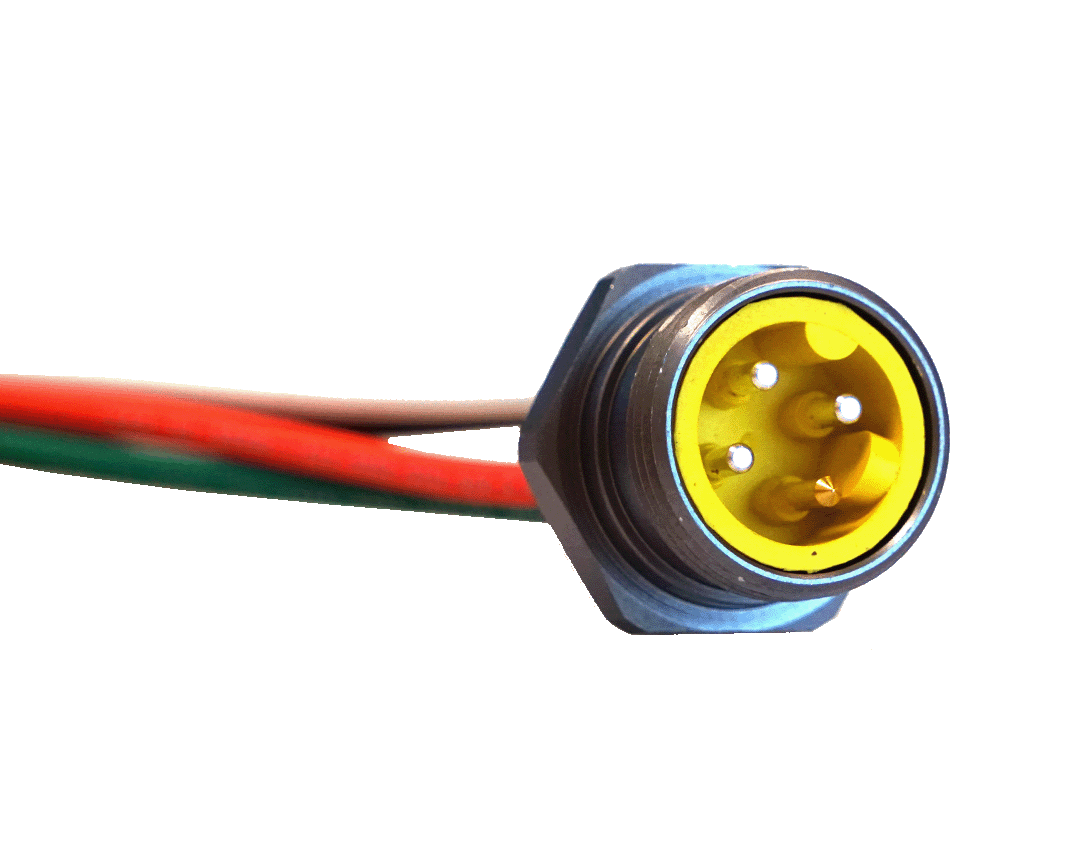

Quick-Connex™ 14 AWG Receptacles (3 & 4 Pole) receptacles are available in female and male straight, back-mounted styles. Females have 4-foot pigtails and males with 1-foot pigtails. O-Ring and locknut included.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

SPECIALLY COMPOUNDED THERMOSET INSERT KEYED AND HERMETICALLY SEALED IN BODY

Soft, non-plastic face ensures cork seal. Provides an oil, water and dust tight seal.

ANODIZED ALUMINUM BODY WITH SEALING LOCKNUT

Durable, compact fittings. Resists corrosion. Easy to install.

HEAVY GAUGE SILVER PLATED BRASS PINS AND SLEEVES

Ensures superior electrical contact. Maintains contact through repeated disconnects.

14 AWG STRANDED, TINNED COPPER PIGTAILS INSULATED WITH 125ºC CROSS-LINKED POLYETHYLENE

Provides excellent oil and heat resistance.

EXTENDED GROUND PIN

Ensures “first in — last out” contact.

CLOSURE CAPS AND ADAPTERS

Available separately

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • IP68 Rated

  • IP69K Rated

  • RoHS Compliant

  • 600 V

  • Heavy-Duty

  • Ampacity: 10 AWG – 25 Amps; 12 AWG, 3 Pole – 18 Amps, 12 AWG 4 Pole – 15 Amps

  • Max Conductor Temperature 90°C

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Description Shielding Type
83301 14 AWG 3 3 Pole Aluminum Female Receptacles No Shielding
83401 14 AWG 4 4 Pole Aluminum Female Receptacles No Shielding
83300 14 AWG 3 3 Pole Aluminum Male Receptacles No Shielding
83300N2 14 AWG 3 3 Pole Nylon Male Receptacles No Shielding
83400 14 AWG 4 4 Pole Aluminum Male Receptacles No Shielding
83400N2 14 AWG 4 4 Pole Nylon Male Receptacles No Shielding
84201A 14 AWG Aluminum Closure Cap for Receptacle 14 AWG No Shielding
84202A 14 AWG Aluminum Closure Cap for Plugs 14 AWG No Shielding
84038A 14 AWG Aluminum Adapter 14 AWG No Shielding
84203N 14 AWG Black Delrin Closure Cap for Receptacle 14 AWG No Shielding
84204N 14 AWG Black Delrin Closure Cap for Plugs 14 AWG No Shielding
84038N 14 AWG Delrin Adapter No Shielding
