Quick-Connex® 16 AWG Mini Accessories

Quick-Connex® 16 AWG Mini Accessories include 90° short elbow, closure caps, and adapters. These products are made of the highest quality materials to withstand the harsh industrial environments they are frequently used in.

Features

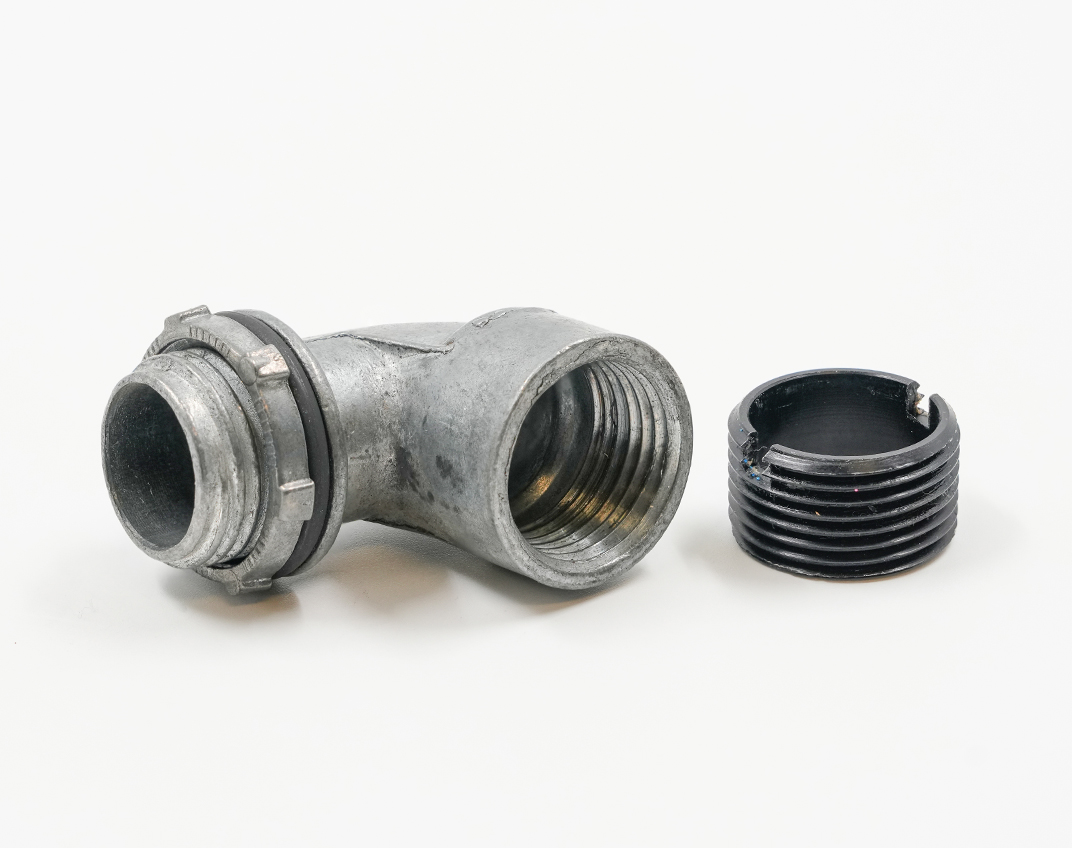

90° Short Elbow

Made for 16 AWG, 2-12 Pole Quick-Connex® and is 100% aluminum. Elbow is threaded to industry standard to ensure interchangeability.

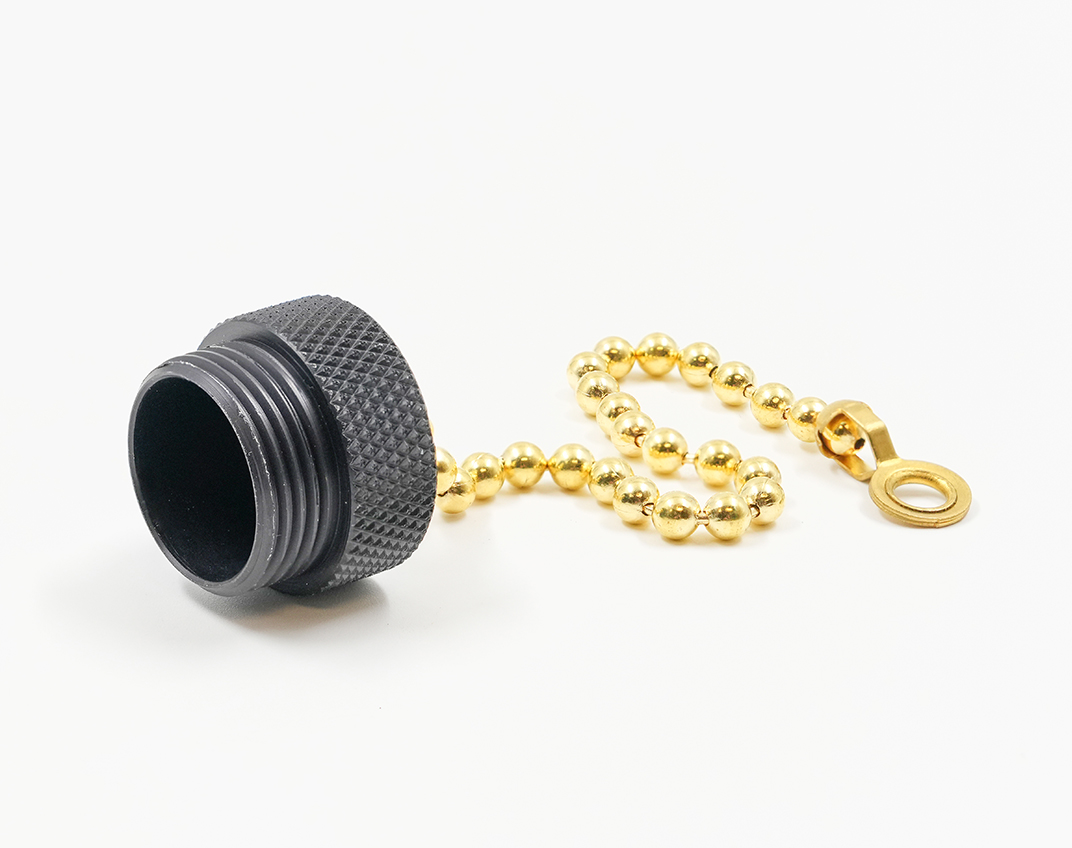

Closure Cap

The hard coated black anodized aluminum provides dust proof / liquid proof protection for the Quick-Connex® face, sealing out moisture and chemicals when the cordset is not in use. Two threaded configurations for either cordsets or receptacles. Convenient chain which attaches to the cord to prevent misplacing the dust cap. Chain length is 6”.

Adapter

For connecting male and female internally threaded coupling nuts. Hard coated, corrosion resistant black anodized aluminum. Made for 16 AWG, 2-12 Pole Quick-Connex®. Adapter is threaded to the industry standard to ensure interchangeability with other standard connectors in use. Slotted for easy installation and removal.

Grip Seal®

Nylon compression nut and threaded body resists impact and corrosion. Multiple synthetic sealing bushings provide a high uniform seal on the cord surface, sealing out water, oil and other contaminants. Nylon friction ring provides uniform compression, preventing bushing damage resulting in a tight, uniform seal.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • Operating Temperature: -20° to 90°C

  • Oil Resistant

Part Numbers

Part No. Conductor Size (AWG) Description Shielding Type
84101 16 AWG 1/2" 90° Short Elbow No Shielding
84102 16 AWG Closure Cap for Receptacles 2-6 pin (A-Size) No Shielding
84103 16 AWG Closure Cap for Plugs 2-6 pin (A-Size) No Shielding
84103SS 16 AWG Stainless Steel Closure Cap for plugs 2-6 (A-Size) No Shielding
84104 16 AWG Adapter 2-6 pin (A-Size) No Shielding
84106 16 AWG Closure Cap for Receptacles 6, 7, 8 pin (B-Size) No Shielding
84107 16 AWG Closure Cap for Plugs 6, 7, 8 pin (B-Size) No Shielding
84108 16 AWG Adapter 6, 7, 8 pin (B-Size) No Shielding
84109 16 AWG Closure Cap for Receptacles 9, 10, 12 pin (C Size) No Shielding
84110 16 AWG Closure Cap for Plugs 9, 10, 12 pin (C Size) No Shielding
84111 16 AWG Adapter 9, 10, 12 pin (C Size) No Shielding
84120 16 AWG Closure Cap for Receptacles 1-3/8”–16 No Shielding

Grip-Seal®

Part No. Cord Diameter Range Fitting Size No. Of Bushing Cord Set Size
55505 0.180" – 0.430" 3/8" NPT 4 2-3 Pole
55513 0.188" – 0.500" 1/2" NPT 5 2-4 Pole
55515 0.310" – 0.560" 1/2" NPT 5 2-6 Pole
55516 0.188" – 0.625" 1/2" NPT 7 2-7 Pole
55530 0.560" – 0.750" 3/4" NPT 2 6-12 Pole
