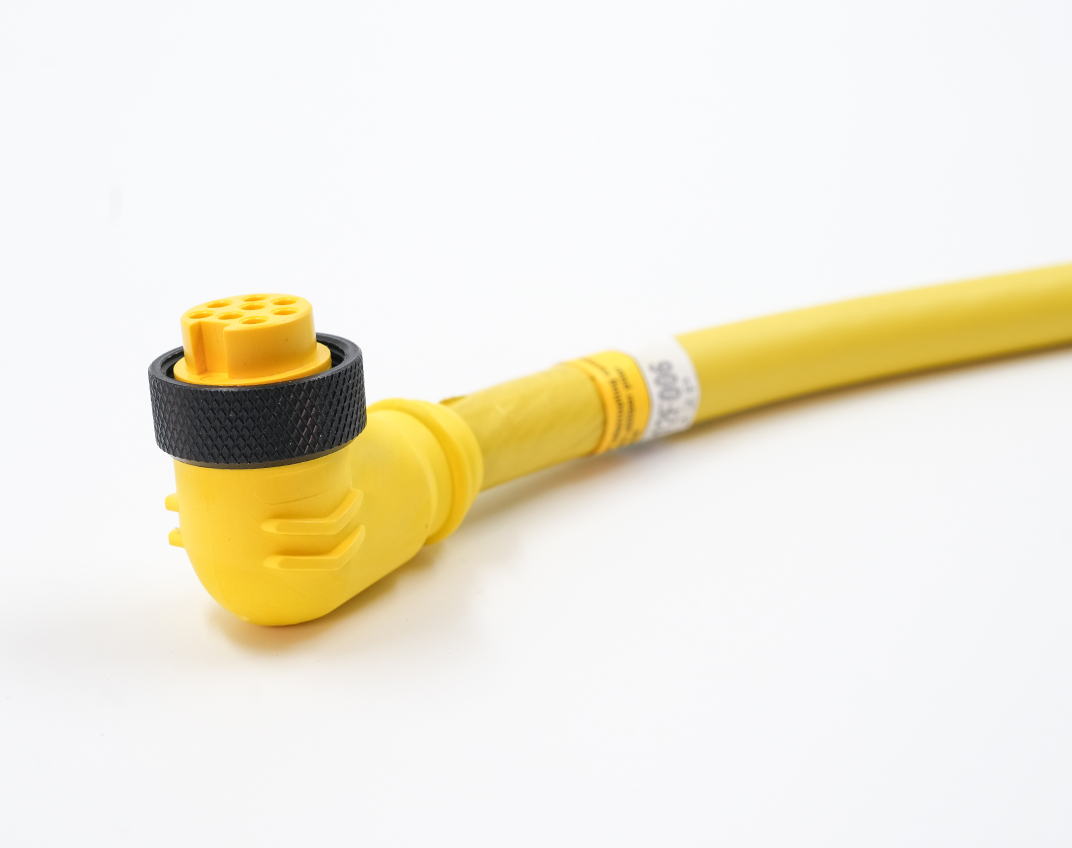

Quick-Connex® 16 AWG Mini Cordsets (6-8 Pole) 90 3QV_Web

Quick-Connex® 16 AWG Mini Cordsets (6-8 Pole)

Quick-Connex® 16 AWG Mini Cordsets (6-8 Pole) make replacement of electrical connections quick and simple. Each cordset is built with Super-Trex® Ultra-Gard® Portable Cord which provides a superior first-line of defense against tearing, abrasion, impact, oil, ozone and most chemicals. The molded and keyed cordset provides rapid and secure connect and disconnect and ensures a water, oil, and dust-tight seal.

Features

Cordsets Made With Super-Trex® Ultra-Gard® Portable Cord, Rated 90°C

Superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Connector Body Is Specially Compounded, Thermoplastic Elastomer

Provides long flex life, resists heat and oil deterioration.

Molded And Keyed Assembly

Provides rapid and secure connect and disconnect. Ensures a water, oil, and dust tight seal.

Solid Brass Contact Pins Are Nickel Coated And Gold Plated, Machine Crimped To Conductors

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low-level signal applications.

Unique Stainless Steel Sleeve Over The Gold Plated Female Pins

Prevents pin deformation resulting in loss of signal and electrical continuity. Superior performance in high vibration and continuous motion environments. Probe proof.

Hard Coated Black Anodized Aluminum Knurled Coupling Nut

Resists corrosion, provides quick and secure assembly.

Plastic Friction Ring Between Coupler And Plug Body

Increases pull-out strength, ensures uniform tightness.

Extra Long Grounding Pin

Ensures first-in, last-out contact for safety.

Coupling Nut 1”-16 Uns

Industry standard for B size Mini connectors

Resources

Specsheets

Prodcut Overview

CustomCable

Build Your Own Mini Cordsets

WireCableFinderGuide

16 AWG Quick-Connex Cordsets Part Number Cross-Reference

Video

QuickConnex Demo Video

Video

Super-Trex Cable Video

Ratings / Characteristics

  • UL Recognized

  • cUL

  • RoHS Compliant

  • 600V

  • Max Conductor Temperature 90°C

  • IP69K Rated

  • Operating Temperature: -20°C to 90°C

  • Bend Radius of Super-Trex® Ultra-Gard® Portable Cord: (Static) 6x Cable OD, (Dynamic) 8x Cable OD

  • UV Resistant

  • Oil Resistant

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Feet Meters Description Shielding Type
CM16C09F006 16 AWG 6 6 1.83 Female No Shielding
CM16C09F012 16 AWG 6 12 3.66 Female No Shielding
CM16C09F020 16 AWG 6 20 6.1 Female No Shielding
CM16A09F006 16 AWG 6 6 1.83 Male No Shielding
CM16A09F012 16 AWG 6 12 3.66 Male No Shielding
CM16A09F020 16 AWG 6 20 6.1 Male No Shielding
CM16D09F006 16 AWG 6 6 1.83 90° Female No Shielding
CM16D09F012 16 AWG 6 12 3.66 90° Female No Shielding
CM16D09F020 16 AWG 6 20 6.1 90° Female No Shielding
CM26E09F003 16 AWG 6 3 0.91 Male/Female Ext. No Shielding
CM26E09F006 16 AWG 6 6 1.83 Male/Female Ext. No Shielding
CM26E09F012 16 AWG 6 12 3.66 Male/Female Ext. No Shielding
CM26E09F020 16 AWG 6 20 6.1 Male/Female Ext. No Shielding
CM17C11F006 16 AWG 7 6 1.83 Female No Shielding
CM17C11F012 16 AWG 7 12 3.66 Female No Shielding
CM17C11F020 16 AWG 7 20 6.1 Female No Shielding
CM17A11F006 16 AWG 7 6 1.83 Male No Shielding
CM17A11F012 16 AWG 7 12 3.66 Male No Shielding
CM17A11F020 16 AWG 7 20 6.1 Male No Shielding
CM17D11F006 16 AWG 7 6 1.83 90° Female No Shielding
CM17D11F012 16 AWG 7 12 3.66 90° Female No Shielding
CM17D11F020 16 AWG 7 20 6.1 90° Female No Shielding
CM27E11F003 16 AWG 7 3 0.91 Male/Female Ext. No Shielding
CM27E11F006 16 AWG 7 6 1.83 Male/Female Ext. No Shielding
CM27E11F012 16 AWG 7 12 3.66 Male/Female Ext. No Shielding
CM27E11F020 16 AWG 7 20 6.1 Male/Female Ext. No Shielding
CM18C12F006 16 AWG 8 6 1.83 Female No Shielding
CM18C12F012 16 AWG 8 12 3.66 Female No Shielding
CM18C12F020 16 AWG 8 20 6.1 Female No Shielding
CM18A12F006 16 AWG 8 6 1.83 Male No Shielding
CM18A12F012 16 AWG 8 12 3.66 Male No Shielding
CM18A12F020 16 AWG 8 20 6.1 Male No Shielding
CM18D12F006 16 AWG 8 6 1.83 90° Female No Shielding
CM18D12F012 16 AWG 8 12 3.66 90° Female No Shielding
CM18D12F020 16 AWG 8 20 6.1 90° Female No Shielding
CM28E12F003 16 AWG 8 3 0.91 Male/Female Ext. No Shielding
CM28E12F006 16 AWG 8 6 1.83 Male/Female Ext. No Shielding
CM28E12F012 16 AWG 8 12 3.66 Male/Female Ext. No Shielding
CM28E12F020 16 AWG 8 20 6.1 Male/Female Ext. No Shielding
