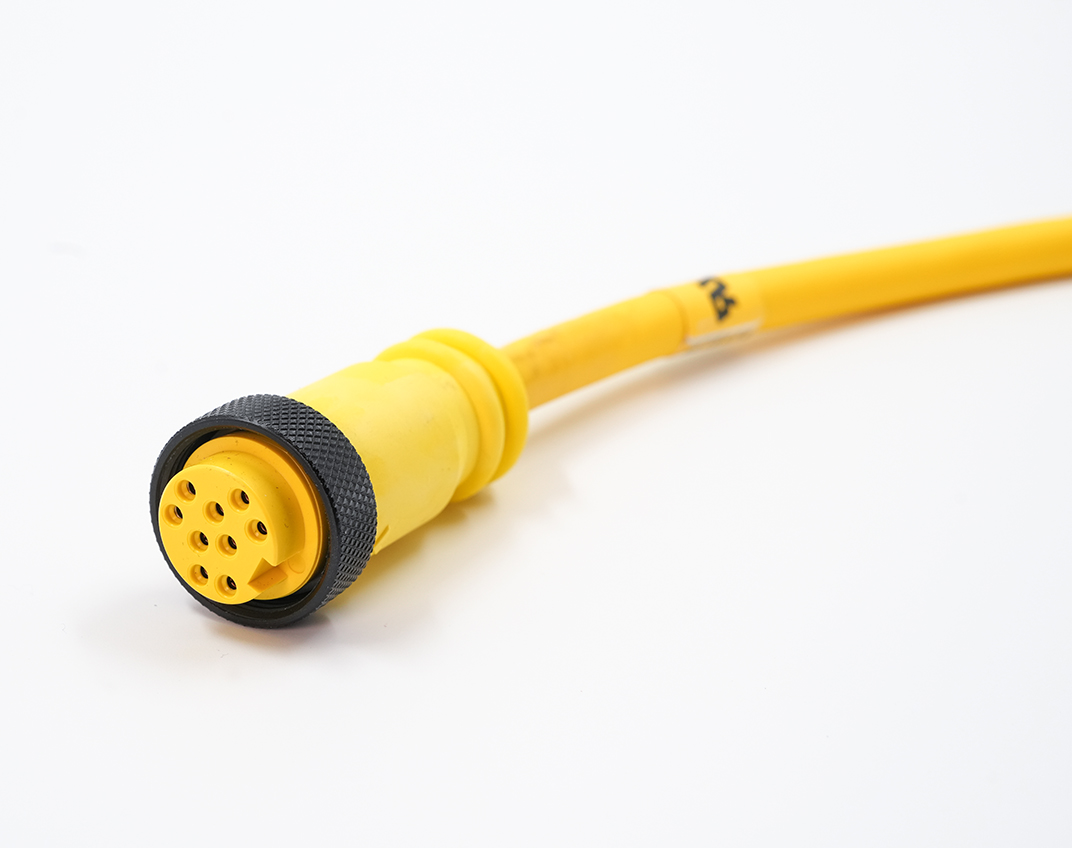

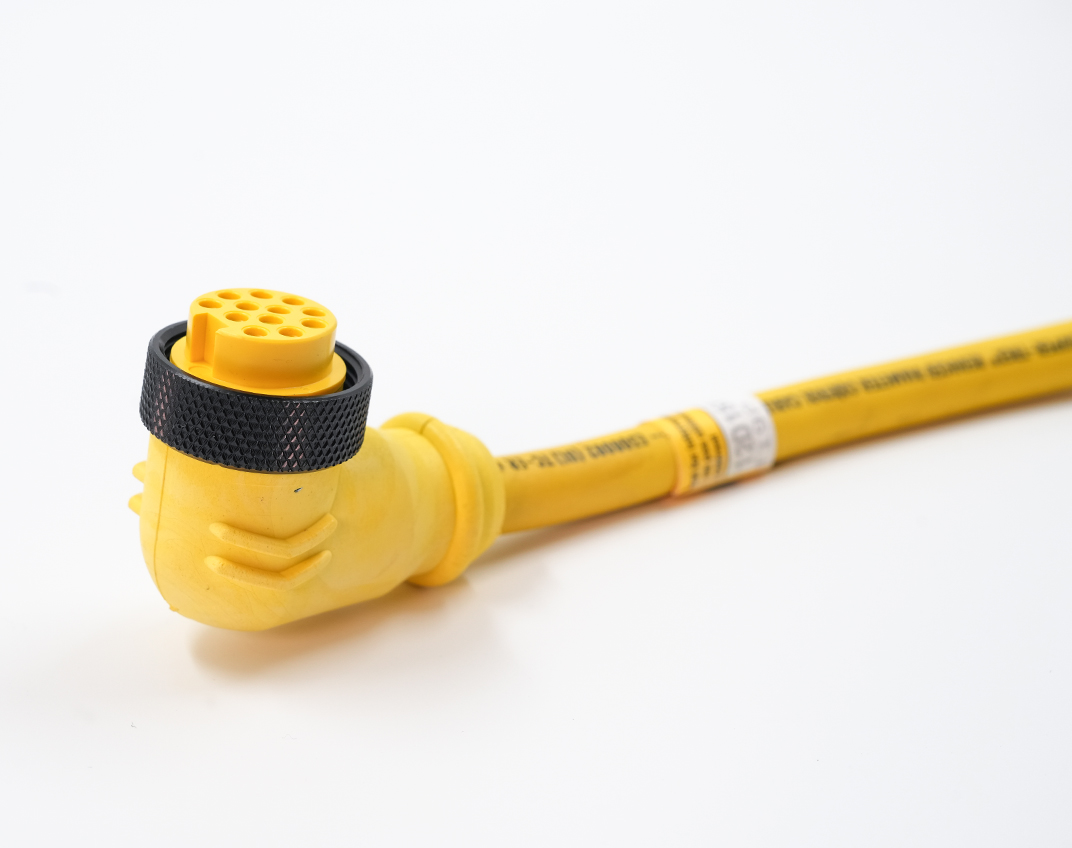

Quick-Connex® 16 AWG Mini Cordsets (9, 10 & 12 Pole)

Quick-Connex® 16 AWG Mini Cordsets 9, 10 & 12 Pole C size make replacement of electrical connections quick and simple. Each cordset is built with Super-Trex® Reduced Diameter Control Cable which provides a superior first-line of defense against tearing, abrasion, impact, oil, and most chemicals. The molded and keyed cordset provides rapid and secure connect and disconnect and ensures a water, oil, and dust-tight seal.

Features

Cordsets Made With Super-Trex® Reduced Diameter Control Cable, Rated 90°C

Superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Connector Body Is Specially Compounded, Thermoplastic Elastomer

Provides long flex life, resists heat and oil deterioration.

Molded And Keyed Assembly

Provides rapid and secure connect and disconnect. Ensures a water, oil, and dust tight seal.

Solid Brass Contact Pins Are Nickel Coated And Gold Plated, Machine Crimped To Conductors

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low-level signal applications.

Unique Stainless Steel Sleeve Over The Gold Plated Female Pins

Prevents pin deformation resulting in loss of signal and electrical continuity. Superior performance in high vibration and continuous motion environments. Probe proof.

Hard Coated Black Anodized Aluminum Knurled Coupling Nut

Resists corrosion, provides quick and secure assembly.

Plastic Friction Ring Between Coupler And Plug Body

Increases pull-out strength, ensures uniform tightness.

Extra Long Grounding Pin

Ensures first-in, last-out contact for safety.

Coupling Nut 1 1/8”-16 Uns

Industry standard for C size Mini connectors.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Mini Cordsets

WireCableFinderGuide

16 AWG Quick-Connex Cordsets Part Number Cross-Reference

Video

Quick-Connex Demo Video

Video

Super-Trex Cable Video

Ratings / Characteristics

  • UL Recognized

  • cUL

  • RoHS Compliant

  • 600V

  • Max Conductor Temperature 90°C

  • IP69K Rated

  • Operating Temperature: -20° to 90°C

  • Bend Radius of Super-Trex® Reduced Diameter Control Cable: (Static) 6x Cable OD, (Dynamic) 8x Cable OD

  • UV Resistant

  • Oil Resistant

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Product No. Conductor Size (AWG) Conductor/Pole Count Feet Meters Description Shielding Type
CN19C13F006 16 AWG 9 6 1.83 Female No Shielding
CN19C13F012 16 AWG 9 12 3.66 Female No Shielding
CN19C13F020 16 AWG 9 20 6.1 Female No Shielding
CN19A13F006 16 AWG 9 6 1.83 Male No Shielding
CN19A13F012 16 AWG 9 12 3.66 Male No Shielding
CN19A13F020 16 AWG 9 20 6.1 Male No Shielding
CN19D13F006 16 AWG 9 6 1.83 90° Female No Shielding
CN19D13F012 16 AWG 9 12 3.66 90° Female No Shielding
CN19D13F020 16 AWG 9 20 6.1 90° Female No Shielding
CN29E13F012 16 AWG 9 12 3.66 Male/Female Ext. No Shielding
CN29E13F020 16 AWG 9 20 6.1 Male/Female Ext. No Shielding
CN110C14F006 16 AWG 10 6 1.83 Female No Shielding
CN110C14F012 16 AWG 10 12 3.66 Female No Shielding
CN110C14F020 16 AWG 10 20 6.1 Female No Shielding
CN110A14F006 16 AWG 10 6 1.83 Male No Shielding
CN110A14F012 16 AWG 10 12 3.66 Male No Shielding
CN110A14F020 16 AWG 10 20 6.1 Male No Shielding
CN110D14F006 16 AWG 10 6 1.83 90° Female No Shielding
CN110D14F012 16 AWG 10 12 3.66 90° Female No Shielding
CN110D14F020 16 AWG 10 20 6.1 90° Female No Shielding
CN210E14F012 16 AWG 10 12 3.66 Male/Female Ext. No Shielding
CN210E14F020 16 AWG 10 20 6.1 Male/Female Ext. No Shielding
CN112C15F006 16 AWG 12 6 1.83 Female No Shielding
CN112C15F012 16 AWG 12 12 3.66 Female No Shielding
CN112C15F020 16 AWG 12 20 6.1 Female No Shielding
CN112A15F006 16 AWG 12 6 1.83 Male No Shielding
CN112A15F012 16 AWG 12 12 3.66 Male No Shielding
CN112A15F020 16 AWG 12 20 6.1 Male No Shielding
CN112D15F006 16 AWG 12 6 1.83 90° Female No Shielding
CN112D15F012 16 AWG 12 12 3.66 90° Female No Shielding
CN112D15F020 16 AWG 12 20 6.1 90° Female No Shielding
CN212E15F006 16 AWG 12 6 1.83 Male/Female Ext. No Shielding
CN212E15F012 16 AWG 12 12 3.66 Male/Female Ext. No Shielding
CN212E15F020 16 AWG 12 20 6.1 Male/Female Ext. No Shielding
CN212E15F025 16 AWG 12 25 6.54 Male/Female Ext. No Shielding
