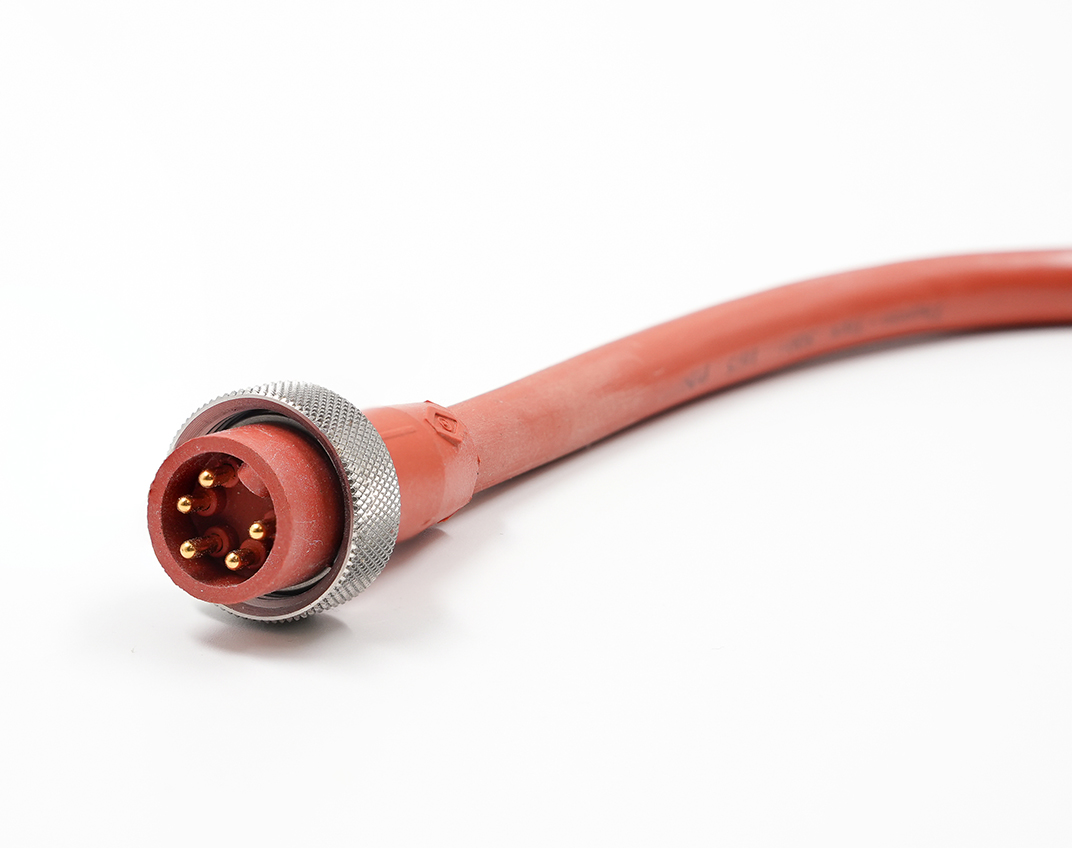

Quick-Connex® 16 AWG Mini High Temperature Cordsets Male_Web

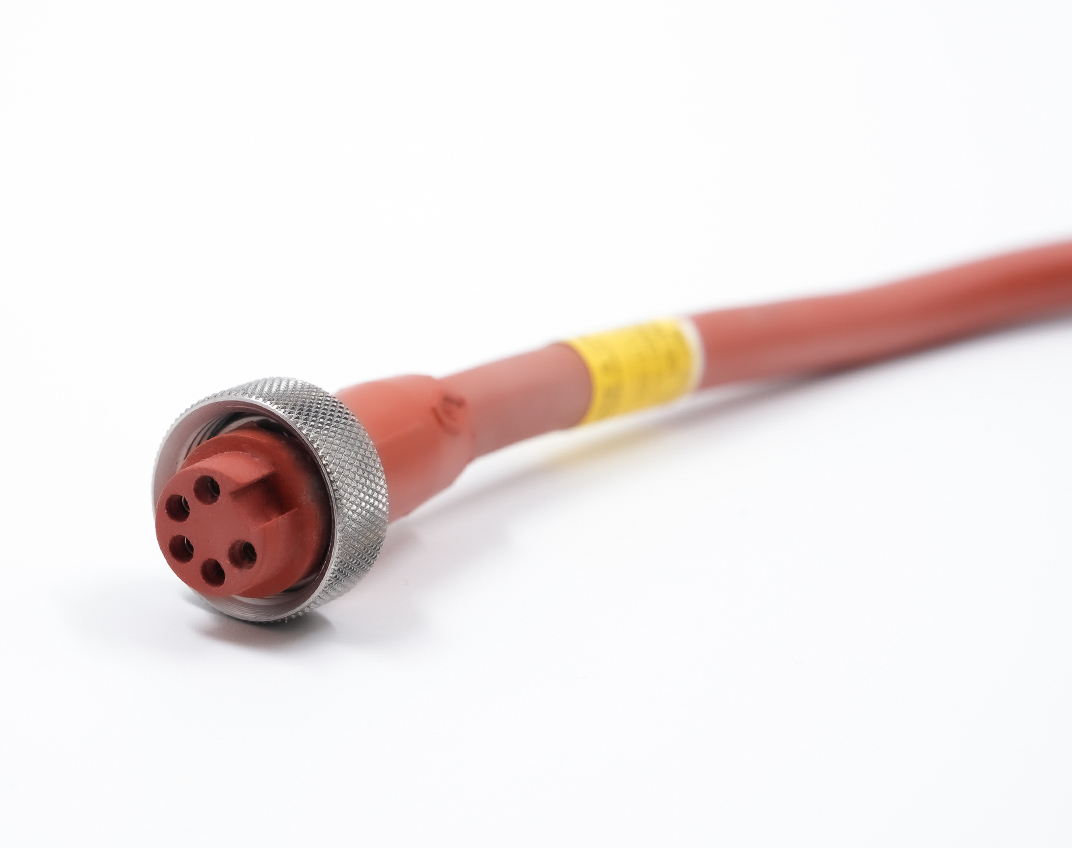

Quick-Connex® 16 AWG Mini High Temperature Cordsets Female_Web

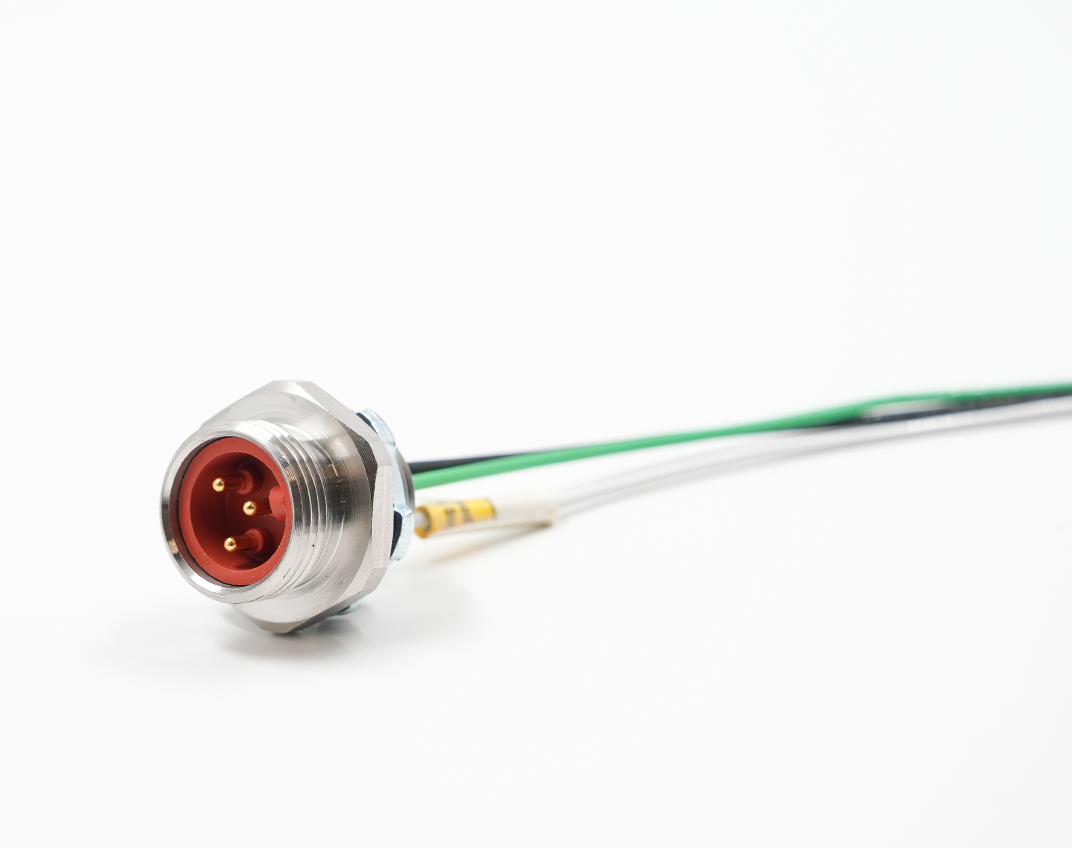

Quick-Connex® 16 AWG Mini High Temperature Cordsets Male Receptacle_Web

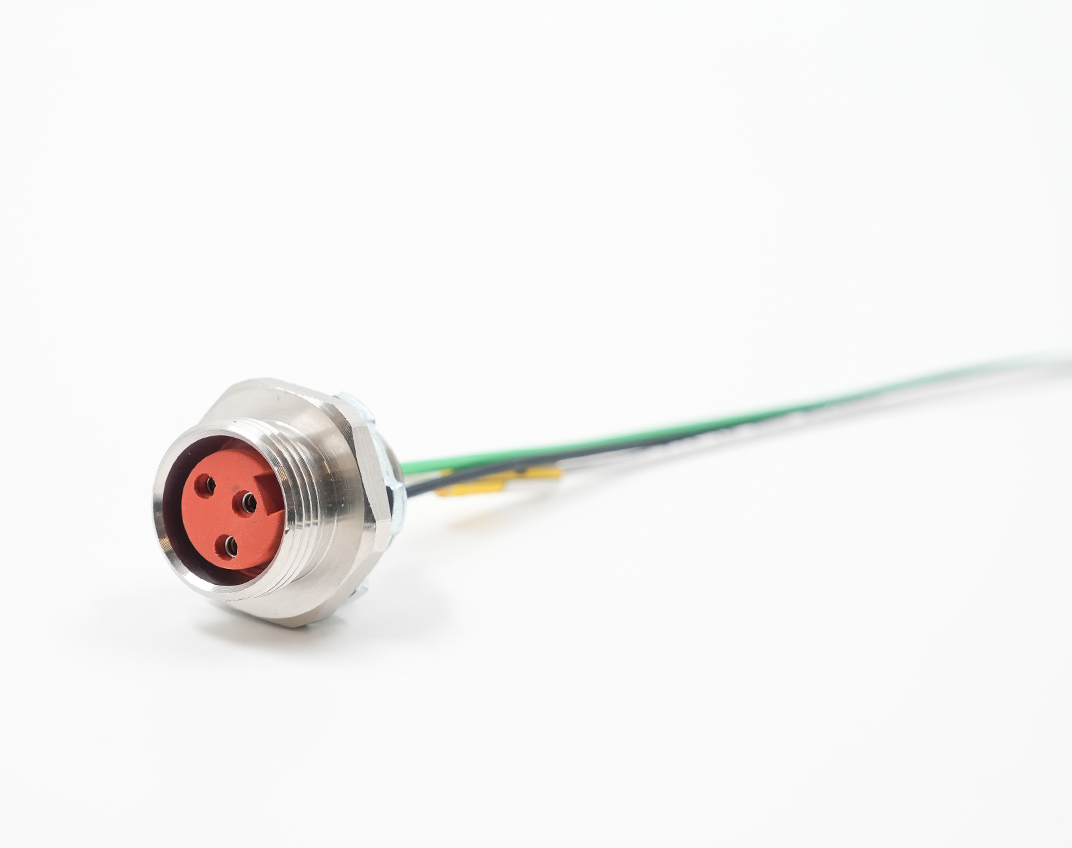

Quick-Connex® 16 AWG Mini High Temperature Cordsets Female Receptacle_Web

Quick-Connex® 16 AWG Mini High Temperature Cordsets

Quick-Connex® 16 AWG Mini cordsets make the replacement of electrical connections quick and simple. Each cordset is built with our Thermo-Trex® 500-Plus 16AWG High Temperature cable designed with a tear resistant silicone jacket and fully bonded silicone head providing IP68 seal against moisture. It is an ideal choice for applications exposed to high temperatures up to 180°C, chemicals, UV light and mechanical abuse.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Cordsets Made with Thermo-Trex®500-Plus Silicone Cable, Rated 200°C

Superior first line of defense against high temperatures, oil and most chemicals. All weather flexibility.

Connector Body is Specially Compounded Silicone Rubber

Provides long flex life, resists heat up to 180°C and oil deterioration.

Molded and Keyed Assembly

Provides rapid and secure connect and disconnect. Ensures a water, oil, and dust tight seal.

Solid Brass Contact Pins are Nickel Coated and Gold Plated, Machine Crimped to Conductors

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low-level signal applications.

Unique Stainless Steel Sleeve Over the Gold Plated Female Pins

Prevents pin deformation resulting in loss of signal and electrical continuity. Superior performance in high vibration and continuous motion environments. Probe proof.

Hard Coated Stainless Steel Coupling Nut

Resists corrosion and provides quick and secure assembly.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Thermo-Trex 500-Plus Cordsets

Ratings / Characteristics

  • RoHS Compliant

  • IP68 Rated

  • 600 V

  • Max Conductor Temperature 200°C

  • Operating Temperature: -40° to 180°C

  • UV Resistant

  • Chemical & Oil Resistant

  • Bend Radius of Thermo-Trex® 500-Plus Silicone Cable: (Static) 6x Cable OD, (Dynamic) 8x Cable OD

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

heat-icon

Extreme Temperature

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Description Shielding Type
CH13C83F003S 16 AWG 3 Female Plug, 3 Pole, 3 ft No Shielding
CH13C83F006S 16 AWG 3 Female Plug, 3 Pole, 6 ft. No Shielding
CH13C83F012S 16 AWG 3 Female Plug, 3 Pole, 12 ft. No Shielding
CH13C83F020S 16 AWG 3 Female Plug, 3 Pole, 20 ft. No Shielding
CH14C84F003S 16 AWG 4 Female Plug, 4 Pole, 3 ft. No Shielding
CH14C84F006S 16 AWG 4 Female Plug, 4 Pole, 6 ft. No Shielding
CH14C84F012S 16 AWG 4 Female Plug, 4 Pole, 12 ft. No Shielding
CH14C84F020S 16 AWG 4 Female Plug, 4 Pole, 20 ft. No Shielding
CH15C85F003S 16 AWG 5 Female Plug, 5 Pole, 3 ft. No Shielding
CH15C85F006S 16 AWG 5 Female Plug, 5 Pole, 6 ft. No Shielding
CH15C85F012S 16 AWG 5 Female Plug, 5 Pole, 12 ft. No Shielding
CH15C85F020S 16 AWG 5 Female Plug, 5 Pole, 20 ft. No Shielding
CH23E83F003S 16 AWG 3 M/F Ext. Set, 3 Pole, 3 ft. No Shielding
CH23E83F006S 16 AWG 3 M/F Ext. Set, 3 Pole, 6 ft. No Shielding
CH23E83F012S 16 AWG 3 M/F Ext. Set, 3 Pole, 12 ft. No Shielding
CH23E83F020S 16 AWG 3 M/F Ext. Set, 3 Pole, 20 ft. No Shielding
CH24E84F003S 16 AWG 4 M/F Ext. Set, 4 Pole, 3 ft. No Shielding
CH24E84F006S 16 AWG 4 M/F Ext. Set, 4 Pole, 6 ft. No Shielding
CH24E84F012S 16 AWG 4 M/F Ext. Set, 4 Pole, 12 ft. No Shielding
CH24E84F020S 16 AWG 4 M/F Ext. Set, 4 Pole, 20 ft. No Shielding
CH25E85F003S 16 AWG 5 M/F Ext. Set, 5 Pole, 3 ft. No Shielding
CH25E85F006S 16 AWG 5 M/F Ext. Set, 5 Pole, 6 ft. No Shielding
CH25E85F012S 16 AWG 5 M/F Ext. Set, 5 Pole, 12 ft. No Shielding
CH25E85F020S 16 AWG 5 M/F Ext. Set, 5 Pole, 20 ft. No Shielding
CH13A83F003S 16 AWG 3 Male Plug, 3 Pole, 3ft No Shielding
CH13A83F006S 16 AWG 3 Male Plug, 3 Pole, 6 ft. No Shielding
CH14A84F006S 16 AWG 5 Male Plug, 4 Pole, 6 ft. No Shielding
CH15A85F006S 16 AWG 5 Male Plug, 5 Pole, 6 ft No Shielding
84850 16 AWG 3 3 Pole Female Receptacle, 4ft. No Shielding
84750 16 AWG 4 4 Pole Female Receptacle, 4ft. No Shielding
84650 16 AWG 5 5 Pole Female Receptacle, 4ft. No Shielding
84350 16 AWG 3 3 Pole Male Receptacle, 4ft. No Shielding
84450 16 AWG 4 4 Pole Male Receptacle, 4ft. No Shielding
84550 16 AWG 5 5 Pole Male Receptacle, 4ft. No Shielding
