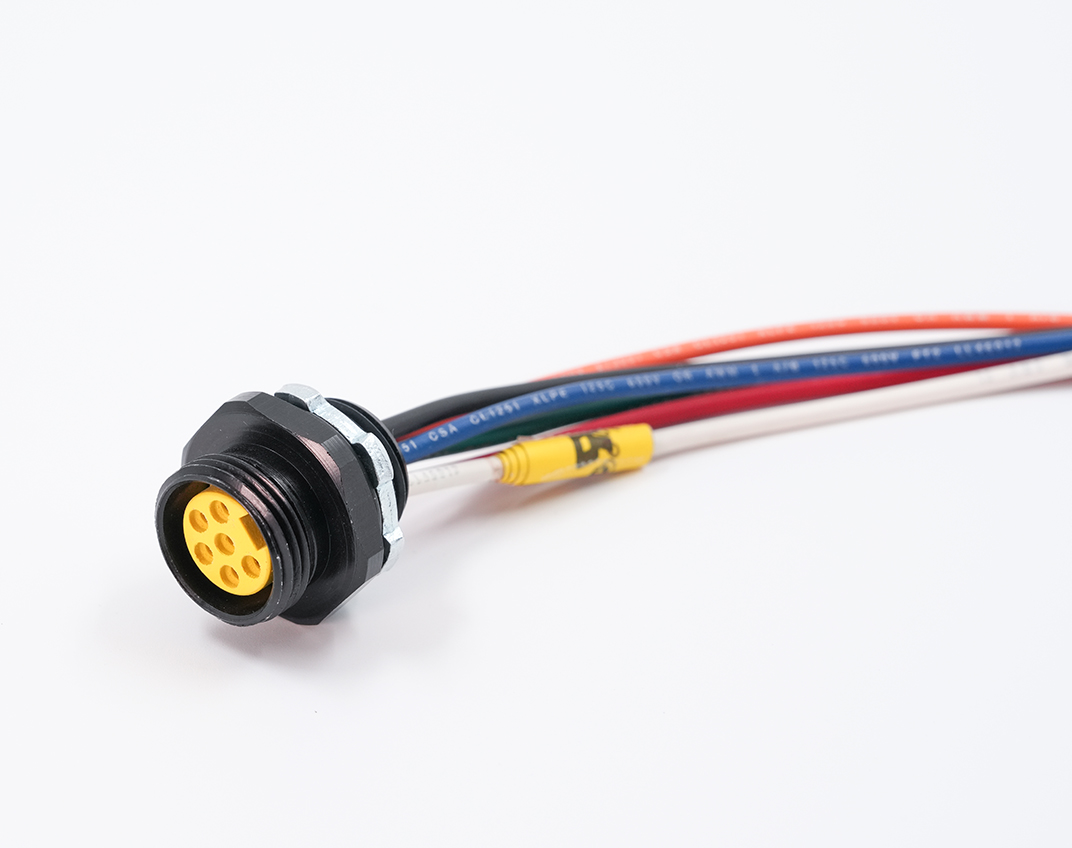

Quick-Connex® 16 AWG Mini Receptacles (2-6 Pole) FEM_Web

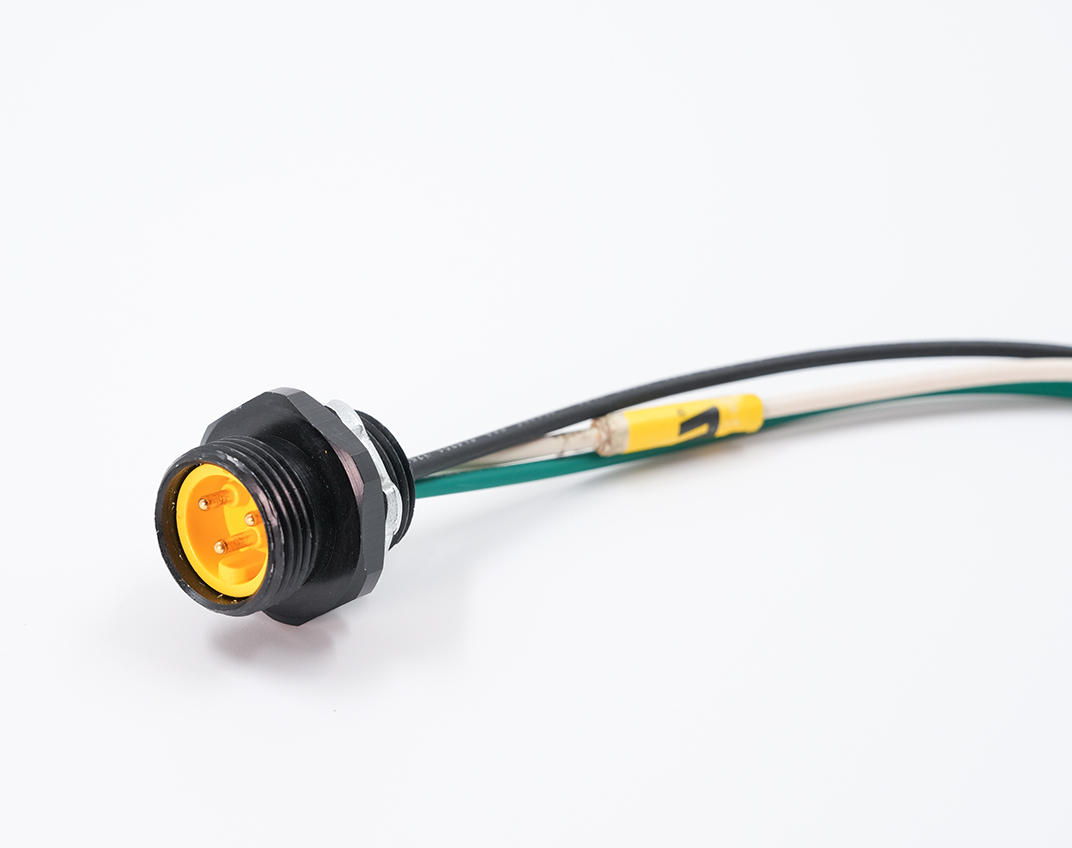

Quick-Connex® 16 AWG Mini Receptacles (2-6 Pole) MALE_Web

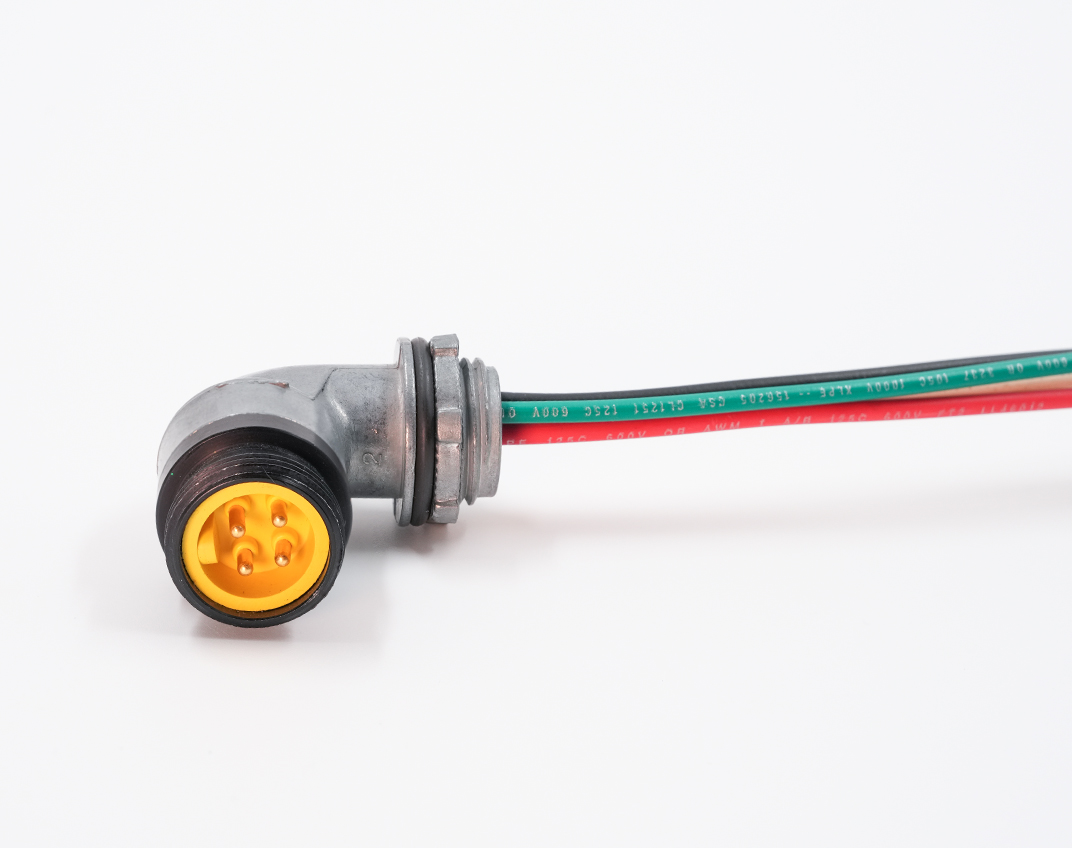

Quick-Connex® 16 AWG Mini Receptacles (2-6 Pole) MALE 90_Web

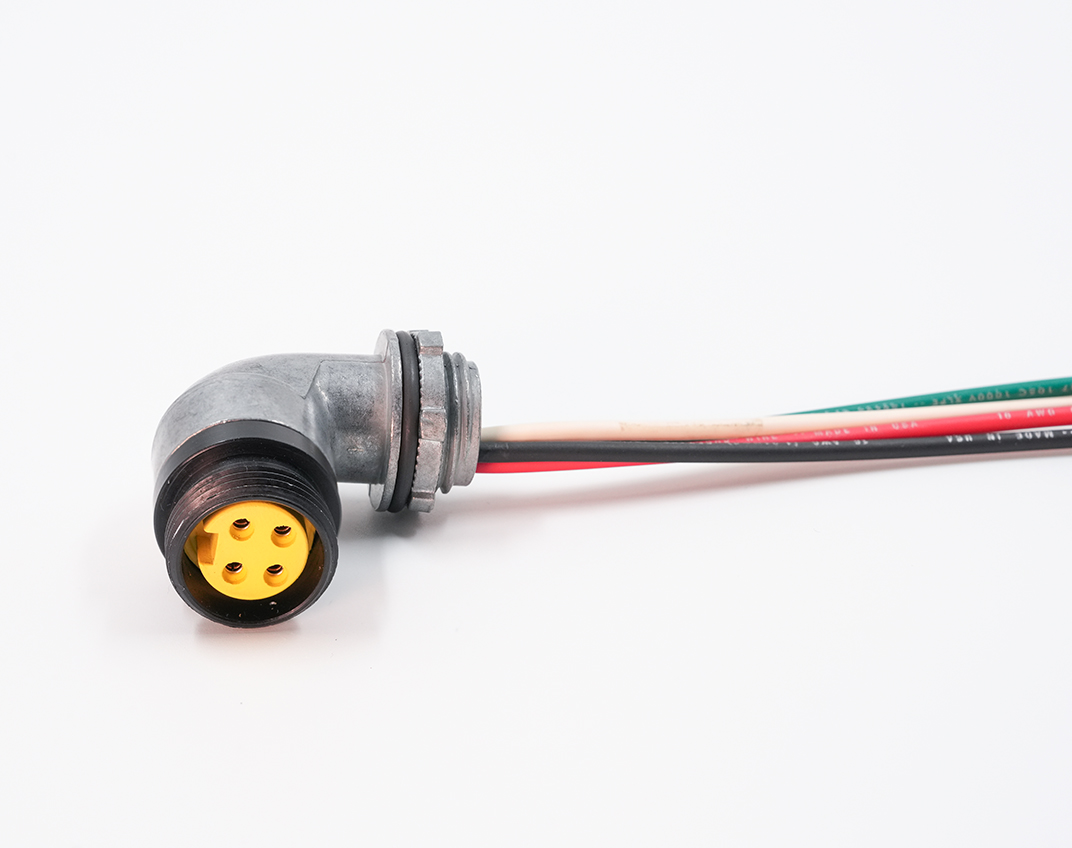

Quick-Connex® 16 AWG Mini Receptacles (2-6 Pole) FEM 90_Web

Quick-Connex® 16 AWG Mini Receptacles (2-6 Pole)

Quick-Connex® 16 AWG Mini Receptacles A size 2-6 Pole are available in female and male straight and 90° back mounted styles. Female receptacles have 4-foot pigtails and male receptacles have 1-foot pigtails. O-Ring and locknut included.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Specially Compounded Thermoplastic Elastomer Receptacle Insert

Provides long flex-life, resists deterioration due to heat and oil exposure.

Hard Coated Anodized Aluminum Receptacle Shell

Resists corrosion and provides quick and secure assembly.

Molded And Keyed Assembly

Provides rapid and secure connection and disconnect. Ensures water, oil, and dust tight seal.

Nickel-Coated And Gold-Plated Solid Brass Contact Pins Machine Crimped To Conductors

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low-level signal applications. 

Unique Stainless-Steel Sleeve Over Gold-Plated Female Pins

Prevents pin deformation resulting in loss of signal and electrical continuity. Superior performance in high vibration and continuous motion environments. Probe proof. 

Fluoroelastomer Sealing O-Ring And Steel Locknut

Seals out oil, chemicals, and other contaminants. Locknut included with each unit.

Extra Long Grounding Pin

Ensures first-in, last-out contact for safety. 

16 Awg Stranded, Tinned Copper Pigtails Insulated With 125°C Cross-Linked Polyethylene

Provide excellent oil and heat resistance.

Mating Dimensions: 7/8”-16 Uns With ½"-14 Npt Mount

Industry standard for A size Mini connectors

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Mini Cordsets

WireCableFinderGuide

16 AWG Quick-Connex Cordsets Part Number Cross-Reference

Ratings / Characteristics

  • UL Recognized

  • cUL

  • RoHS Compliant

  • 600V

  • IP69K Rated

  • Operating Temperature: -20­°C to 105°C

  • Oil and Heat Resistant

Part Numbers

Product No. Description Conductor Size (AWG) Conductor/Pole Count Feet Meters Shielding Type
RL12CPTF004 Female 16 AWG 2 4 1.22 No Shielding
RL12DPTF004 Female 90° 16 AWG 2 4 1.22 No Shielding
RL12APTF001 Male 16 AWG 2 1 0.3 No Shielding
RL12BPTF001 Male 90° 16 AWG 2 1 0.3 No Shielding
RL13CPTF004 Female 16 AWG 3 4 1.22 No Shielding
RL13DPTF004 Female 90° 16 AWG 3 4 1.22 No Shielding
RL13APTF001 Male 16 AWG 3 1 0.3 No Shielding
RL13BPTF001 Male 90° 16 AWG 3 1 0.3 No Shielding
RL14CPTF004 Female 16 AWG 5 4 1.22 No Shielding
RL14DPTF004 Female 90° 16 AWG 5 4 1.22 No Shielding
RL14APTF001 Male 16 AWG 5 1 0.3 No Shielding
RL14BPTF001 Male 90° 16 AWG 5 1 0.3 No Shielding
RL15CPTF004 Female 16 AWG 6 4 1.22 No Shielding
RL15DPTF004 Female 90° 16 AWG 6 4 1.22 No Shielding
RL15APTF001 Male 16 AWG 6 1 0.3 No Shielding
RL15BPTF001 Male 90° 16 AWG 6 1 0.3 No Shielding
