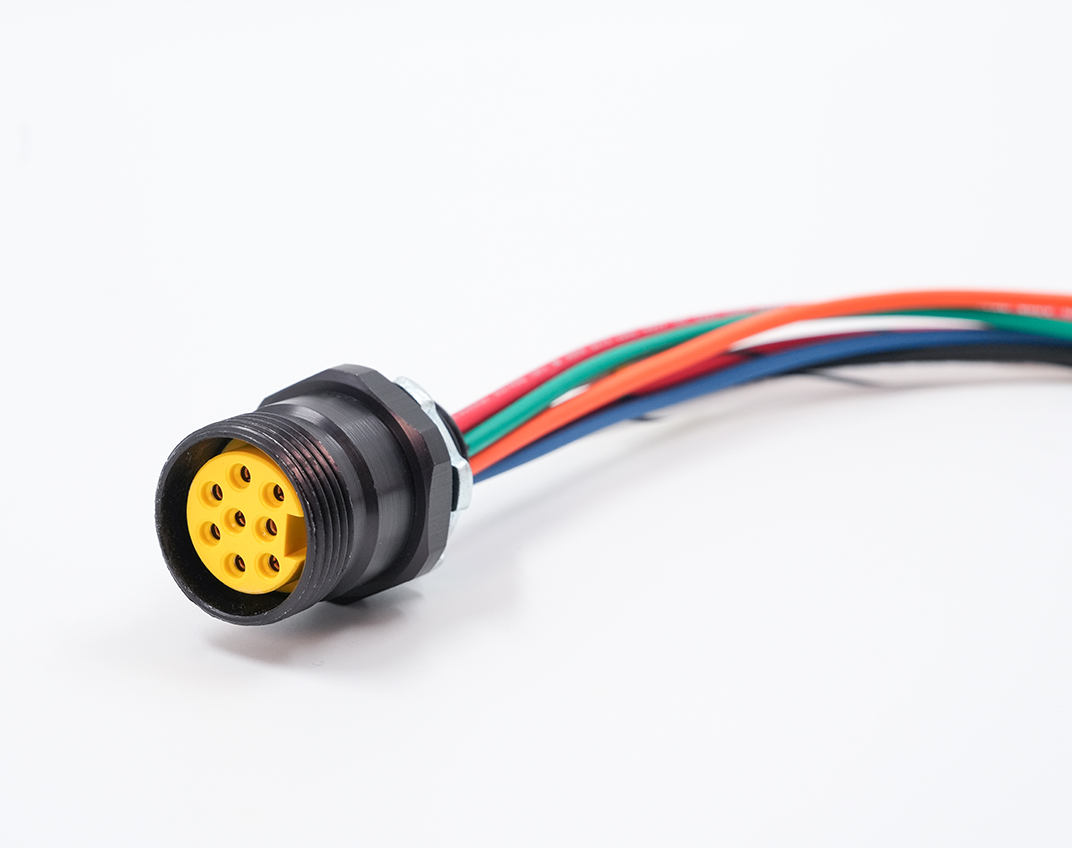

Quick-Connex® 16 AWG Mini Receptacles (6-8 Pole) FEM 3QV_Web

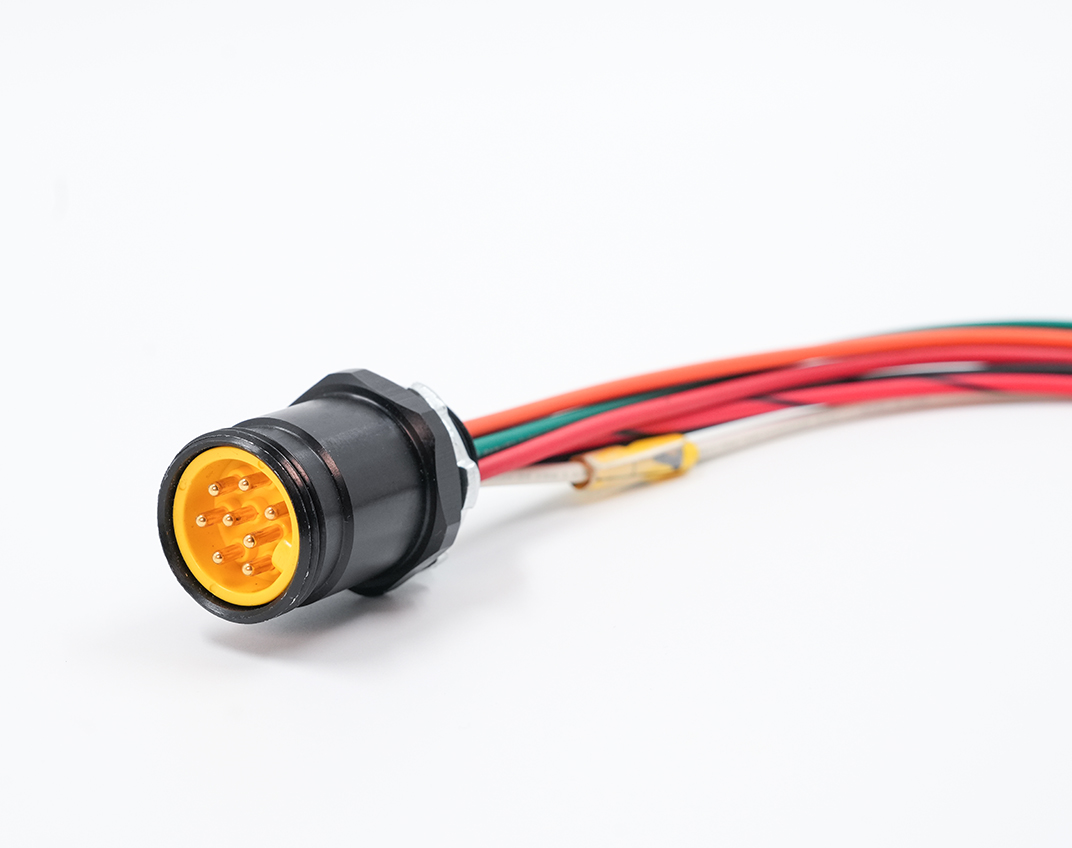

Quick-Connex® 16 AWG Mini Receptacles (6-8 Pole) MALE 3QV_Web

Quick-Connex® 16 AWG Mini Receptacles (6-8 Pole)

Quick-Connex® 16 AWG Mini Receptacles B size 6-8 Pole are available in female and male straight, back mounted styles. Females have 4-foot pigtails and males with 1-foot pigtails. O-Ring and locknut included.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

SPECIALLY COMPOUNDED THERMOPLASTIC ELASTOMER RECEPTACLE INSERT

Provides long flex life, resists deterioration due to heat and oil exposure.

HARD COATED ANODIZED ALUMINUM RECEPTACLE SHELL 

Resists corrosion and provides quick and secure assembly. 

MOLDED AND KEYED ASSEMBLY 

Provides rapid and secure connection and disconnect. Ensures water, oil, and dust tight seal. 

NICKEL-COATED AND GOLD-PLATED SOLID BRASS CONTACT PINS MACHINE CRIMPED TO CONDUCTORS 

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low-level signal applications. 

UNIQUE STAINLESS-STEEL SLEEVE OVER THE GOLD-PLATED FEMALE PINS 

Prevents pin deformation resulting in loss of signal and electrical continuity. Superior performance in high vibration and continuous motion environments. Probe proof. 

FLUOROELASTOMER SEALING O-RING AND STEEL LOCKNUT

Seals out oil, chemicals and other contaminants. Locknut included with each unit.

EXTRA LONG GROUNDING PIN 

Ensures first-in, last-out contact for safety. 

16 AWG STRANDED, TINNED COPPER PIGTAILS INSULATED WITH 125°C CROSS-LINKED POLYETHYLENE

Provides excellent oil and heat resistance.

MATING DIMENSIONS: 1”-16 UNS WITH ½"-14 NPT MOUNT

Industry standard for B size Mini connectors.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Mini Cordsets

WireCableFinderGuide

16 AWG Quick-Connex Cordsets Part Number Cross-Reference

Ratings / Characteristics

  • UL Recognized

  • cUL

  • RoHS Compliant

  • 600V

  • IP69K Rated

  • Operating Temperature: -20­°C to 105°C

  • Oil and Heat Resistant

Part Numbers

Part No. 6 Pole Conductor Size (AWG) Conductor/Pole Count Feet Meters Description Shielding Type
RM16CPTF004 16 AWG 6 4 1.22 Female No Shielding
RM16APTF001 16 AWG 6 1 0.3 Male No Shielding
RM17CPTF004 16 AWG 7 4 1.22 Female No Shielding
RM17APTF001 16 AWG 7 1 0.3 Male No Shielding
RM18CPTF004 16 AWG 8 4 1.22 Female No Shielding
RM18APTF001 16 AWG 8 1 0.3 Male No Shielding
