Quick-Connex™ 16 AWG Mini Receptacles (9, 10 & 12 Pole)

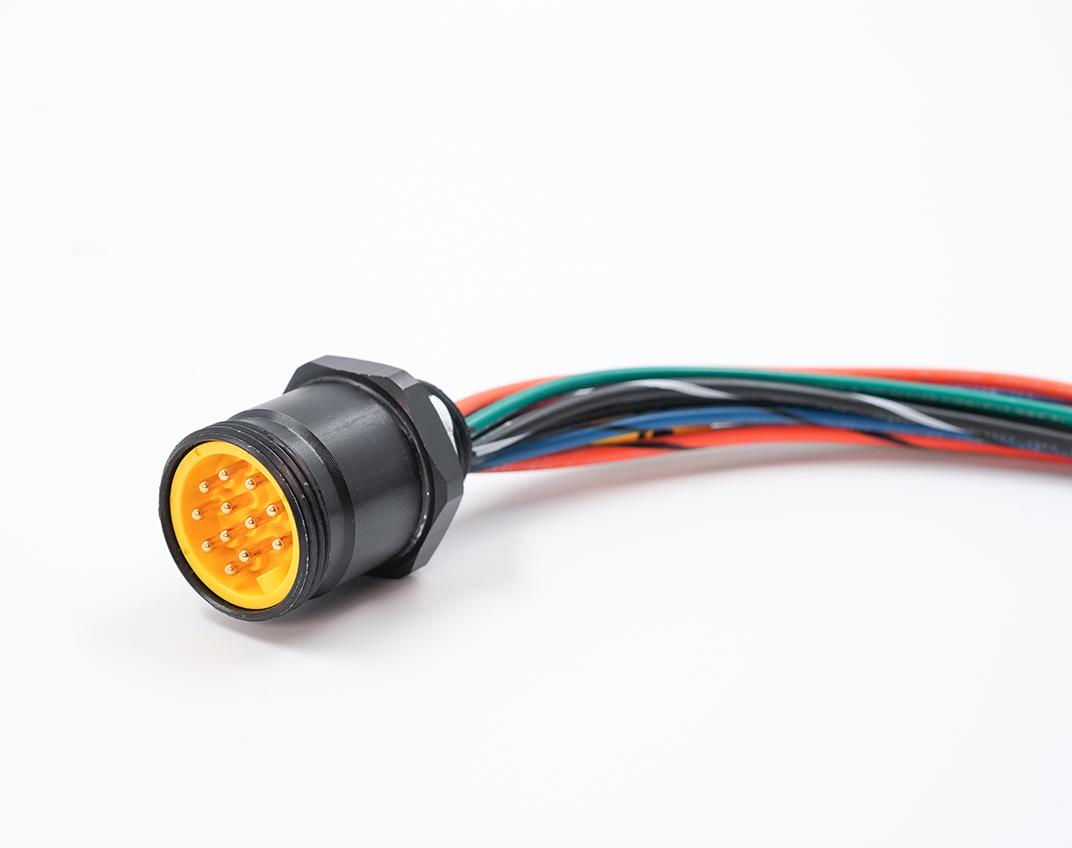

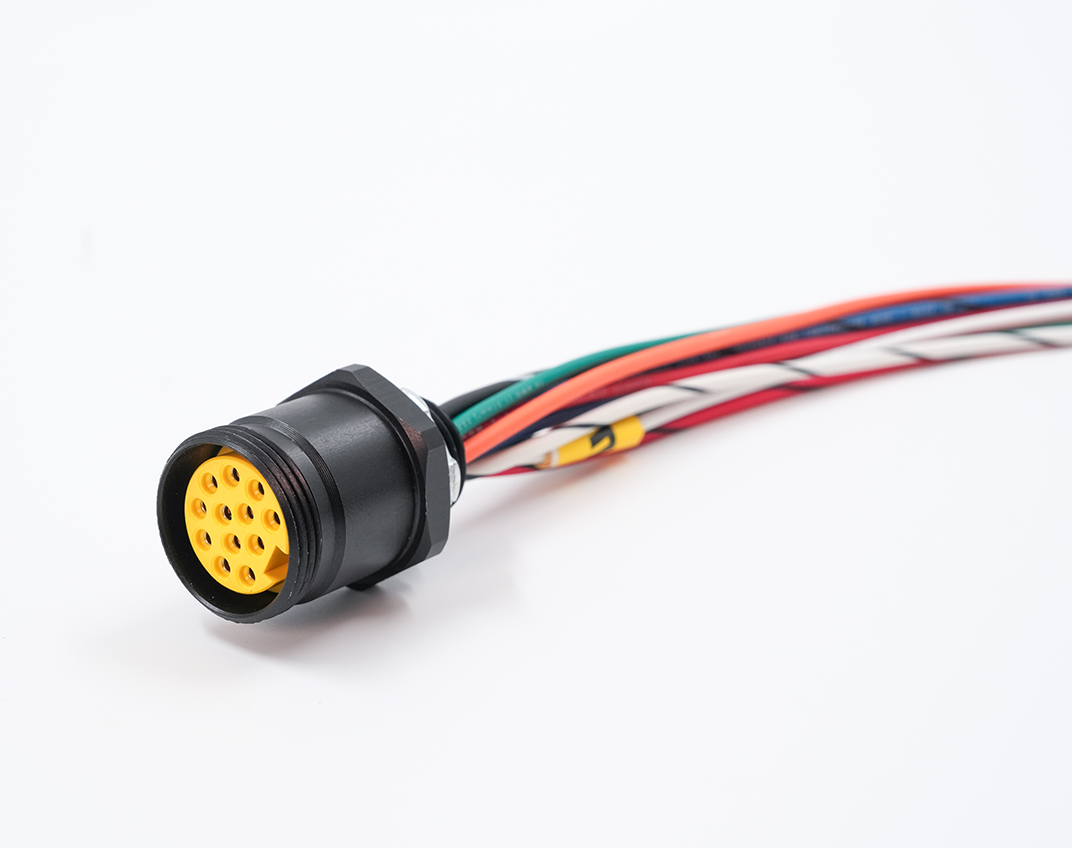

Quick-Connex™ 16 AWG Mini Receptacles (9, 10 & 12 Pole) receptacles are available in female and male straight, back mounted styles. Females have 4 foot pigtails and males with 1 foot pigtails. O-Ring and locknut included.

Request a Quote Download Spec Sheet

RECEPTACLE INSERTS ARE SPECIALLY COMPOUNDED, THERMOPLASTIC ELASTOMER

Provides long flex life, resists heat and oil deterioration.

MOLDED AND KEYED ASSEMBLY

Provides rapid and secure connection and disconnect. Ensures a water, oil, and dust tight seal.

HARD COATED MIL SPEC. ANODIZED ALUMINUM RECEPTACLE SHELL

Resists corrosion, provides quick and secure assembly.

SOLID BRASS CONTACT PINS ARE NICKEL COATED AND GOLD PLATED, MACHINE CRIMPED TO CONDUCTORS

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low level signal applications.

UNIQUE STAINLESS STEEL SLEEVE OVER THE GOLD PLATED FEMALE PINS

Prevents pin deformation resulting in loss of signal and electrical continuity. Superior performance in high vibration and continuous motion environments. Probe proof.

EXTRA LONG GROUNDING PIN

Ensures first-in, last-out contact for safety.

FLUOROELASTOMER SEALING O-RING AND LOCKNUT

Seals out oil, chemicals and other contaminants. Locknut included with each unit.

16 AWG STRANDED, TINNED COPPER PIGTAILS INSULATED WITH 125°C CROSS LINKED POLYETHYLENE

Provides excellent oil and heat resistance

Product Overview

View Spec Sheet

Build Your Own Mini Cordsets

Read Guide

16 AWG Quick-Connex Cordsets Part Number Cross-Reference

View Part Table

UL Recognized
cUL
IP69K Rated
RoHS Compliant
600 V
Max Conductor Temperature 90°C

Part No.	Conductor Size (AWG)	Conductor/Pole Count	Feet	Meters	Description	Shielding Type
RN19CPTF004	16 AWG	9	4	1.22	Female	No Shielding
RN19APTF001	16 AWG	9	1	0.3	Male	No Shielding
RN110CPTF004	16 AWG	10	4	1.22	Female	No Shielding
RN110APTF001	16 AWG	10	1	0.3	Male	No Shielding
RN112CPTF004	16 AWG	12	4	1.22	Female	No Shielding
RN112APTF001	16 AWG	12	1	0.3	Male	No Shielding
