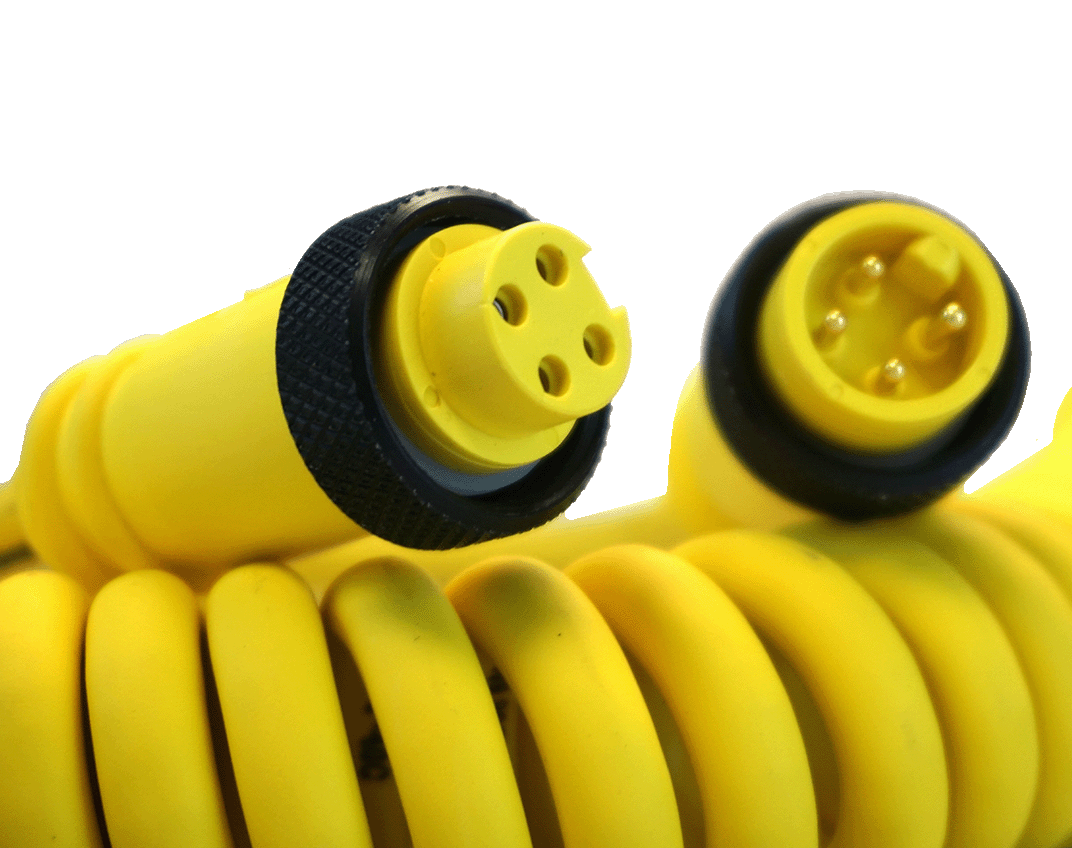

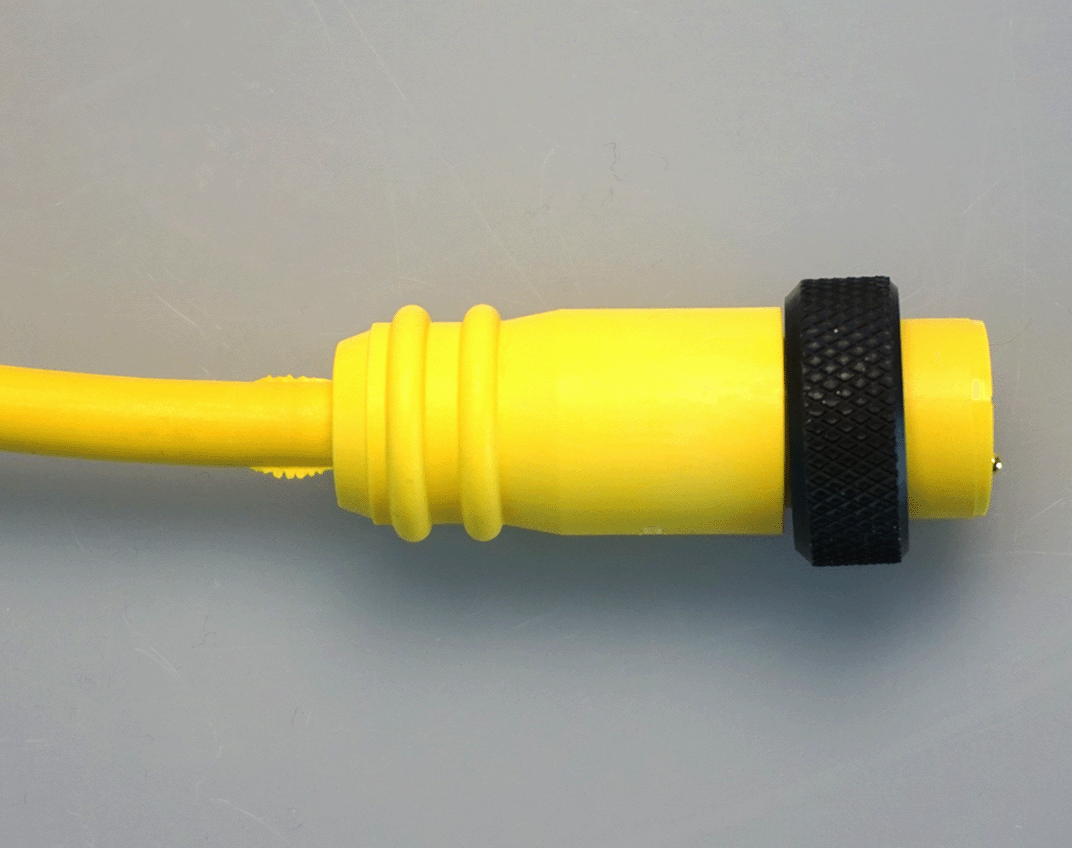

Quick-Connex® 16 & 18 AWG Retractile Mini Cordsets

Cordsets made with TPC's Trex-Onics® High-Flex Ultra-Coil Retractiles offers defense against tearing, abrasion, impact, oil, ozone and most chemicals. There is a 5X multiple between a retracted and extended coil, so a 1 foot retracted coil will extend out 5 feet and a 3 foot retracted coil will extend out 15 feet. Built to last, the Mini polyurethane head design includes solid brass contacts that are nickel coated and gold plated for high/low voltage and low-level signal applications and a black anodized machined aluminum knurled coupling nut for quick and secure assembly.

Features

ALL POLYURETHANE HEAD DESIGN

Chemical, abrasion and impact resistant construction, designed to protect the pins and sleeves from damage.

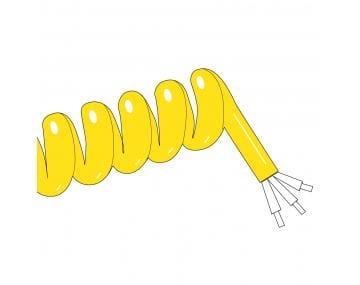

PLUG SETS MADE WITH TREX-ONICS® HIGH FLEX ULTRA-COIL RETRACTILES

Superior first line defense against tearing, abrasion, impact, oil ozone and most chemicals. Extreme all-weather flexible 16 and 18 AWG cables.

HARD COATED BLACK ANODIZED ALUMINUM KNURLED COUPLING NUT

Resists corrosion. Provides quick and secure assembly.

SOLID BRASS CONTACTS ARE NICKEL COATED AND GOLD PLATED

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low level signal applications.

EXTRA LONG GROUND PIN

Ensures first-in, last-out contact for safety in AC applications.

PIN ORIENTATIONS MEET INDUSTRY STANDARD MINI DESIGN

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • 16 AWG Mini – 600 V

  • 18 AWG AC/DC Micro – 300 V

  • Operating Temperature Range -40°C to 90°C

  • Max Conductor Temperature 90°C

  • Male/Female Configurations

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Description Ampacity Coil Length Retracted
feet
Coil Length Extended
feet
Pigtail Length
inches
Shielding Type
60601 16 AWG 3 3 Pole Mini Male/Female 13 1 5 12 No Shielding
60603 16 AWG 3 3 Pole Mini Male/Female 13 3 15 12 No Shielding
60621 16 AWG 4 4 Pole Mini Male/Female 10 1 5 12 No Shielding
60623 16 AWG 4 4 Pole Mini Male/Female 10 3 15 12 No Shielding
60891 18 AWG 12 12 Pole Mini Male/Female 6 1 5 12 No Shielding
60893 18 AWG 12 12 Pole Mini Male/Female 6 3 15 12 No Shielding
