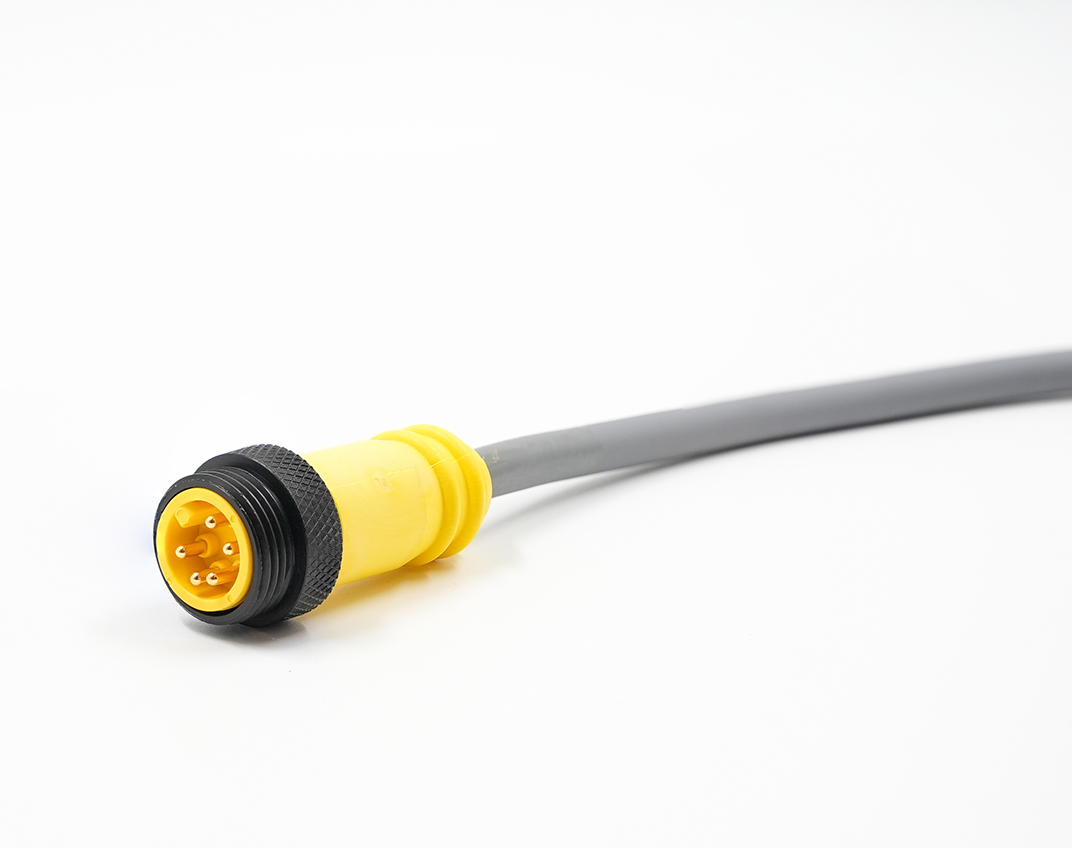

Quick-Connex® Mini DeviceNetTM Flex-Net Cordsets Male_Web

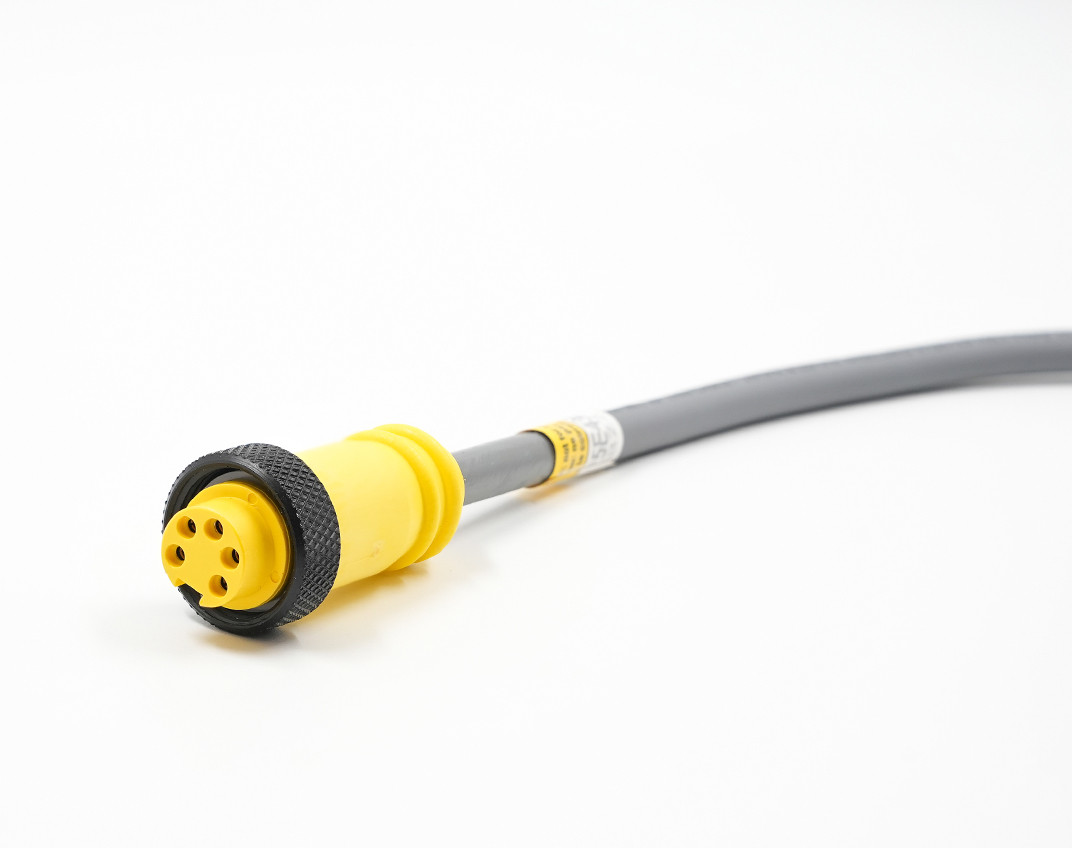

Quick-Connex® Mini DeviceNetTM Flex-Net Cordsets Female_Web

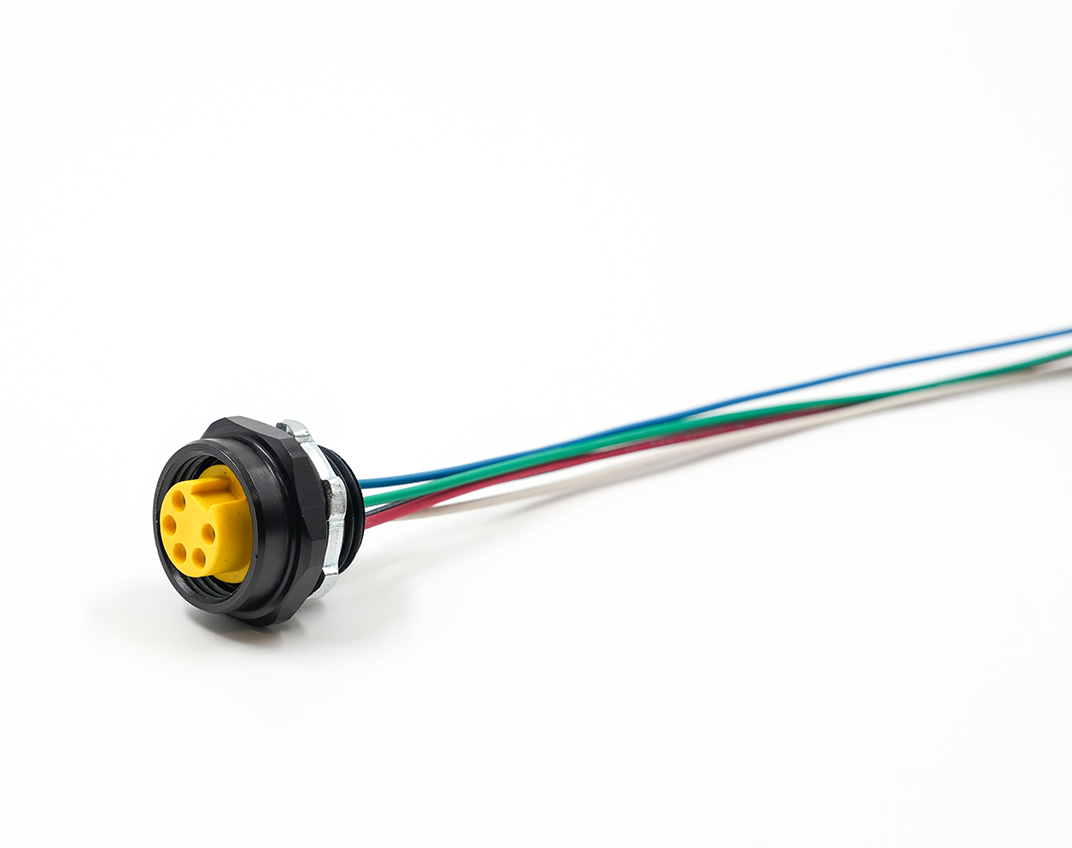

Quick-Connex® Mini DeviceNetTM Flex-Net Cordsets Female Receptacle_Web

Quick-Connex® Mini DeviceNet™ Flex-Net Cordsets

Quick-Connex® Mini DeviceNet™ Flex-Net Cordsets take all the advantages of our Flex-Net High Performance Cable with its heavy-duty jacket and tinned copper braid shield construction and add a molded Mini connector permanently bonded to the cable providing a superior water and chemical resistant seal. Our Mini connectors construction ensures electronic and electrical integrity over repeated insertions and extractions.

Intended for use in the DeviceNet Bus System in applications requiring Mini style Male and Female connectors, both single and double ended. Applications include proximity, photo electric and limit switches.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

CORDSETS MADE WITH TREX-ONICS® DEVICE NET™ FLEX-NET HIGH-PERFORMANCE CABLE DESIGNED TO MEET THE REQUIREMENTS OF ODVA™

Fine stranding for reduced conductor fatigue, tinned copper braid shield for protection against EM and RF interference. Specially compounded TPU jacket offers first line defense against abrasion, oil and chemicals.

FULLY MOLDED CONNECTOR BODY

Provides long flex life, resists heat and oil deterioration.

MOLDED AND KEYED ASSEMBLY

Provides rapid and secure connect and disconnect. Ensures a water, oil, and dust tight seal.

SOLID BRASS CONTACT PINS ARE NICKEL COATED AND GOLD PLATED, MACHINE CRIMPED TO CONDUCTORS

Provides long life, resists corrosion, easy positive engagement.

UNIQUE STAINLESS STEEL SLEEVE OVER THE GOLD PLATED FEMALE PINS

Prevents pin deformation resulting in loss of signal and electrical continuity. Superior performance in high vibration and continuous motion environments. Probe proof.

BLACK ANODIZED ALUMINUM COUPLING NUT

Resists corrosion, provides quick and secure assembly.

COUPLING NUT 7/8”-16” UNS

Industry standard for A size Mini connectors

SPECIALLY COMPOUNDED THERMOPLASTIC ELASTOMER RECEPTACLE INSERT

Provides long flex-life, resists deterioration due to heat and oil exposure.

HARD COATED ANODIZED ALUMINUM RECEPTACLE SHELL 

Resists corrosion and provides quick and secure assembly.

RUBBER SEALING O-RING AND STEEL LOCKNUT

Seals out oil, chemicals, and other contaminants. Locknut included with each unit.

16 AWG STRANDED, TINNED COPPER PVC INSULATED PIGTAILS

Provide excellent oil and heat resistance.

MATING DIMENSIONS: 7/8”-16 UNS WITH ½"-14 NPT MOUNT

Industry standard for A size Mini connectors

Resources

Specsheets

Product Overview

CustomCable

Build Your Own DeviceNet Flex-Net Cable Assemblies

Ratings / Characteristics

  • ODVA conformity™

  • RoHS Compliant

  • 300V

  • Max Conductor Temperature 70°C

  • IP68 Rated

  • Operating Temperature: -20° to 70°C

  • Bend Radius of Trex-Onics® DeviceNet™ Flex-Net High Performance Cable: (Static) 6x Cable OD, (Dynamic) 8x Cable OD

  • UV Resistant

  • All Weather Flexibility

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Standard Product High Performance Product Conductor Size (AWG) Conductor/Pole Count feet meters Description Cable Construction Shielding Type
60933 CP25E44M001 14 AWG 5 1 3.3 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60933 CP25E44M001 18 AWG 5 1 3.3 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60936 CP25E44M002 14 AWG 5 2 6.6 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60936 CP25E44M002 18 AWG 5 2 6.6 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60939 CP25E44M003 14 AWG 5 3 9.8 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60939 CP25E44M003 18 AWG 5 3 9.8 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60932 CP25E44M004 14 AWG 5 4 13.1 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60932 CP25E44M004 18 AWG 5 4 13.1 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60930 CP25E44M006 14 AWG 5 6 19.7 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60930 CP25E44M006 18 AWG 5 6 19.7 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60934 CP25E44M012 14 AWG 5 12 39.3 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60934 CP25E44M012 18 AWG 5 12 39.3 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60937 CP25E44M018 14 AWG 5 18 59 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60937 CP25E44M018 18 AWG 5 18 59 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60938 CP25E44M024 14 AWG 5 24 78.7 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60938 CP25E44M024 18 AWG 5 24 78.7 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60931 CP25E44M030 14 AWG 5 30 98.4 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60931 CP25E44M030 18 AWG 5 30 98.4 Male/Female Thick Overall Shielded, Individually Shielded Pairs
60503 CP15A44M001 14 AWG 5 1 3.3 Male Thick Overall Shielded, Individually Shielded Pairs
60503 CP15A44M001 18 AWG 5 1 3.3 Male Thick Overall Shielded, Individually Shielded Pairs
60506 CP15A44M002 14 AWG 5 2 6.6 Male Thick Overall Shielded, Individually Shielded Pairs
60506 CP15A44M002 18 AWG 5 2 6.6 Male Thick Overall Shielded, Individually Shielded Pairs
60509 CP15A44M003 14 AWG 5 3 9.8 Male Thick Overall Shielded, Individually Shielded Pairs
60509 CP15A44M003 18 AWG 5 3 9.8 Male Thick Overall Shielded, Individually Shielded Pairs
60512 CP15A44M004 14 AWG 5 4 13.1 Male Thick Overall Shielded, Individually Shielded Pairs
60512 CP15A44M004 18 AWG 5 4 13.1 Male Thick Overall Shielded, Individually Shielded Pairs
60520 CP15A44M006 14 AWG 5 6 19.7 Male Thick Overall Shielded, Individually Shielded Pairs
60520 CP15A44M006 18 AWG 5 6 19.7 Male Thick Overall Shielded, Individually Shielded Pairs
60540 CP15A44M012 14 AWG 5 12 39.3 Male Thick Overall Shielded, Individually Shielded Pairs
60540 CP15A44M012 18 AWG 5 12 39.3 Male Thick Overall Shielded, Individually Shielded Pairs
60550 CP15A44M015 14 AWG 5 15 49.2 Male Thick Overall Shielded, Individually Shielded Pairs
60550 CP15A44M015 18 AWG 5 15 49.2 Male Thick Overall Shielded, Individually Shielded Pairs
60560 CP15A44M018 14 AWG 5 18 59 Male Thick Overall Shielded, Individually Shielded Pairs
60560 CP15A44M018 18 AWG 5 18 59 Male Thick Overall Shielded, Individually Shielded Pairs
60580 CP15A44M024 14 AWG 5 24 78.7 Male Thick Overall Shielded, Individually Shielded Pairs
60580 CP15A44M024 18 AWG 5 24 78.7 Male Thick Overall Shielded, Individually Shielded Pairs
60510 CP15A44M030 14 AWG 5 30 98.4 Male Thick Overall Shielded, Individually Shielded Pairs
60510 CP15A44M030 18 AWG 5 30 98.4 Male Thick Overall Shielded, Individually Shielded Pairs
60303 CP15C44M001 14 AWG 5 1 3.3 Female Thick Overall Shielded, Individually Shielded Pairs
60303 CP15C44M001 18 AWG 5 1 3.3 Female Thick Overall Shielded, Individually Shielded Pairs
60306 CP15C44M002 14 AWG 5 2 6.6 Female Thick Overall Shielded, Individually Shielded Pairs
60306 CP15C44M002 18 AWG 5 2 6.6 Female Thick Overall Shielded, Individually Shielded Pairs
60309 CP15C44M003 14 AWG 5 3 9.8 Female Thick Overall Shielded, Individually Shielded Pairs
60309 CP15C44M003 18 AWG 5 3 9.8 Female Thick Overall Shielded, Individually Shielded Pairs
60312 CP15C44M004 14 AWG 5 4 13.1 Female Thick Overall Shielded, Individually Shielded Pairs
60312 CP15C44M004 18 AWG 5 4 13.1 Female Thick Overall Shielded, Individually Shielded Pairs
60320 CP15C44M006 14 AWG 5 6 19.7 Female Thick Overall Shielded, Individually Shielded Pairs
60320 CP15C44M006 18 AWG 5 6 19.7 Female Thick Overall Shielded, Individually Shielded Pairs
60340 CP15C44M012 14 AWG 5 12 39.3 Female Thick Overall Shielded, Individually Shielded Pairs
60340 CP15C44M012 18 AWG 5 12 39.3 Female Thick Overall Shielded, Individually Shielded Pairs
60350 CP15C44M018 14 AWG 5 18 59 Female Thick Overall Shielded, Individually Shielded Pairs
60350 CP15C44M018 18 AWG 5 18 59 Female Thick Overall Shielded, Individually Shielded Pairs
60360 CP15C44M024 14 AWG 5 24 78.7 Female Thick Overall Shielded, Individually Shielded Pairs
60360 CP15C44M024 18 AWG 5 24 78.7 Female Thick Overall Shielded, Individually Shielded Pairs
60310 CP15C44M030 14 AWG 5 30 98.4 Female Thick Overall Shielded, Individually Shielded Pairs
60310 CP15C44M030 18 AWG 5 30 98.4 Female Thick Overall Shielded, Individually Shielded Pairs
- CP25E43M001 22 AWG 5 1 3.3 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M001 24 AWG 5 1 3.3 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M002 22 AWG 5 2 6.6 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M002 24 AWG 5 2 6.6 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M003 22 AWG 5 3 9.8 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M003 24 AWG 5 3 9.8 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M004 22 AWG 5 4 13.1 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M004 24 AWG 5 1 13.1 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M006 22 AWG 5 6 19.7 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M006 24 AWG 5 6 19.7 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M012 22 AWG 5 12 39.4 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M012 24 AWG 5 12 39.4 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M015 22 AWG 5 15 49.2 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M015 24 AWG 5 15 49.2 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M018 22 AWG 5 18 59 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M018 24 AWG 5 18 59 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M024 22 AWG 5 24 78.7 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M024 24 AWG 5 24 78.7 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M030 22 AWG 5 30 98.4 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP25E43M030 24 AWG 5 30 98.4 Male/Female Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M001 22 AWG 5 1 3.3 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M001 24 AWG 5 1 3.3 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M002 22 AWG 5 2 6.6 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M002 24 AWG 5 2 6.6 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M003 22 AWG 5 3 9.8 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M003 24 AWG 5 3 9.8 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M004 22 AWG 5 4 13.1 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M004 24 AWG 5 4 13.1 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M006 22 AWG 5 6 19.7 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M006 24 AWG 5 6 19.7 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M012 22 AWG 5 12 39.4 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M012 24 AWG 5 12 39.4 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M015 22 AWG 5 15 49.2 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M015 24 AWG 5 15 49.2 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M018 22 AWG 5 18 59 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M018 24 AWG 5 18 59 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M024 22 AWG 5 24 78.7 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M024 24 AWG 5 24 78.7 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M030 22 AWG 5 30 98.4 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15A43M030 24 AWG 5 30 98.4 Male Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M001 22 AWG 5 1 3.3 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M001 24 AWG 5 1 3.3 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M002 22 AWG 5 2 6.6 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M002 24 AWG 5 2 6.6 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M003 22 AWG 5 3 9.8 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M003 24 AWG 5 3 9.8 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M004 22 AWG 5 4 13.1 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M004 24 AWG 5 7 13.1 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M006 22 AWG 5 6 19.7 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M006 24 AWG 5 6 19.7 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M012 22 AWG 5 12 39.4 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M012 24 AWG 5 12 39.4 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M015 22 AWG 5 15 49.2 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M015 24 AWG 5 15 49.2 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M018 22 AWG 5 18 59 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M018 24 AWG 5 1 59 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M024 22 AWG 5 24 78.7 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M024 24 AWG 5 24 78.7 Female Thin Overall Shielded, Individually Shielded Pairs
- CP15C43M030 22 AWG 5 30 98.4 Female Thin Overall Shielded, Individually Shielded Pairs
CP15C43M030 24 AWG 5 30 98.4 Female Thin Overall Shielded, Individually Shielded Pairs
