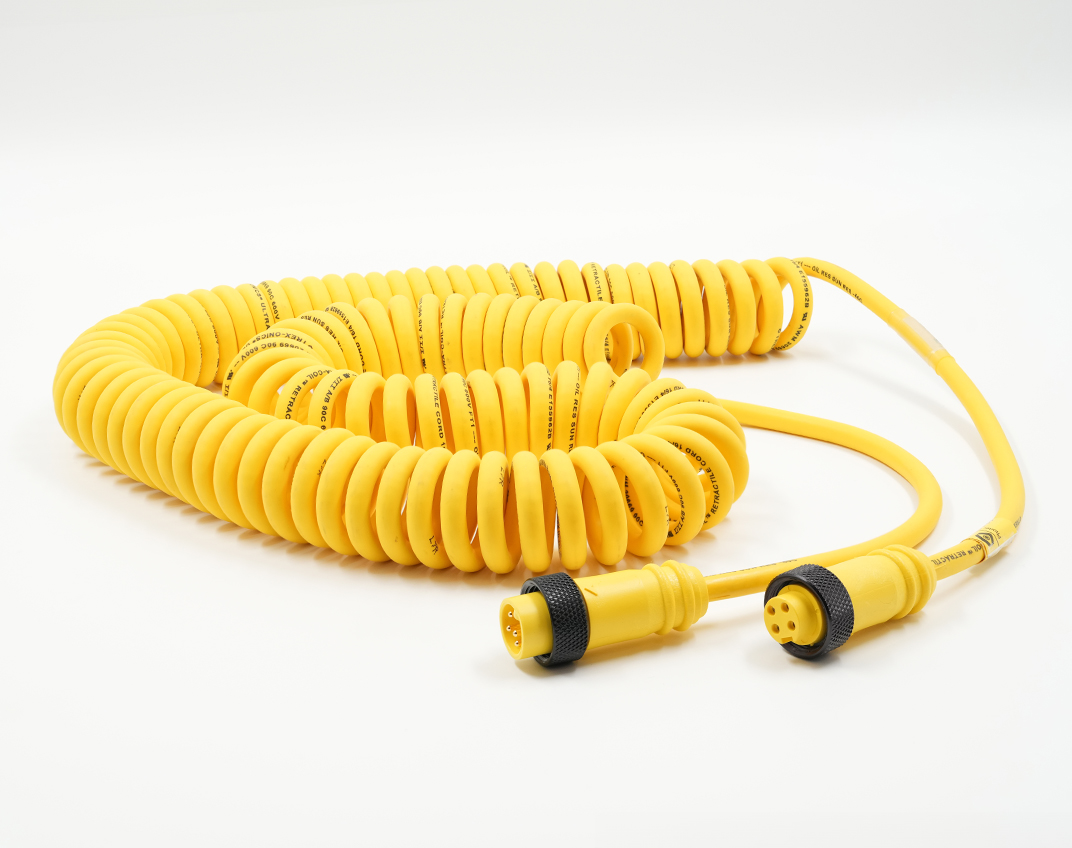

Quick-Connex® 16 AWG Retractile Mini Cordsets 3_Web

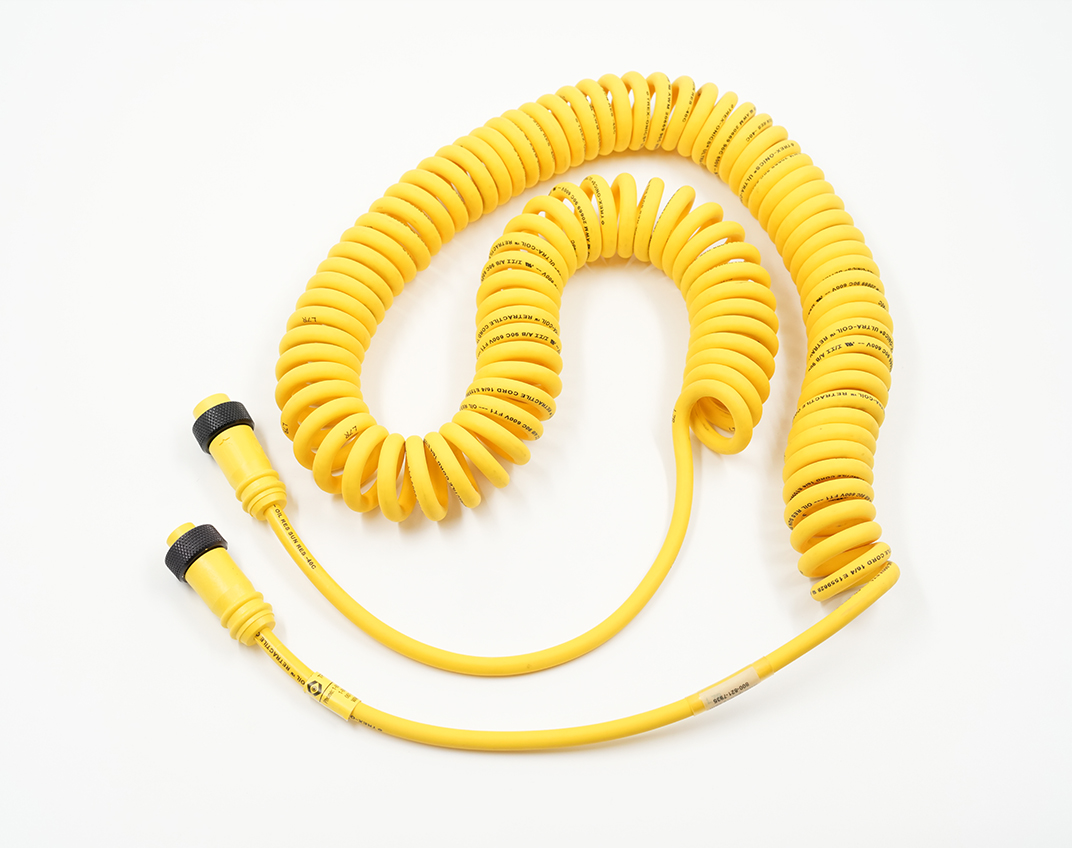

Quick-Connex® 16 AWG Retractile Mini Cordsets 4_Web

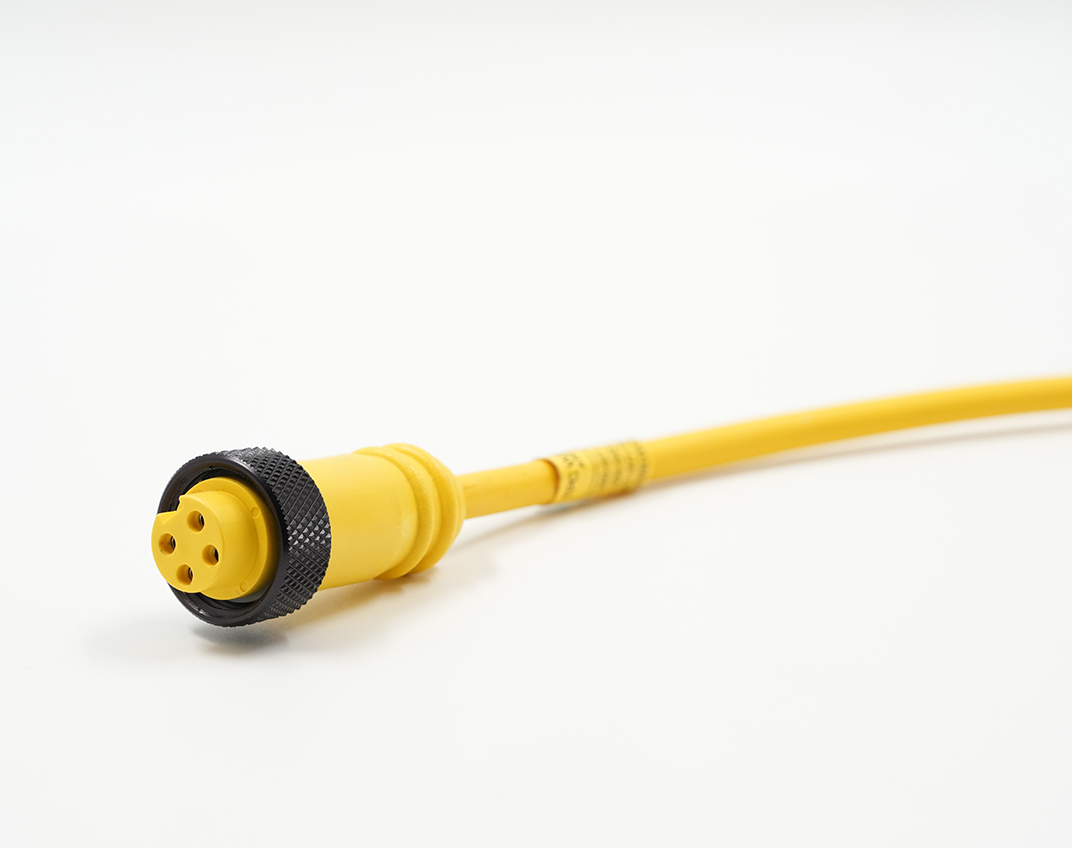

Quick-Connex® 16 AWG Retractile Mini Cordsets Female_Web
Quick-Connex® 16 AWG Retractile Mini Cordsets Male_Web

Quick-Connex® Mini and Micro Retractile Cordsets

Quick-Connex® Mini and Micro Retractile cordsets are made with Trex-Onics® High-Flex Ultra-Coil Retractile cord, first line defense against tearing, abrasion, impact, oil, ozone and most chemicals. Built to last with a unique design that provides a very durable yet lightweight retractile cord while preserving superior coil retention and snappiness.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

CORDSETS MADE WITH TREX-ONICS® HIGH-FLEX ULTRA-COIL RETRACTILE CORD

Superior first line defense against tearing, abrasion, impact, oil ozone and most chemicals. Extreme all-weather flexible 16 and 18 AWG cables.

CONNECTOR BODY IS SPECIALLY COMPOUNDED, THERMOPLASTIC ELASTOMER

Provides long flex life, resists heat and oil deterioration.

MOLDED AND KEYED ASSEMBLY

Provides rapid and secure connect and disconnect. Ensures a water, oil, and dust tight seal.

SOLID BRASS CONTACT PINS ARE NICKEL COATED AND GOLD PLATED, MACHINE CRIMPED TO CONDUCTORS

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low-level signal applications.

SOLID BRASS CONTACT PINS ARE NICKEL COATED AND GOLD PLATED, MACHINE CRIMPED TO CONDUCTORS

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low-level signal applications.

HARD COATED ANODIZED ALUMINUM KNURLED COUPLING NUT

Resists corrosion, provides quick and secure assembly 

QUICK-CONNEX® COMPATIBLE DESIGN

Uniquely designed to add TPC’s fully molded Quick-Connex® Mini or Micro connectors in 3, 4 and 12 conductor configurations.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • Mini – 600V

  • AC/DC Micro – 300V

  • Max Conductor Temperature 90°C

  • Operating Temperature Range -20°C to 80°C

  • Sunlight Resistant

  • Oil Resistant

  • Trex-Onics® High-Flex Ultra Coil Retractile Cord has a 5X multiple between a retracted and extended coil, so a 1-foot retracted coil will extend out 5 feet and a 3-foot retracted coil will extend out 15 feet.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Description Ampacity Coil Length Retracted
feet		 Coil Length Extended
feet		 Pigtail Length
inches		 Shielding Type
60601 16 AWG 3 3 Pole Mini Male/Female 13 1 5 12 No Shielding
60603 16 AWG 3 3 Pole Mini Male/Female 13 3 15 12 No Shielding
60621 16 AWG 4 4 Pole Mini Male/Female 10 1 5 12 No Shielding
60623 16 AWG 4 4 Pole Mini Male/Female 10 3 15 12 No Shielding
60891 18 AWG 12 12 Pole Mini Male/Female 6 1 5 12 No Shielding
60893 18 AWG 12 12 Pole Mini Male/Female 6 3 15 12 No Shielding
