Quick-Connex® Mini Wiring System Accessories

Quick-Connex® Mini Wiring System Accessories include 16 AWG 90° adaptor and three-way receptacles. All are made of heavy-duty construction to withstand the harshest of environments.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

CONNECTOR BODY IS SPECIALLY COMPOUNDED, THERMOPLASTIC ELASTOMER

Provides long flex life, resists heat and oil deterioration.

COPPER ALLOY CONTACT PINS ARE SILVER COATED

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low-level signal applications.

ANODIZED ALUMINUM COUPLING NUT

Resists corrosion, provides quick and secure assembly.

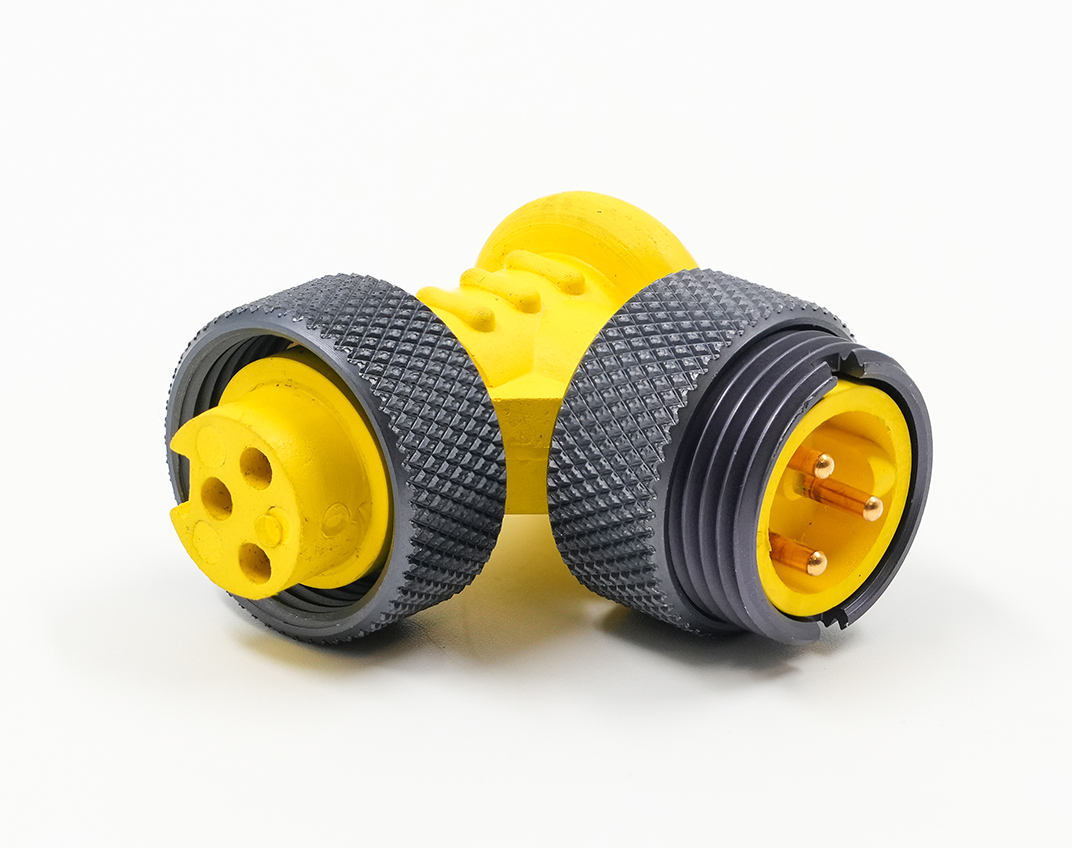

MINI 90° ADAPTER

Allows easy conversion from straight receptacle to a 90° connection. Available in 2, 3, 4 and 5 pole configurations.

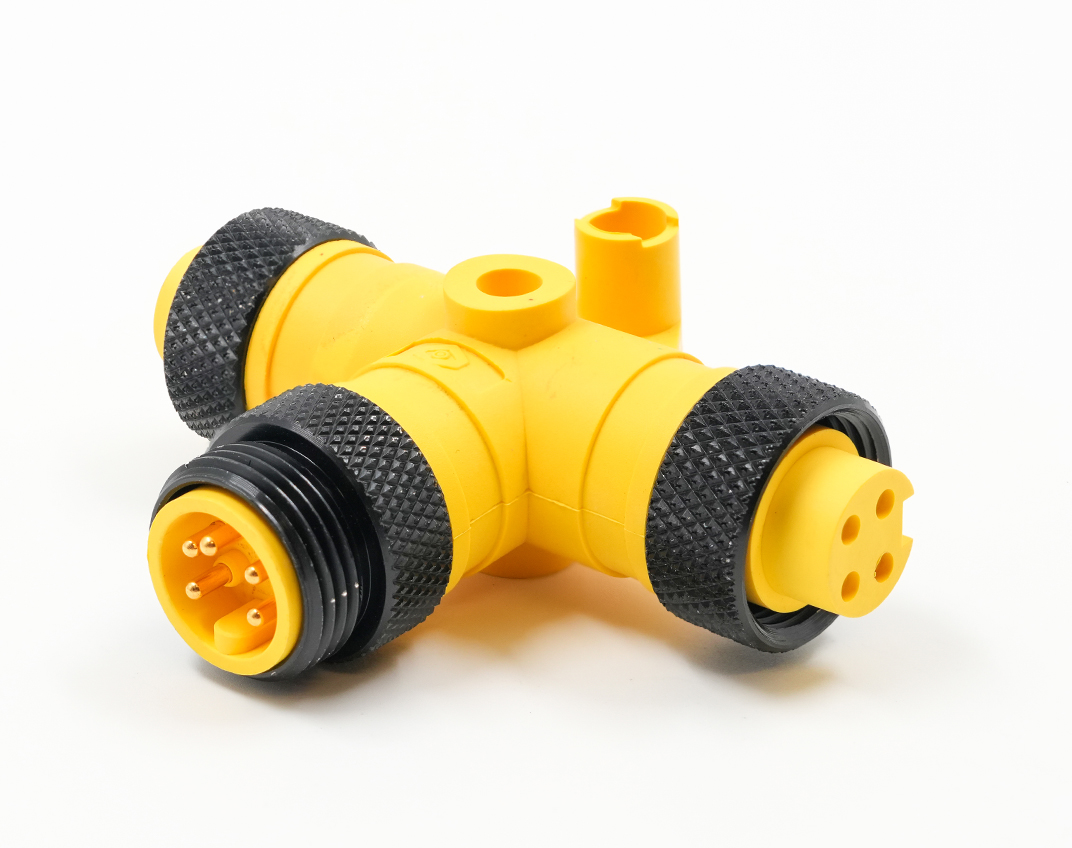

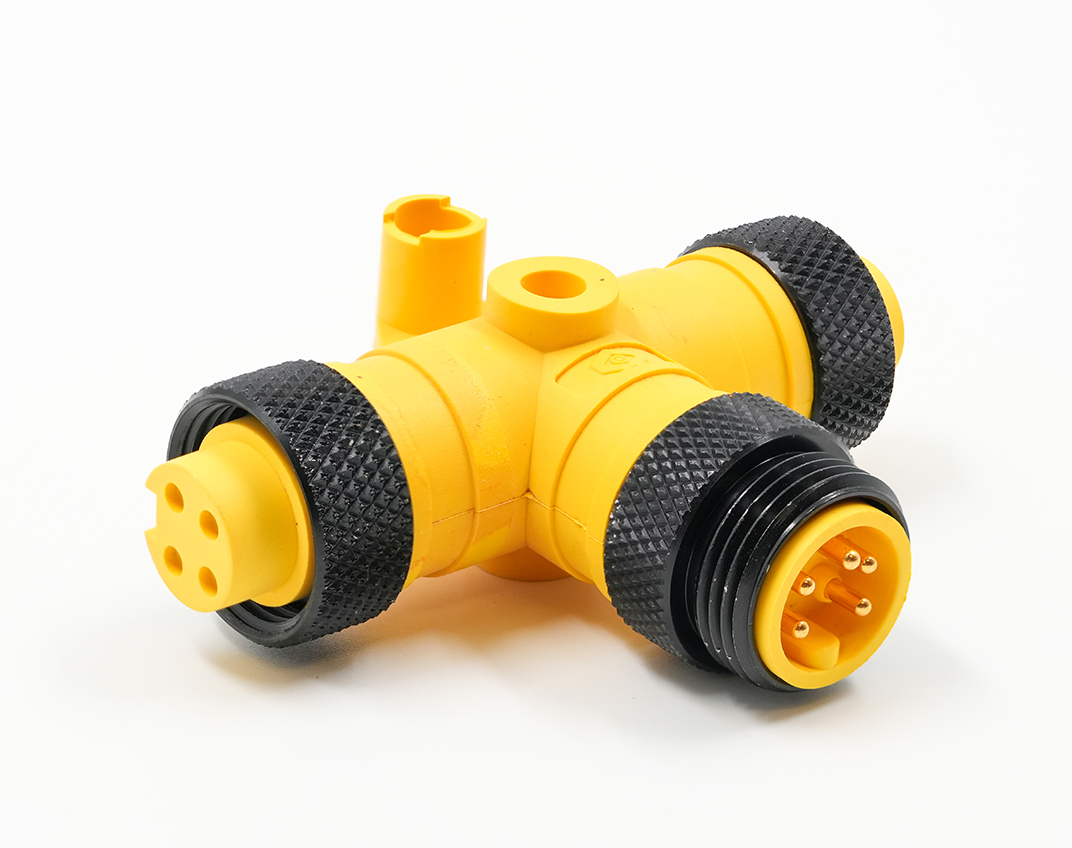

THREE-WAY RECEPTACLES

Allows for easy wiring consolidation. Connects with standard 16 AWG cord sets.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • 600V

  • Max Conductor Temperature 90°C

  • 8 Amps

  • Operating Temperature: -20° to 90°C

  • Oil Resistant

  • Shock Resistant

Part Numbers

Part No. Conductor/Pole Count Description Ampacity Shielding Type
84011 2 2 Pole 90° Adapter 13 No Shielding
84013 3 3 Pole 90° Adapter 13 No Shielding

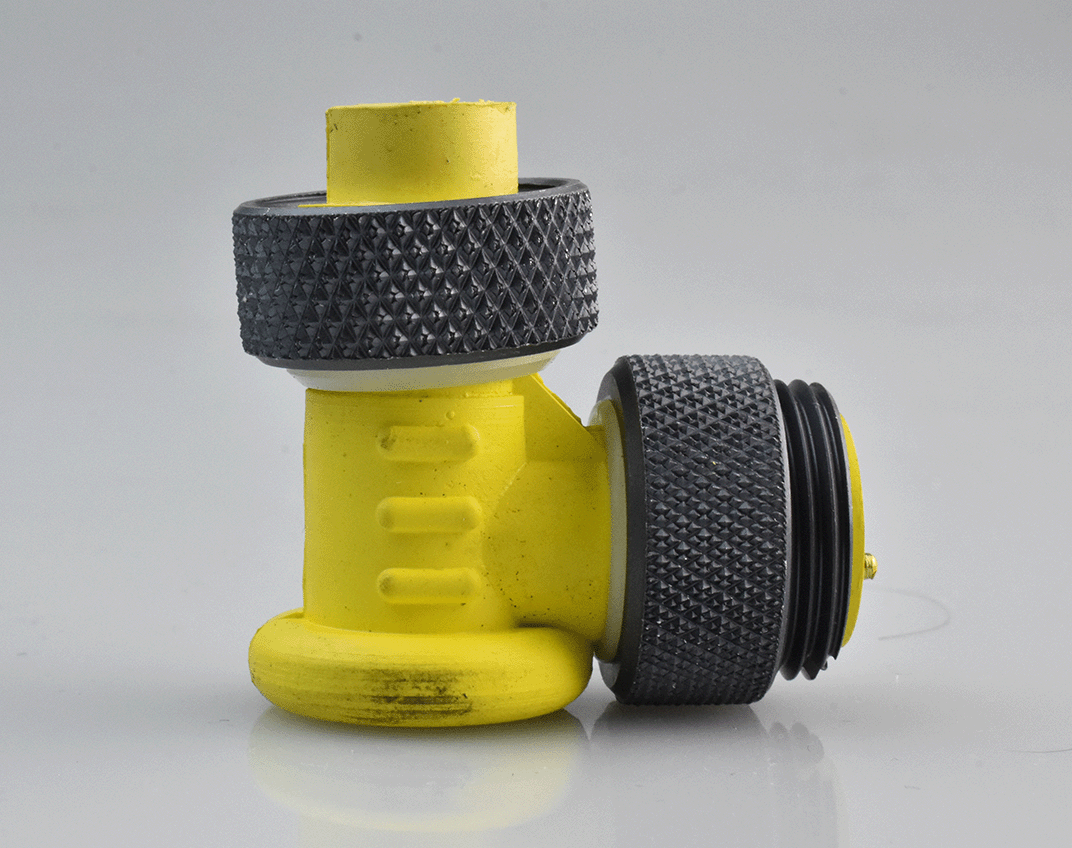

84014 4 4 Pole 90° Adapter 8 No Shielding
84015 5 5 Pole 90° Adapter 8 No Shielding

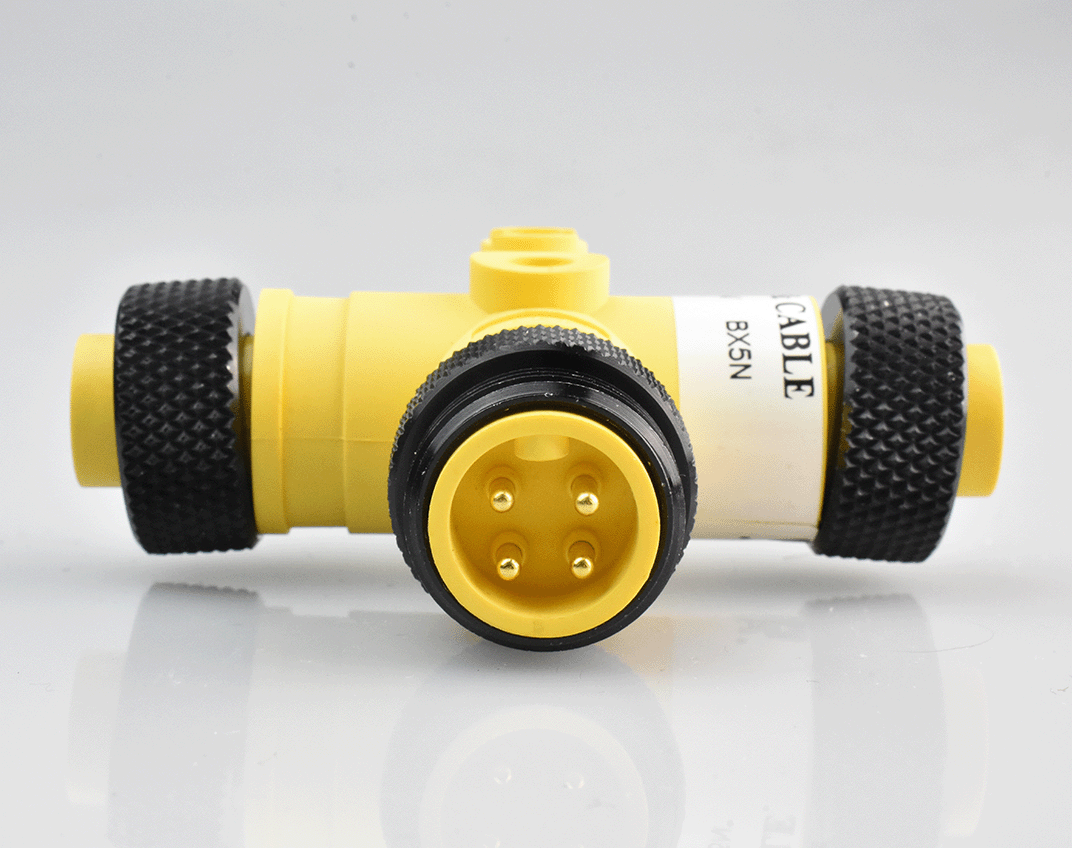

84023 3/3/4 Three-way Receptacle 3/3/4 Three-way Receptacle 10 No Shielding
84024 4/4/5 Three-way Receptacle 4/4/5 Three-way Receptacle 8 No Shielding
- - Shorting Plug Engineered to order No Shielding
