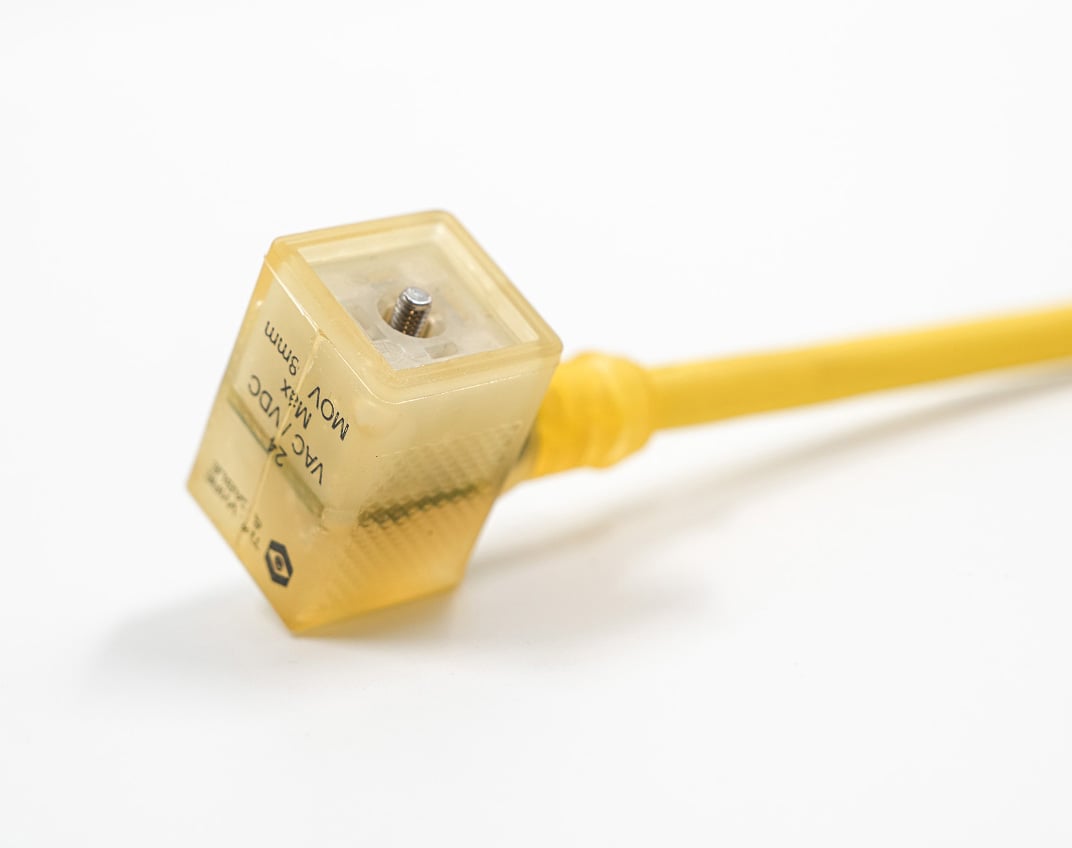

Quick-Connex® Sub-Micro DIN Form "C" 8mm

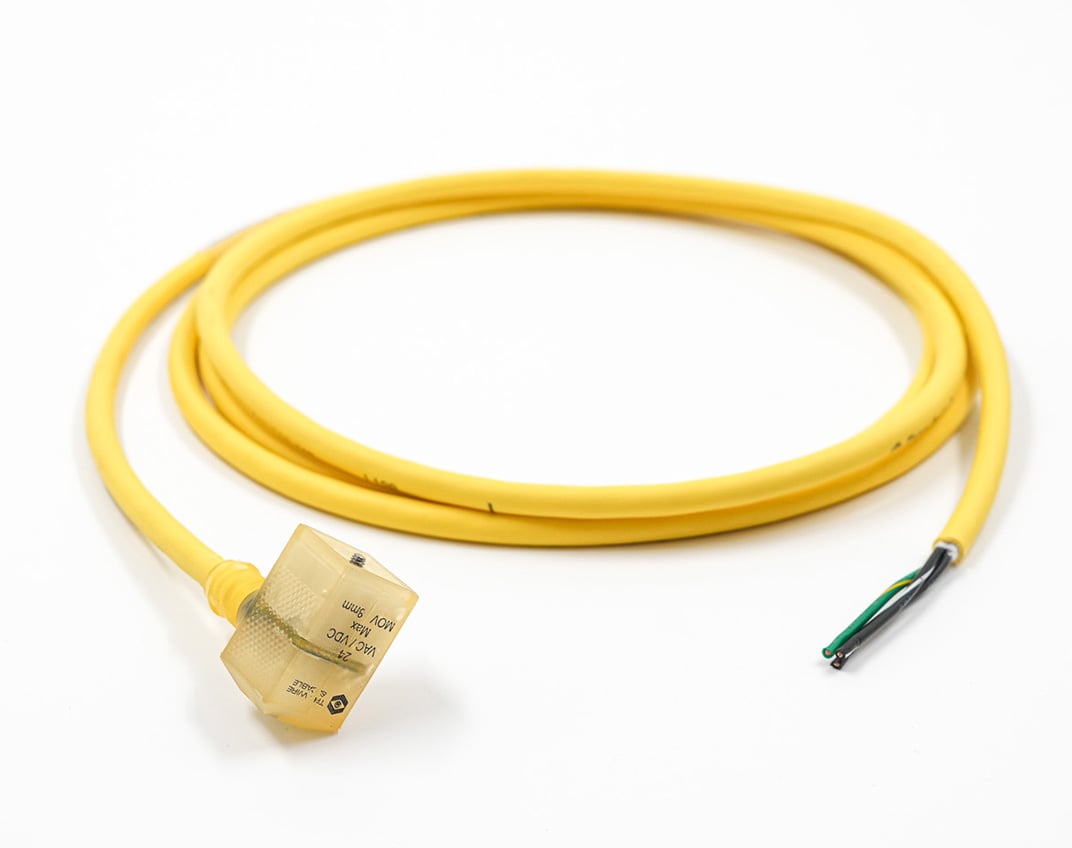

Quick-Connex® DIN connector assemblies are available with a Blunt Cut or with a Mini or Micro plug secured to our Trex-Onics® 18 AWG cable which provides a superior first line of defense against tearing, abrasion, impact, oil, ozone and most chemicals. The polyurethane shell seals without the need for a gasket and provides protection up to IP67/NEMA 6.


Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Cordsets made with Trex-Onics® 18AWG/3 Conductor Cable with Heavy-Duty Yellow Polyurethane Jacket

Provides superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Fully Molded, Rugged Polyurethane Shell Design

Completely seals the unit preventing dust, fluids, and contaminants from damaging the internal wiring while providing superior strain relief. Resists damage from impact, abrasion, oil, and most chemicals.

Captive Center Screw

Allows for easy installation and will not fall out, preventing loss.

Surge Suppression

Built into each DIN to protect against electrical spikes or surges.

Super Bright LED Status Light

Incorporated into translucent DIN body, protecting LED from damage. Easily visible from multiple angles.

Self-Sealing Gasket-Free Unit

Polyurethane shell seals without the need for a gasket, providing protection up to IP67/NEMA 6 from dust, moisture and oil.

Optional All Polyurethane Micro or Mini-Head Design

Ensures 100% bonding between jacket and connector head while resisting damage from impact, abrasion, oil, and most chemicals.

Resources

Specsheets

Product Overview

TPC-Video Resource Graphic

Amphenol TPC Wire & Cable- DIN Connector Assemblies

Specsheets

DIN Connector Assemblies

CustomCable

Build Your Own DIN Connector Cord Sets

Ratings / Characteristics

  • RoHS Compliant

  • Connection Voltage: 6 – 24 V AC/DC or 120 V AC@ 50/60 Hz

  • Rated Voltage Max: 250V AC 50/60 Hz 300V DC

  • IP67/NEMA 6 Rated

  • Nominal Current: 6 Amps

  • Operating Temperature Range -25°C to 80°C

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

BLUNT CUT PART NO. DESCRIPTION Conductor Size (AWG) Conductor/Pole Count CORD FEET Meters Shielding Type
D04134XXAM002 120V, LED, Suppression, Ground at Cable Outlet 18 AWG 3 6.56 2 No Shielding
D04134XXAM003 120V, LED, Suppression, Ground at Cable Outlet 18 AWG 3 9.84 3 No Shielding
D04134XXAM004 120V, LED, Suppression, Ground at Cable Outlet 18 AWG 3 13.12 4 No Shielding
D04134XXAM005 120V, LED, Suppression, Ground at Cable Outlet 18 AWG 3 16.4 5 No Shielding
D04134XXAM006 120V, LED, Suppression, Ground at Cable Outlet 18 AWG 3 19.68 6 No Shielding
D04234XXAM002 24V, LED, Suppression, Ground at Cable Outlet 18 AWG 3 6.56 2 No Shielding
D04234XXAM003 24V, LED, Suppression, Ground at Cable Outlet 18 AWG 3 9.84 3 No Shielding
D04234XXAM004 24V, LED, Suppression, Ground at Cable Outlet 18 AWG 3 13.12 4 No Shielding
D04234XXAM005 24V, LED, Suppression, Ground at Cable Outlet 18 AWG 3 16.4 5 No Shielding
D04234XXAM006 24V, LED, Suppression, Ground at Cable Outlet 18 AWG 3 19.68 6 No Shielding

Request a Quote
