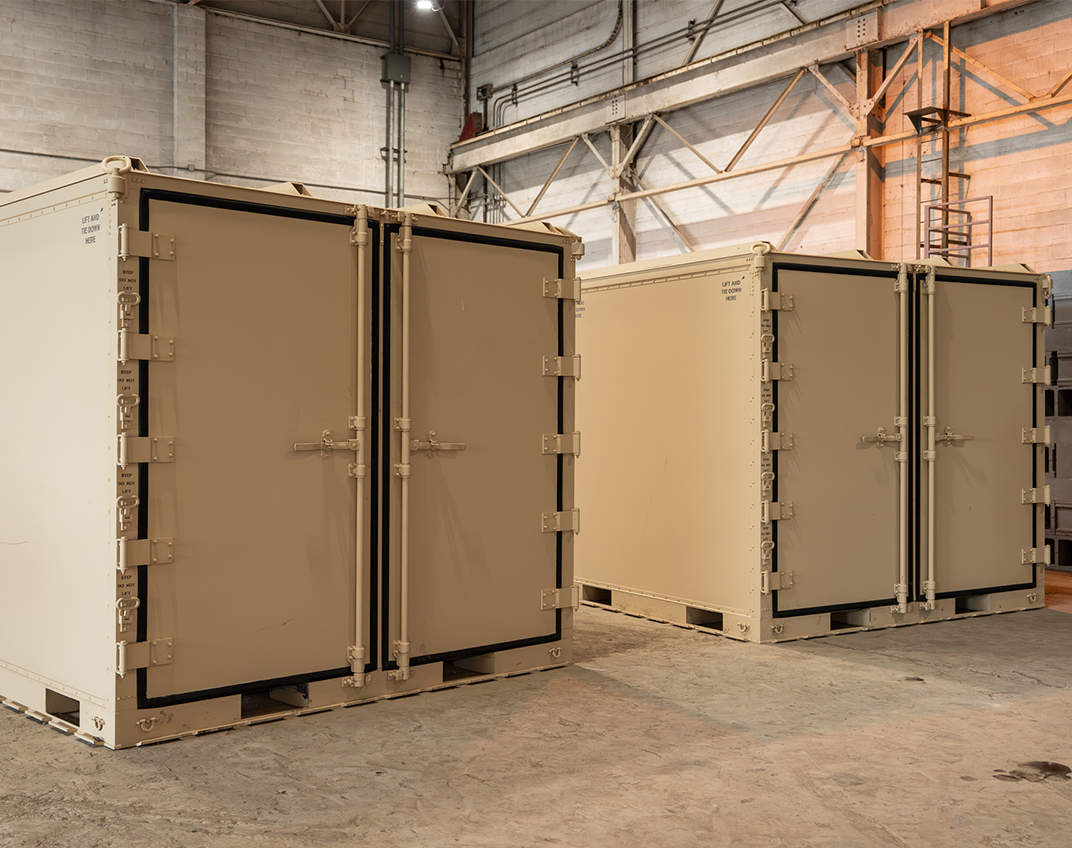

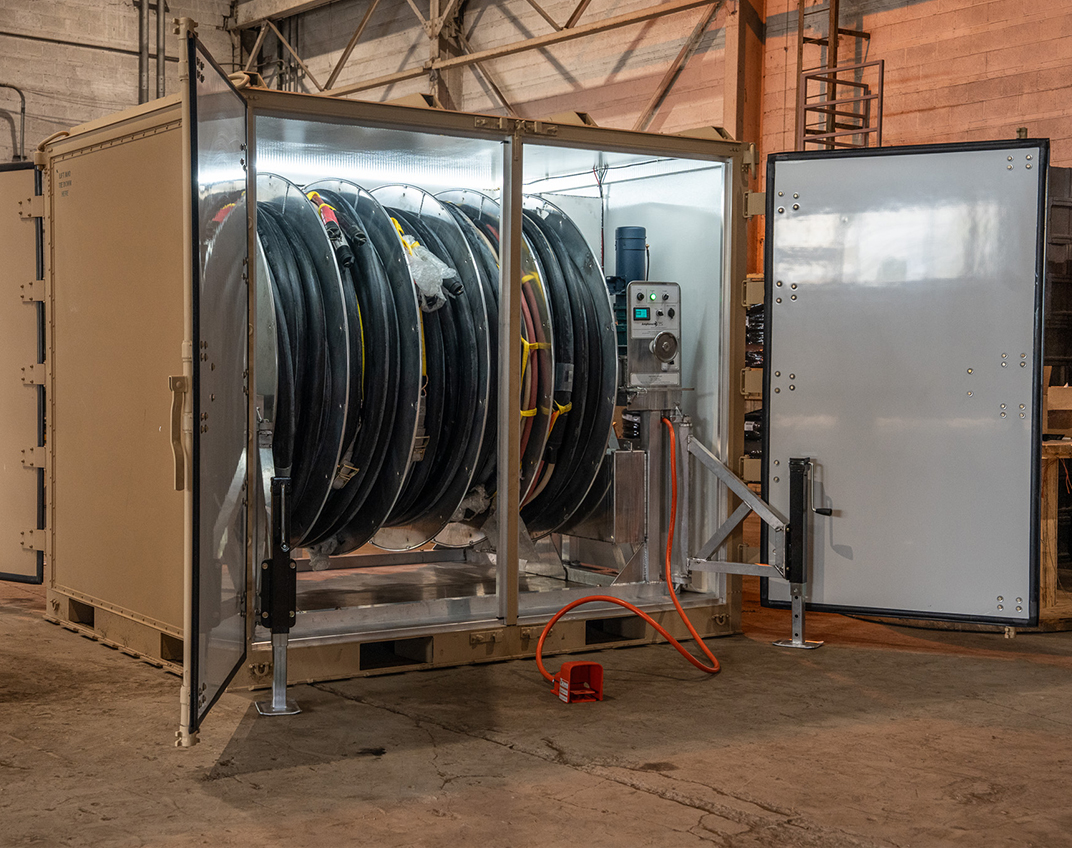

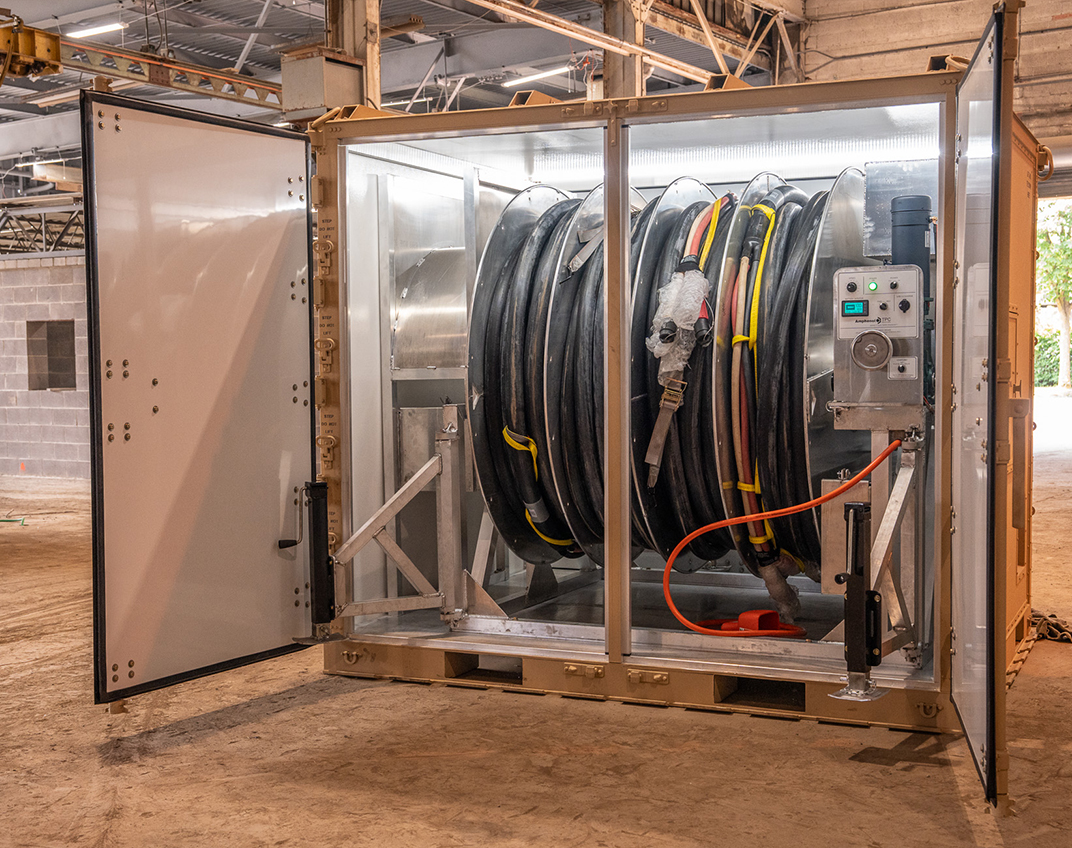

Custom Reel Enclosures & Cable Reels

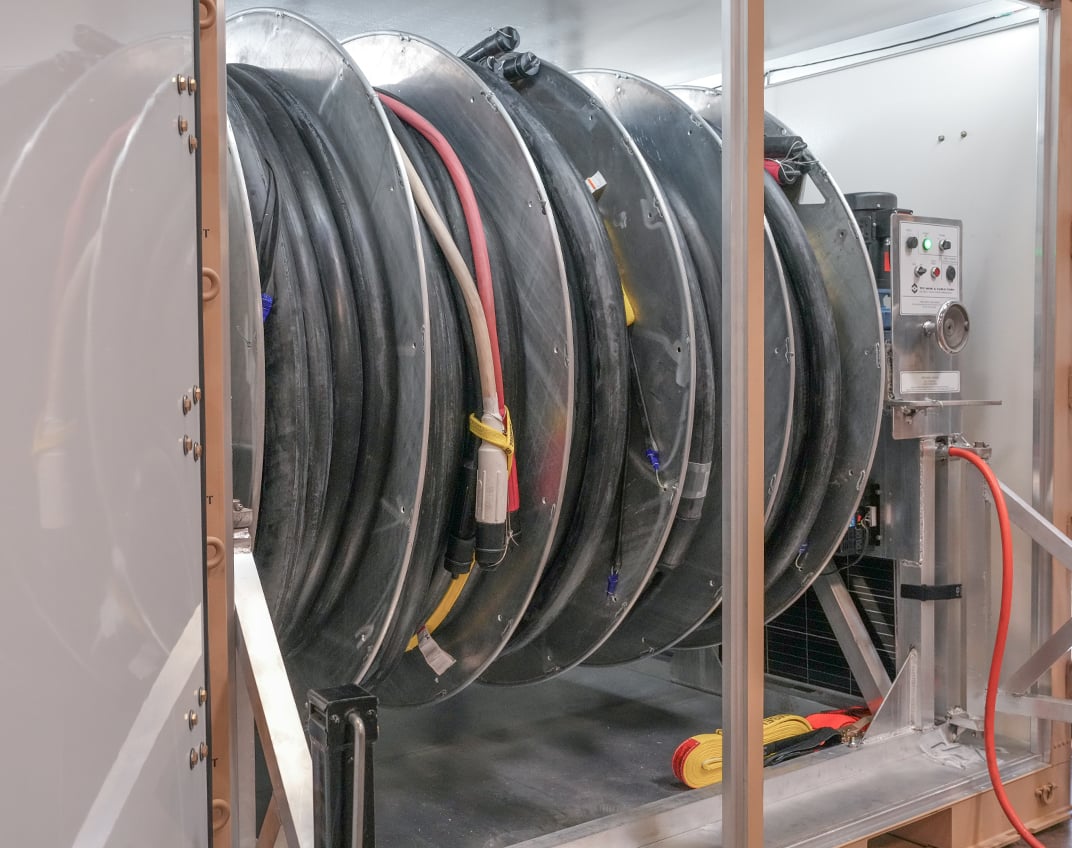

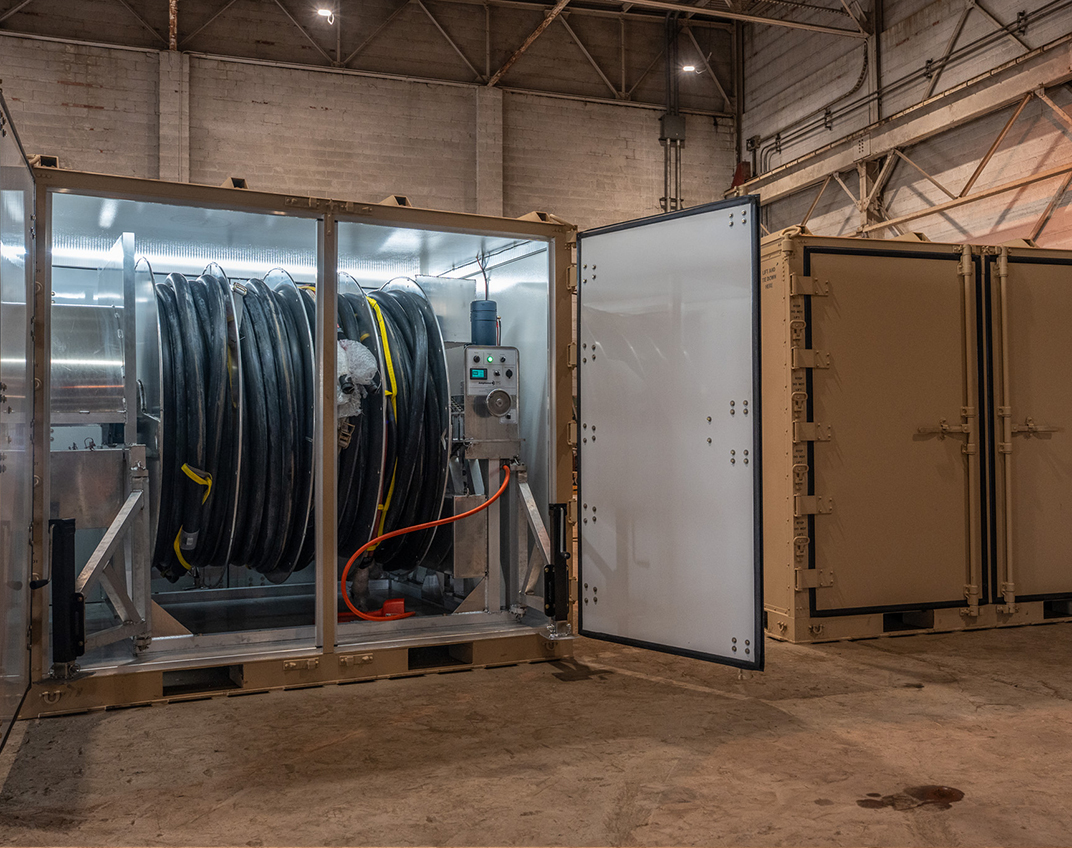

TPC’s Custom Reel Enclosures and Cable Reels offer an organized design for convenient electrical cable storage and easy deployment. With many design options and sizes available, our engineers will work with you to create a custom reel enclosure and industrial cable reel solution to fit your specific needs.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

All 2" square tube 1/8" wall frame material.

All 6" x 2" C-Channel 3/16" wall base frame.

3/16" sheet base floor.

Rolled edges where applicable.

All reel enclosures will be gray oxide primer, painted industrial light gray.

1/4" pin continuous piano hinges.

1/8" sheet cover material welded to frame.

Cable storage reels will be bolted to enclosure.

All tolerance +/- 0.25".

5/8" mounting holes located in enclosure frame 8" from the corners in both directions.

Related Products

super-trex-yellow-triple-gard-portable-cord_1

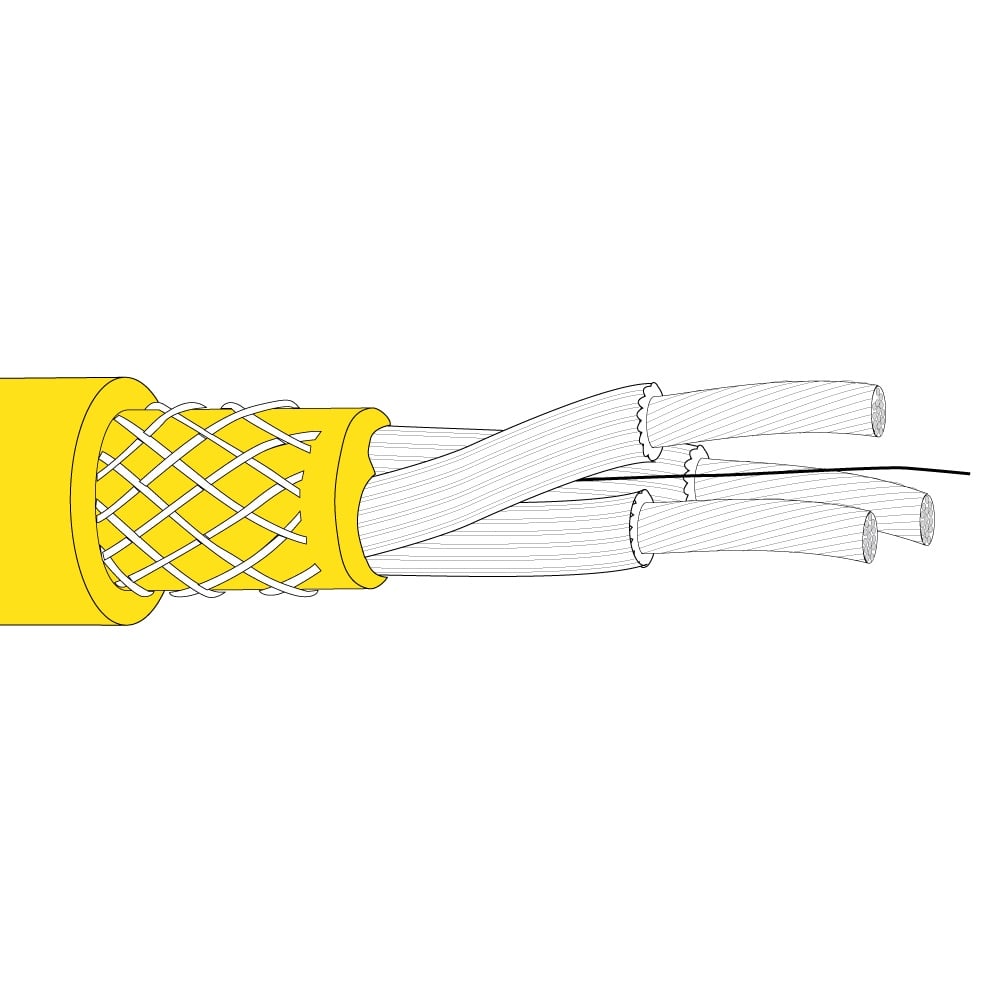

Super-Trex® Triple Gard
super-trex-multi-conductor-pr-cable

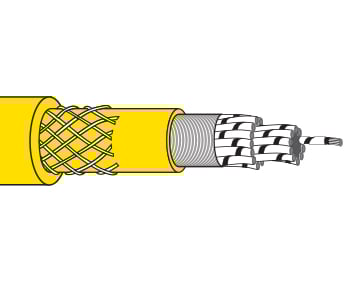

Super-Trex® Multi-Conductor P&R Cable
super-trex-orange-type-g-portable-power-cable_1 (1)

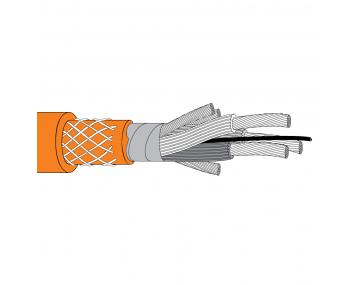

Super-Trex® 4-Conductor Aramid Reinforced Portable Power Reeling Cable
super-trex-black-triple-gard-portable-cord_1

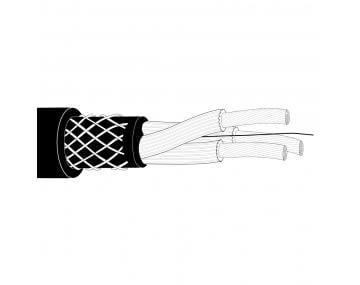

Super-Trex® Type W Black Portable Power and Automation Cable
type-w-rhh-rhw-power-cable_1

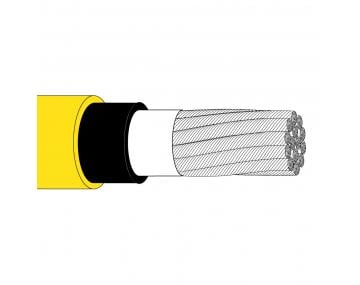

Super-Trex® Type W - RHH/RHW-2 Single Conductor Power Cable
