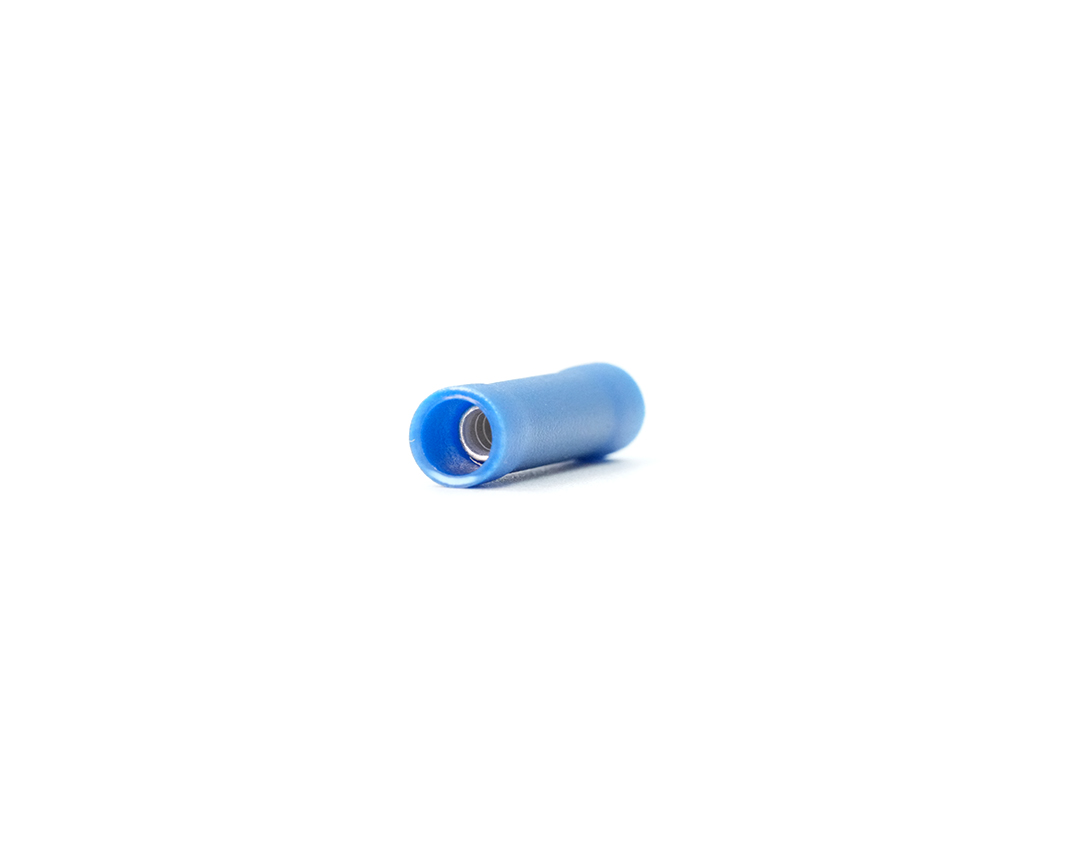

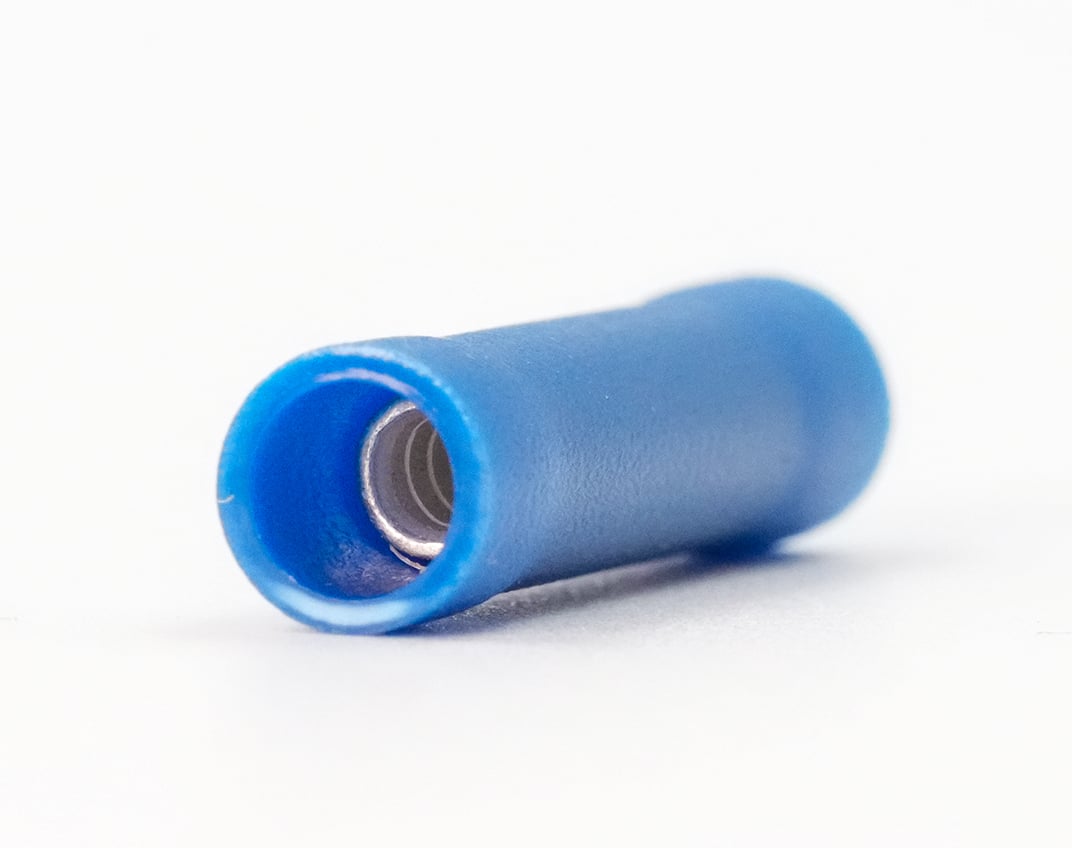

Butt Connector 3QV_Web

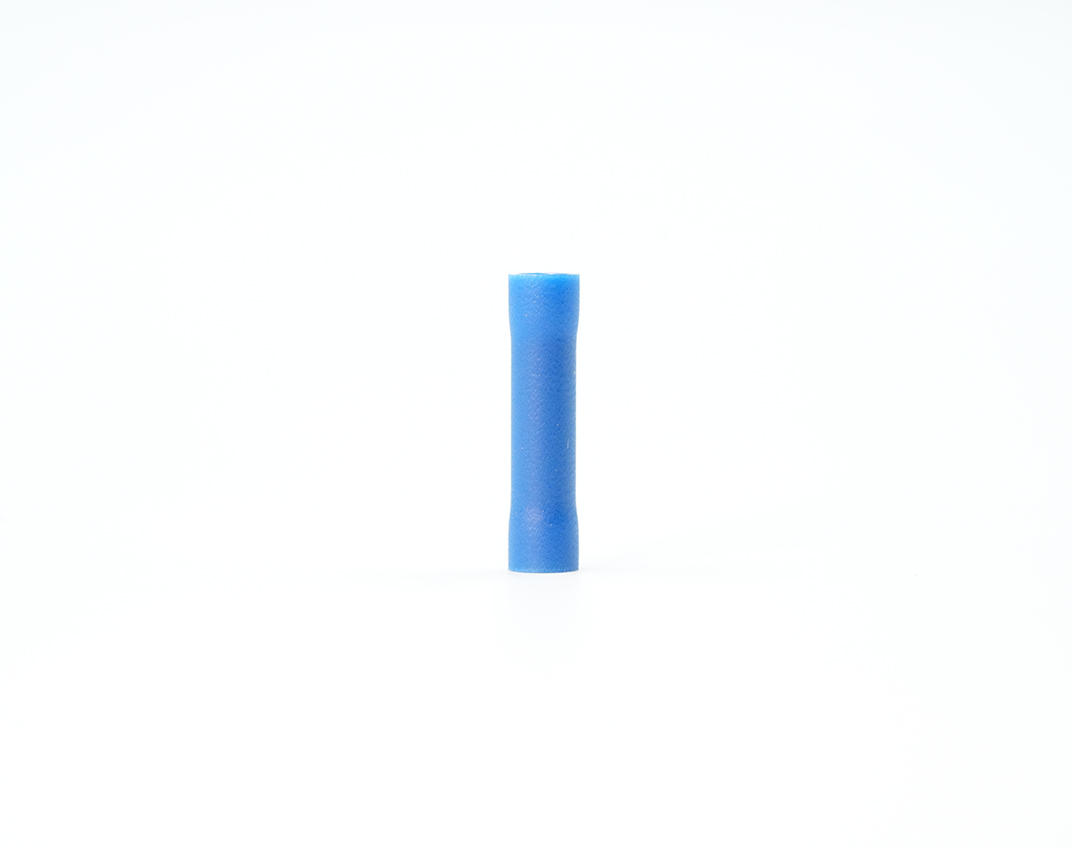

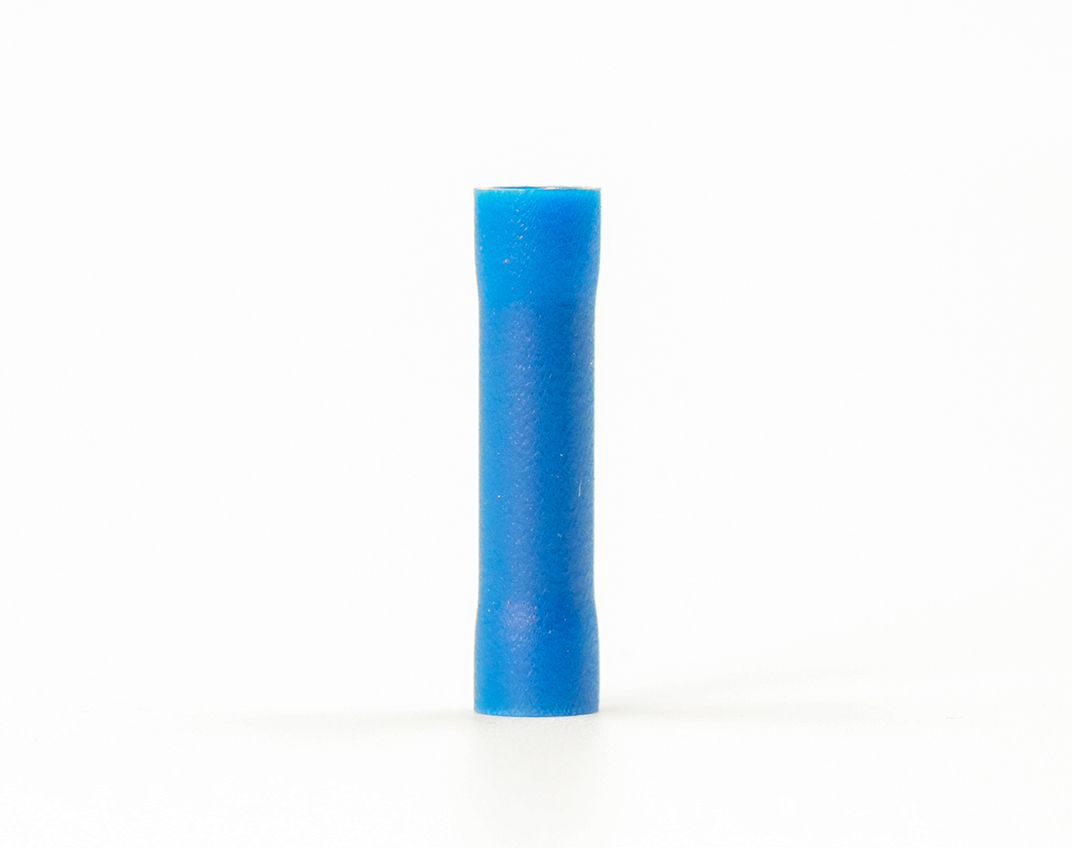

Butt Connector Front_Web

Hoff-Trex® Butt Connectors

TPC Wire & Cable’s Hoff-Trex® Butt Connectors, also known as splice
connectors, butt splices and crimp connectors, are used to lengthen,
change, or repair an electrical circuit with a straight splice. Hoff-Trex® offers
splices for nearly every type of wiring need, including simple wire splices
designed for heavy-duty vibration applications and in harsh environments
where sealed connectors are required.

Applications: Splicing, Tool Crimp, Compact

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

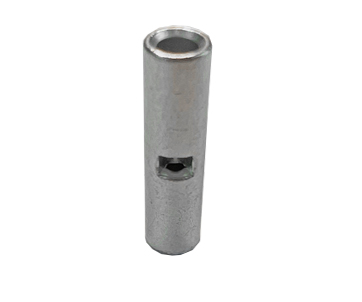

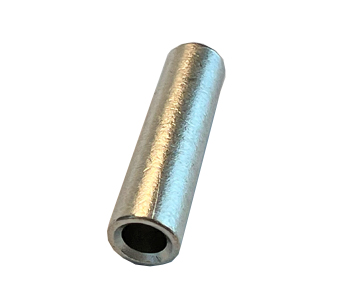

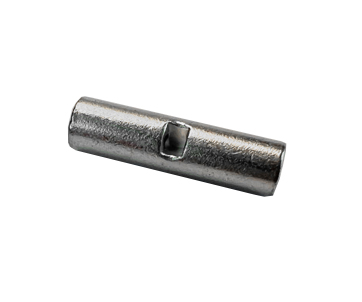

Available in non-insulated and insulated versions (vinyl and nylon polyamide 66)

Suit the Demands of Various Operations.

High Temp (Up to 900°F) Versions Available

Perfect for all types of environments.

Heat Shrink Options Available

Provides secure connections.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • UL Certified

  • CSA Certified

  • RoHS Compliant

  • 176°C/350°F Max Operating Temperature (Non-Insulated)

  • 75°C/167°F Max Operating Temperature (Vinyl)

  • 105°C/221°F Max Operating Temperature (Nylon)

Applications

heat-icon

High Temperature

Part Numbers

Wire Size Non Insulated Vinyl Butted Seam Flared Vinyl Tubular Flared Nylon Straight Butted Seam Nylon Flared Butted Seam Nylon Window with Sleeve High Temp 650°F High Temp 900°F Sealed Solder Heat Shrink Sealed Solder Heat Shrink
26-22 EC/J - - - - - - - HSC2622 -
24-22 - - - - - - - - - HELA5-20
22-18 - - - - - - - - - HELA5-16
22-16 AC AFVCWS AFVC ANCL AFNC/J ANDCW ACNPT AWSCHT HSC2216 -
16-14 BC BFVCWS BFVC BNCL BFNC/J BNDCW/J BCNPT BWSCHT HSC1614H HELA5-14
10-Dec DC DFVCWS DFVC DNCL DFNC/J DNDCW DCNPT DWSCHT HSC1210H HELA5-10
8 - - - - - - - - - HELA5-8
