Hoff-Trex® Open Barrel Connectors

TPC Wire & Cable’s Hoff-Trex® line of open barrel connectors are designed
to provide relief from vibration that can cause a wire to fail prematurely. The
open barrel utilizes a crimp that creates a low resistance connection between
the wire and terminal.

Applications: Splicing, Tool Crimp

Features

Tin-plated brass

Improves solderability.

Open-Ended Design

Easy Wire Insertion.

Secure Hold

Relieves any vibration, providing a longer lasting connection.

Versatile Connector

Can be used in various applications and industries.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • 148°C/300°F Max Operating Temperature

  • Maximum Electrical Current: 22-16 AWG: 10 Amps

  • Maximum Electrical Current: 14 AWG: 15 Amps

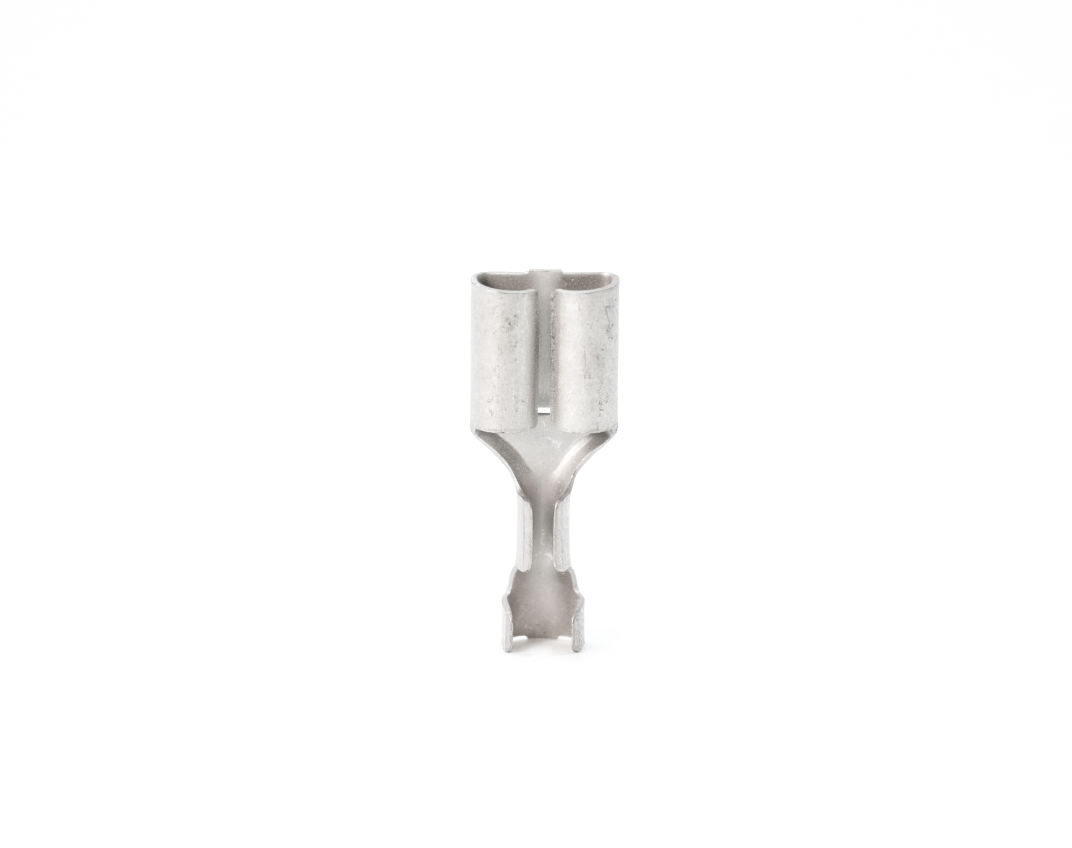

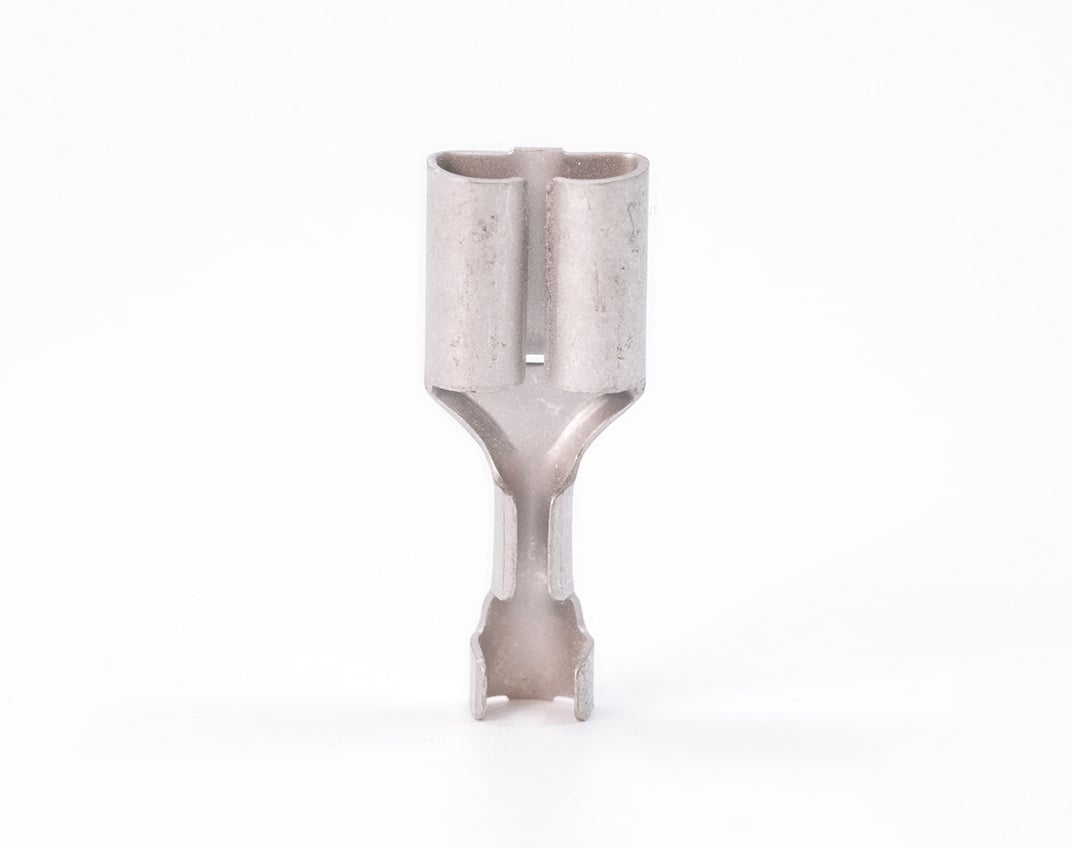

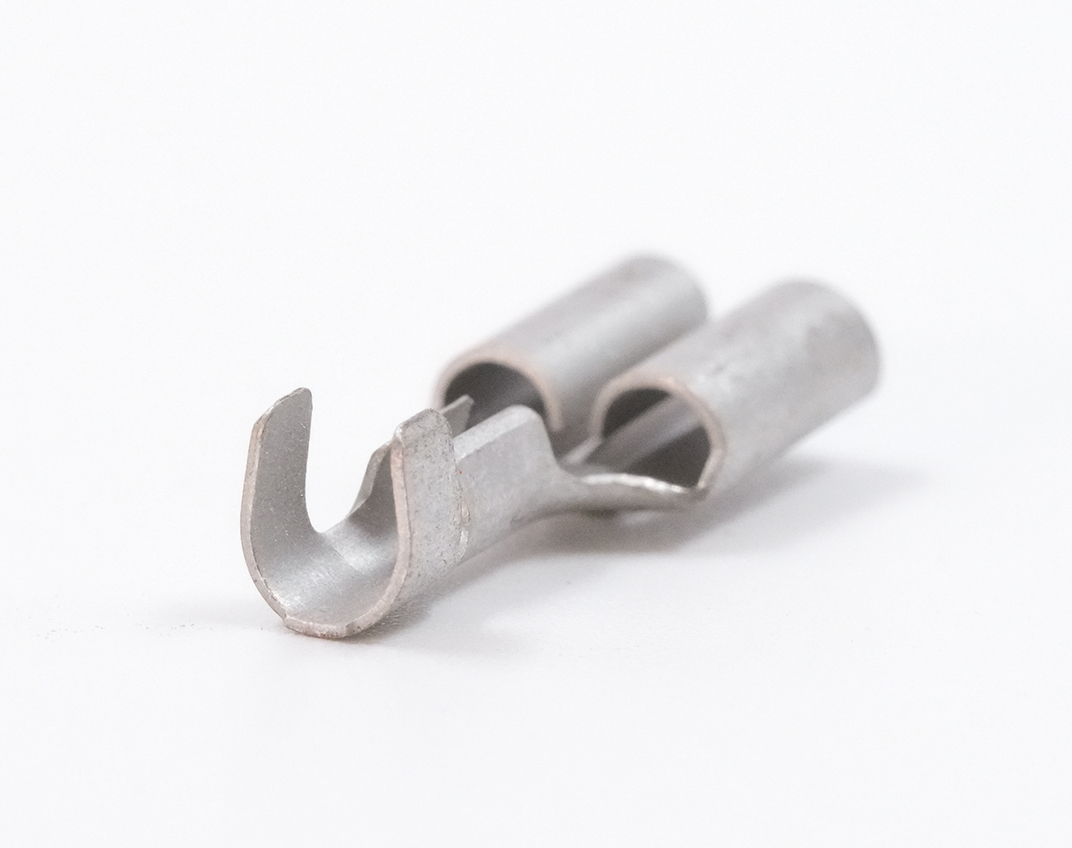

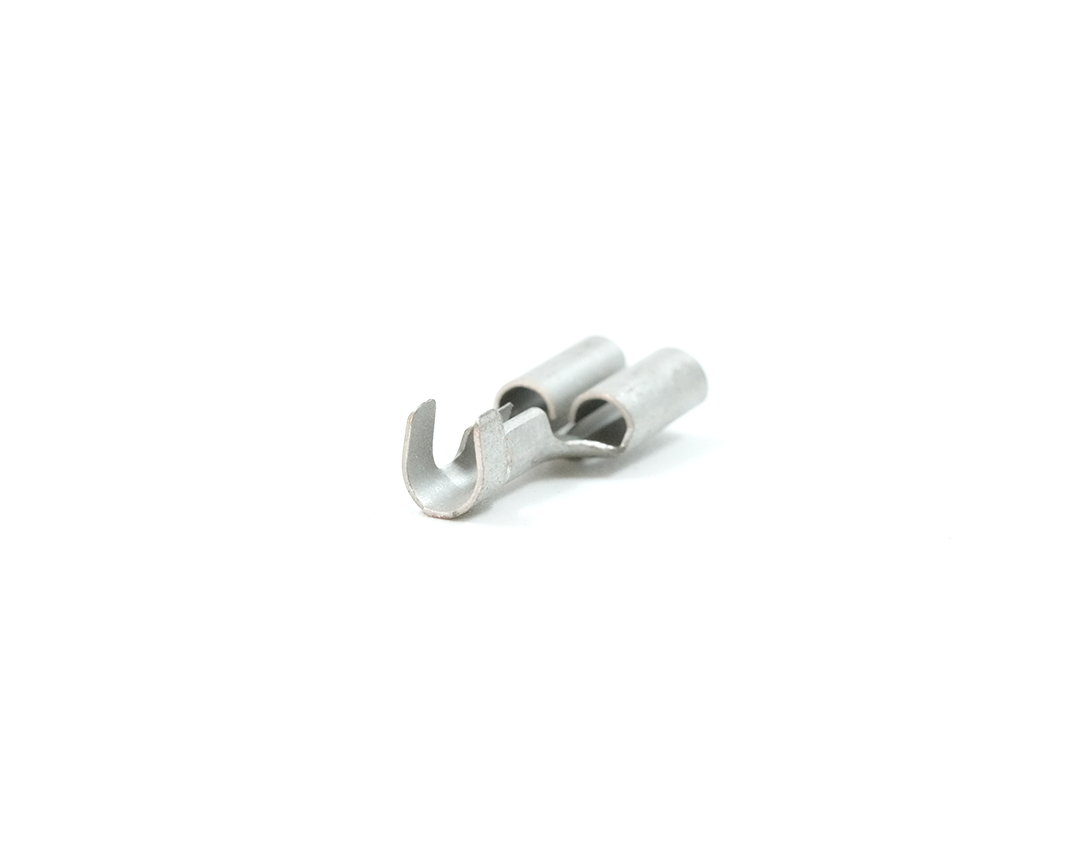

Part Numbers- Female

Wire Size Tab Size (in.) Non-Insulated
18-14 18-14 LTO61T250N/J
18-14 18-14 LFO61T250N/J

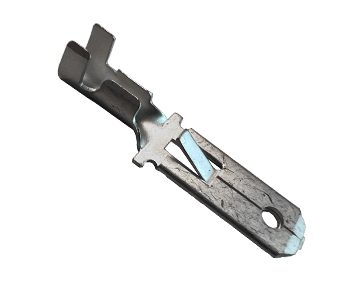

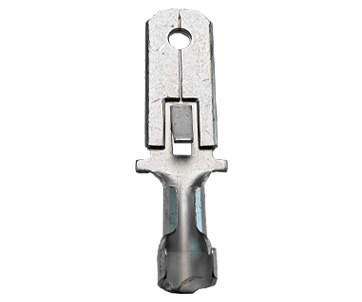

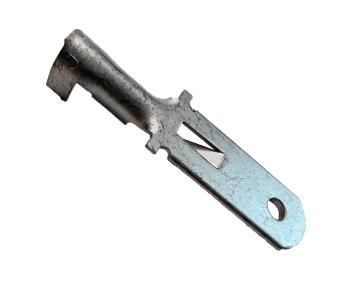

Part Numbers-Locking Tab

Wire Size Tab Size (in.) Non-Insulated Female Non-Insulated Male
20-14 0.250 x 0.032 LTI51T250N/J LIM51T250N/J
