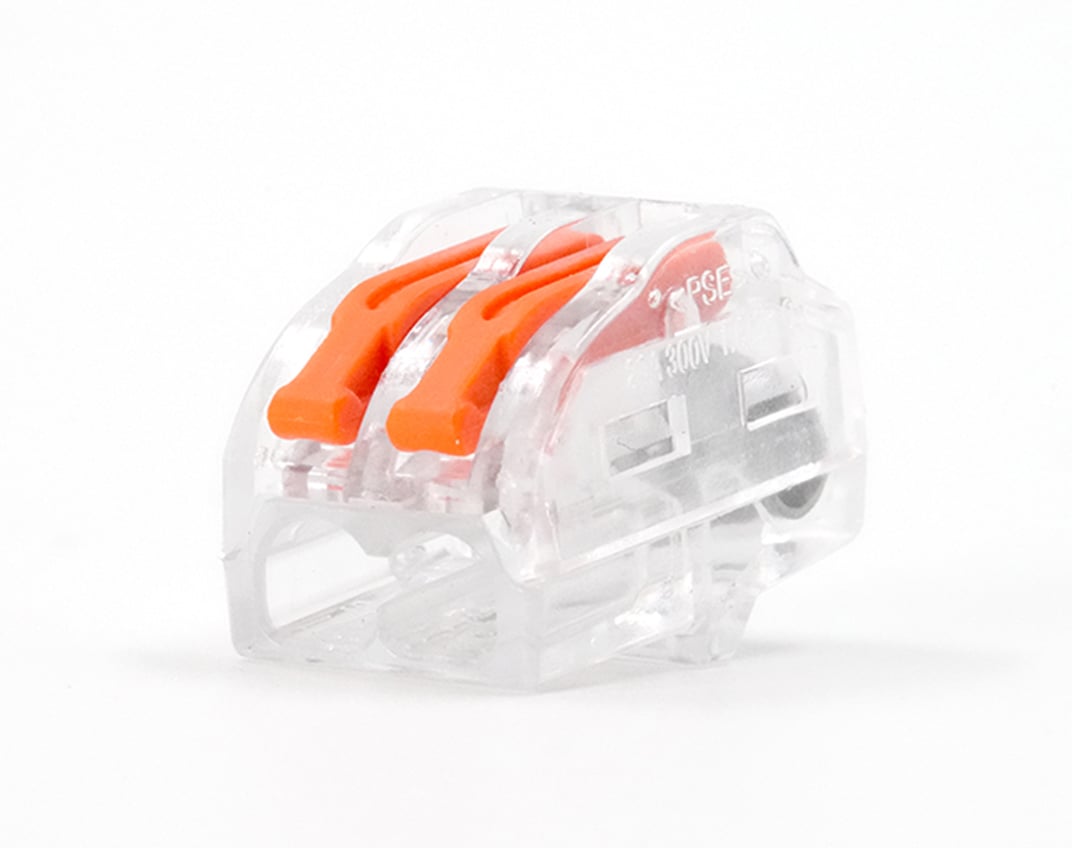

RL1-SPEEDE2 3QV 1072 x 848

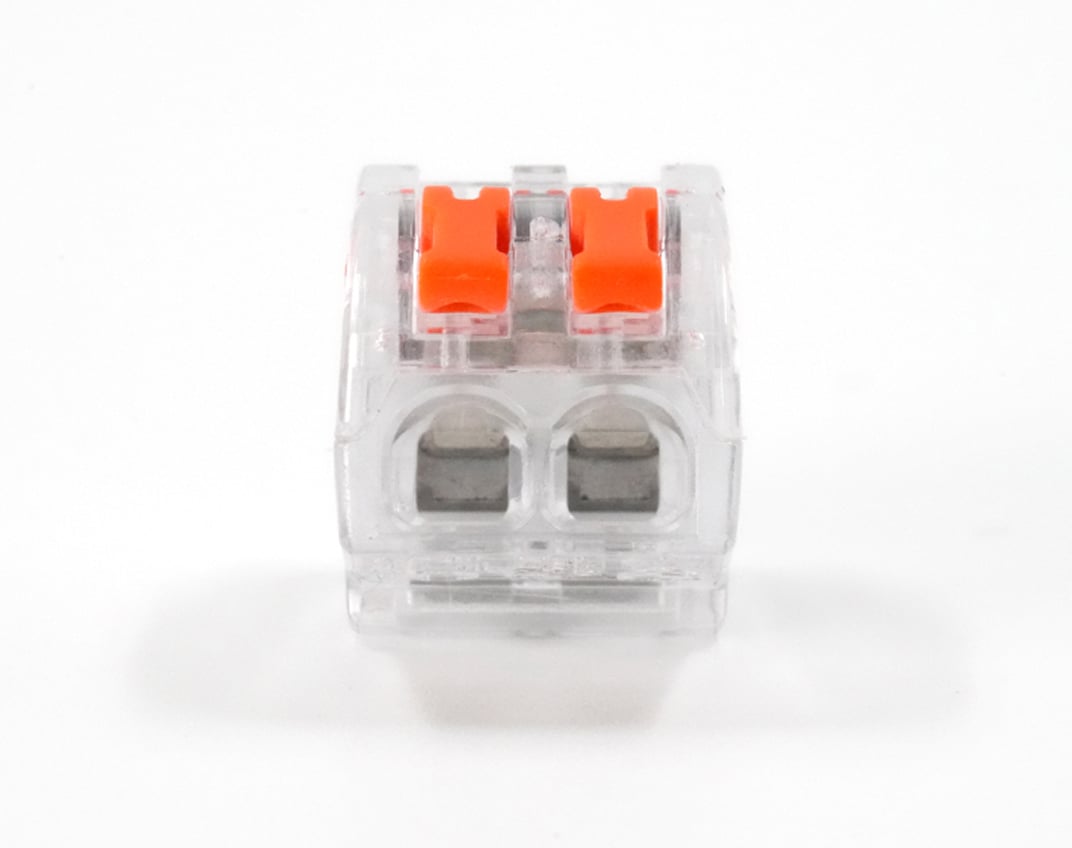

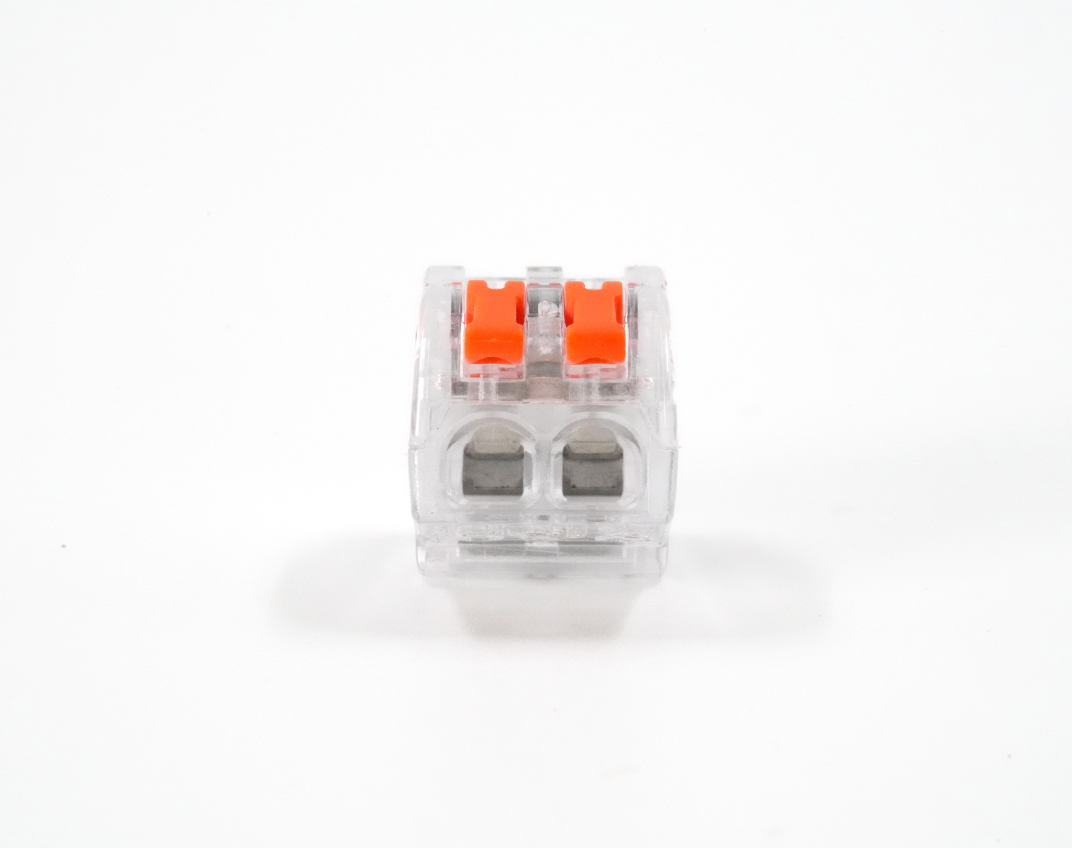

RL1-SPEEDE2 Front 1072 x 848.

Releasable Speed-E Push-In Connectors

This lever type releasable connector is flame retardant and has a polycarbonate shell
that is transparent for easy confirmation of wire insertion. It is available in 2-conductor,
3-conductor and 5-conductor connection styles. These connectors provide easy wire
release and is a reusable wire connector.

Features

Transparent shell allows for easy confirmation for wire insertion.

For use with rigid/solid and flexible/stranded conductors.

Compact size is perfect for tight spaces.

Accept conductors up to 12 AWG and can be reused.

18 AWG and larger solid conductors do not require the operating tool (tool is available upon request).

Great for appliance wiring, light fixtures, signs and building wire.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • Polycarbonate and Polyamide 66, Flame Retardant to UL 94V0

  • Working Temperature: 105°C (221°F) UL

  • Rated to 600 Volt maximum for building wiring and 1,000 Volt maximum for lighting fixtures and signs

  • UL Listed

  • cUL Certified

  • CE

  • RoHS Compliant

Applications

heat-icon

High Temperature

chemicals-icon

Chemical
