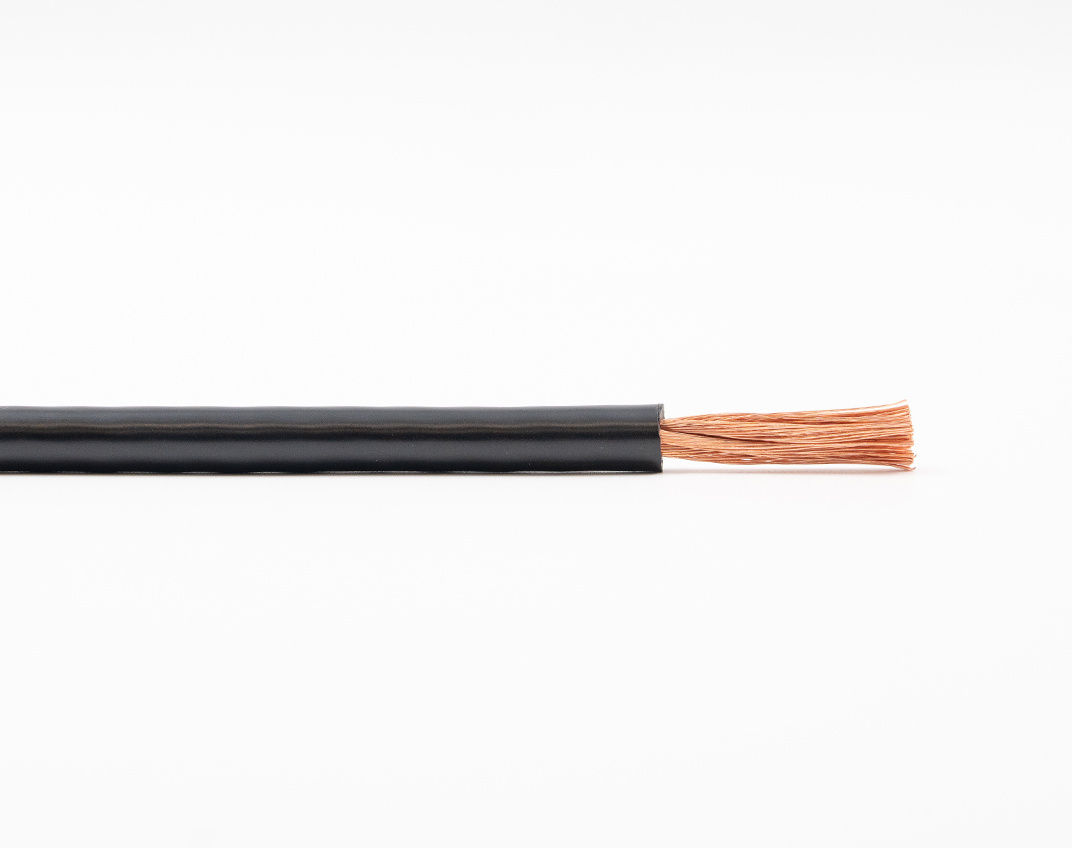

Bond Strand Side_Web

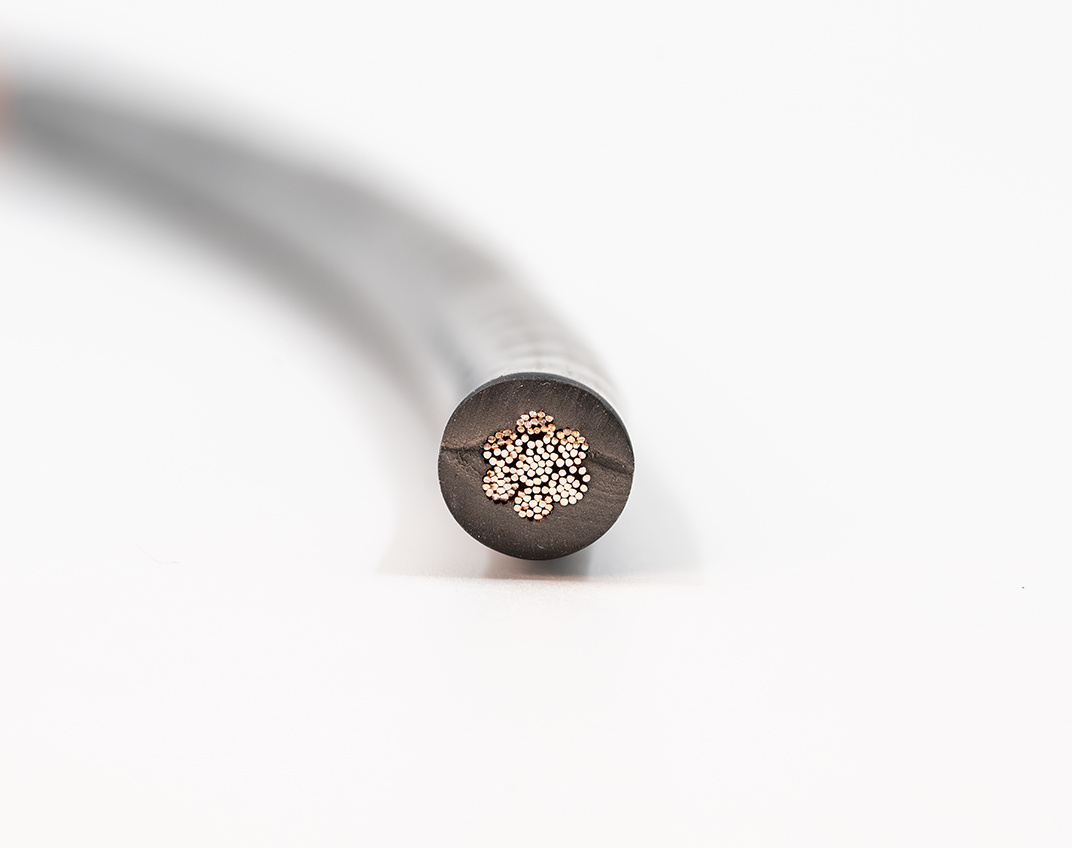

Bond Strand Macro_Web

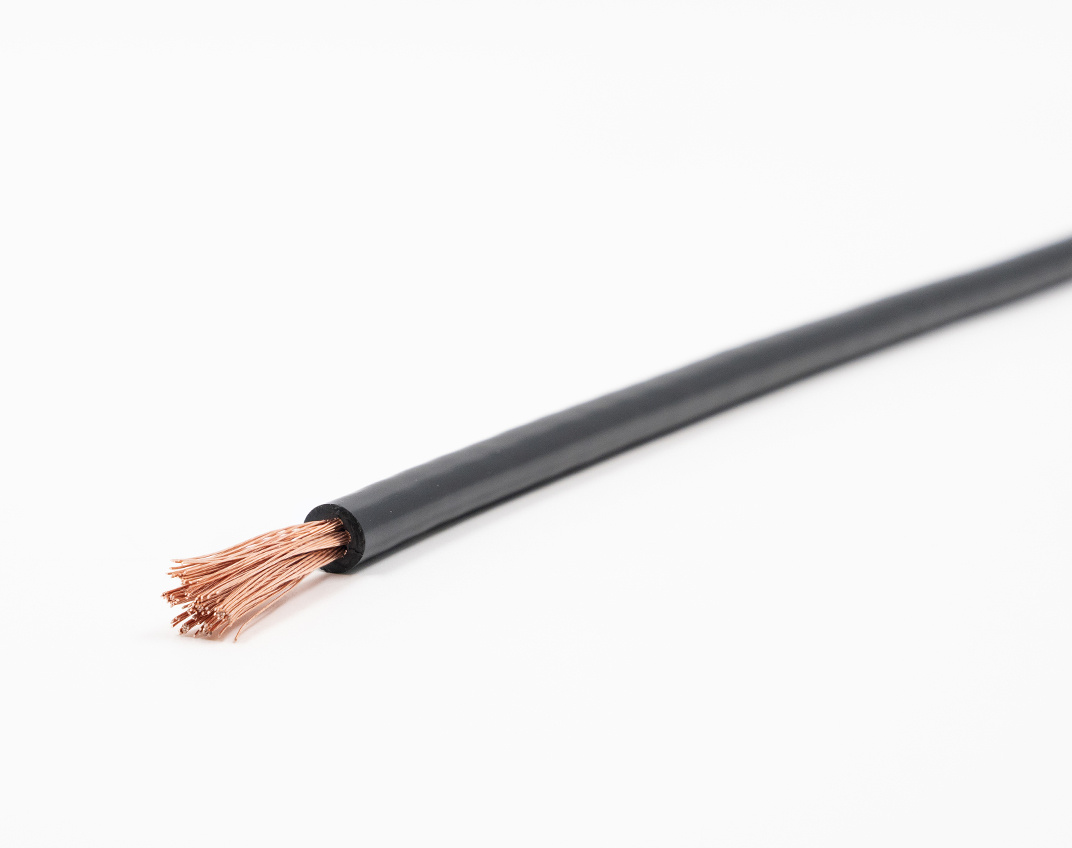

Bond Strand 3QV_Web

Bond Strand Cable

ATPC Bond Strand Wire is designed to create a strong electrical connection between two sections of rail to ensure continuity for track circuit applications. Designed to meet AREMA 10.3.12 to ensure safety and reliability for critical system functions, and to maintain long-life performance.

Features

Finely Stranded Bronze Conductor

Fine stranding improves flex-life and reduces conductor fatigue and breakage.

Specially compounded PVC insulation/Jacket

Offers superior first-line defense against tearing, abrasion, impact and weather conditions.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • Designed to meet AREMA Manual Part 10.3.12 - Recommended Design Criteria for Bond Strand

  • 600V

  • FT-2 Flame Rating

  • Sunlight Resistant

  • Cold Bend: -30°C

Applications

abrasions-icon

Abrasion

impact-icon

Impact

cold-icon

Cold Temperature

Part Numbers

Part Number Conductor Size Conductor Size (AWG) Conductor Finish Number of Strands Nominal O.D. (in.) Weight per 1,000 ft. (lbs.)
B300-316-P4-5 3/16 7 Bare 133 0.311 101
B300-316T-P4-5 3/16 7 Tinned 133 0.311 101
B300-516-P4-5 5/16 3 Bare 133 0.425 223
B300-516T-P4-5 5/16 3 Tinned 133 0.425 223
