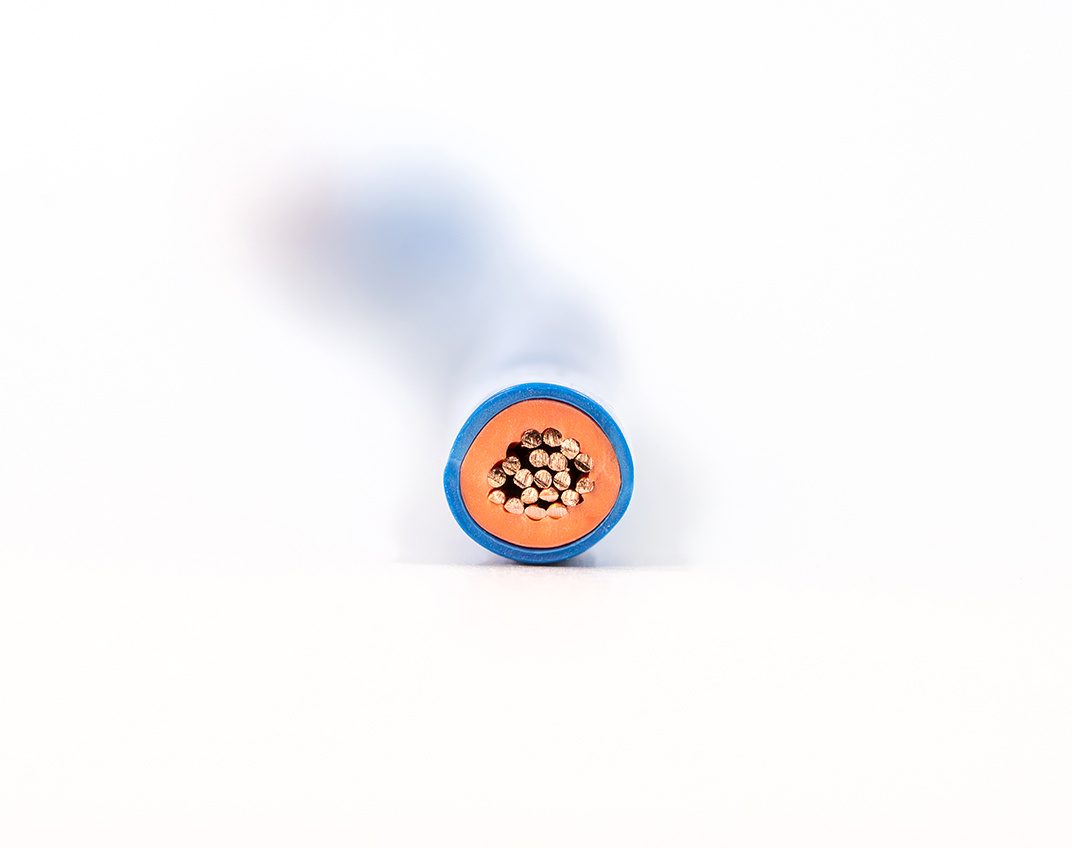

Case Wire Macro_Web
Case Wire 3QV_Web

Case Wire

ATPC Case Wire is designed for use as relay and associated signal apparatus wiring. It is ideal for applications requiring a flexible, small diameter wire. Designed to meet AREMA 10.3.15 to ensure safety and reliability for critical system functions, and to maintain long-life performance.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Stranded Bare Copper Conductors

Stranding improves wire flexibility, reduces conductor fatigue and breakage.

Ethylene Propylene Rubber (EPR) Insulation

Excellent electrical and physical performance characteristics.

Polyvinyl Chloride (PVC) Jacket

Provides a first line of defense against exposure to environmental conditions and mechanical abuse.

Resources

TPC-Literature Image-02

Railway Signaling & Communication Solutions

Ratings / Characteristics

  • Designed to meet AREMA Manual Part 10.3.15 - Recommended Design Criteria for Insulated Signal Wire

  • 600V

  • FT-2 Flame Rating

  • Sunlight Resistant

  • Cold Bend test: -40°C

Applications

abrasions-icon

Abrasion

cold-icon

Cold Temperature

Part Numbers

Part Numerb Configuration (AWG/Conductor Count) No. of Strands Insulation Thickness (mils) Jacket Thickness (mils) Nominal O.D. (in.) Weight per 1,000 ft. (lbs.)
CW200-016-1-2 16 AWG/1-Conductor 19 30 20 0.166 19.7
CW200-010-1-2 10 AWG/1-Conductor 19 30 20 0.221 49.3
CW200-012-1-2 12 AWG/1-Conductor 19 30 20 0.200 35.5
CW200-014-1-2 14 AWG/1-Conductor 19 30 20 0.181 25.8
