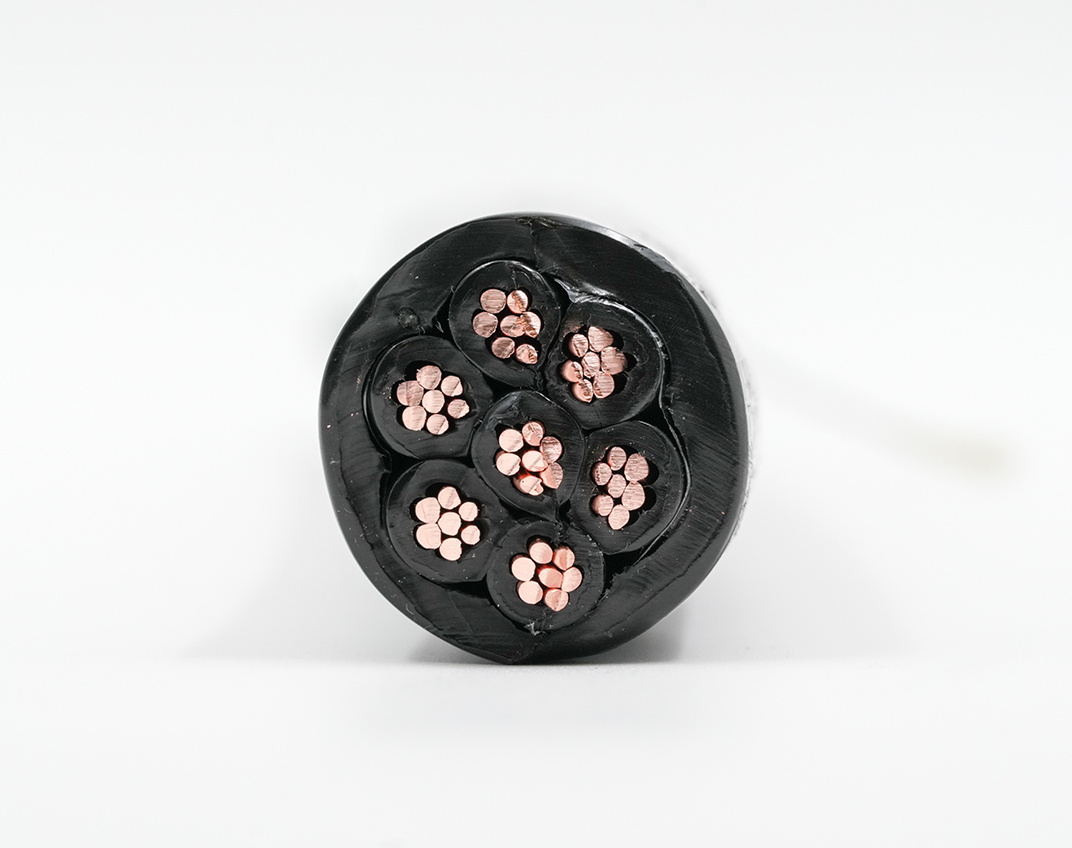

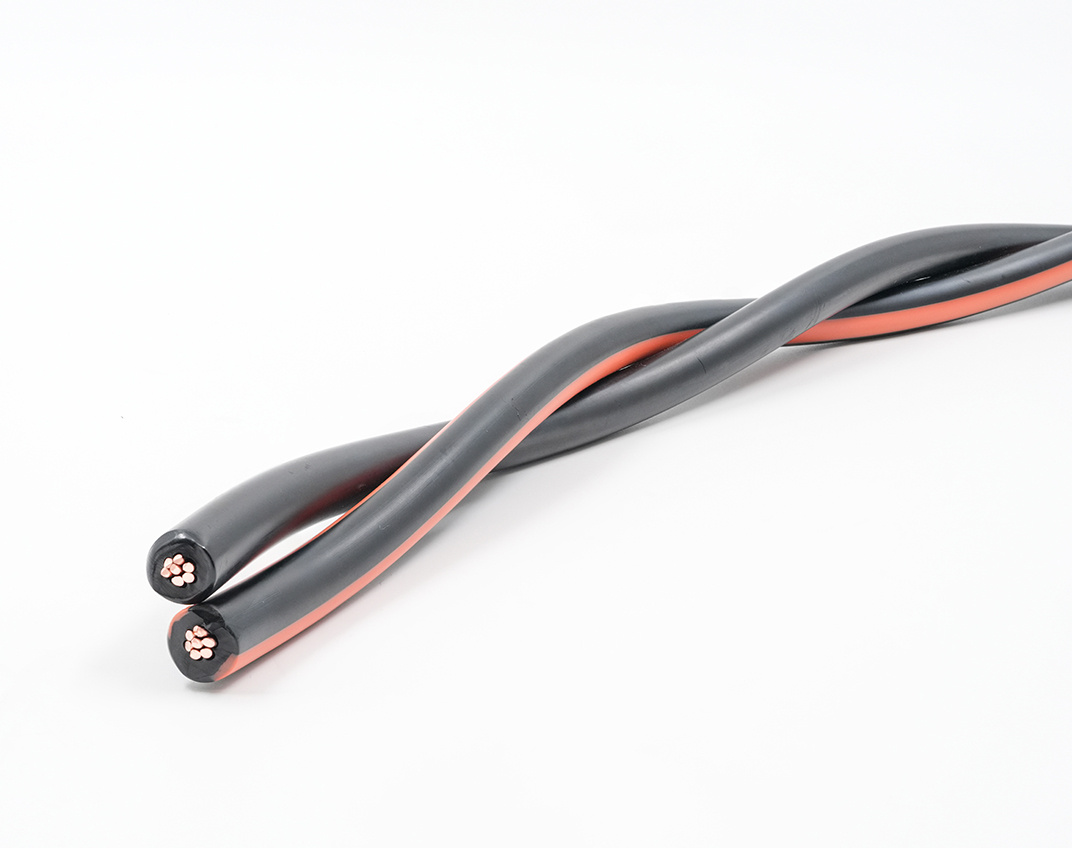

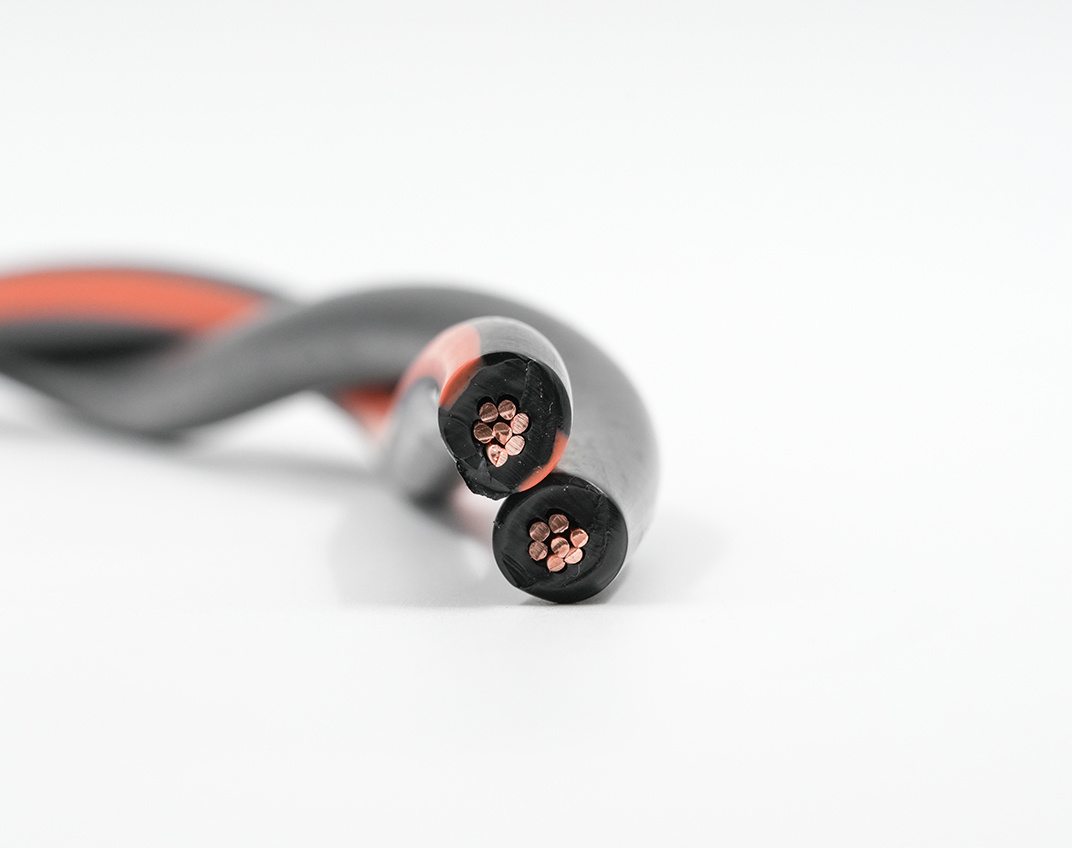

CP100 Railway Signal Cable

CP100 Railway Signal Cable is designed for use with trackside sensing and signaling equipment. Designed and tested to meet Canadian railway specifications for Polyethylene Insulated and Jacketed Railway Signal Cable to ensure safety and reliability for critical system functions, and to maintain long-life performance.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Bare copper conductors, solid and stranded

Both solid and stranded copper conductors meeting the Canadian railway specification for Railway Signal cable.

Linear Low Density Polyethylene Insulation

Good electrical, tensile and mechanical properties

Rip cord included under the jacket layer

Facilitates stripping the cable jacket for removal.

Linear Low Density Polyethylene Jacket

Excellent mechanical properties provide resistance to abrasion, impact, and extreme weather conditions.

Resources

TPC-Literature Image-02

Solutions for Railway Signaling & Communications

Ratings / Characteristics

  • 600V

  • Operating Temperature –30°C to +80°C

  • Sunlight Resistant

  • Cold Bend test: -40°C

  • Passes Smoke Density per IEC 61034-1/2

  • Passes Corrosive Gases per IEC 60754-1/2

Applications

abrasions-icon

Abrasion

impact-icon

Impact

cold-icon

Cold Temperature

Part Numbers

Part Number Configuration (AWG/Conductor Count) Stranding Nominal O.D. (in.) Weight per 1,000 ft. (lbs.)
CP100-014-5C-B-U 14/5 1 0.62 190
CP100-014-10C-B-U 14/10 1 0.82 322
CP100-014-12C-B-U 14/12 1 0.85 355
CP100-014-19C-B-U 14/19 1 1 543
CP100-010-2C-B-U 10/2 1 0.56 190
CP100-006-2C-B-U-NJ 6/2 7 0.85 301
CP100-006-2C-B-U 6/2 7 0.82 403
CP100-006-3C-B-U-NJ 6/3 7 0.92 464
CP100-006-3C-B-U 6/3 7 0.86 458
CP100-006-4C-B-U 6/4 7 0.97 609
CP100-006-5C-B-U 6/5 7 1.06 724
CP100-006-7C-B-U 6/7 7 1.15 925
CP100-002-2C-B-U 2/2 7 1.02 768
CP100-002-2C-B-U-NJ 2/2 7 1.11 583
CP100-002-3C-B-U 2/3 7 1.13 957
CP100-014-2PR-B-U 14/2-Pair 1 0.72 226
CP100-102-146-B-U 10/2 + 14/6 1 0.75 328
CP100-102-142PR-146-B-U 10/2 + 14/2-Pair + 14/6 1 1.17 526
CP100-102-1410-B-U 10/2 + 14/10 1 0.94 456
CP100-067-149-B-U 6/7 + 14/9 7 & 1 1.29 1157
CP100-092-1410-B-U 9/2 + 14/10 1 0.94 478
