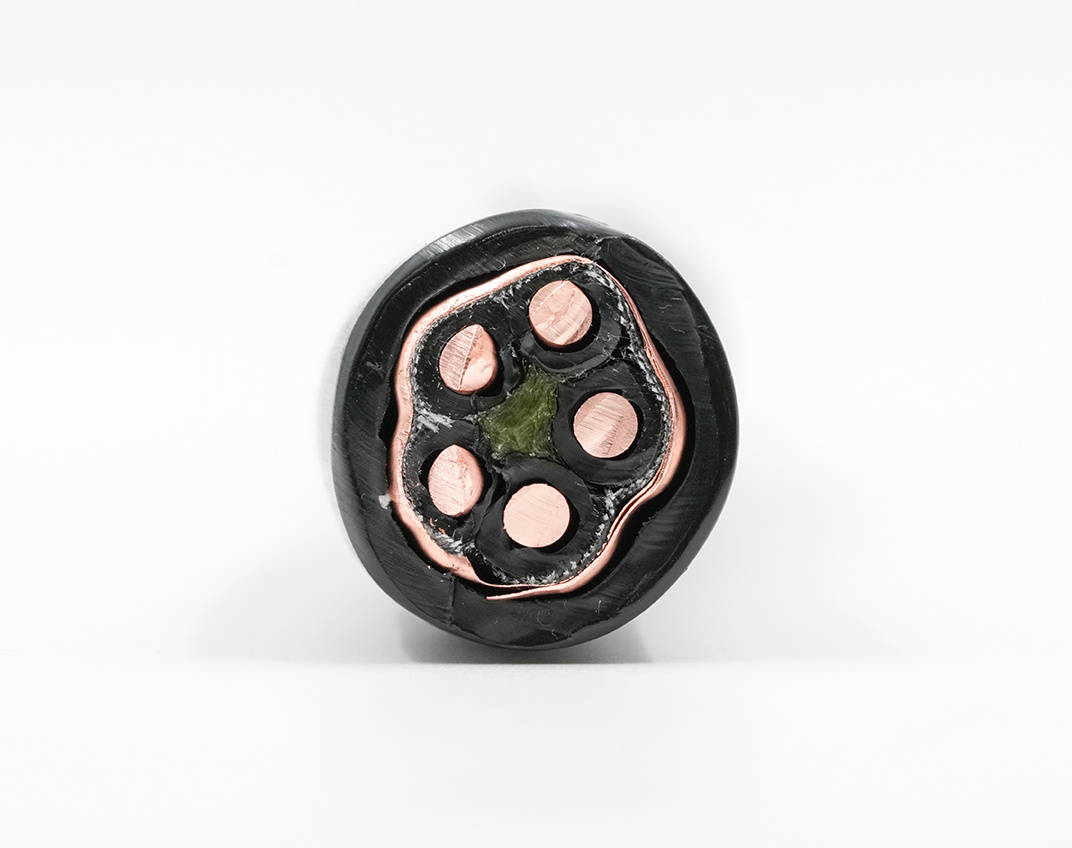

CP200 Macro_Web

CP300 Railway Signal Cable

CP300 Armored Railway Signal Underground Cable is designed for use with trackside sensing and signaling equipment. Designed to meet industry standards including AREMA and Canadian railway specifications to ensure safety and reliability for critical system functions, and to maintain long-life performance.



Features

Solid Bare Copper Conductors

Solid conductors are rugged and less likely to be subject to corrosion.

Linear Low Density Polyethylene Insulation

Good electrical, tensile, and mechanical properties.

Copper Tape Armor Shield

Provides protection against cable damage due to rodents.

Rip cord included under the jacket layer

Facilitates stripping the cable jacket for removal.

Linear Low Density Polyethylene Jacket

Excellent mechanical properties provide resistance to abrasion, impact, and extreme weather conditions.

Resources

TPC-Literature Image-02

Railway Signaling & Communication Solutions

Ratings / Characteristics

  • 600V

  • Operating Temperature –30°C to +80°C

  • Sunlight Resistant

  • Cold Bend test: -40°C

  • Passes Smoke Density per IEC 61034-1/2

  • Passes Corrosive Gases per IEC 60754-1/2

Applications

abrasions-icon

Abrasion

impact-icon

Impact

cold-icon

Cold Temperature

Part Numbers

Part Number Configuration (AWG/Conductor Count) Ampacity Nominal O.D. (in.) Weight per 1,000 ft. (lbs.)
CP300-014-7C-B-A 14/7 17 0.803 345
CP300-014-12C-B-A 14/12 12 1.020 517
CP300-006-2C-B-A 6/2 75 0.894 443
CP300-006-5C-B-A 6/5 60 1.138 841
CP300-002-3C-B-A 2/3 130 1.169 1055
