Thermo-Trex® Silicone Fiberglass Ultra-Sleeve High Temperature Sleeving (With & Without Closure)

Silicone Fiberglass Ultra-Sleeve High Temperature Sleeving is a protective sleeve constructed of heavy E-glass continuous yarn for extreme high heat environments then coated with a heavy layer of specially compounded silicone rubber.  Ideal for protecting cables, hoses and pipes from flash heat or flame, chemical or mechanical abuse. This Ultra-Sleeve offers heat resistance up to 260°C and excellent protection against moisture and chemicals. Also available with Hook and Loop closure for easy installation.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

FINELY STRANDED SPUN GLASS FIBER INNER SLEEVE

Finer strands allow for greater flexibility. Higher density of glass fibers per square inch increases cable protection.

EXTRA THICK SILICONE RUBBER OUTER SLEEVE

Provides a first line of defense against heat, flame, molten metal splash, abrasion, and chemicals.

HIGH TEMPERATURE PROPERTIES

Suitable for continuous use at 260°C and intermittent use up to 1093°C. Offers superior protection for cables, assemblies, hoses, and pipes.

AVAILABLE IN MULTIPLE DIAMETERS 

Allows for selection of the right size sleeve for the application. Protects most cable & hose sizes. 

SUITABLE FOR INDOOR AND OUTDOOR USE

Resistant to most fluids including petroleum-based chemicals.

AVAILABLE WITH & WITHOUT CLOSURE

Optional Hook and Loop Closure allows for quick field installation and removal of sleeve. Sleeve without closure is Silver. Sleeve with closure is Red.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • Continuous Temperatures: -54°C to 260°C (-65°F to 500°F)

  • Intermittent Temperatures: Up to 1093°C (2000°F) for 15-20 minutes

  • Excellent Moisture & Chemical Resistance

Applications

abrasions-icon

Abrasion

heat-icon

Extreme Temperature

flexing-icon

Flexing

chemicals-icon

Chemicals

Part Numbers

Part No. INNER DIAMETER
inches		 Description
49100 0.25 Silver Jacket
49105 0.5 Silver Jacket
49101 0.75 Silver Jacket
49102 1 Silver Jacket
49103 1.5 Silver Jacket
49104 2 Silver Jacket
49107 3 Silver Jacket
49109 4 Silver Jacket
49133 1 Red Jacket w/ Hook & Loop Closure
49137 1.5 Red Jacket w/ Hook & Loop Closure
49140 2 Red Jacket w/ Hook & Loop Closure
49142 2.5 Red Jacket w/ Hook & Loop Closure
49144 3 Red Jacket w/ Hook & Loop Closure
49148 4 Red Jacket w/ Hook & Loop Closure

Related Products

blue-silicone-fiberglass-ultrasleeve

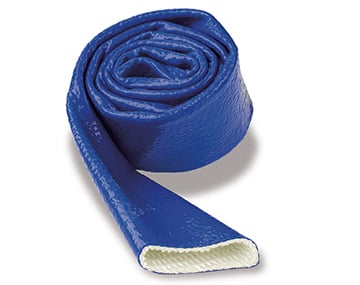

Heavy Duty Blue Silicone Fiberglass Ultra-Sleeve with and without Hook & Loop Closure
