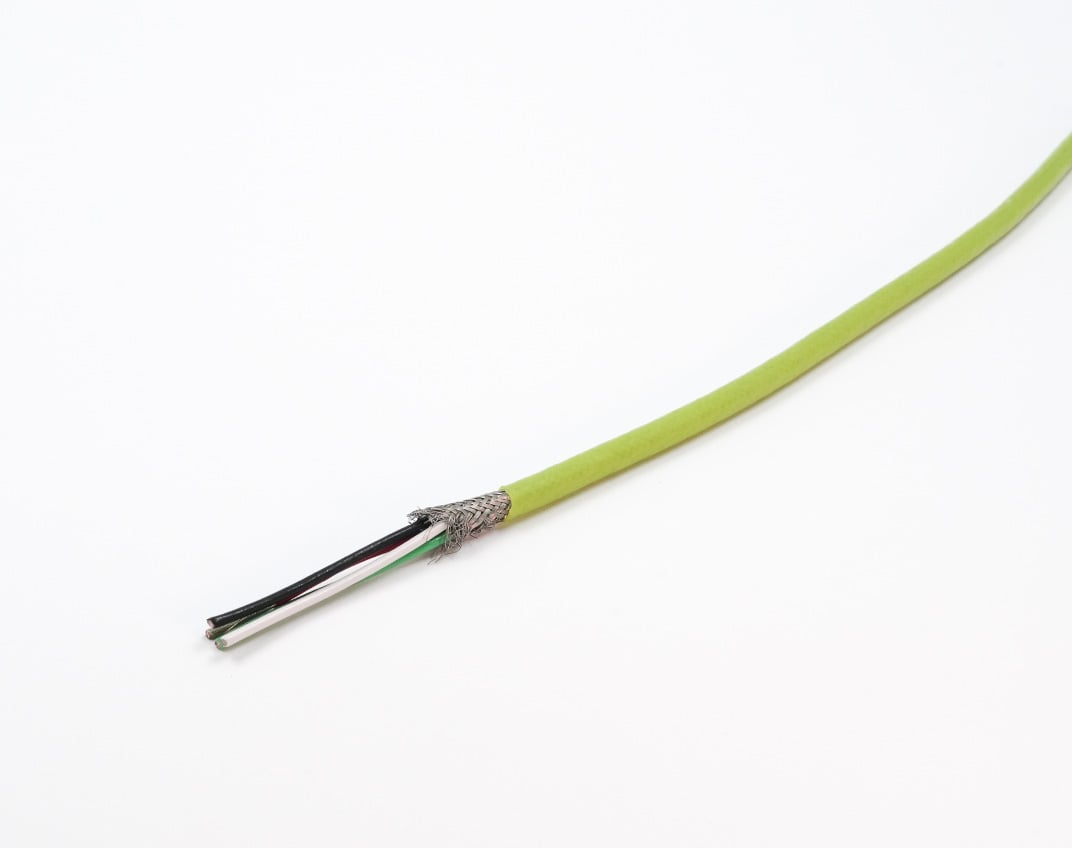

Chem-Gard® 150 Cable with Defender® Technology 3QV_Web

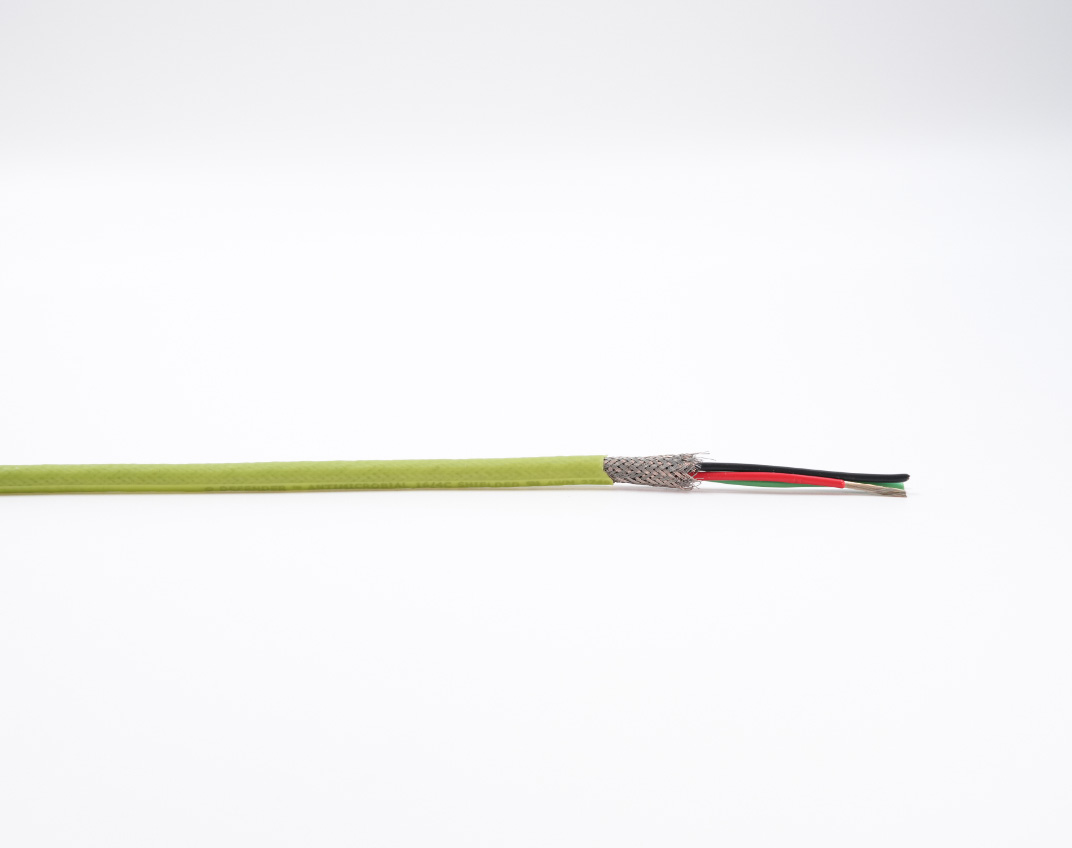

Chem-Gard® 150 Cable with Defender® Technology Side_Web

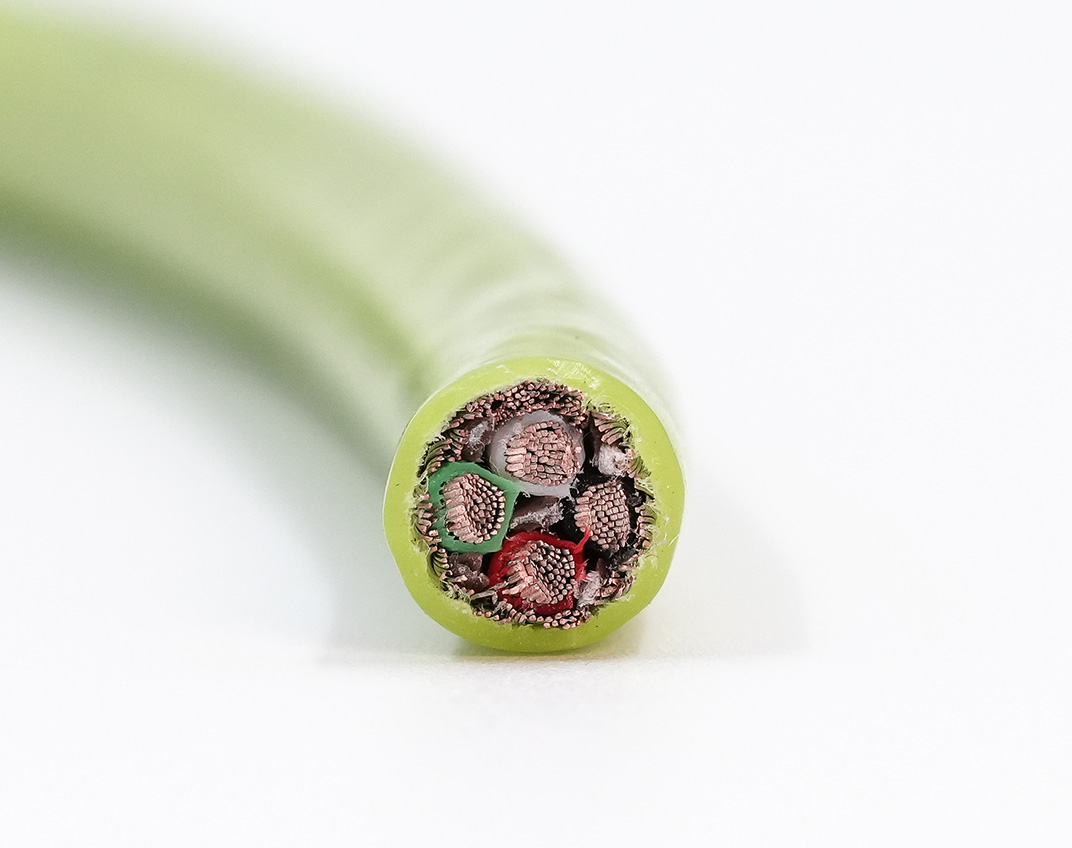

Chem-Gard® 150 Cable with Defender® Technology Macro_Web

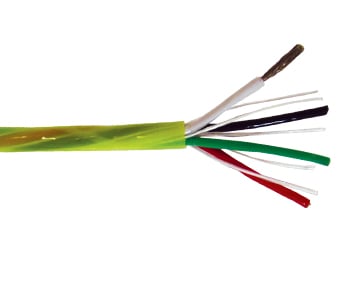

Chem-Gard® 150 Cable with Defender® Technology

Chem-Gard® 150 Cable with Defender® Technology is a high-temperature and chemical-resistant cable for control and instrumentation applications that can withstand a maximum conductor temperature of 150°C / 300°F.

This control and instrumentation cable prevents the growth of 99% of bacteria, fungus and mold growth on the cable jacket. Silver ion-based additives provide built-in long-lasting protection for the life of the cable providing a solution for high standards in environments where cleanliness is crucial.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Specially Compounded Fluoropolymer Insulation

High dielectric, tensile, and mechanical properties. Offers superior resistance to lubricating oils, coolants, cutting oils, acids, and most chemicals.

Optional Heavy-Duty 95% Coverage Tinned Copper Braid Shield

Provides protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage”. Designed for superior performance in dynamic applications.

Specially Compounded Fluoropolymer Jacket with Unique Additives

Ideal for environments where harsh chemicals are present. Superior resistance to oils, acids, solvents, and chemicals. Excellent defense against cutting and abrasion. Broad spectrum protection from bacteria, mold, and fungus.

Resources

ProductFamilyBrochures

Defender™ Technical Bulletin

Resource-Color Code

Chem-Gard® 150 Cable with Defender® Technology

Ratings / Characteristics

  • UL Recognized

  • CSA AWM Class I/II Group A/B FT1

  • FT-1 Flame Rating

  • VW-1 Flame Rating

  • RoHS Compliant

  • 600 V

  • Max Conductor Temperature 150°C

  • Cold Temperature Rating -60°C

  • Antimicrobial

  • Superior Chemical Resistance

  • AWM Style 2748

  • Bend Radius (Static): 12x Cable O.D.

  • Bend Radius (Dynamic): 15x Cable O.D.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

heat-icon

High Temperature

cold-icon

Cold Temperature

Part Numbers (Unshielded)

Part No. Conductor SIze (AWG) Conductor Pole Count STRANDING (STRANDS/AWG) NOMINAL O.D.
INCHES		 AMPACITY WT. PER 1000'
lbs		 Shielding Type
52126 16 AWG 4 65/34 0.225 25 59 Unshielded
52129 16 AWG 8 65/34 0.295 18 115 Unshielded
52124 14 AWG 4 105/34 0.27 35 86 Unshielded
52127 14 AWG 8 105/34 0.354 24 165 Unshielded
52128 12 AWG 4 65/30 0.335 48 133 Unshielded

Part Numbers (Shielded)

Part No. Conductor Size (AWG) Conductor/Pole Count STRANDING (STRANDS/AWG) NOMINAL O.D.
INCHES		 AMPACITY WT. PER 1000'
lbs		 Shielding Type
52115 18 AWG 4 41/34 0.22 19 56 Shielded
52119 18 AWG 12 41/34 0.345 9 123 Shielded
52116 16 AWG 4 65/34 0.245 25 77 Shielded
52117 14 AWG 4 105/34 0.29 35 104 Shielded
52118 12 AWG 4 65/30 0.37 48 154 Shielded
