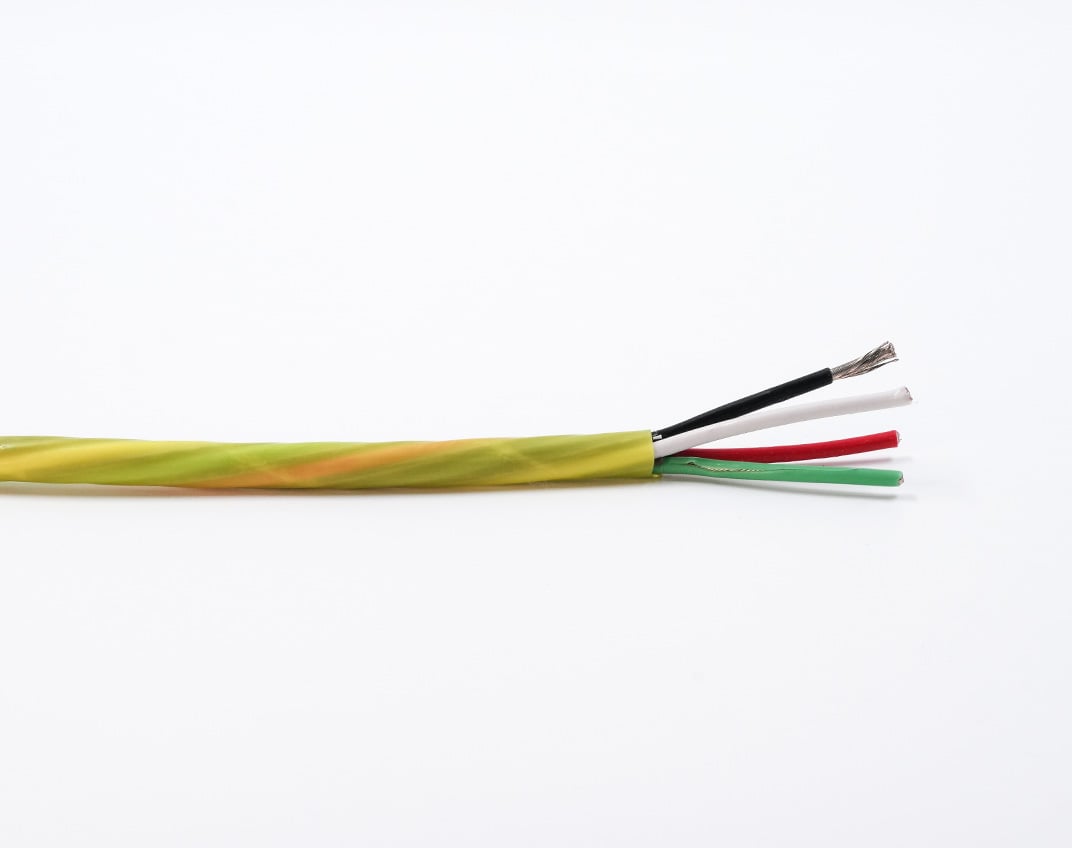

Chem-Gard® 200 Multi-Conductor Cable Side_Web

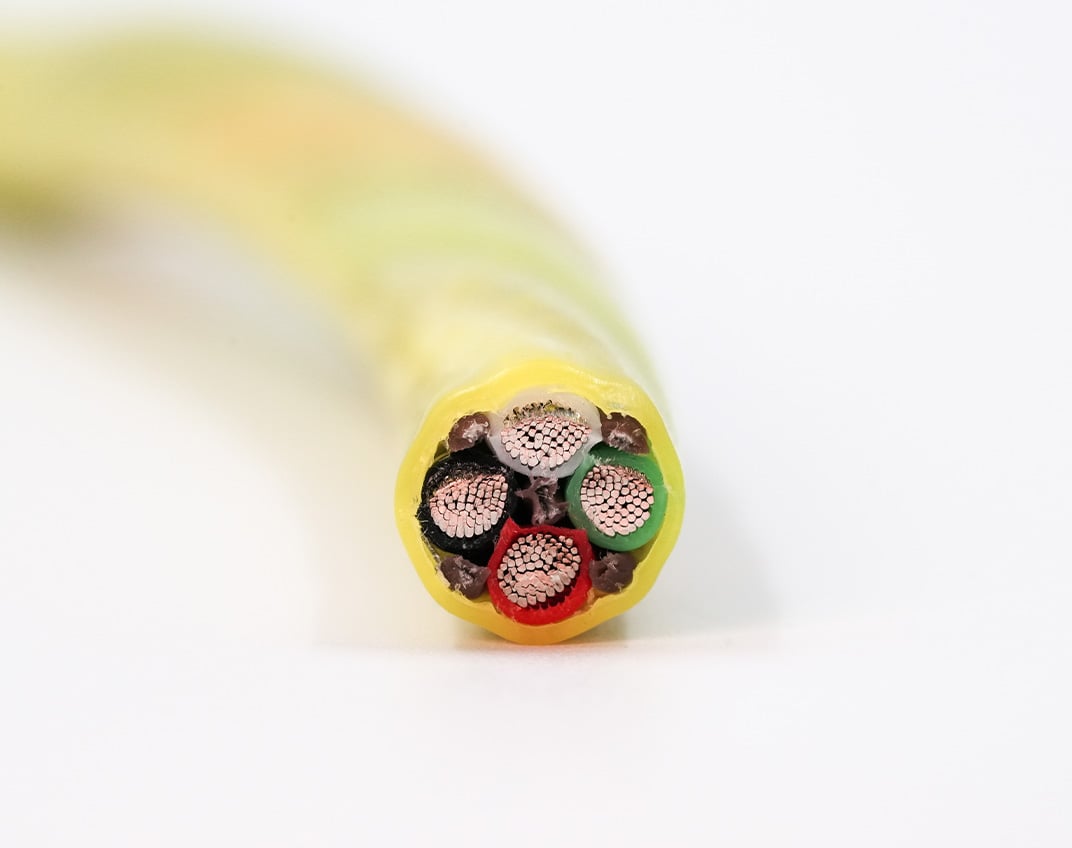

Chem-Gard® 200 Multi-Conductor Cable Macro_Web

Chem-Gard® 200 Multi-Conductor Cable

Chem-Gard® 200 Multi-Conductor Cable is a high-temperature and chemical-resistant cable for control and instrumentation applications that can withstand a maximum conductor temperature of 200°C / 392°F.

This control and instrumentation cable features a fluoropolymer jacket that provides excellent chemical, abrasion, and high heat resistance. Chem-Gard cable is roughly forty percent smaller in diameter than SOOW cable allowing it to be used in areas with restricted space and in conduit.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

FINELY STRANDED NICKEL-PLATED COPPER CONDUCTORS

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Nickel-plated conductors allow for high heat resistance.

SPECIALLY COMPOUNDED FLUOROPOLYMER INSULATION

High dielectric, tensile, and mechanical properties. Offers superior resistance to lubricating oils, coolants, cutting oils, acids, and most chemicals.

HIGH TEMPERATURE FLUOROPOLYMER FILLERS

Will not wick up contaminants into cable. Allow conductors to move freely within the jacket for improved flex-life in dynamic applications.

SPECIALLY COMPOUNDED FLUOROPOLYMER JACKET

Ideal for environments where harsh chemicals are present. Superior resistance to oils, acids, solvents, and chemicals. Excellent defense against cutting and abrasion.

Resources

Specsheets

Product Overview

Video

Product Showcase - Chem-Gard® Cables

Video

Chem-Gard Cable Demo

wood-pulp-paper

Lighting Fixture Application for Paper Mill

Metals

Steel Customer Finds Solution For Torch Machine Application

Resource-Color Code

Chem-Gard® 200 Multi-Conductor Cable

Ratings / Characteristics

  • UL Recognized

  • CSA

  • RoHS Compliant

  • 600V 

  • Max Conductor Temperature 200°C      

  • Cold Temperature Rating -60°C 

  • AWM Style 2750

  • CSA Std. C22.2 No. 210-15 Class I/II Group A/B FT1

  • FT1 Flame Rating      

  • VW-1 Flame Rating      

  • Bend Radius (Static): 12x Cable O.D.     

  • Bend Radius (Dynamic): 15x Cable O.D.     

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

heat-icon

Extreme Temperature

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size Conductor/Pole Count STRANDING (STRANDS/AWG) NOMINAL O.D.
inches		 AMPACITY WT. PER 1000'
lbs		 Shielding Type
42804 18 AWG 4 41/34 0.2 21 42 No Shielding
42805 18 AWG 5 41/34 0.23 17 55 No Shielding
42808 18 AWG 8 41/34 0.262 15 75 No Shielding
42812 18 AWG 12 41/34 0.305 10 105 No Shielding
42604 16 AWG 4 65/34 0.23 29 59 No Shielding
42608 16 AWG 8 65/34 0.325 20 112 No Shielding
42612 16 AWG 12 65/34 0.37 14 152 No Shielding
42404 14 AWG 4 105/34 0.27 40 86.5 No Shielding
42408 14 AWG 8 105/34 0.376 28 168 No Shielding
42412 14 AWG 12 105/34 0.425 20 210 No Shielding
42204 12 AWG 4 65/30 0.345 55 133.5 No Shielding
42208 12 AWG 8 65/30 0.465 39 240 No Shielding
421004 10 AWG 4 105/30 0.4 74 182 No Shielding
