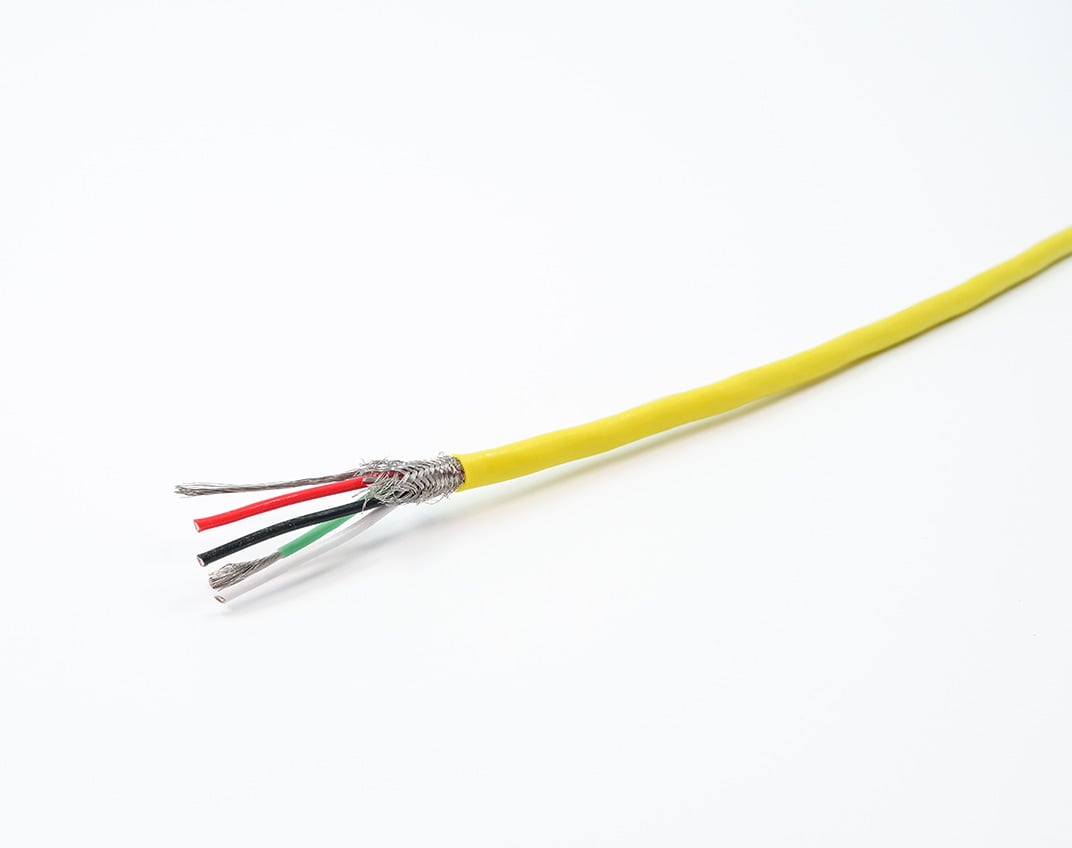

Chem-Gard® 200 Shielded Multi-Conductor Cable 3QV_Web2

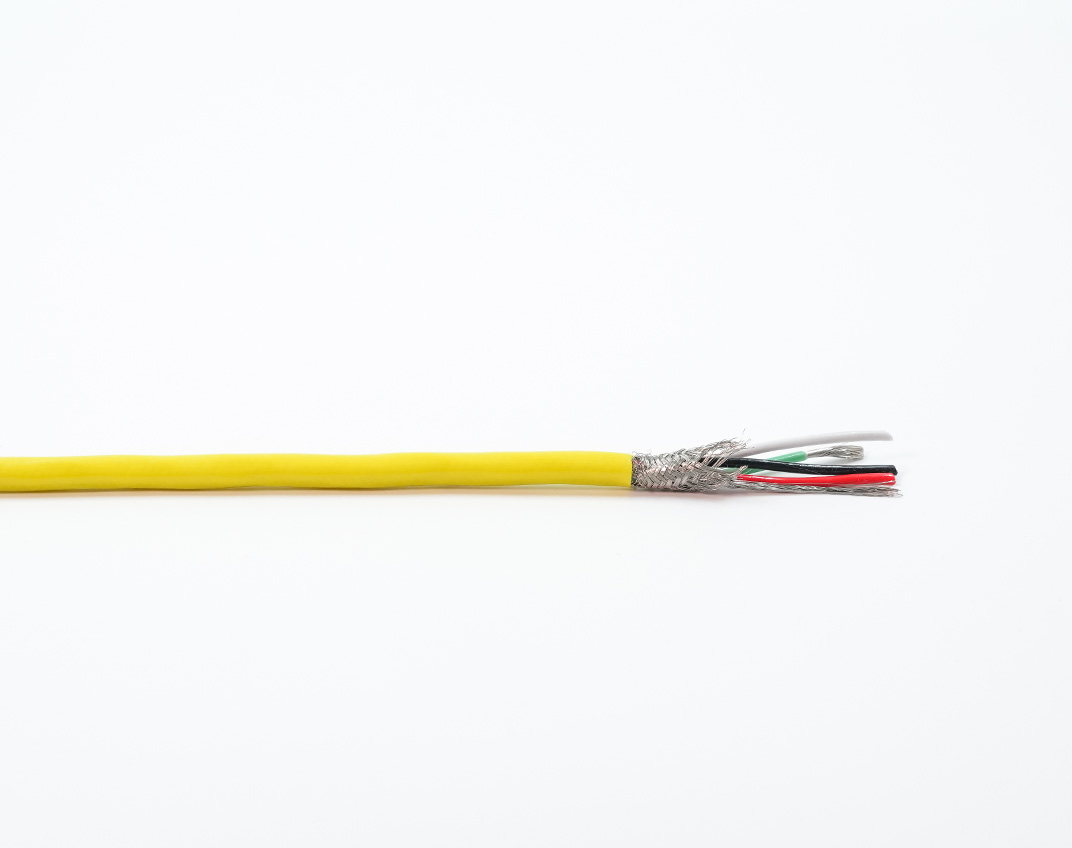

Chem-Gard® 200 Shielded Multi-Conductor Cable Side_Web2

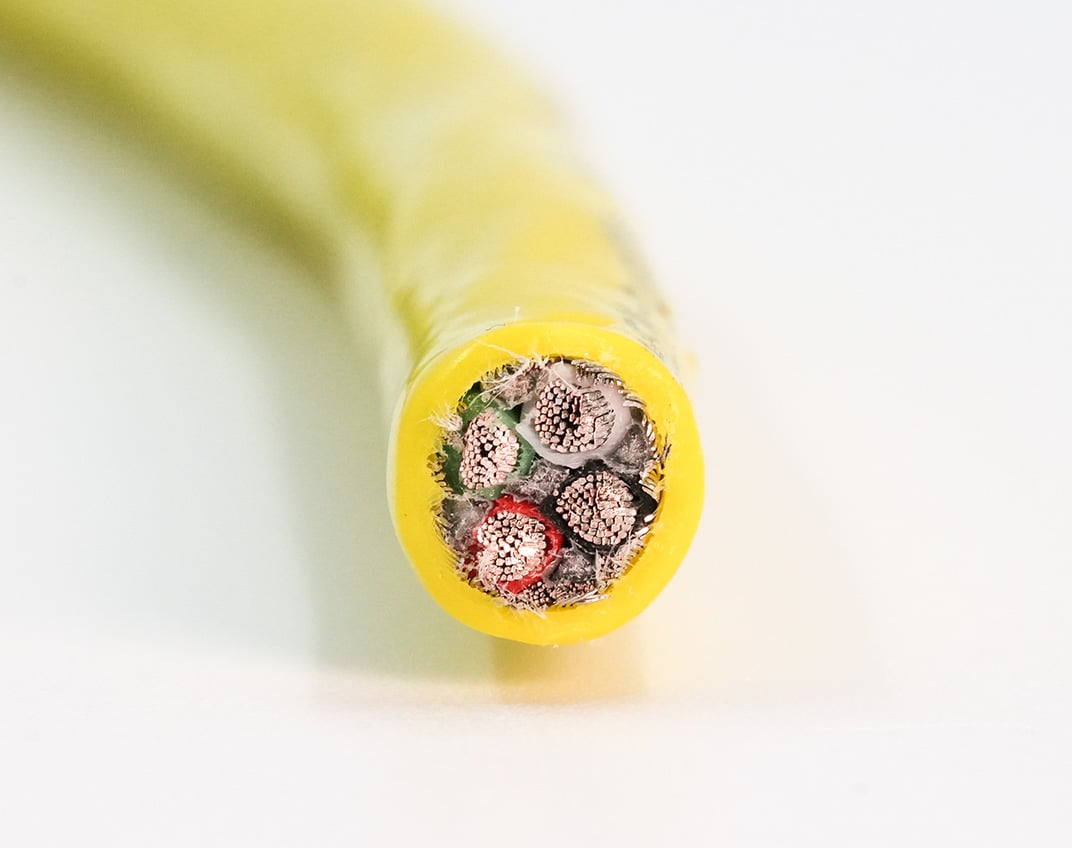

Chem-Gard® 200 Shielded Multi-Conductor Cable Macro_Web

Chem-Gard® 200 Shielded Multi-Conductor Cable

Chem-Gard® 200 Shielded Multi-Conductor Cable is a high-temperature and chemical-resistant cable for control and instrumentation applications that can withstand a maximum conductor temperature of 200°C / 392°F.

This control and instrumentation cable features a fluoropolymer jacket that provides excellent chemical, abrasion and high heat resistance. Chem-Gard cable is roughly forty percent smaller in diameter than SOOW cable allowing it to be used in areas with restricted space and in conduit.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Nickel-Plated Copper Conductors

Fine stranding improves flexlife and reduces conductor fatigue and breakage. Nickel-plated conductors allow for high heat resistance.

Specially Compounded Fluoropolymer Insulation

High dielectric, tensile, and mechanical properties. Offers superior resistance to lubricating oils, coolants, cutting oils, acids, and most chemicals.

High Temperature Fluoropolymer Fillers

Will not wick up contaminants into cable. Allow conductors to move freely within the jacket for improved flex-live in dynamic applications.

Heavy-Duty 90% Coverage Nickel-Plated Copper Braid Shield

Nickel-plated copper braid shield with drain wire. Provides protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage”.

Specially Compounded Fluoropolymer Jacket

Ideal for environments where harsh chemicals are present. Superior resistance to oils, acids, solvents, and chemicals. Excellent defense against cutting and abrasion.

Resources

Specsheets

Product Overview

Video

Chem-Gard Cable Demo

Video

Product Showcase - Chem-Gard® Cables

wood-pulp-paper

Lighting Fixture Application for Paper Mill

Metals

Steel Customer Finds Solution For Torch Machine Application

Resource-Color Code

Chem-Gard® 200 Shielded Multi-Conductor Cable

Ratings / Characteristics

  • UL Recognized

  • CSA

  • RoHS Compliant

  • 600 V

  • Max Conductor Temperature 200°C

  • Cold Temperature Rating -60°C

  • FT-1 Flame Rating

  • VW-1 Flame Rating

  • CSA Standard C22.2 No. 210-15 AWG Class I/II Group A/B FT1

  • Bend Radius (Static): 12x Cable O.D.

  • Bend Radius (Dynamic): 15x Cable O.D.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

heat-icon

Cold Temperature

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size Conductor/Pole Count STRANDING (STRANDS/AWG) NOMINAL O.D.
INCHES		 AMPACITY WT. PER 1000'
lbs		 Shielding Type
42066 18 AWG 3 41/34 0.208 21 46 Overall Shield
42060 18 AWG 4 41/34 0.22 21 56 Overall Shield
420608 18 AWG 8 41/34 0.298 15 112 Overall Shield
42064 18 AWG 12 41/34 0.345 10 123 Overall Shield
420612 16 AWG 2 65/30 0.215 29 35 Overall Shield
420613 16 AWG 3 65/30 0.232 29 46 Overall Shield
42061 16 AWG 4 65/34 0.245 29 77 Overall Shield
420618 16 AWG 8 65/34 0.352 20 117 Overall Shield
42065 16 AWG 12 65/34 0.385 14 176 Overall Shield
42062 14 AWG 4 105/34 0.29 40 104 Overall Shield
42070 14 AWG 8 105/34 0.4 28 193 Overall Shield
42063 12 AWG 4 65/30 0.37 55 154 Overall Shield
42072 12 AWG 8 65/30 0.485 39 270 Overall Shield
42075 10 AWG 4 105/30 0.425 74 206 Overall Shield
