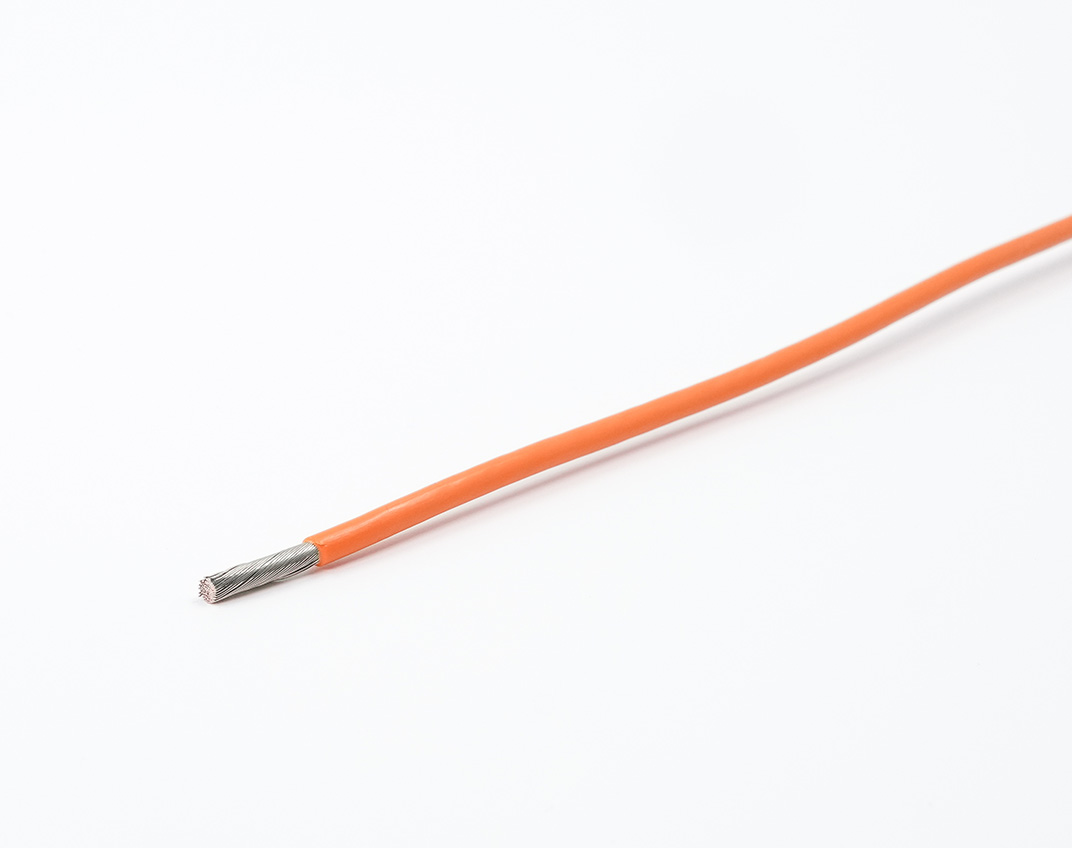

Chem-Gard® 200 Single Conductor Cable 3QV_Web2

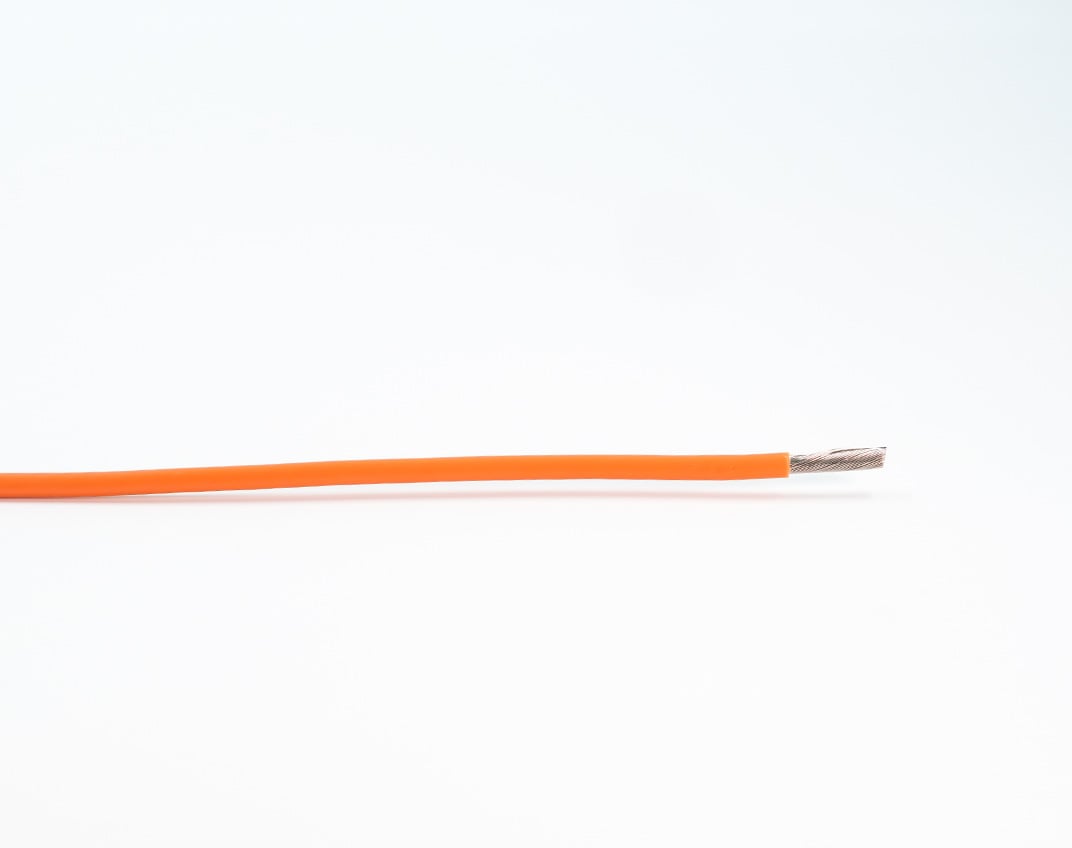

Chem-Gard® 200 Single Conductor Cable Side_Web2

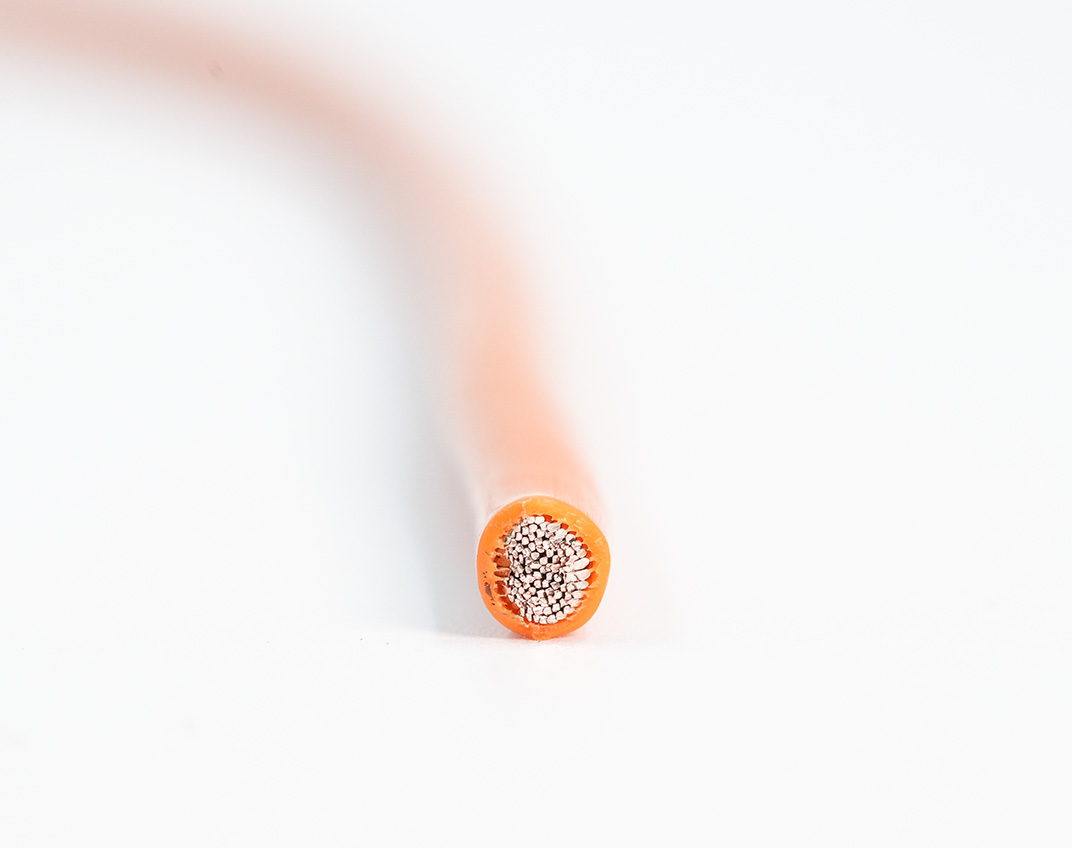

Chem-Gard® 200 Single Conductor Cable Macro_Web2

Chem-Gard® 200 Single Conductor Cable

Chem-Gard® 200 Single Conductor Cable is a high-temperature and chemical-resistant cable for control and instrumentation applications that can withstand a maximum conductor temperature of 200°C / 392°F.

This control and instrumentation cable features a fluoropolymer jacket that provides excellent chemical, abrasion and high heat resistance. This cable is also available in multiple AWG sizes and jackets colors for color code identification.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers

Features

FINELY STRANDED NICKEL-PLATED COPPER CONDUCTORS

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Nickel-plated conductors allow for high heat resistance.

SPECIALLY COMPOUNDED FLUOROPOLYMER JACKET

Ideal for environments where harsh chemicals are present. Superior resistance to oils, acids, solvents, and chemicals. Excellent defense against cutting and abrasion.

Resources

Video

Chem-Gard Cable Demo

Video

Product Showcase - Chem-Gard® Cables

wood-pulp-paper

Lighting Fixture Application for Paper Mill

Metals

Steel Customer Finds Solution For Torch Machine Application

Ratings / Characteristics

  • UL Recognized

  • CSA

  • RoHS Compliant

  • 600V

  • Max Conductor Temperature 200°C       

  • Cold Temperature Rating -60°C  

  • AWM Styles 10086, 11331, 1330

  • CSA Std. C22.2 No. 210-15 Class I/II Group A/B FT1

  • FT1 Flame Rating       

  • VW-1 Flame Rating       

  • Bend Radius (Static): 12x Cable O.D.      

  • Bend Radius (Dynamic): 15x Cable O.D.      

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

heat-icon

High Temperature

cold-icon

Cold Temperature

flexing-icon

Flexing

Part Numbers

Part No. CONFIGURATION (AWG/COND) Conductor Size (AWG) Conductor/Pole Count STRANDING (STRANDS/AWG) NOMINAL O.D.
INCHES		 AMPACITY WT. PER 1000'
lbs		 Shielding Type
42901 1 BLACK 1 AWG 1 817/30 0.437 362 340 No Shielding
42902 2 BLACK 2 AWG 1 665/30 0.401 305 277 No Shielding
42904 4 BLACK 4 AWG 1 133/25 0.305 226 170 No Shielding
42906 6 BLACK 6 AWG 1 133/27 0.252 167 111 No Shielding
42906YLW 6 YELLOW 6 AWG 1 133/27 0.252 167 111 No Shielding
42906RED 6 RED 6 AWG 1 133/27 0.252 167 111 No Shielding
42906WHT 6 WHITE 6 AWG 1 133/27 0.252 167 111 No Shielding
42906ORG 6 ORANGE 6 AWG 1 133/27 0.252 167 111 No Shielding
42906GRN 6 GREEN 6 AWG 1 133/27 0.252 167 111 No Shielding
42906BRN 6 BROWN 6 AWG 1 133/27 0.252 167 111 No Shielding
42906BLU 6 BLUE 6 AWG 1 133/27 0.252 167 111 No Shielding
42908 8 BLACK 8 AWG 1 133/29 0.211 125 73 No Shielding
42908YLW 8 YELLOW 8 AWG 1 133/29 0.211 125 73 No Shielding
42908RED 8 RED 8 AWG 1 133/29 0.211 125 73 No Shielding
42908ORG 8 ORANGE 8 AWG 1 133/29 0.211 125 73 No Shielding
42908GRN 8 GREEN 8 AWG 1 133/29 0.211 125 73 No Shielding
42908BRN 8 BROWN 8 AWG 1 133/29 0.211 125 73 No Shielding
42908BLU 8 BLUE 8 AWG 1 133/29 0.211 125 73 No Shielding
42881 18 BLACK 18 AWG 1 41/34 0.068 27 6.8 No Shielding
42882 18 WHITE 18 AWG 1 41/34 0.068 27 6.8 No Shielding
42883 18 RED 18 AWG 1 41/34 0.068 27 6.8 No Shielding
42884 18 GREEN 18 AWG 1 41/34 0.068 27 6.8 No Shielding
42885 18 BROWN 18 AWG 1 41/34 0.068 27 6.8 No Shielding
42886 18 ORANGE 18 AWG 1 41/34 0.068 27 6.8 No Shielding
42887 18 YELLOW 18 AWG 1 41/34 0.068 27 6.8 No Shielding
42888 18 BLUE 18 AWG 1 41/34 0.068 27 6.8 No Shielding
42661 16 BLACK 16 AWG 1 65/34 0.078 37 10.4 No Shielding
42662 16 WHITE 16 AWG 1 65/34 0.078 37 10.4 No Shielding
42663 16 RED 16 AWG 1 65/34 0.078 37 10.4 No Shielding
42664 16 GREEN 16 AWG 1 65/34 0.078 37 10.4 No Shielding
42665 16 BROWN 16 AWG 1 65/34 0.078 37 10.4 No Shielding
42666 16 ORANGE 16 AWG 1 65/34 0.078 37 10.4 No Shielding
42667 16 YELLOW 16 AWG 1 65/34 0.078 37 10.4 No Shielding
42668 16 BLUE 16 AWG 1 65/34 0.078 37 10.4 No Shielding
42441 14 BLACK 14 AWG 1 105/34 0.094 51 15.5 No Shielding
42442 14 WHITE 14 AWG 1 105/34 0.094 51 15.5 No Shielding
42443 14 RED 14 AWG 1 105/34 0.094 51 15.5 No Shielding
42444 14 GREEN 14 AWG 1 105/34 0.094 51 15.5 No Shielding
42445 14 BROWN 14 AWG 1 105/34 0.094 51 15.5 No Shielding
42446 14 ORANGE 14 AWG 1 105/34 0.094 51 15.5 No Shielding
42447 14 YELLOW 14 AWG 1 105/34 0.094 51 15.5 No Shielding
42448 14 BLUE 14 AWG 1 105/34 0.094 51 15.5 No Shielding
42221 12 BLACK 12 AWG 1 65/30 0.124 66 24.6 No Shielding
42222 12 WHITE 12 AWG 1 65/30 0.124 66 24.6 No Shielding
42223 12 RED 12 AWG 1 65/30 0.124 66 24.6 No Shielding
42224 12 GREEN 12 AWG 1 65/30 0.124 66 24.6 No Shielding
42225 12 BROWN 12 AWG 1 65/30 0.124 66 24.6 No Shielding
42226 12 ORANGE 12 AWG 1 65/30 0.124 66 24.6 No Shielding
42227 12 YELLOW 12 AWG 1 65/30 0.124 66 24.6 No Shielding
42228 12 BLUE 12 AWG 1 65/30 0.124 66 24.6 No Shielding
42229 12 PURPLE 12 AWG 1 65/30 0.124 66 24.6 No Shielding
42230 12 PINK 12 AWG 1 65/30 0.124 66 24.6 No Shielding
42231 12 GRAY 12 AWG 1 65/30 0.124 66 24.6 No Shielding
42301 10 BLACK 10 AWG 1 105/30 0.134 89 38.5 No Shielding
42302 10 WHITE 10 AWG 1 105/30 0.134 89 38.5 No Shielding
42303 10 RED 10 AWG 1 105/30 0.134 89 38.5 No Shielding
42304 10 GREEN 10 AWG 1 105/30 0.134 89 38.5 No Shielding
42305 10 BROWN 10 AWG 1 105/30 0.134 89 38.5 No Shielding
42306 10 ORANGE 10 AWG 1 105/30 0.134 89 38.5 No Shielding
42307 10 YELLOW 10 AWG 1 105/30 0.134 89 38.5 No Shielding
42308 10 BLUE 10 AWG 1 105/30 0.134 89 38.5 No Shielding

Related Products

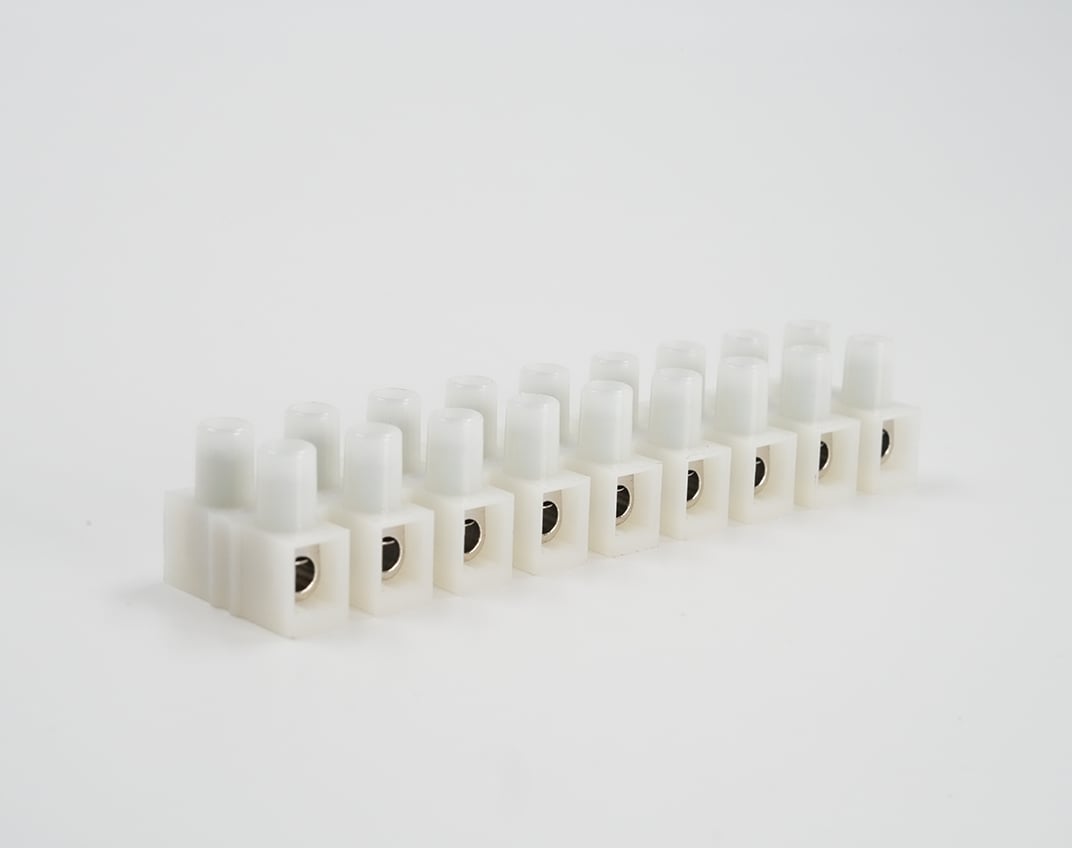

Terminal Block 1072 x 848
