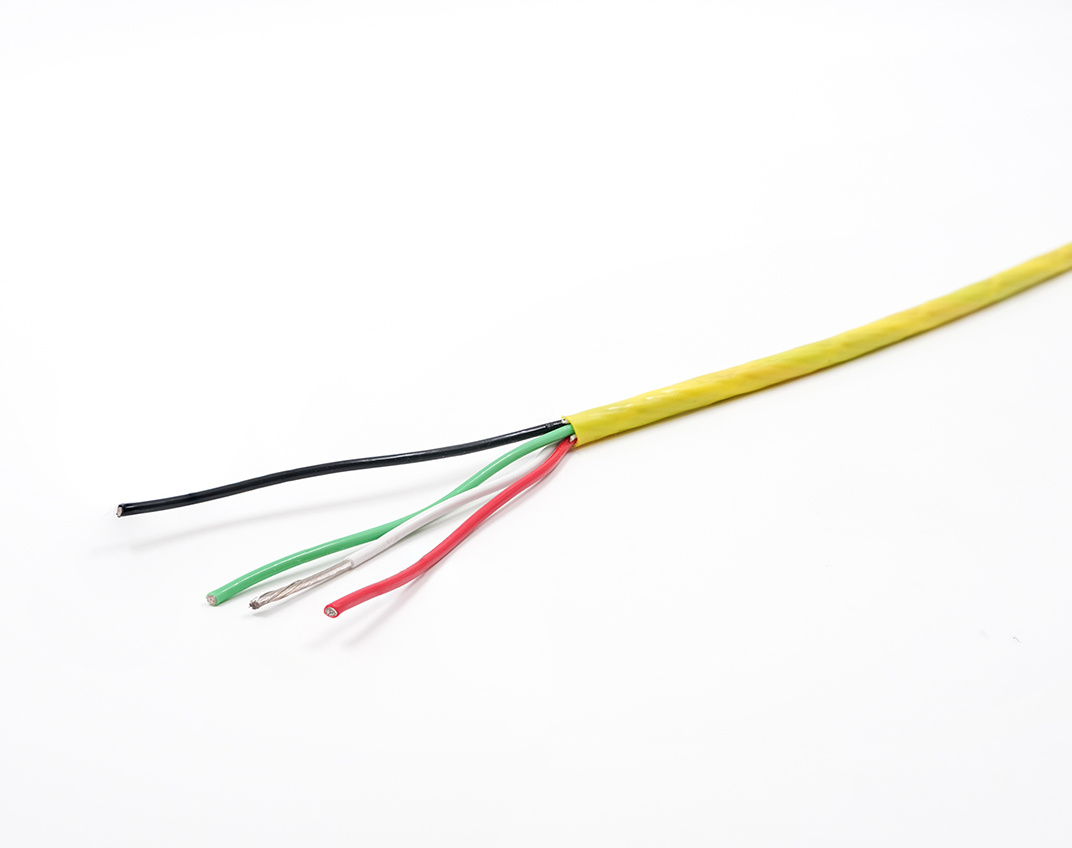

    Chem-Gard® 250 3QV_Web

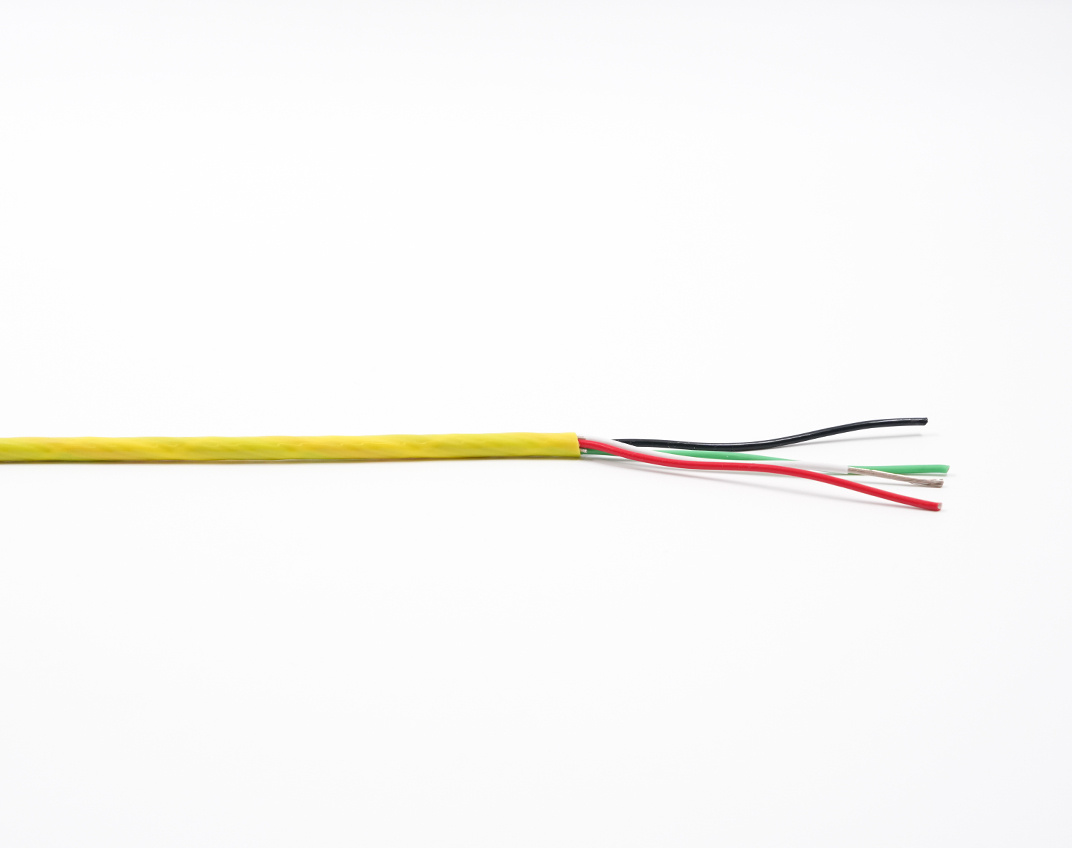

    Chem-Gard® 250 Side_Web

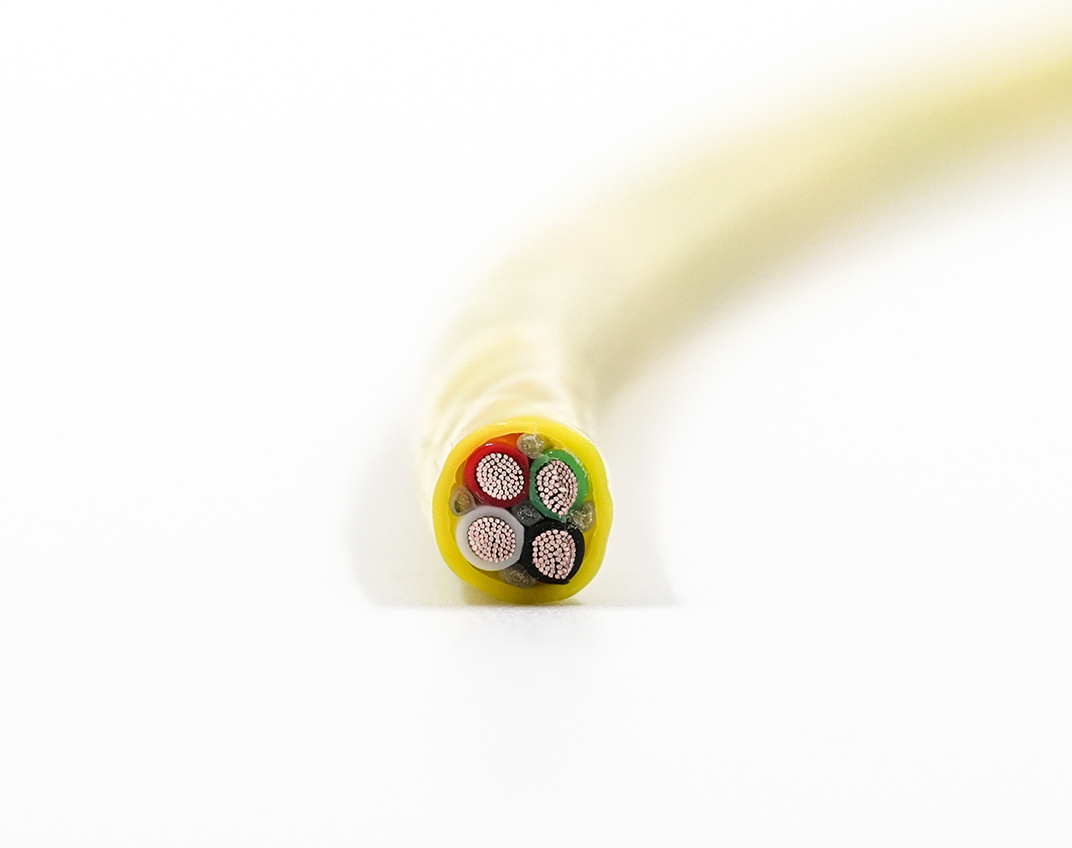

    Chem-Gard® 250 Macro_Web

    Chem-Gard® 250 Multi-Conductor Cable

    Chem-Gard® 250 Multi-Conductor Cable is a high temperature and chemical resistant cable for control and instrumentation applications that can withstand a maximum conductor temperature of 250°C / 482°F.  This control and instrumentation cable features a copolymer PFA jacket that provides excellent chemical, abrasion and high heat resistance.  Chem-Gard® is approximately 40% smaller in diameter than typical SOOW cable, allowing it to be used in areas with restricted space and in conduit.

    Request a Quote Download Spec Sheet
    Features
    Resources
    Ratings
    Applications
    Part Numbers
    Related Products

    Features

    Finely Stranded Nickel-Plated Copper Conductors

    Fine stranding improves flex-life and reduces conductor fatigue and breakage. Nickel-plated conductors allow for high heat resistance.

    Specially Compounded PFA Insulation

    High dielectric, tensile, and mechanical properties. Offers superior resistance to lubricating oils, coolants, cutting oils, acids, and most chemicals.

    High Temperature Fillers

    Will not wick up contaminants into cable. Allow conductors to move freely within the jacket for improved flex-life in dynamic applications.

    Specially Compounded PFA Jacket

    Ideal for environments where harsh chemicals are present. Superior resistance to oils, acids, solvents, and chemicals. Excellent defense against cutting and abrasion.

    Resources

    Specsheets

    Product Overview

    Video

    Chem-Gard Cable Demo

    Video

    Product Showcase - Chem-Gard® Cables

    Resource-Color Code

    Color Code

    Ratings / Characteristics

    • UL Recognized

    • CSA

    • RoHS Compliant

    • 600V

    • Max Conductor Temperature 250°C       

    • Cold Temperature Rating -40°C 

    • AWM Style 21589

    • CSA AWM Class I/II Group A/B

    • FT1 Flame Rating       

    • VW-1 Flame Rating       

    • Bend Radius (Static): 12x Cable O.D.

    • Bend Radius (Dynamic): 15x Cable O.D.

    Applications

    abrasions-icon

    Abrasion

    chemicals-icon

    Chemicals

    heat-icon

    High Temperature

    heat-icon

    Cold Temperature

    Part Numbers

    Part Number Configuration (AWG/Conductor Count) Stranding Ampacity Nominal O.D. (in.) Weight per 1,000 ft. (lbs.) Standard Cable Gland
    47004 18/4 41/34 23 0.2 40 55001
    47010 16/4 65/34 31 0.23 43 55001
    47013 16/12 65/34 15 0.377 150 55002
    47016 14/4 105/34 43 0.27 84 55003
    47018 14/12 105/34 21 0.465 210 55004
    47020 12/4 65/30 60 0.345 119 55002
    47021 12/8 65/30 42 0.445 240 55004
    47024 10/4 105/30 80 0.44 180 55004
