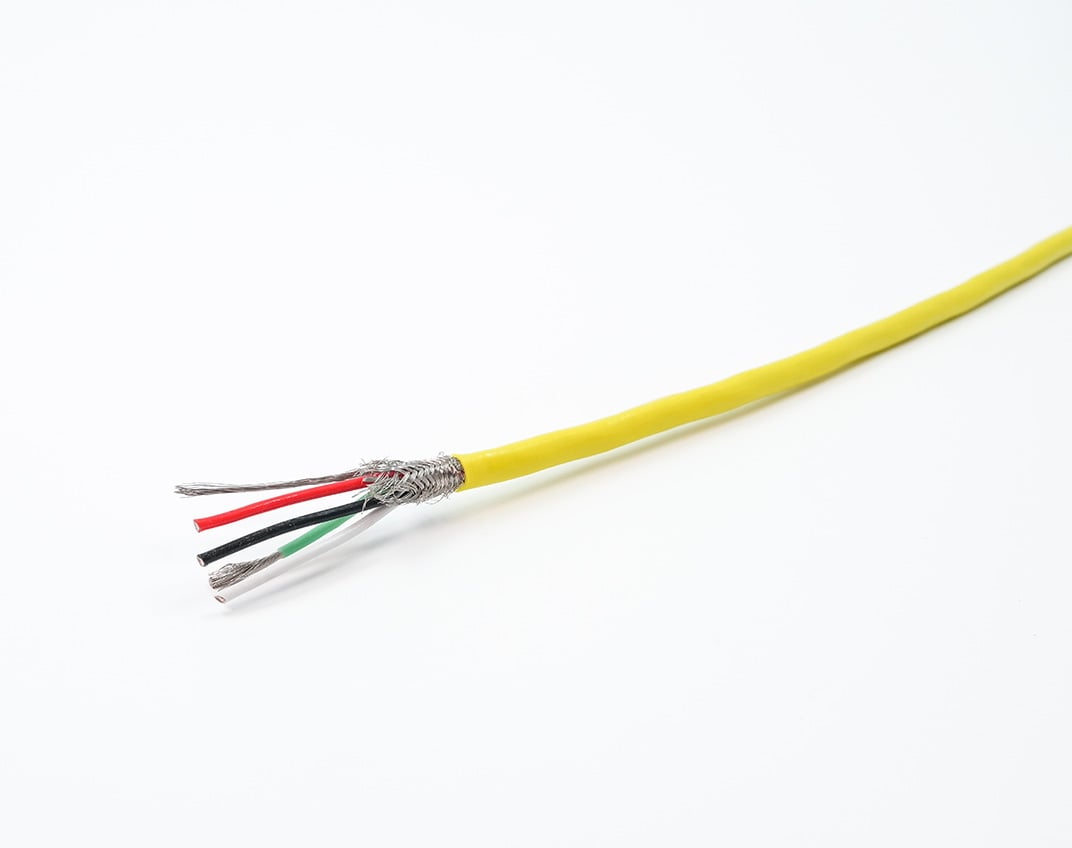

Chem-Gard® 250 Shielded Multi-Conductor Cable is a high temperature and chemical resistant cable for control and instrumentation applications that can withstand a maximum conductor temperature of 250°C / 482°F. This control and instrumentation cable features a copolymer PFA jacket that provides excellent chemical, abrasion and high heat resistance. Chem-Gard® is approximately 40% smaller in diameter than typical SOOW cable, allowing it to be used in areas with restricted space and in conduit.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Nickel-Plated Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Nickel-plated conductors allow for high heat resistance.

Specially Compounded PFA Insulation

High dielectric, tensile, and mechanical properties. Offers superior resistance to lubricating oils, coolants, cutting oils, acids, and most chemicals.

High Temperature Fillers

Will not wick up contaminants into cable. Allow conductors to move freely within the jacket for improved flex-life in dynamic applications.

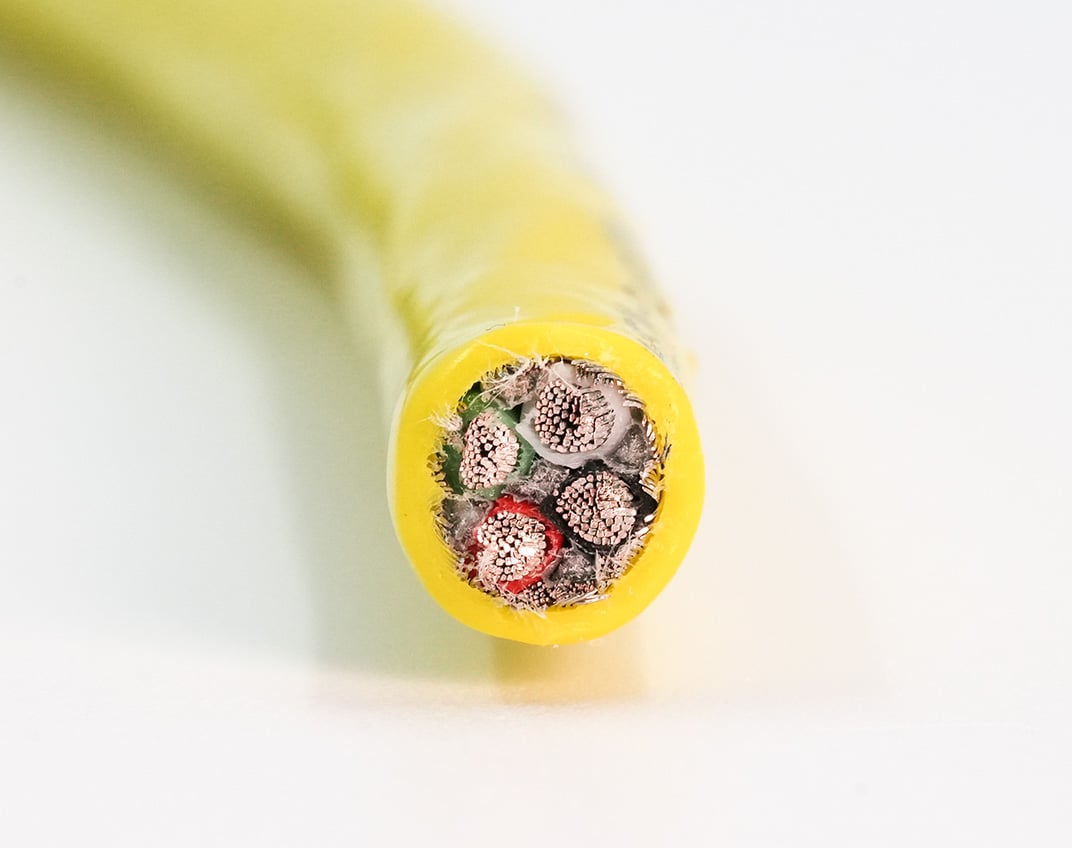

Heavy Duty 90% Coverage Nickel-Plated Copper Braid Shield

Nickel-plated copper braid shield with drain wire. Provides protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage.”

Specially Compounded PFA Jacket

Ideal for environments where harsh chemicals are present. Superior resistance to oils, acids, solvents, and chemicals. Excellent defense against cutting and abrasion.

Resources

Resource-Color Code

Color Code

Video

Chem-Gard Cable Demo

Video

Product Showcase - Chem-Gard® Cables

Ratings / Characteristics

  • UL Recognized

  • CSA

  • RoHS Compliant

  • 600V

  • Max Conductor Temperature 250°C       

  • Cold Temperature Rating -40°C 

  • AWM Style 21589

  • CSA AWM Class I/II Group A/B

  • FT1 Flame Rating       

  • VW-1 Flame Rating       

  • Bend Radius (Static): 12x Cable O.D.

  • Bend Radius (Dynamic): 15x Cable O.D.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

heat-icon

High Temperature

heat-icon

Cold Temperature

Part Numbers

Part Number Configuration (AWG/Conductor Count) Stranding Ampacity Nominal O.D. (in.) Weight per 1,000 ft. (lbs.) Standard Cable Gland
47103 18/3 41/34 23 0.215 36 55001
47104 18/4 41/34 23 0.217 44 55001
47110 18/12 41/34 11 0.331 113 55003
47112 16/2 65/34 31 0.22 42 55001
47113 16/3 65/34 31 0.224 51 55001
47114 16/4 65/34 31 0.244 63 55003
47118 16/8 65/34 22 0.335 114 55002
47120 16/12 65/34 15 0.378 158 55002
47122 14/4 105/34 43 0.283 89 55003
47123 14/8 105/34 30 0.398 163 55004
47126 4-Dec 65/30 60 0.327 125 55003
47135 4-Oct 105/30 80 0.421 189 55004
