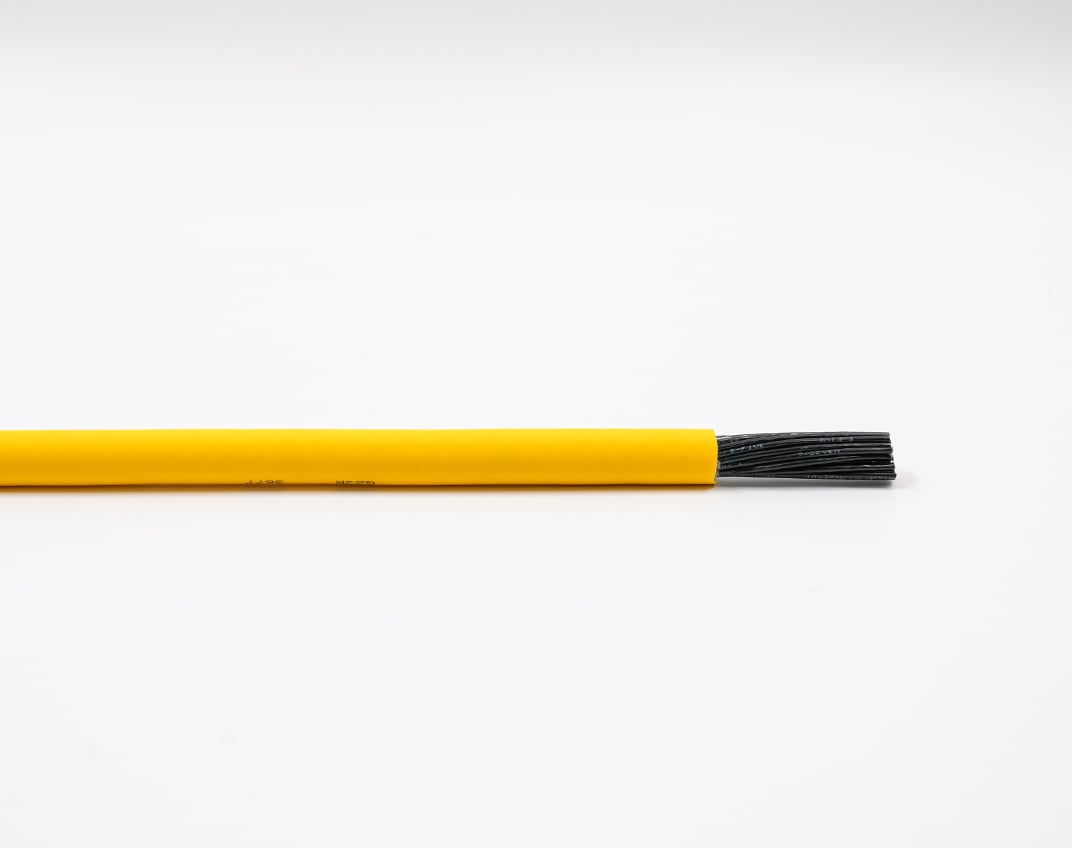

Super-Trex-Reduced-Diameter-Control-Cable-12-AWG-Side-Profile
Super-Trex-Reduced-Diameter-Control-Cable-12-AWG-Stripped-End

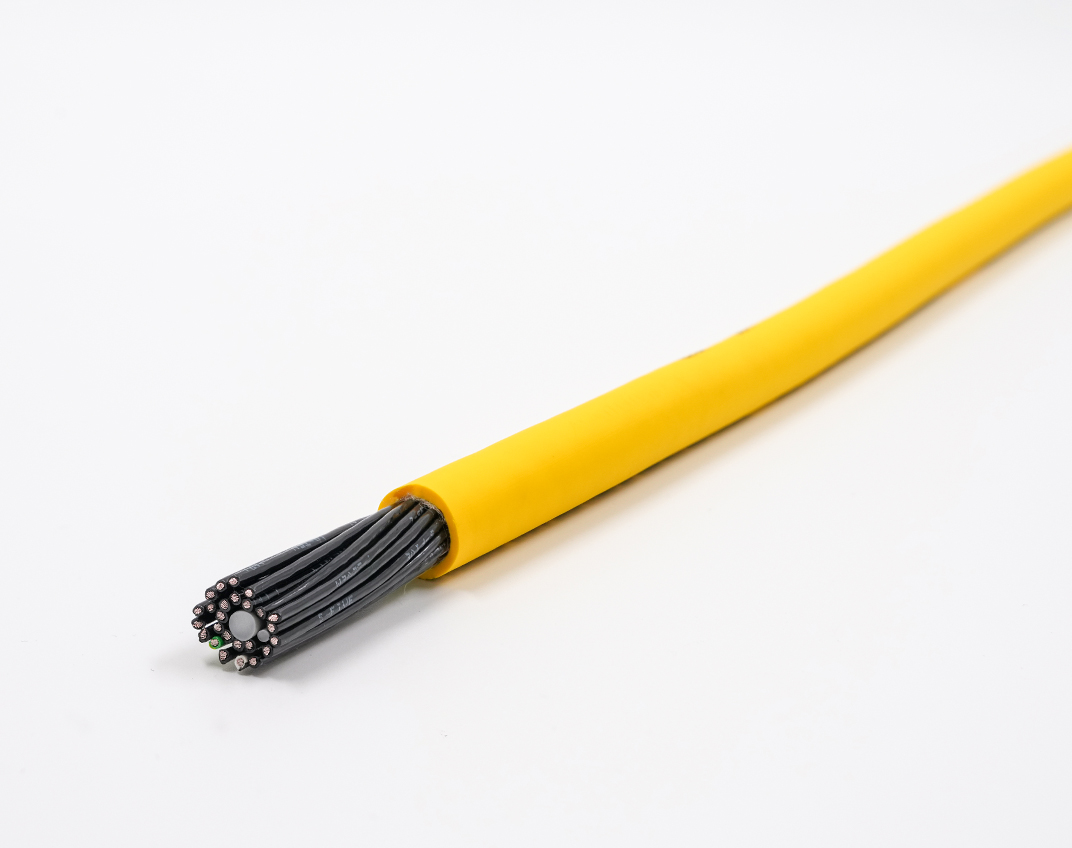

Super-Trex-Reduced-Diameter-Control-Cable-12-AWG-Side-Profile-2

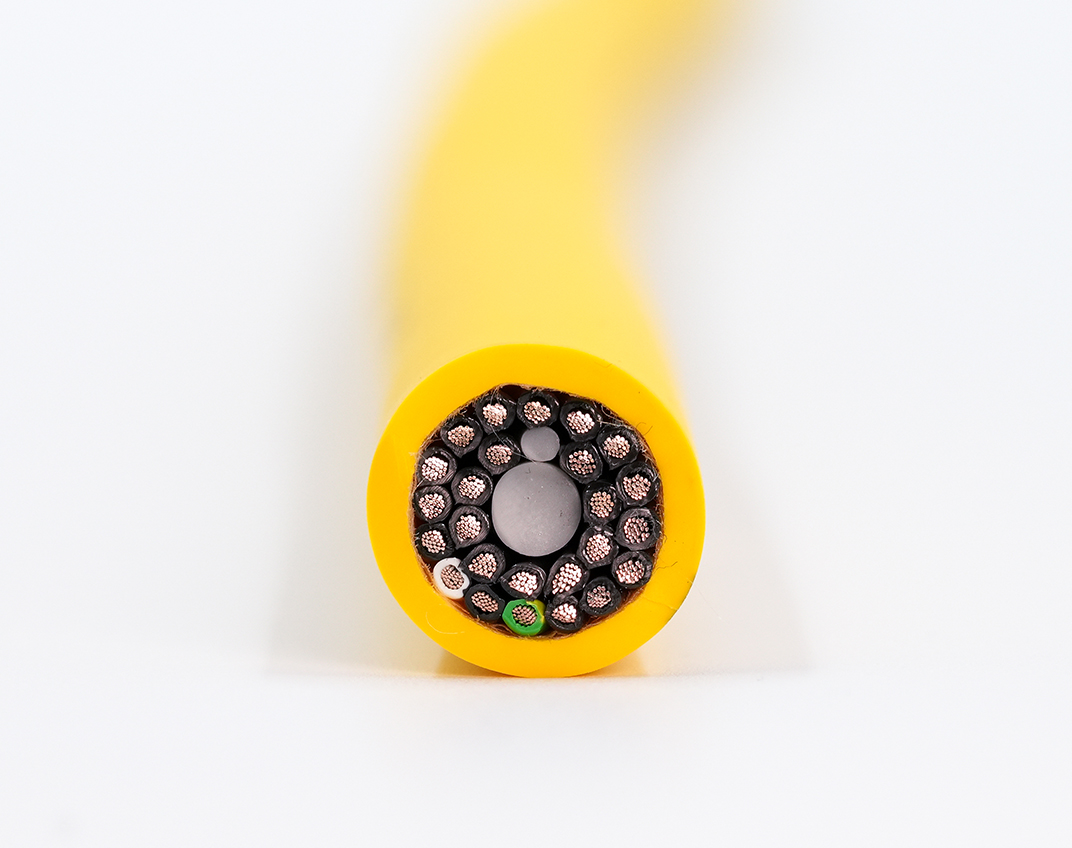

Super-Trex-Reduced-Diameter-Control-Cable-12-AWG-Cut-End

Super-Trex® 12 AWG Reduced Diameter Control Cable

Super-Trex® 12 AWG Reduced Diameter Control Cable is a multi-conductor unshielded control cable designed for industrial applications that require continuous flexing.

This control and instrumentation cable features a high strand count, TPE insulation, and a security yellow TPE jacket that provides excellent protection against abrasion, tearing, oil, and most chemicals.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Bunch Stranded Tinned Soft Drawn Copper

Longer flex life in reeling, flexing and twisting applications. Easier to solder.

Nylon Armored Inner Conductors

Lower coefficient of friction. Longer life in flexing applications.

TPE Conductor Insulation

Oil resistant and has high dielectric, tensile and mechanical properties.

Specially Compounded, Security Yellow, Super-Trex® TPE Jacket

Superior first-line defense against oil, ozone and UV exposure as well as most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Conductors Are Coded With Alpha-Numeric Identification

Provides fast identification of conductors. Easy to read and simplifies installation.

Nylon Fillers

Low friction, non-wicking fillers provide excellent flexibility.

Reverse Lay of Alternating Bundles

Increases flexibility and relieves bending and twisting stress.

Rubber Backed Fabric Tape Around Inner Components

Provides easy movement of the conductor bundle for longer flex life.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • UL Listed

  • CSA

  • Type TC

  • FT-1 Flame Rating

  • UV Resistant

  • RoHS Compliant

  • 600 V

  • Max Conductor Temperature 90°C

  • Suitable forClass I,II, Div. 2

Applications

abrasions-icon

Abrasion

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count CONDUCTOR STRANDING AMPACITY WT. PER 1000'
lbs		 NOMINAL O.D.
inches		 MIN. BEND RADIUS
inches		 Shielding Type
88708 12 AWG 8 65 x 30 21 306 0.64 5.12 No Shielding
88712 12 AWG 12 65 x 30 15 410 0.71 5.68 No Shielding
88722 12 AWG 22 65 x 30 13 750 0.945 7.56 No Shielding
