    Super-Trex® Reduced Diameter Control Cable (16 AWG)

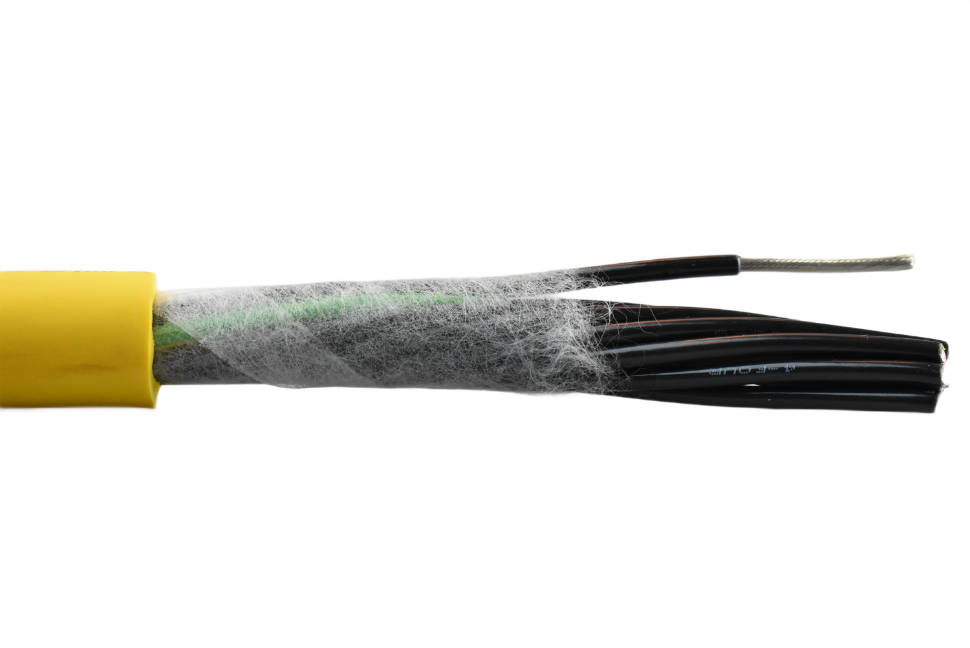

    Super-Trex® 16 AWG Reduced Diameter Control Cable features a specially compounded jacket that provides a superior first line of defense against oil, ozone, UV exposure, and most chemicals. This shielded control cable is also flame- and heat-resistant and has completed 11 million cycles without electrical failure in cat track testing. This reduced diameter cable is available various conductor counts (from 5 to 60 conductors) in 20 AWG18 AWG, and 12 AWG.

    Reduced Diameter Control Cable 16


    Ratings / Characteristics

    • UL Listed
    • CE
    • Type TC-ER – 600 V
    • Type WTTC – 1,000 V
    • FT-4 Flame Rating
    • RoHS Compliant
    • Max Conductor Temperature 90°C
    • Suitable for Class I, II, Div. 2


    Features

    • BUNCH STRANDED TINNED SOFT DRAWN COPPER — Longer flex life in flexing and twisting applications. Easier to solder.

    • POLYESTER TPE CONDUCTOR INSULATION — Oil resistant and has high dielectric, tensile and mechanical properties.

    • HIGH FLEX TAPE SEPARATOR AROUND INNER COMPONENTS — Provides easy movement of the conductor bundle for longer flex life.

    • SPECIALLY COMPOUNDED, SECURITY YELLOW, SUPER-TREX® TPE JACKET — Superior first-line defense against oil, ozone and UV exposure as well as most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

    • CONDUCTORS ARE CODED WITH ALPHA-NUMERIC IDENTIFICATION — Provides fast identification of conductors. Easy to read and simplifies installation. RED conductors for AC applications and BLUE conductors for DC applications.

    • NYLON FILLERS — Low friction, non-wicking fillers provide excellent flexibility.

    • UNI-LAY CONSTRUCTION ALTERNATING BUNDLES — Superior performance in flexing and torsional applications.

    • 11 MILLION — Flex tested over 11,000,000 cycles in cat track testing without electrical failure.



    Applications

    • Automatic Welders
    • Broach Machines
    • Control Circuits
    • Cranes
    • Festoon Systems
    • Machine Tools
    • Positioning Equipment
    • Power Track Systems
    • Remote Control of Electrical Equipment
    • Sensing Equipment
    • Transfer Vehicles


    Environments

    • Abrasion
    • Flexing


    Video



    Resources

    Case Study: Side Puller Machine Keeps Failing Due to Flexing Issues

     DOWNLOAD

    Product Spec Sheet

     DOWNLOAD



    Part Numbers

    • 88505R
    • 88505B
    • 88507B
    • 88508B
    • 88512
    • 88512R
    • 88512B
    • 88516
    • 88519R
    • 88519B
    • 88522
    • 88525
    • 88525R
    • 88525B
    • 88531
    • 88533
    • 88533R
    • 88533B
    • 88541
    • 88547R
    • 88547B
    • 88549
    • 88560
