Thermo-Trex® 2000 Cable 3QV_Web-1

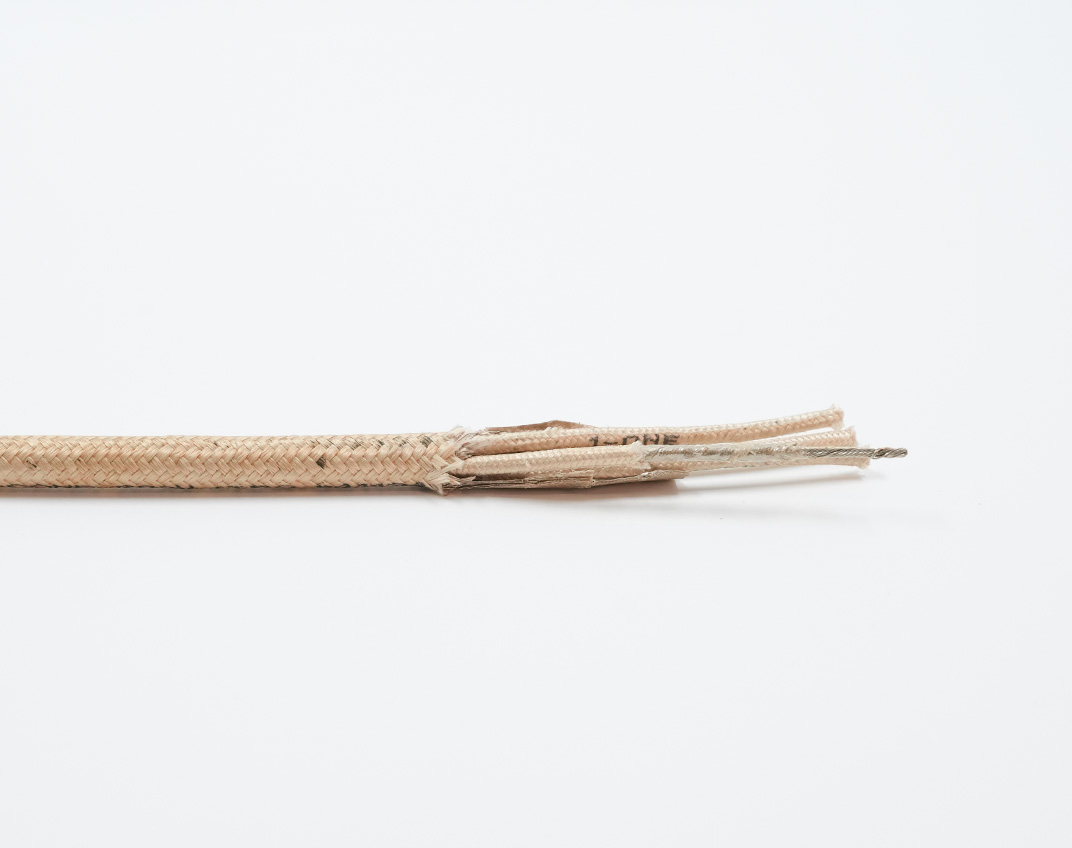

Thermo-Trex® 2000 Cable Side_Web-1

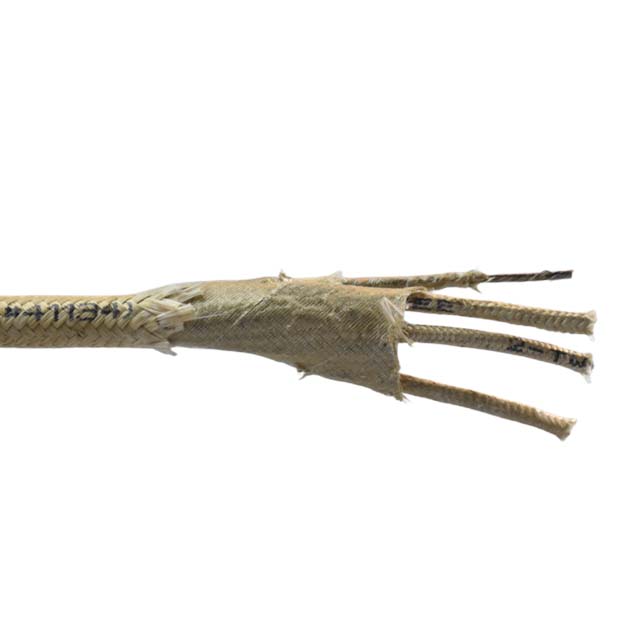

Thermo-Trex® 2000 Cable

Thermo-Trex® 2000 Cable

Thermo-Trex® 2000 is a high-temperature resistant cable for power and control applications that can withstand a maximum conductor temperature of 450°C / 850°F.

This flexible control and instrumentation cable features finely stranded, nickel-plated copper conductors and a specially woven glass-braid jacket impregnated with abrasion-resistant finishing compounds.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

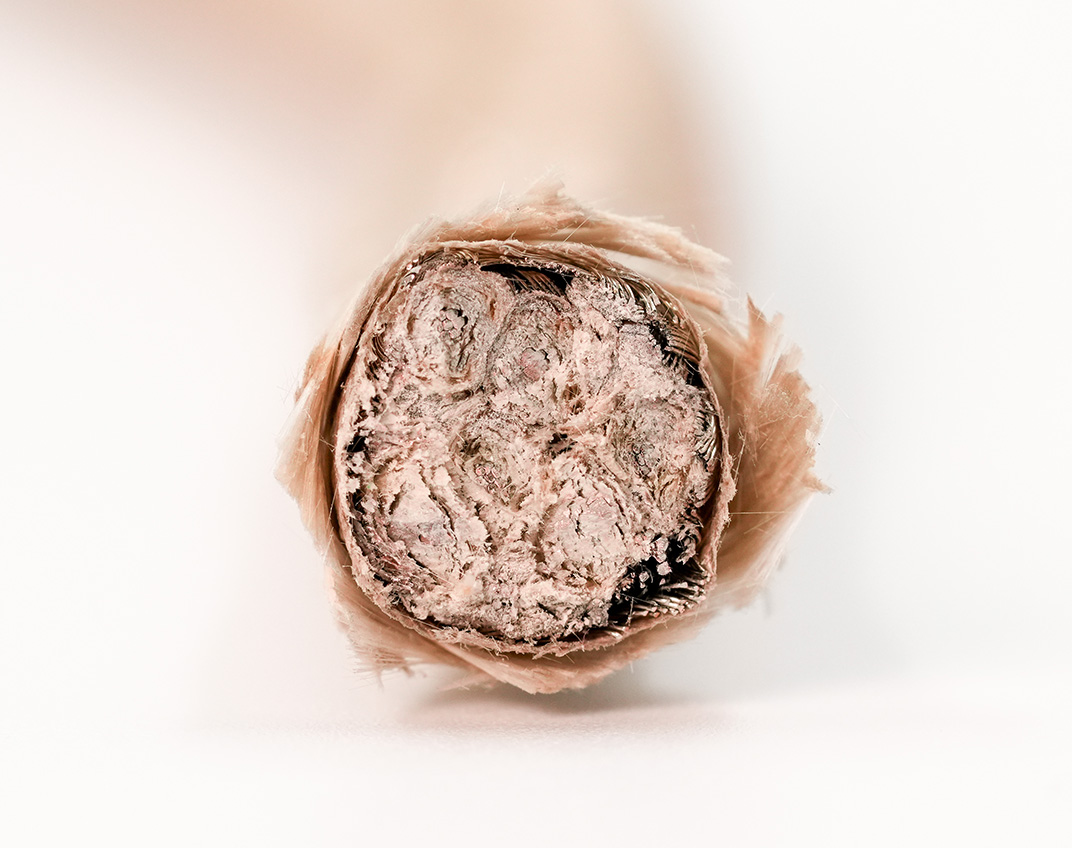

FINELY STRANDED NICKEL-PLATED COPPER CONDUCTORS

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Nickel-plated conductors allow for high heat resistance.

MULTI-LAYERED MICA/GLASS BRAID INSULATION

Provides abrasion and heat resistance as well as conductor identification.

DUAL LAYERED MICA TAPE WRAP

Mica tape wrap is highly resistant to heat for long-term durability.

SPECIALLY DESIGNED FIBERGLASS BRAID JACKET

Braided fiberglass jacket impregnated with high-temp finishing compounds to prevent fraying. Provides first line defense against abrasion and high heat.

Resources

Specsheets

Product Overview

Resource-Color Code

Thermo-Trex® 2000 Cable

Ratings / Characteristics

  • UL Recognized

  • CSA

  • RoHS Compliant

  • 600V

  • Max Conductor Temperature 450°C

  • Cold Temperature Rating -65°C

  • AWM Style 5107

  • CSA AWM Class I Group A (Single Conductor Configurations)

  • CSA AWM Class I Group A/B (Multi-Conductor Configurations)

  • FT1 Flame Rating

  • Bend Radius (Static): 6x Cable O.D. 

  • Bend Radius (Dynamic): 8x Cable O.D. 

Applications

flexing-icon

Flexing

heat-icon

Cold Temperature

heat-icon

High Temperature

Part Numbers

Part No. CONDUCTOR SIZE (AWG) Conductor/Pole Count CONDUCTOR STRANDING AMPACITY NOMINAL O.D.
inches		 WT. PER 1000’
lbs		 Shielding Type
41103 22 1 7/30 15 0.095 4.62 No Shielding
41106 20 1 10/30 19 0.105 7.52 No Shielding
41109 18 1 16/30 27 0.115 9.77 No Shielding
41112 16 1 26/30 37 0.125 11.87 No Shielding
41115 14 1 41/30 51 0.14 17.12 No Shielding
41118 12 1 65/30 68 0.16 30 No Shielding
41121 10 1 105/30 94 0.21 41.58 No Shielding
41124 8 1 133/29 130 0.265 69.3 No Shielding
41127 6 1 133/27 177 0.31 102.9 No Shielding
41134 16 4 19/0.0117 31 0.317 77 No Shielding
41139 12 4 37/0.0133 55 0.388 142 No Shielding
