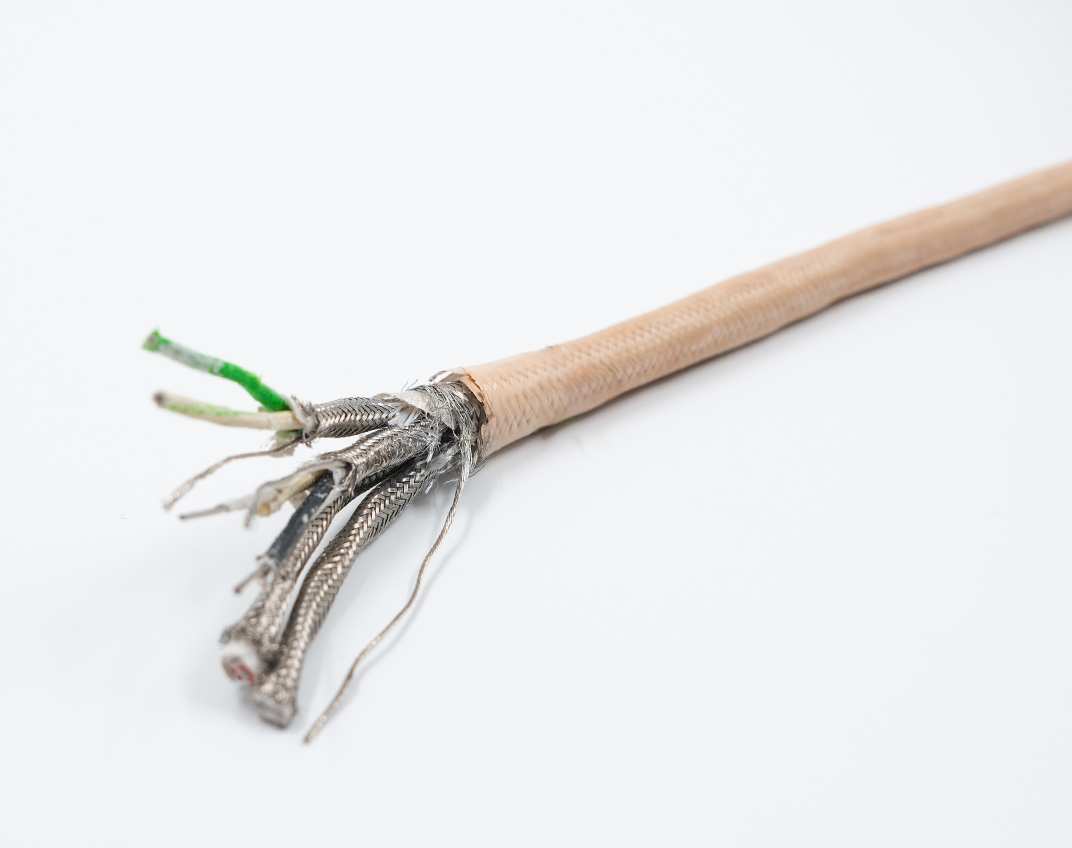

Thermo-Trex® 2000 Shielded Multi Pair 3QV_Webb

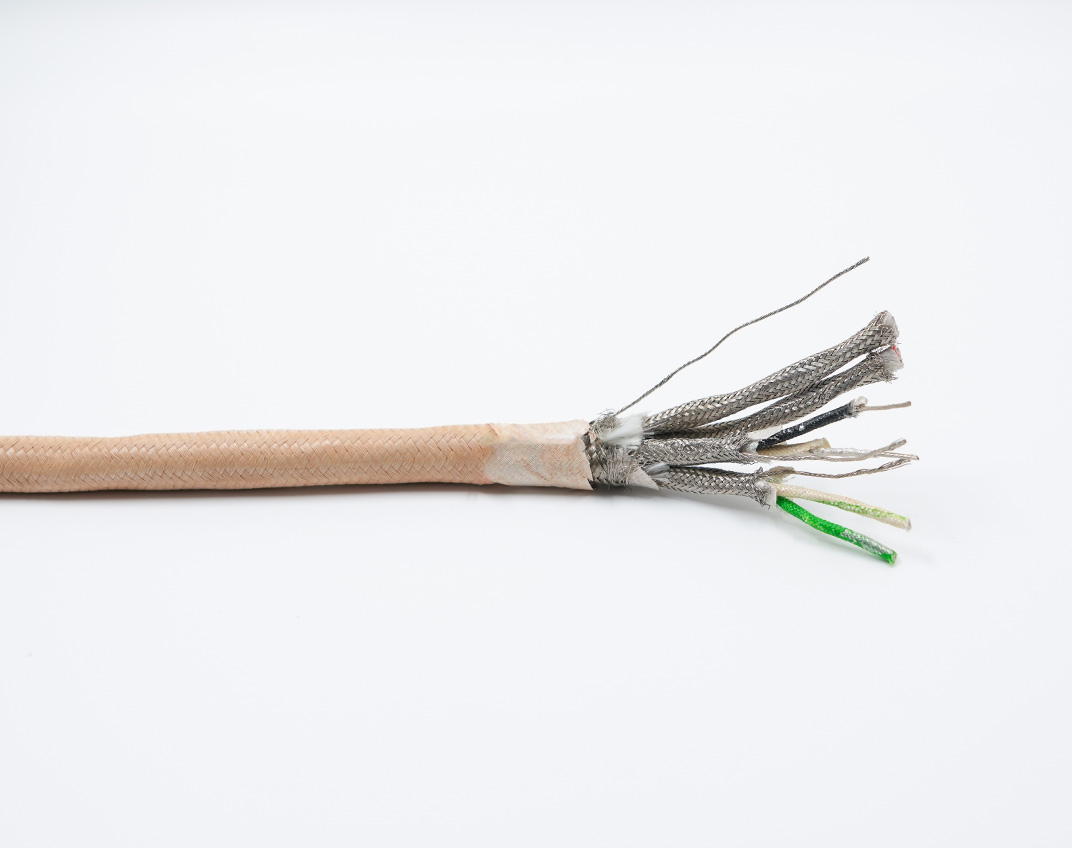

Thermo-Trex® 2000 Shielded Multi Pair Side_Webb

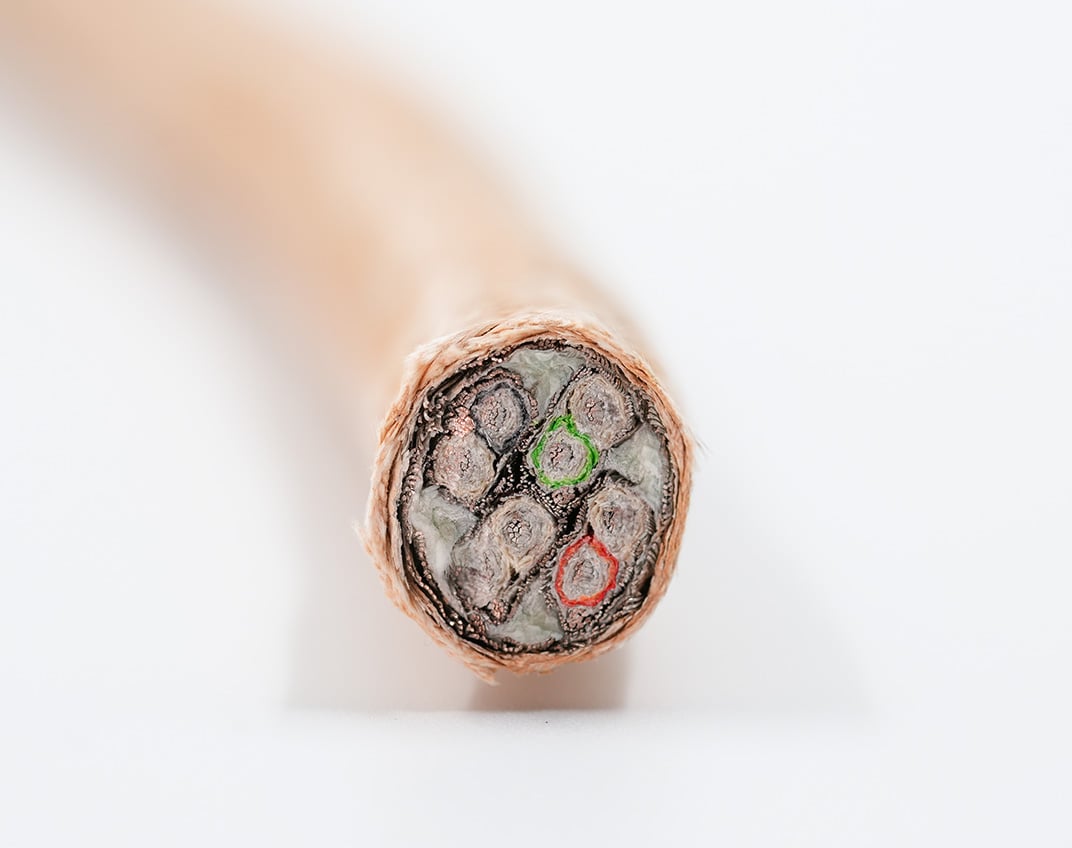

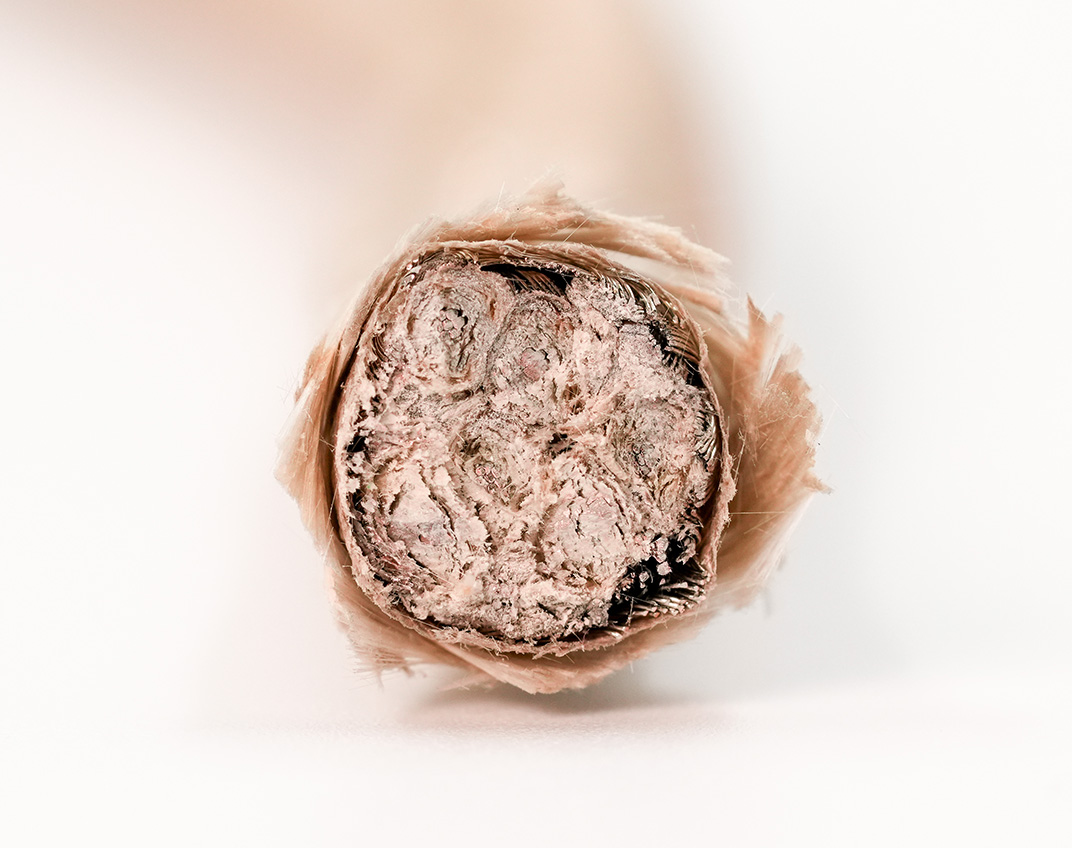

Thermo-Trex® 2000 Shielded Multi Pair Macro_Web

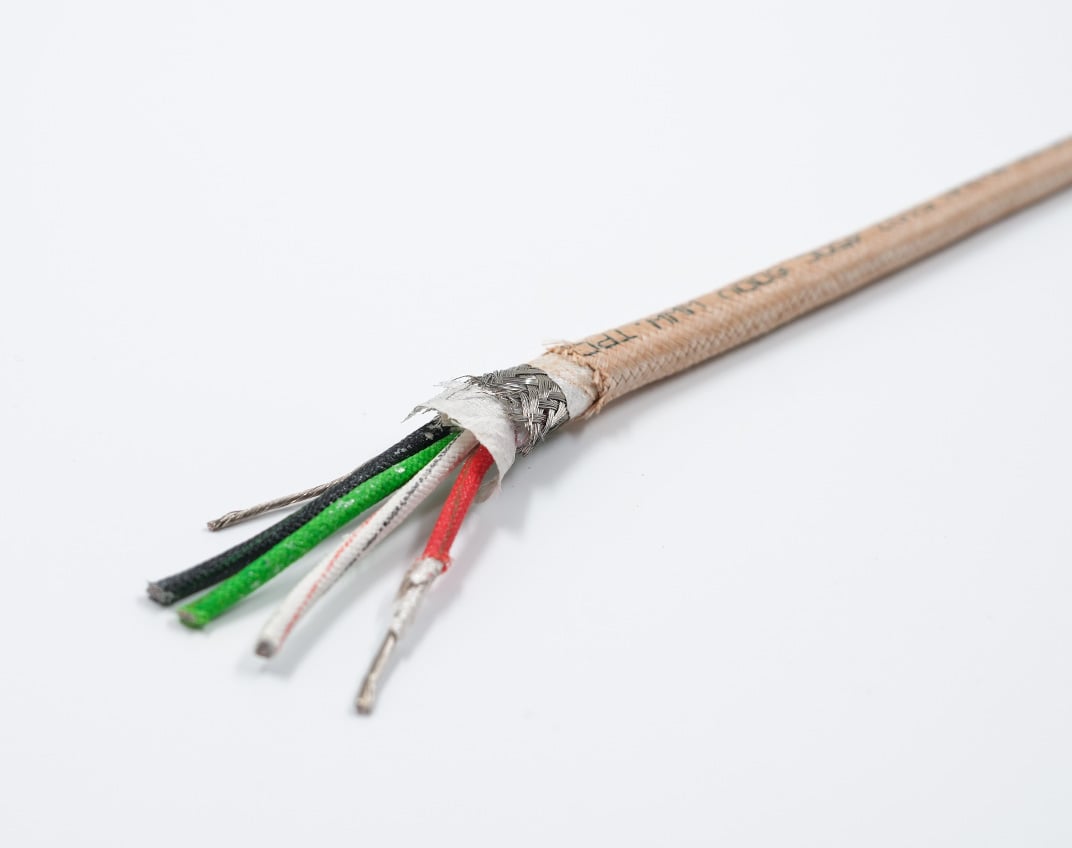

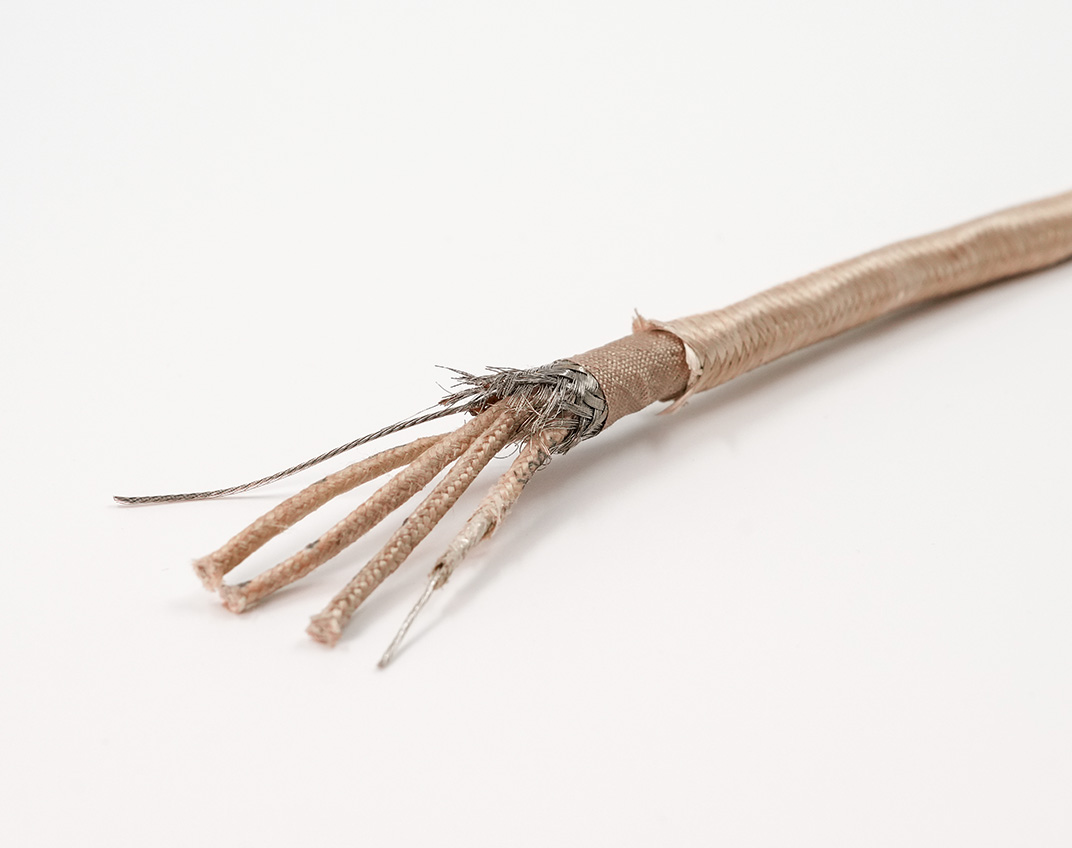

Thermo-Trex® 2000 Shielded Multi-Conductor 3QV_Web

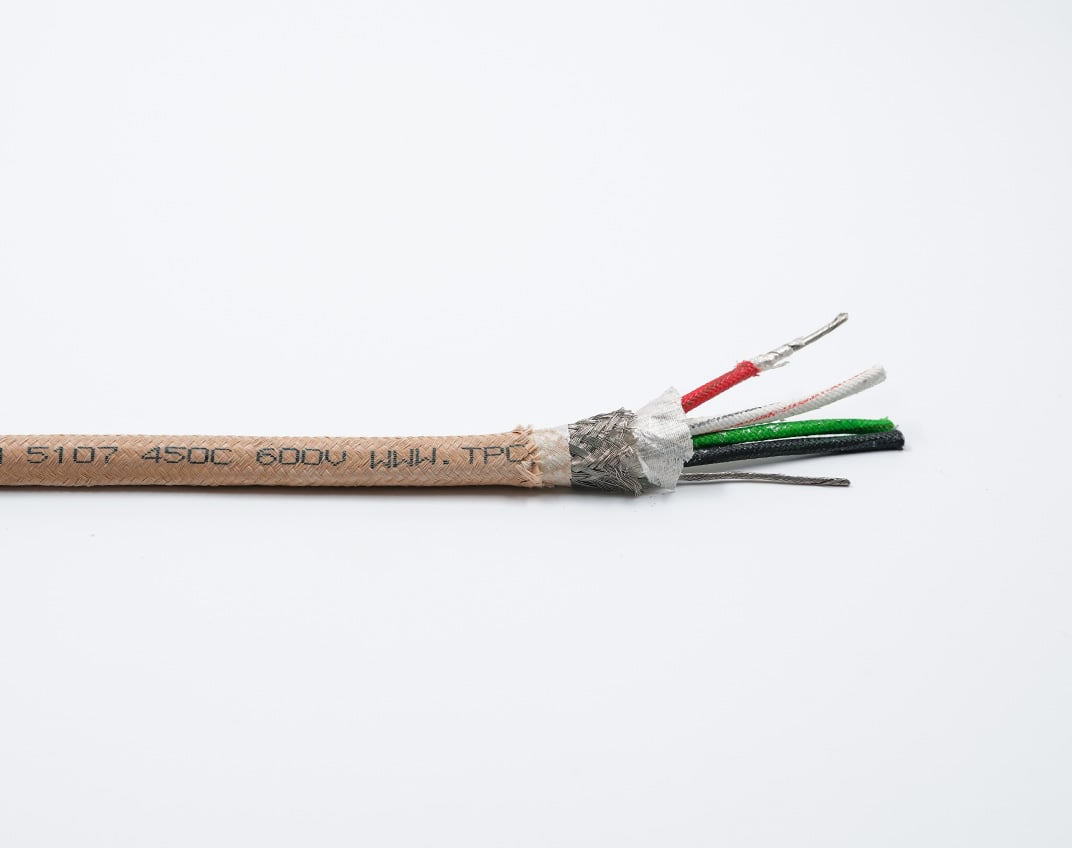

Thermo-Trex® 2000 Shielded Multi-Conductor Side_Web

Thermo-Trex® 2000 Shielded Multi-Conductor and Multi-Pair Cable

Thermo-Trex® 2000 Shielded Cable is a high-temperature resistant cable for power and control applications that can withstand a maximum conductor temperature of 450°C / 850°F.

This flexible control and instrumentation cable features finely stranded, nickel-plated copper conductors, nickel plated copper braid shield and a specially woven glass-braid jacket impregnated with abrasion-resistant finishing compounds.

Features

FINELY STRANDED NICKEL-PLATED COPPER CONDUCTORS

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Nickel-plated conductors allow for high heat resistance.

MULTI-LAYERED MICA/GLASS BRAID INSULATION

Provides abrasion and heat resistance as well as conductor identification.

HEAVY-DUTY 90% COVERAGE NICKEL-PLATED COPPER BRAID SHIELD

Nickel-plated copper braid shield with drain wire and spiral-wrapped skived Mica/glass tape. Provides protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage.”

SPECIALLY DESIGNED FIBERGLASS BRAID JACKET

Braided fiberglass jacket impregnated with high-temp finishing compounds to prevent fraying. Provides first line defense against abrasion and high heat.

Resources

Specsheets

Product Overview

Resource-Color Code

Thermo-Trex® 2000 Shielded Multi-Conductor and Multi-Pair Cable

Ratings / Characteristics

  • UL Recognized

  • RoHS Compliant

  • 600V

  • Max Conductor Temperature 450°C

  • Cold Temperature Rating -40°C

  • AWM Style 5107

  • VW-1 Flame Rating

  • Bend Radius (Static): 8x Cable O.D.

  • Bend Radius (Dynamic): 10x Cable O.D.

Applications

heat-icon

High Temperature

flexing-icon

Flexing

cold-icon

Cold Temperature

Thermo-Trex® 2000 Shielded Multi-Conductor Cable Part Numbers

Product No Conductor Size (AWG) Conductor/Pole Count Conductor Stranding Ampacity Jacket Thickness Mica Tape Insulation Thickness Drain Wire Nominal OD Weight (Lbs.) per 1000'
41310 18 AWG 3 16/30 21 .007" .025" 20AWG 0.302 73
41311 18 AWG 4 16/30 21 .007" .025" 20AWG 0.33 89
41313 18 AWG 8 16/30 14 .007" .025" 20AWG 0.434 151
41314 18 AWG 12 16/30 10 .007" .025" 20AWG 0.527 197
41317 16 AWG 3 26/30 31 .007" .025" 18AWG 0.328 92
41318 16 AWG 4 26/30 31 .007" .025" 18AWG 0.364 118
41320 16 AWG 8 26/30 21 .007" .025" 18AWG 0.474 195
41322 16 AWG 12 26/30 15 .007" .025" 18AWG 0.577 256
41325 14 AWG 4 41/30 41 .007" .025" 16AWG 0.4 153
41327 14 AWG 8 41/30 28 .007" .025" 16AWG 0.524 254
41329 14 AWG 12 41/30 20 .007" .025" 16AWG 0.639 335
41332 12 AWG 4 65/30 55 .007" .025" 14AWG 0.439 204
41334 12 AWG 8 65/30 38 .007" .025" 14AWG 0.577 339
41337 10 AWG 4 105/30 74 .015" .030" 12AWG 0.564 319

Thermo-Trex® 2000 Shielded Multi-Pair Cable Part Numbers

Product No Conductor Size (AWG) Conductor/Pole Count Conductor Stranding Ampacity Jacket Thickness Mica Tape Insulation Thickness Drain Wire Nominal OD Weight (Lbs.) per 1000' Shielding Type
41360 18AWG 2 pair 16/30 21 0.007 0.025 20AWG 0.503 168 Overall Shield
41361 18AWG 3 pair 16/30 18 0.007 0.025 20AWG 0.535 191 Overall Shield
41362 18AWG 4 pair 16/30 14 0.007 0.025 20AWG 0.588 262 Overall Shield
41367 20AWG 3 pair 30-Oct 12 0.007 0.025 22AWG 0.528 175 Overall Shield
41369 20AWG 6 pair 30-Oct 7 0.007 0.025 22AWG 0.679 296 Overall Shield
41373 22AWG 3 pair 30-Jul 8 0.007 0.025 24AWG 0.505 154 Overall Shield
41374 22AWG 4 pair 30-Jul 7 0.007 0.025 24AWG 0.555 190 Overall Shield
41378 24AWG 2 pair 7/.0076" 8 0.007 0.025 24AWG 0.449 111 Overall Shield
41379 24AWG 3 pair 7/.0076" 8 0.007 0.025 24AWG 0.477 139 Overall Shield
