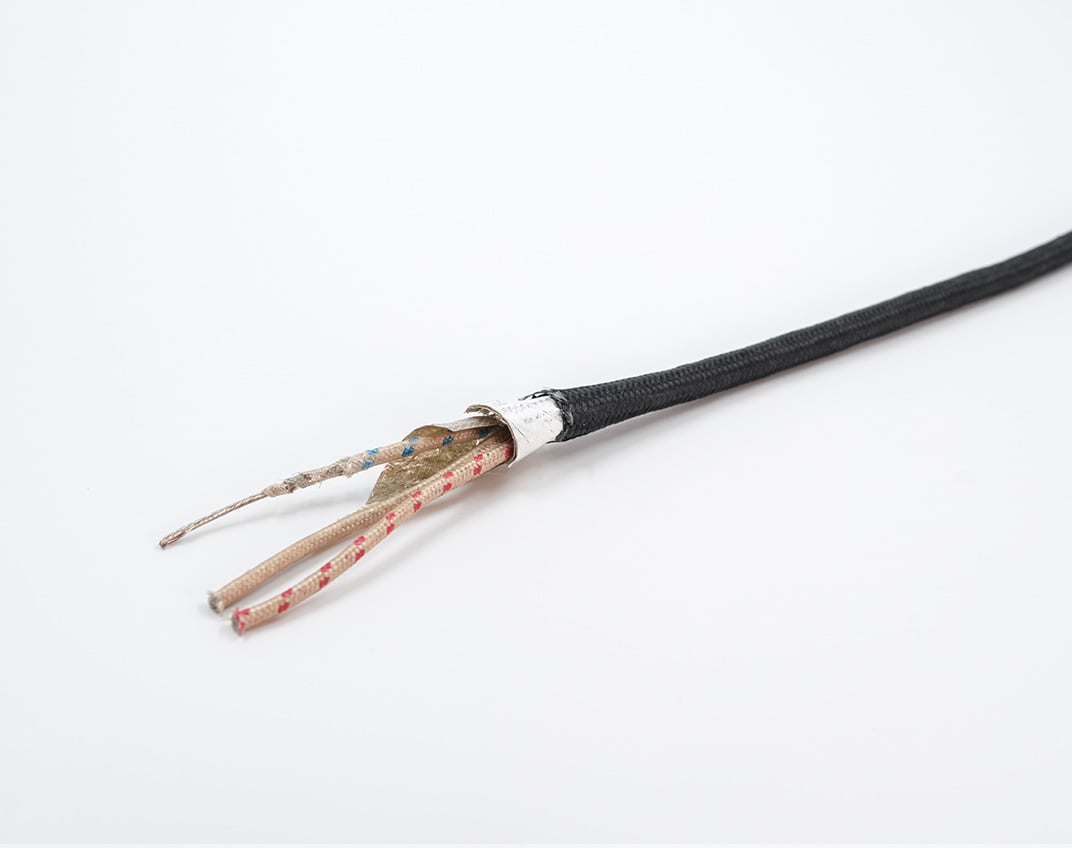

Thermo-Trex® 2800 Cable 3QV_Web

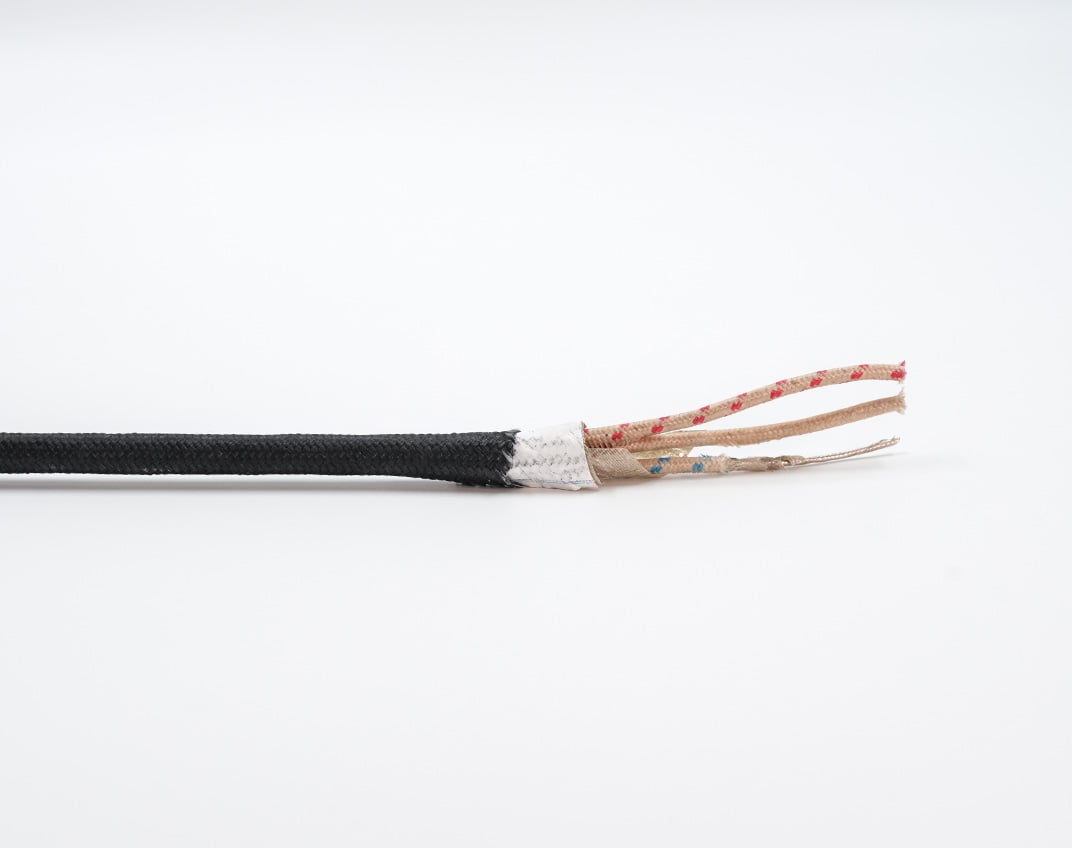

Thermo-Trex® 2800 Cable Side_Web

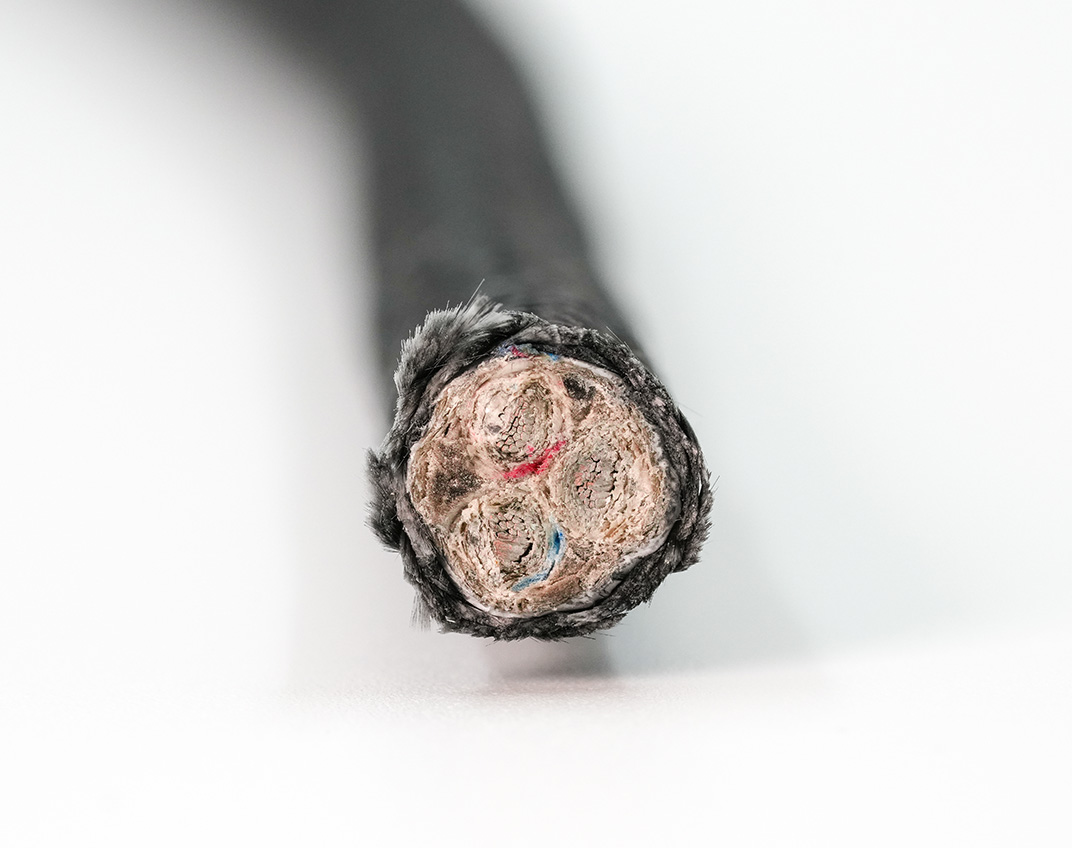

Thermo-Trex® 2800 Cable Macro_Web

Thermo-Trex® 2800 Cable

Thermo-Trex® 2800 is a high-temperature resistant cable for power and control applications that can withstand a maximum conductor temperature of 537°C / 1000°F.

This flexible control and instrumentation cable features finely stranded, nickel-plated copper conductors and a specially woven glass-braid jacket impregnated with abrasion-resistant finishing compounds.

Features

27% NICKEL-PLATED COPPER 30AWG STRANDING

Increases flexibility, providing longer cable life.

FLUOROPOLYMER COLOR SATURATED INSULATION

Easier to identify. Reduced chance of miswiring. Maintain their color for ease of identification up to 450°C.

SPECIALLY WOVEN GLASS-BRAID JACKET, IMPREGNATED WITH HIGH HEAT FINISHING COMPOUNDS

Provides first-line defense against abrasion and high heat.

FLUOROPOLYMER/ MICA /GLASS MULTIPLE-LAYERED CONSTRUCTION

Highly resistant to heat, chemicals, and corrosives. Long-term durability in the harshest industrial environments.

HEAT-SEALED FLUOROPOLYMER VAPOR BARRIER

Protects against moisture.

AVAILABLE IN SINGLE AND MULTIPLE CONDUCTOR CONFIGURATIONS

The right product for the job.

Resources

Resource-Color Code

Thermo-Trex® 2800 Cable

Ratings / Characteristics

  • Max Conductor Temperature 537°C

  • RoHS Compliant

  • 600 V

  • Cold Temperature Rating -65°C

Applications

heat-icon

Extreme Temperature

flexing-icon

Flexing

Part Numbers

Part No. CONDUCTOR SIZE (AWG) Conductor/Pole Count CONDUCTOR STRANDING AMPACITY NOMINAL O.D.
inches
WT. PER 1000’
lbs
Shielding Type
41213 16 3 26/30 31 0.332 93 No Shielding
41214 16 4 26/30 31 0.366 107 No Shielding
41215 12 4 65/30 55 0.448 166 No Shielding
41204 14 1 41/30 51 0.19 30 No Shielding
41205 12 1 65/30 68 0.208 42 No Shielding
41206 10 1 105/30 94 0.254 63 No Shielding
