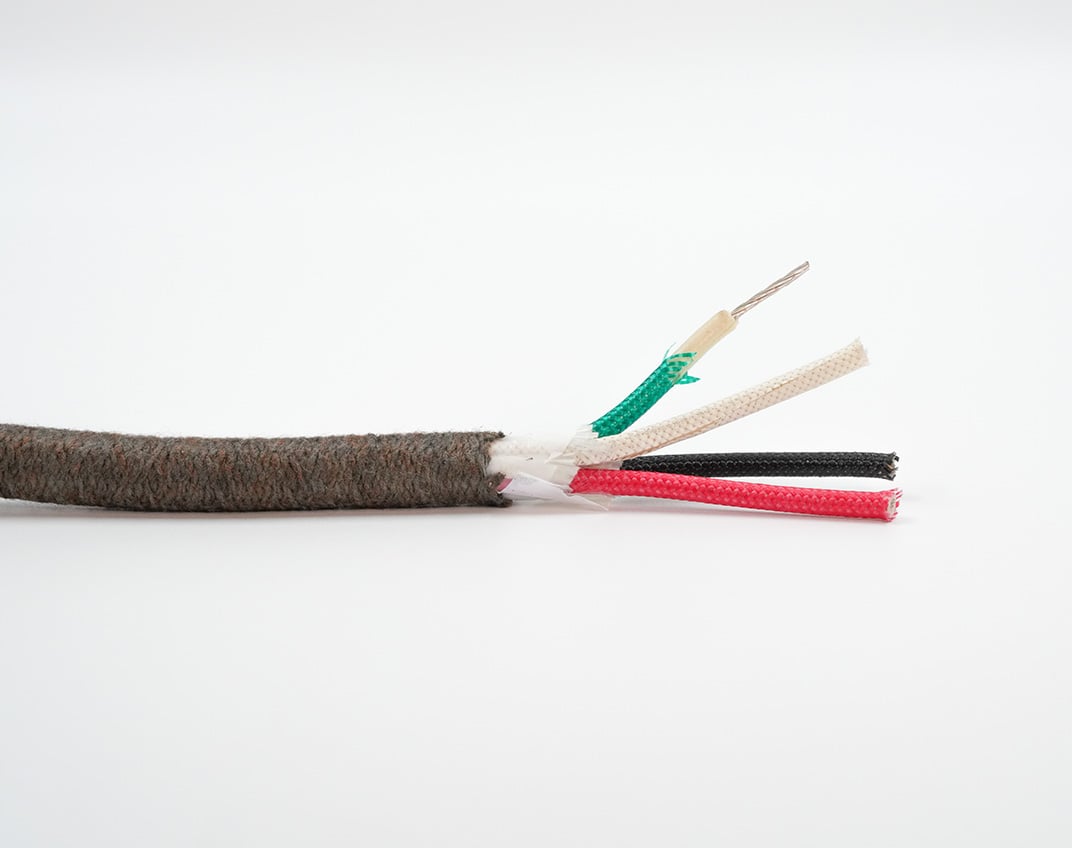

Thermo-Trex® 500-K Cable Multi-Conductor Cable Side_Web
Thermo-Trex® 500-K Cable Multi-Conductor Cable Macro_Web

Thermo-Trex® 500-K Cable Multi-Conductor Cable

Thermo-Trex® 500-K Multi-Conductor Cable is a high-temperature resistant cable for power and control applications that can withstand a maximum conductor temperature of 200°C / 392°F.

This flexible power, control and instrumentation cable features finely stranded, tinned copper conductors and a specially woven aramid fiber braid jacket impregnated with heat and moisture resistant finishing compounds, providing tensile strength and added protection against abrasion.

Features

CONDUCTORS

Flexible tinned copper strands for improved flexibility.

INSULATION

Silicone rubber provides resistance to heat, moisture and chemicals.

TFE WRAP

Improves performance in flexing applications and provides an additional thermal barrier to extend product life in extreme temperature environments.

JACKET

Heat and moisture resistant Aramid fiber braid jacket provides added protection against abrasion.

STAINLESS STEEL OVERBRAID

Optional.

Resources

Specsheets

Product Overview

Metals

STEEL BARS MANUFACTURER INSTALLS HIGH-HEAT CABLE, SAVES $15,422

Resource-Color Code

Thermo-Trex® 500-K Cable Multi-Conductor Cable

Ratings / Characteristics

  • 600 V

  • Max Conductor Temperature 200°C

  • RoHS Compliant

Applications

abrasions-icon

Abrasion

heat-icon

Extreme Temperature

flexing-icon

Flexing

tension-icon

Tension

Part Numbers

Part No. CONDUCTOR SIZE (AWG) Conductor/Pole Count Cond. Stranding SILICONE THICKNESS
INCHES
AMPACITY ARAMID BRAID THICKNESS
INCHES
NOMINAL O.D.
INCHES
WT. Per 1000’ Ft.
lbs
Shielding Type
44027 14 2 7/22 0.045 36 0.03 0.413 55 No Shielding
44028 14 3 7/22 0.045 36 0.03 0.43 75 No Shielding
44029 14 4 7/22 0.045 36 0.03 0.474 100 No Shielding
44030 14 5 7/22 0.045 29 0.03 0.528 125 No Shielding
44031 14 7 7/22 0.045 29 0.03 0.625 170 No Shielding
44032 14 9 7/22 0.045 25 0.03 0.729 210 No Shielding
44033 14 12 7/22 0.045 18 0.03 0.814 280 No Shielding
44034 12 2 19/25 0.045 45 0.03 0.438 75 No Shielding
44035 12 3 19/25 0.045 45 0.03 0.468 110 No Shielding
44036 12 4 19/25 0.045 45 0.03 0.516 145 No Shielding
44037 12 5 19/25 0.045 36 0.03 0.619 175 No Shielding
44038 12 7 19/25 0.045 36 0.03 0.661 240 No Shielding
44039 12 9 19/25 0.045 32 0.03 0.792 300 No Shielding
44040 12 12 19/25 0.045 23 0.03 0.886 410 No Shielding
44041 10 2 19/23 0.045 60 0.045 0.485 125 No Shielding
44042 10 3 19/23 0.045 60 0.045 0.518 180 No Shielding
44043 10 4 19/23 0.045 60 0.045 0.615 235 No Shielding
44044 10 5 19/23 0.045 48 0.045 0.673 300 No Shielding
44045 10 7 19/23 0.045 48 0.045 0.734 385 No Shielding
44046 10 9 19/23 0.045 42 0.045 0.876 500 No Shielding
44047 10 12 19/23 0.045 30 0.045 0.982 665 No Shielding
