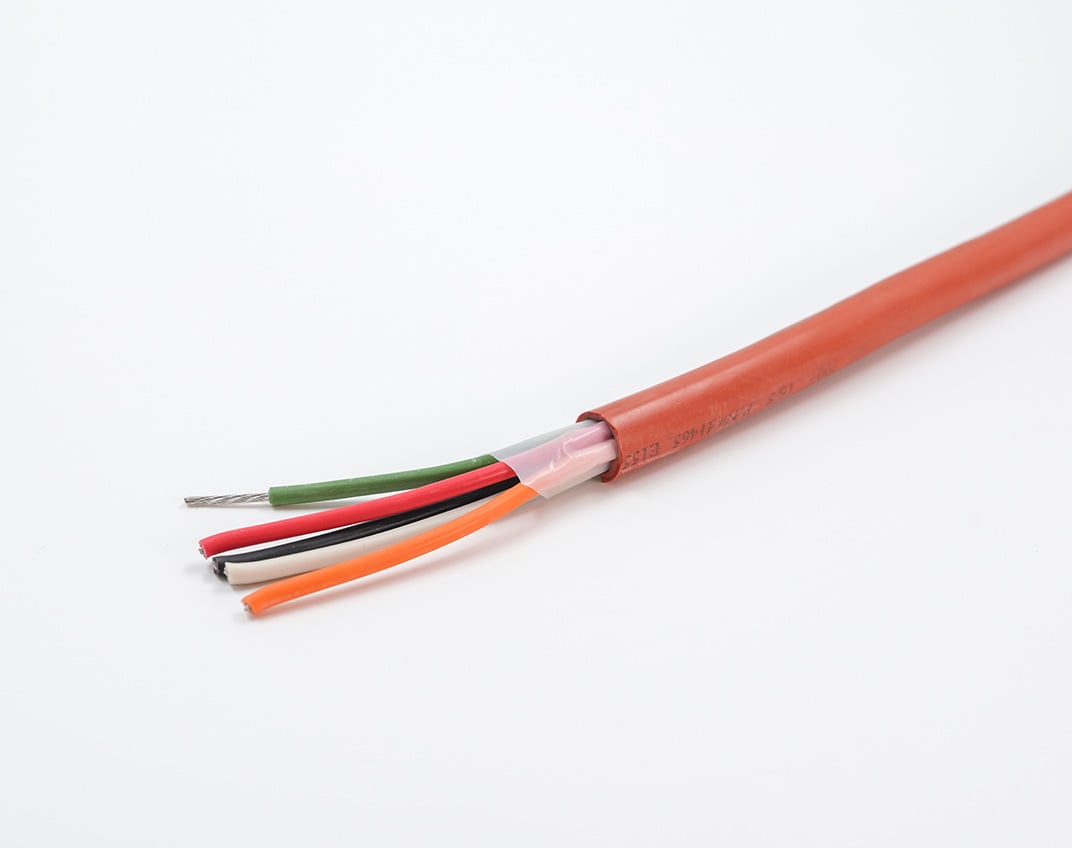

Thermo-Trex® 500-Plus Silicone Cable 3QV_Web
Thermo-Trex® 500-Plus Silicone Cable Side_Web

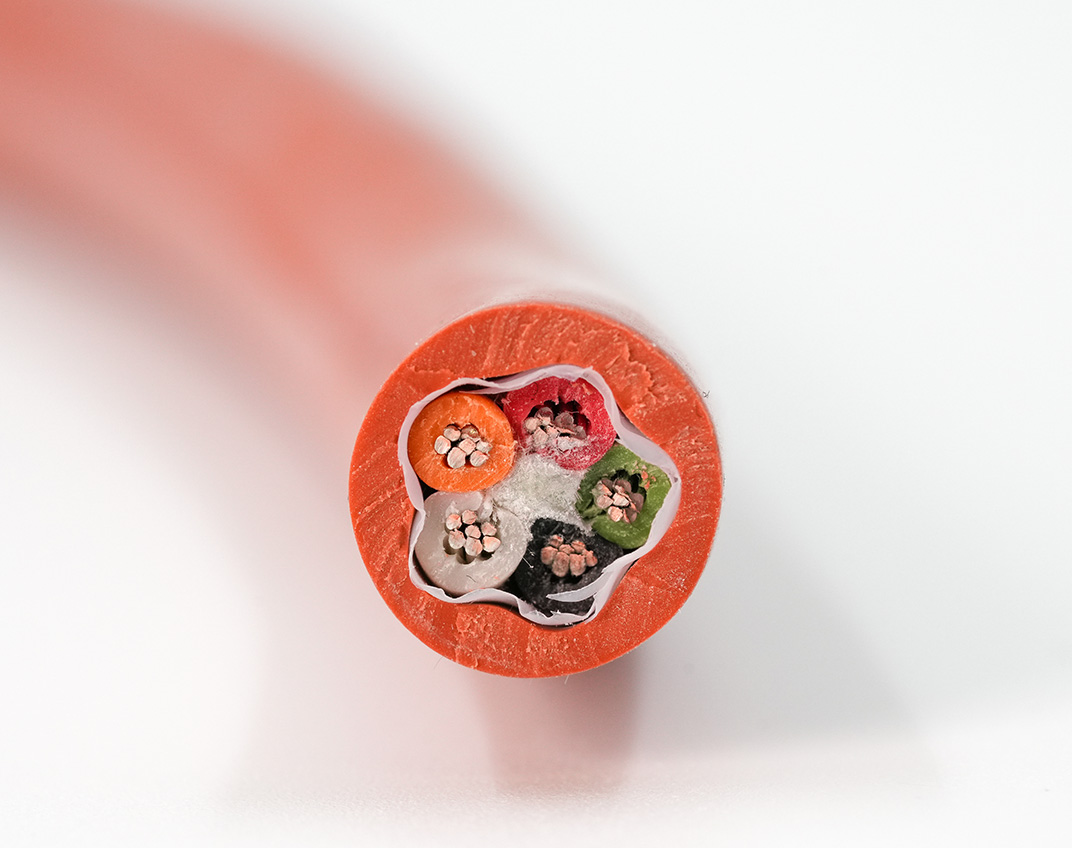

Thermo-Trex® 500-Plus Silicone Cable Macro_Web

Thermo-Trex® 500-Plus Silicone Cable

Thermo-Trex® 500-Plus Silicone Cable is a high-temperature cable for power and control applications that can withstand a maximum conductor temperature of 200°C / 392°F. It is an ideal choice for applications exposed to high temperatures, UV light, industrial chemicals and washdown areas.

This flexible control and instrumentation cable features a chemical-resistant silicone jacket.

Features

FINELY STRANDED TINNED COPPER CONDUCTORS

Finely stranded tinned copper conductors improve flexibility and extends conductor life.

SILICONE INSULATION ON INDIVIDUAL CONDUCTORS

Silicone based elastomer insulation on individual conductors offers superior resistance to oil and abrasion. This insulation is extremely flexible.

CHEMICAL RESISTANT SILICONE JACKET

Provides excellent protection against abrasion, and mechanical abuse and is resistant to oils and many industrial fluids. It offers outstanding resistance to high temperatures and remains flexible down to -40°C.

Resources

Specsheets

Product Overview

Resource-Color Code

Thermo-Trex® 500-Plus Silicone Cable

Ratings / Characteristics

  • UL Recognized

  • CSA

  • FT-2 Flame Rating

  • RoHS Compliant

  • 600 V

  • Max Conductor Temperature 200°C

  • Cold Temperature Rating -40°C

Applications

heat-icon

Extreme Temperature

flexing-icon

Flexing

Part Numbers

Part No. CONDUCTOR SIZE Conductor/Pole Count CONDUCTOR STRANDING AMPACITY NOMINAL O.D.
inches
WT. PER 1000'
lbs
Shielding Type
41462 16 AWG 2 7/24 29 0.294 47 No Shielding
41463 16 AWG 3 7/24 29 0.309 57 No Shielding
41464 16 AWG 4 7/24 29 0.336 74 No Shielding
41465 16 AWG 5 7/24 23 0.365 85 No Shielding
41467 16 AWG 7 7/24 23 0.396 111 No Shielding
41469 16 AWG 16 7/24 14 0.685 290 No Shielding
41443 14 AWG 3 7/24 40 0.374 85 No Shielding
41423 12 AWG 3 19/26 55 0.411 119 No Shielding
41424 12 AWG 4 19/26 55 0.448 154 No Shielding
41414 10 AWG 4 19/26 74 0.527 215 No Shielding
