Thermo-Trex® 850 Cable

Thermo-Trex® 850 is a high-temperature resistant cable for power and control applications that can withstand a maximum conductor temperature of 250°C / 482°F.

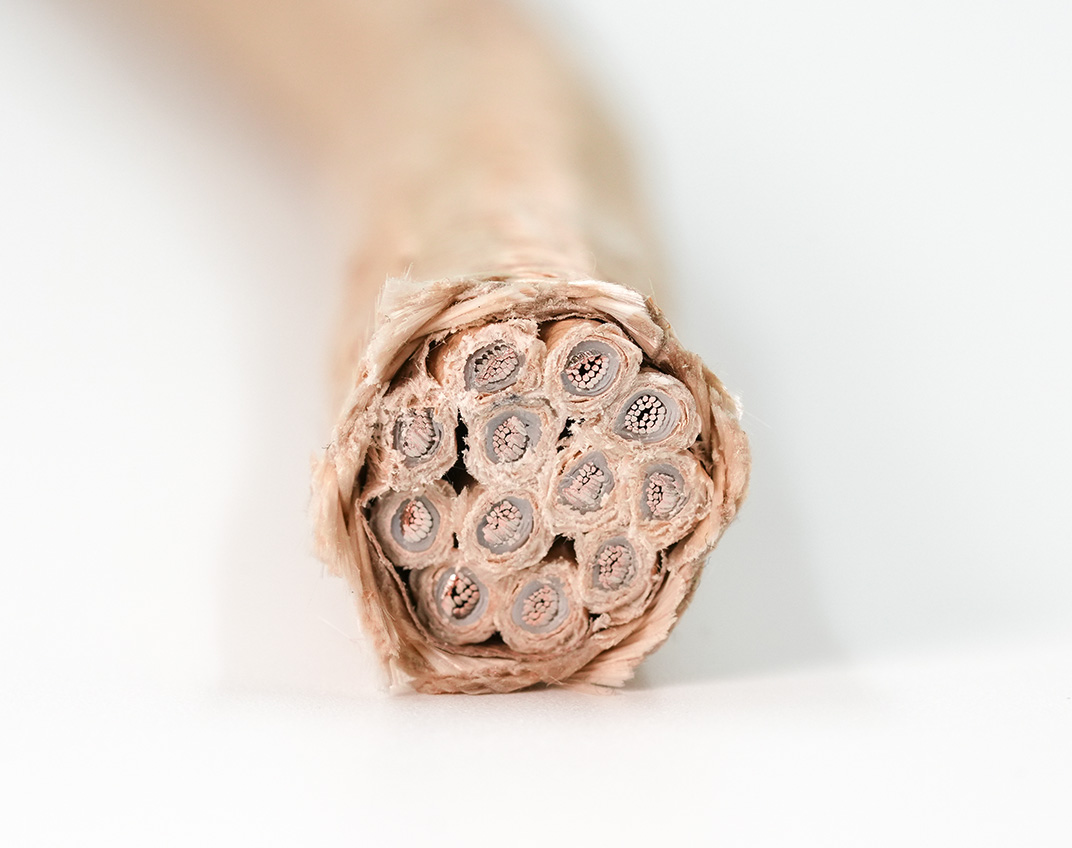

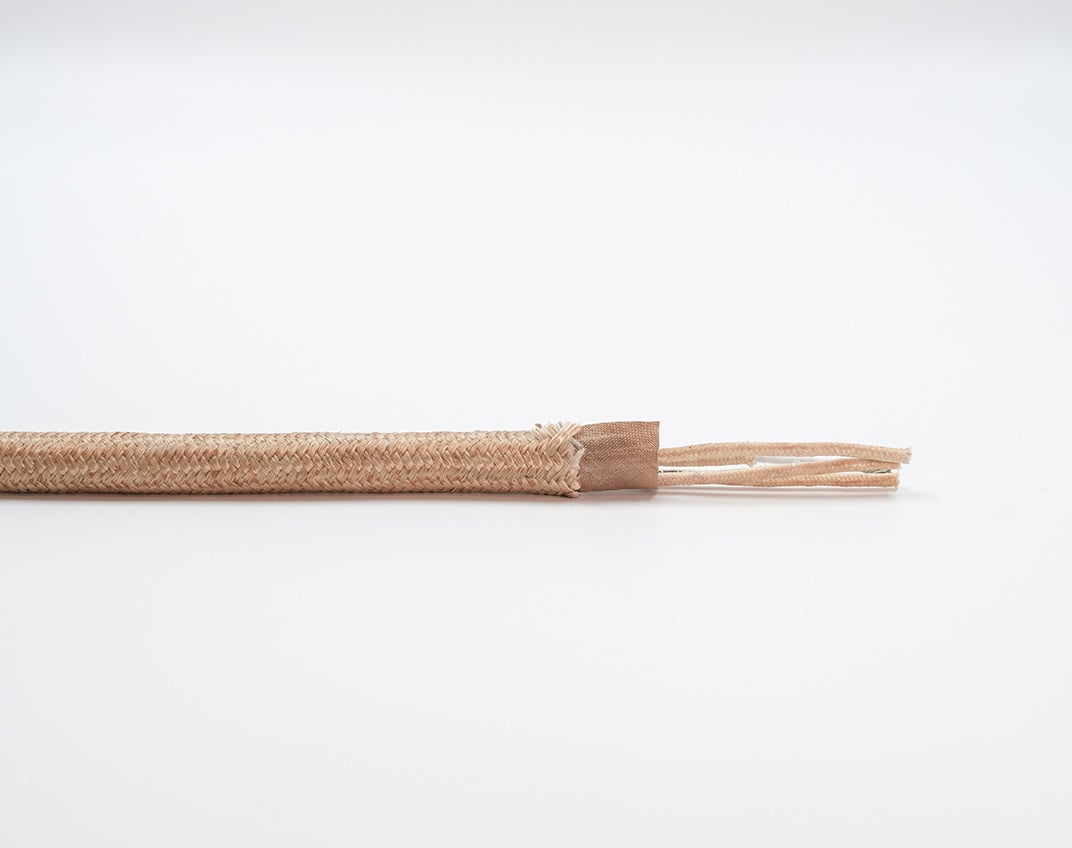

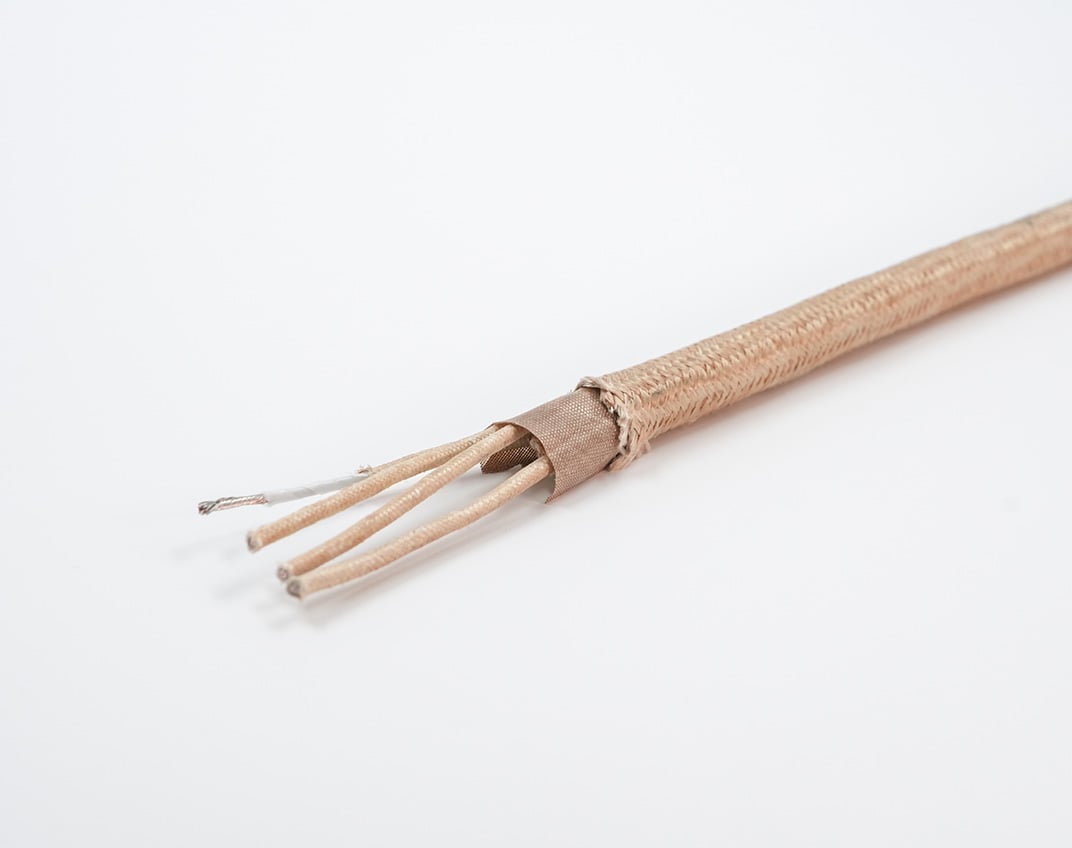

This flexible control and instrumentation cable features finely stranded, nickel-plated copper conductors and a specially woven glass-braid jacket impregnated with abrasion-resistant finishing compounds.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

2% NICKEL-PLATED COPPER, #30 AWG FLEXIBLE STRANDING

Increased flexibility, improved signal quality.

CERAMIC WRAP

Acts as a heat barrier to protect the insulation and provide optimum performance.

SPECIALLY WOVEN GLASS-BRAID JACKET, IMPREGNATED WITH FLUOROPOLYMER FINISHING COMPOUNDS

Provides first-line defense against abrasion and high heat.

FLUOROPOLYMER VAPOR BARRIER INSULATION

Provides high resistance to chemicals and corrosives.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • UL Recognized

  • CSA

  • RoHS Compliant

  • 600 V

  • Cold Temperature Rating -65°C

  • Max Conductor Temperature 250°C (482°F)

Applications

heat-icon

Extreme Temperature

flexing-icon

Flexing

Part Numbers

Part No. CONDUCTOR SIZE (AWG) Conductor/Pole Count CONDUCTOR STRANDING AMPACITY NOMINAL O.D.
inches		 WT. PER 1000’
lbs		 Shielding Type
41062 18 16/30 30 0.11 13 No Shielding
41065 16 26/30 40 0.12 18 No Shielding
41068 14 41/30 55 0.14 24 No Shielding
41071 12 65/30 72 0.16 34 No Shielding
41074 10 105/30 97 0.185 51 No Shielding
41084 16 4 26/30 31 0.332 84 No Shielding
41087 16 12 26/30 10 0.566 224 No Shielding
41089 12 4 65/30 60 0.423 158 No Shielding
