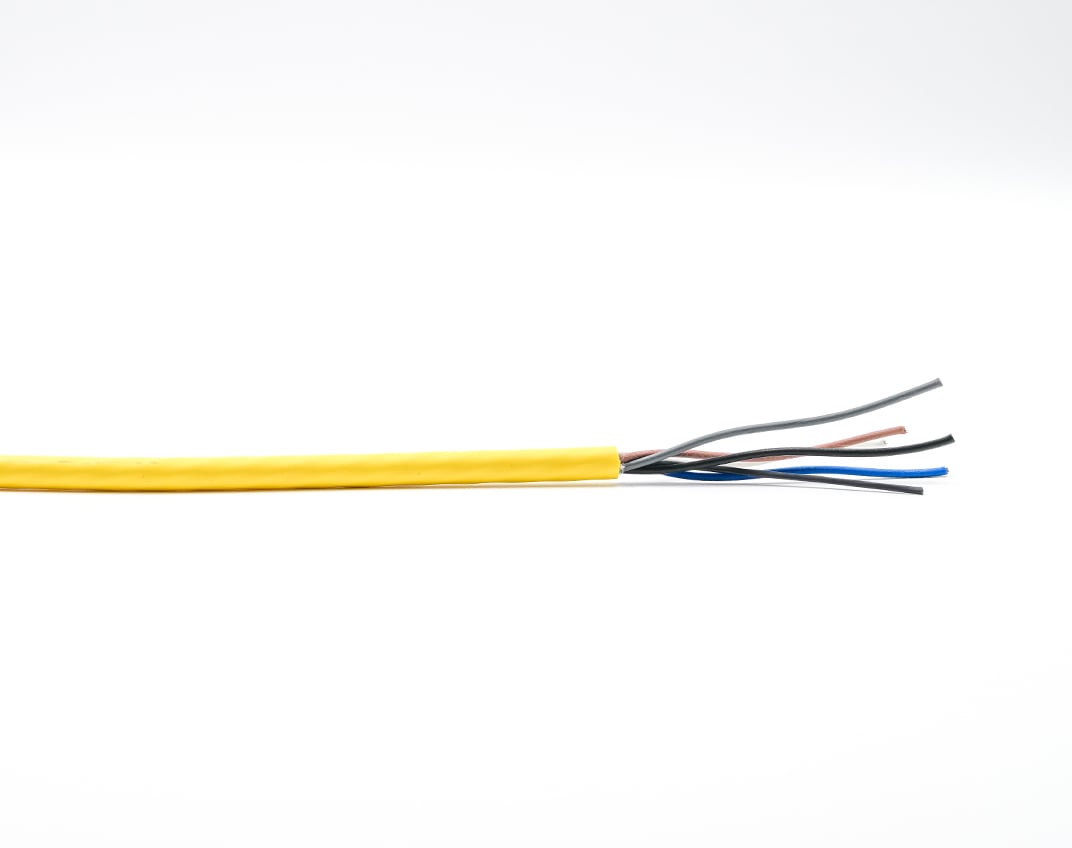

Trex-Onics® 300V Control Cable Side_Web

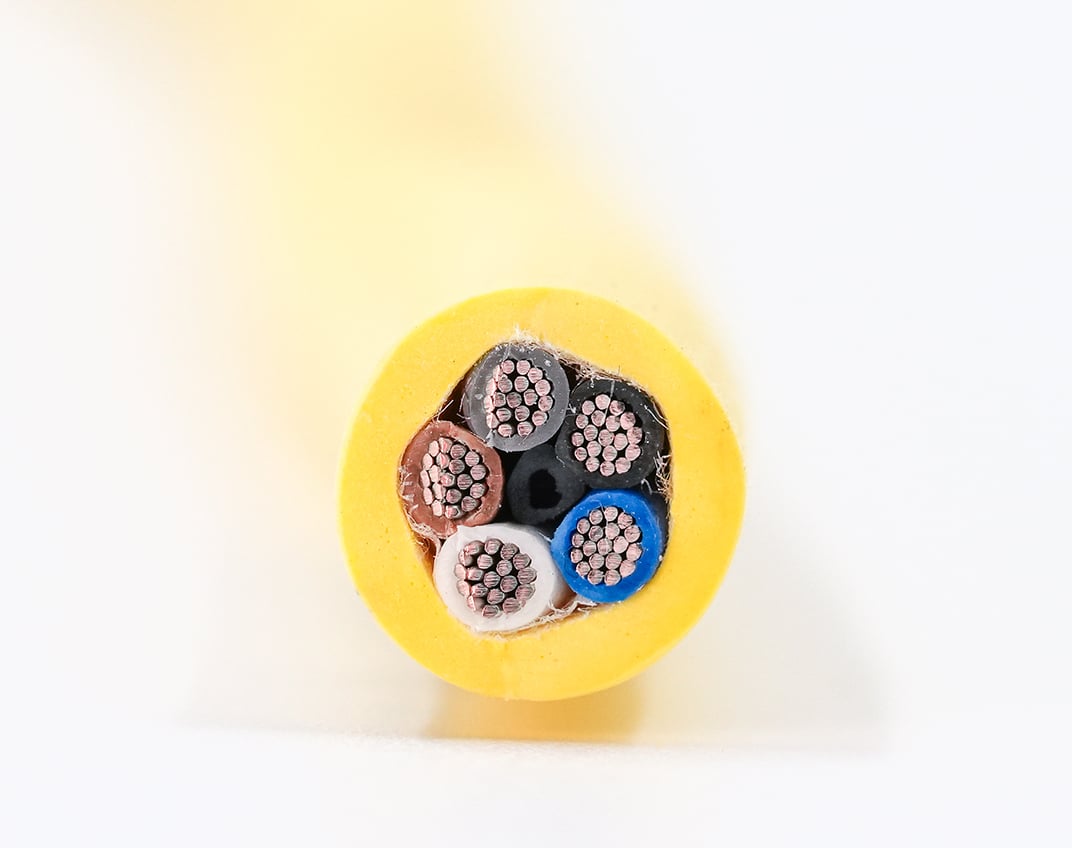

Trex-Onics® 300V Control Cable Macro_Web

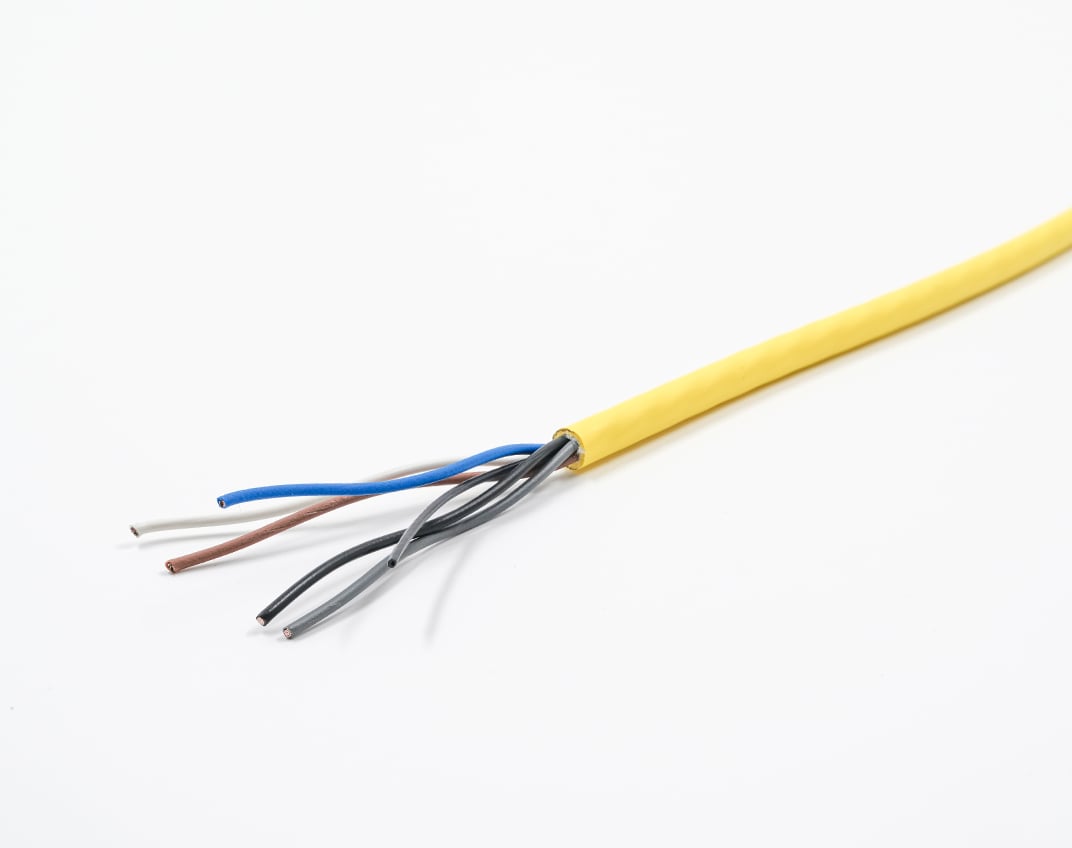

Trex-Onics® 300V Control Cable 3QV_Web

Trex-Onics® 300V Control Cable

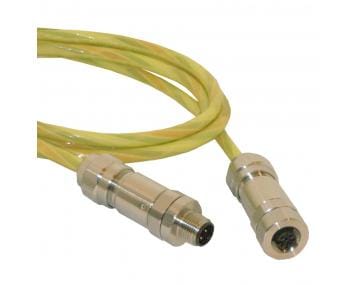

Trex-Onics® 300V Control Cable is a robust and versatile cable solution specially designed for use in ATPC's Quick-Connex® Micro cordsets but is a great solution for countless applications. Primarily tailored for industrial settings, this cable excels in connecting a wide range of devices, including proximity sensors, photoelectric switches, and limit switches. Its durability is evident in its resistance to oils, coolants, water, chemicals, and grease, making it an ideal choice for challenging environments. This cable proves its mettle across various applications, from robotics and cat tracks to computer systems, servo feedback systems, programmable controllers, instrumentation, programming units, and portable controlling units. With the Trex-Onics® 300V Control Cable, reliability and performance are assured in diverse industrial scenarios.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Specially Compounded TPE Insulation

Resists effects of lubricating oils, coolants, cutting oils, acids, and most chemicals.

Non-Woven Polyester Tape Separator

Improves flexibility, allows the conductor bundle to move easily within the jacket for longer flex life.

Specially Compounded Security Yellow TPU Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone, UV exposure, and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Resources

Resource-Color Code

Color Code

Ratings / Characteristics

  • CSA

  • UL Recognized

  • RoHS Compliant

  • 300V

  • AWM 20233

  • FT-1 Flame Rating

  • VW-1 Flame Rating

  • Max Operating Temperature: 80°C

  • Cold Temperature Rating: -50°C

  • Bend Radius (Static): 6x Cable O.D. 

  • Bend Radius (Dynamic): 8x Cable O.D. 

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

DC Micro Cable Part No. AC Micro Cable Part Number Configuration (AWG/ Conductor Count) Stranding Stranding Nominal O.D. (in.) Weight per 1,000 ft. (lbs.) Standard Cable Gland
62022 - 18/2 41/34 14.0 0.210 28 55001
62023 62013 18/3 41/34 14.0 0.220 36 55001
62024 62014 18/4 41/34 11.0 0.240 44 55001
62025 62015 18/5 41/34 11.0 0.255 53 55002
62033 - 22/3 7/30 3.0 0.175 19 N/A
62034 - 22/4 7/30 2.4 0.184 22 N/A
62035 - 22/5 7/30 2.4 0.203 27 55001
60018 - 22/8 7/30 2.1 0.255 45 55002
60019* - 22/8 7/30 2.1 0.280 64 55002
62003 - 18/3 19/30 14.0 0.260 60 55002
62004 - 18/4 19/30 11.0 0.285 65 55002
62005 - 18/5 19/30 11.0 0.310 70 55002

Part Numbers

Nano Cable Part Number Configuration (AWG/Conductor Count) Stranding Ampacity Nominal O.D. (in.) Weight per 1,000 ft. (lbs.) Standard Cable Gland
62323 24/3 7/32 2.0 0.170 17 N/A
62324 24/4 7/32 1.6 0.180 19 N/A

Part Numbers

DIN Cable Part Number Configuration (AWG/Conductor Count) Ampacity Nominal O.D. (in.) Nominal O.D. (in.) Weight per 1,000 ft. (lbs.) Standard Cable Gland
60143 18/3 14.0 0.220 35 55001
60144 18/4 11.0 0.240 44 55001
