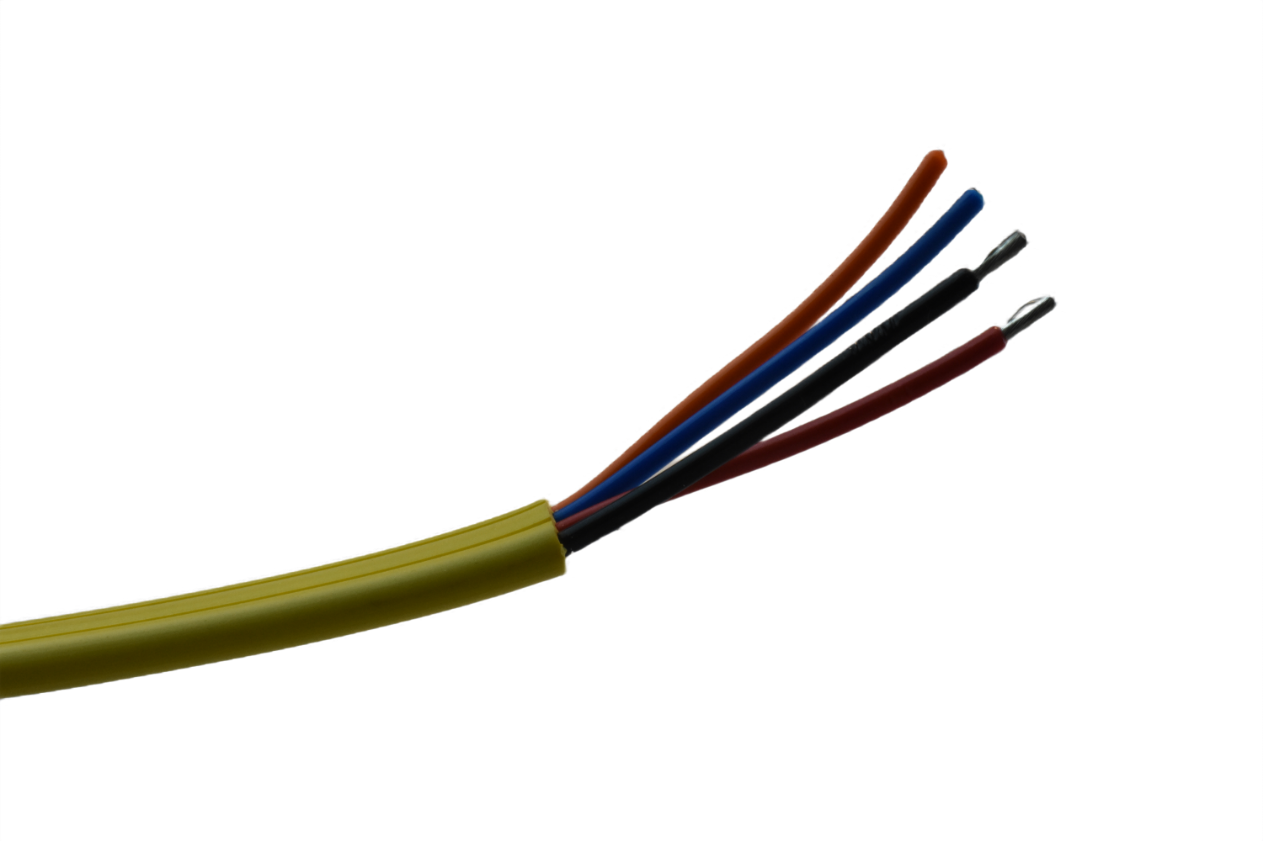

Trex-Onics® Flat Festoon Cable Side_Web
Trex-Onics® Flat Festoon Cable Macro_Web

Trex-Onics® Flat Festoon Cable

Trex-Onics® Flat Festoon Cable’s unique design allows it to lay flat in a crane or hoist application to avoid the common issues caused by other types of cable.

This cable features a heavy-duty security yellow polyurethane jacket for defense against cutting, abrasion, oil, and chemicals. This cable also features finely stranded tinned copper conductors that extend conductor life in dynamic applications.

Features

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Specially Compounded Fluoropolymer Insulation

High dielectric, tensile, and mechanical properties. Offers superior resistance to lubricating oils, coolants, cutting oils, acids, and most chemicals.

Cut Grooves

Promote ease of stripping and termination.

Specially Compounded Security Yellow TPU Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone, UV exposure, and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Resources

Resource-Color Code

Trex-Onics® Flat Festoon Cable

Ratings / Characteristics

  • RoHS Compliant

  • 600 V

  • Max Conductor Temp 105°C

  • Cold Temperature Rating -40°C

  • Bend Radius (Static): 6x Cable Thickness

  • Bend Radius (Dynamic): 8x Cable Thickness

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count CONDUCTOR STRANDING INSULATION THICK.
INCHES
AMPACITY DIMENSIONAL DATA COLOR CODE WT. PER 1000'
lbs
Shielding Type
61114 16 AWG 4 65/34 0.015" 18 0.19" x 0.485" Black, Red, Blue, Orange 94 No Shielding
61118 16 AWG 8 65/34 0.015" 12 0.19" x 0.87" Black, Red, Blue, Orange, Yellow, Brown, Red/Black, Blue/Black 130 No Shielding
61112 16 AWG 12 65/34 0.015" 9 0.19" x 1.255" Black, Red, Blue, Orange, Yellow, Brown, Red/Black, Blue/Black, Orange/Black, Yellow/Black, Brown/Black, Black/Red 198 No Shielding
61148 14 AWG 8 105/34 0.015" 17 0.204" x 0.982" Black, Red, Blue, Orange, Yellow, Brown, Red/Black, Blue/Black 206 No Shielding
61142 14 AWG 12 105/34 0.015" 12 0.204" x 1.423" Black, Red, Blue, Orange, Yellow, Brown, Red/Black, Blue/Black, Orange/Black, Yellow/Black, Brown/Black, Black/Red 287 No Shielding
61124 12 AWG 4 65/30 0.015" 30 0.22" x 0.60" Black, Red, Blue, Orange 112 No Shielding
61104 10 AWG 4 105/30 0.018" 40 0.246" x 0.709" Black, Red, Blue, Orange 210 No Shielding
61164 6 AWG 4 266/30 0.022" 75 0.350" x 1.13" Black, Red, Blue, Orange 462 No Shielding
