Trex-Onics® Low Capacitance Communication / Instrumentation Cable

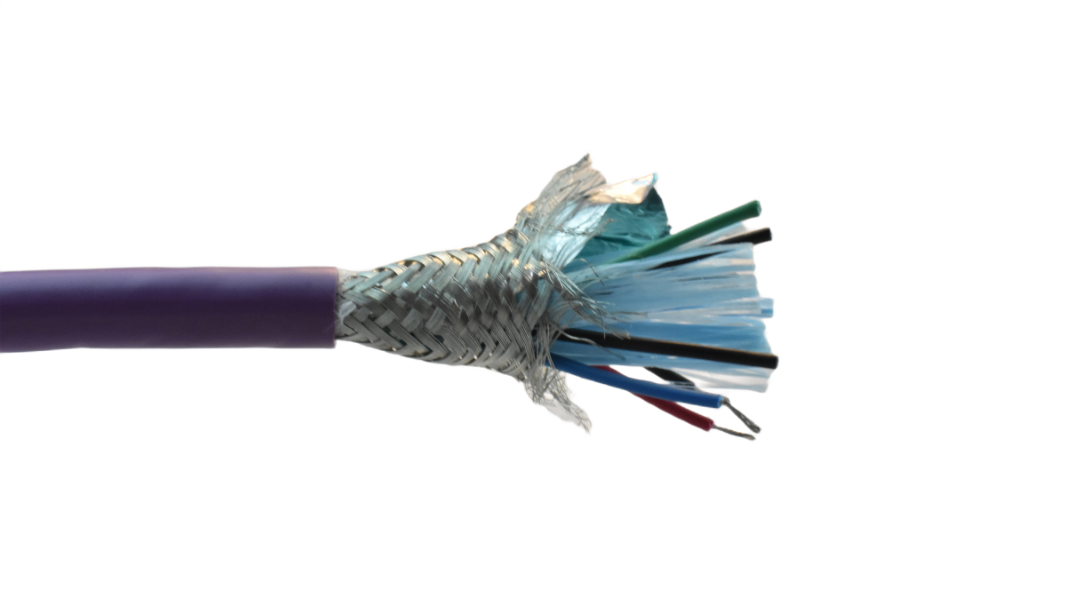

Trex-Onics® High-Flex Low Capacitance Cable features Ultra-Shield™ construction, which includes a heavy-duty combination of tinned copper braid, foil shield, and tinned drain wire providing 100% protection from electromagnetic and radio frequency interference. This cable is designed for use in heavy-duty industrial digital communication and instrumentation applications.

This control and instrumentation cable features TPE insulation and a purple TPE jacket. This flexible cable shows superior resistance against abrasion, tearing, oil, UV, and most chemicals. Solid insulation on individual conductors limits capacitance to 13pF/ft.

Features

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Solid Insulation on Individual Conductors

Solid insulation on individual conductors provides dielectric constant to maintain a low capacitance value between conductors and maximize flex-life.

Ultra-Shield Tinned Copper Braid Shield Plus Aluminum/Polyester Foil Shield Construction

Provides 100% protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage."

Specially Compounded Purple TPE Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Resources

Specsheets

Product Overview

Resource-Color Code

Trex-Onics® Low Capacitance Communication / Instrumentation Cable

Ratings / Characteristics

  • UL Recognized

  • EIA RS-232/422/485

  • Max Conductor Temp 80°C

  • Capacitance: Cond-Cond: 13pF/ft.

  • RoHS Compliant

  • VW-1 Flame Rating

  • 300 V

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count CONDUCTOR STRANDING AMPACITY NOMINAL O.D.
INCHES
DRAIN WIRE WT. PER 1000'
lbs
Shielding Type
68902 24 AWG 2 19/36 1.6 0.335 24 AWG 58 Overall Shield
68903 24 AWG 3 19/36 1.4 0.335 24 AWG 62 Overall Shield
68904 24 AWG 4 19/36 1.4 0.365 24 AWG 72 Overall Shield
68906 24 AWG 6 19/36 1.4 0.435 24 AWG 99 Overall Shield
68909 24 AWG 9 19/36 1.4 0.47 24 AWG 118 Overall Shield
68910 24 AWG 10 19/36 1 0.49 24 AWG 128 Overall Shield
68912 24 AWG 12 19/36 1 0.515 24 AWG 142 Overall Shield
