Trex-Onics® High-Flex Ultra Coil Retractile Cord

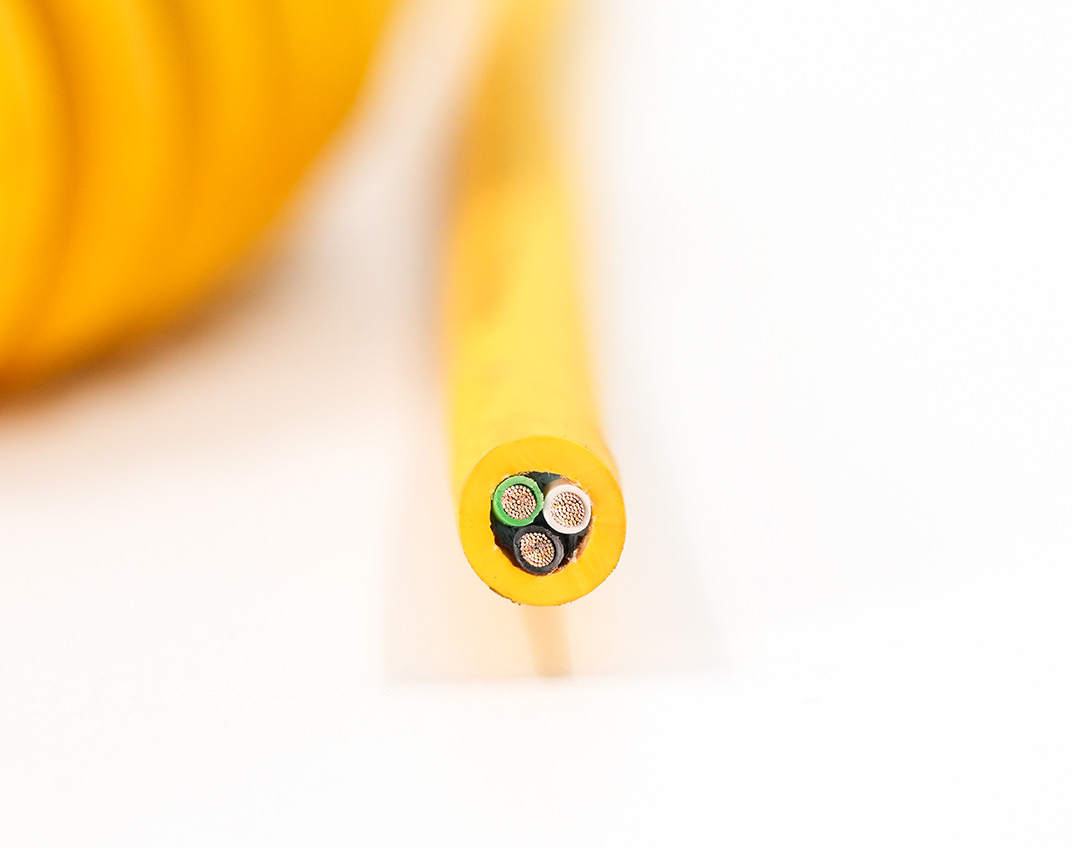

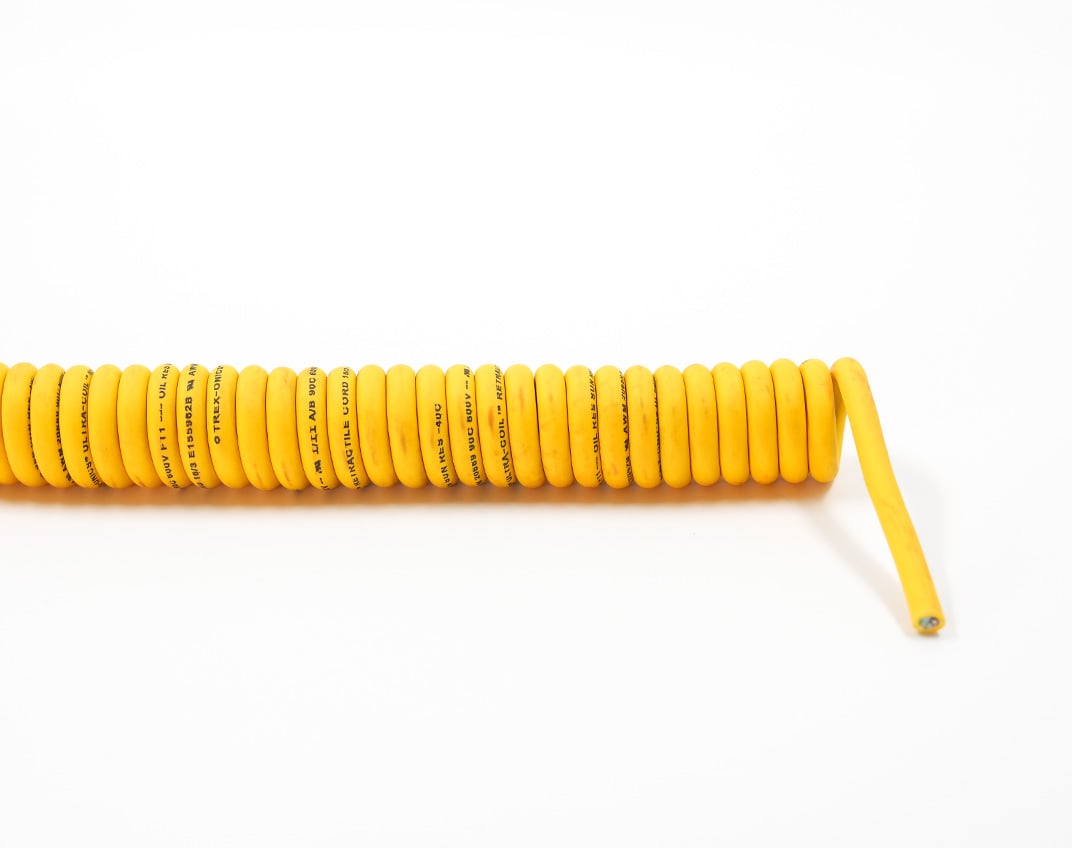

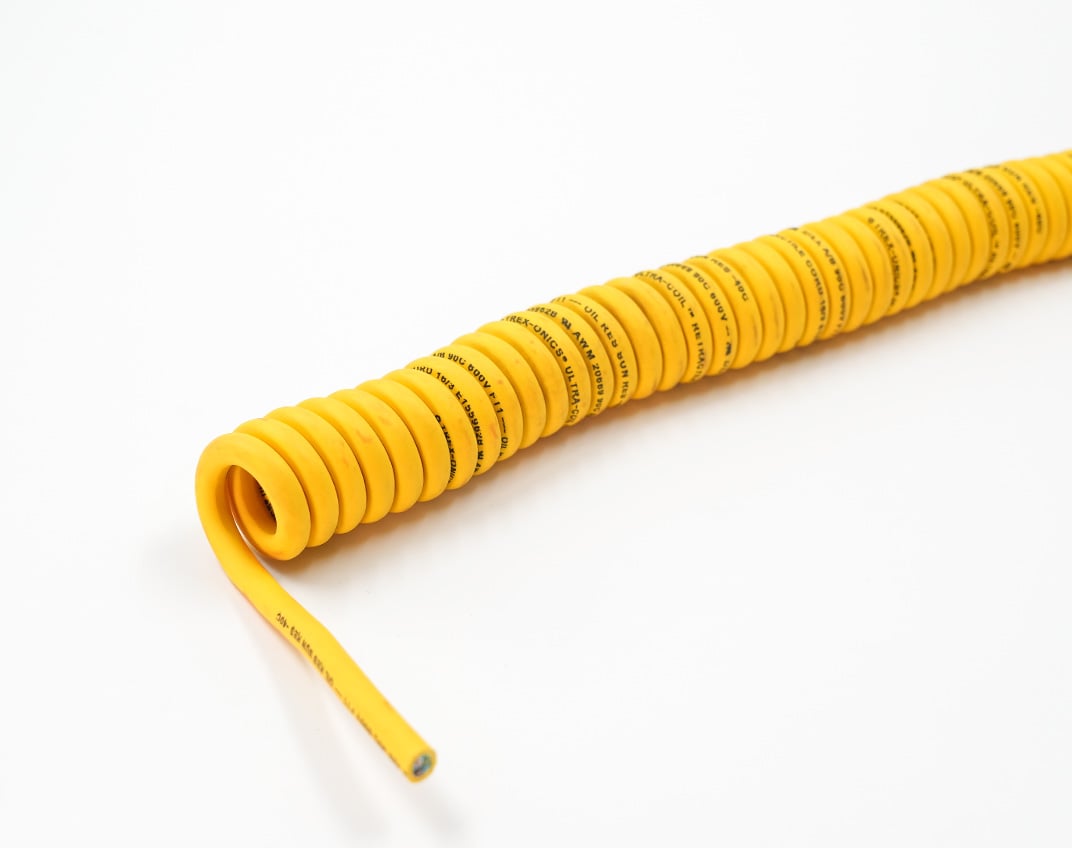

Trex-Onics® High-Flex Ultra Coil Retractile Cord exhibits a unique design that provides a very durable yet lightweight retractile cord while preserving superior coil retention and snappiness.

This control and instrumentation cable features a heavy-duty security yellow polyurethane jacket that protects against cutting, abrasion, oil and chemicals. Also available as Quick-Connex® Mini or Micro cord

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

TINNED CONDUCTORS

Resists corrosion. Easier to solder.

UNIQUE CONSTRUCTION

Provides for a very durable but lightweight retractile design. Superior coil retention and “snappiness.”

PERFORMANCE DESIGNED

For continuous cycle applications.

SECURITY YELLOW HEAVY-DUTY TREX-ONICS® POLYURETHANE TPE JACKET

Excellent defense against cutting, abrasion, oil and chemicals. Designed for long-term coil retention.

12" OR 24" PIGTAIL LEADS ON BOTH ENDS

Provides for easy termination without disrupting coil integrity.

QUICK-CONNECT™ COMPATIBLE DESIGN

Uniquely designed to allow the addition of TPC Molded Micro or Mini Quick-Connects in either 3 or 4 conductor configurations.

OIL AND FLUID RESISTANT INSULATION

Offers superior resistance to oil, solvents and chemicals. Provides high dielectric capability, mechanical strength and cut resistance.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • CE

  • UL Recognized in the U.S. and Canada

  • Sunlight Resistant

  • RoHS Compliant

  • 600 V

  • Max Conductor Temp 90°C

  • Cold Temperature Rating -40°C

  • Oil Resistant

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size Conductor/Pole Count CONDUCTOR STRANDING Ampacity LEAD LENGTH
inches		 COIL LENGTH
feet		 Nominal O.D.
inches		 COIL I.D.
inches		 COIL O.D.
inches		 Shielding Type
60831 18 AWG 3 41X34 14 12 1/5 0.25 0.625 1.2 No Shielding
60832 18 AWG 3 41X34 14 24 2/10 0.25 0.625 1.2 No Shielding
60833 18 AWG 3 41X34 14 24 3/15 0.25 0.625 1.2 No Shielding
60834 18 AWG 3 41X34 14 24 4/20 0.25 0.625 1.2 No Shielding
60841 18 AWG 4 41X34 14 12 1/5 0.267 0.625 1.3 No Shielding
60842 18 AWG 4 41X34 14 24 2/10 0.267 0.625 1.3 No Shielding
60843 18 AWG 4 41X34 14 24 3/15 0.267 0.625 1.3 No Shielding
60844 18 AWG 4 41X34 14 24 4/20 0.267 0.625 1.3 No Shielding
60871 18 AWG 12 41X34 7 12 1/5 0.387 0.75 1.6 No Shielding
60872 18 AWG 12 41X34 7 24 2/10 0.387 0.75 1.6 No Shielding
60873 18 AWG 12 41X34 7 24 3/15 0.387 0.75 1.6 No Shielding
60874 18 AWG 12 41X34 7 24 4/20 0.387 0.75 1.6 No Shielding
60631 16 AWG 3 65X34 18 12 1/5 0.275 0.625 1.3 No Shielding
60632 16 AWG 3 65X34 18 24 2/10 0.275 0.625 1.3 No Shielding
60633 16 AWG 3 65X34 18 24 3/15 0.275 0.625 1.3 No Shielding
60634 16 AWG 3 65X34 18 24 4/20 0.275 0.625 1.3 No Shielding
60641 16 AWG 4 65X34 18 12 1/5 0.296 0.625 1.4 No Shielding
60642 16 AWG 4 65X34 18 24 2/10 0.296 0.625 1.4 No Shielding
60643 16 AWG 4 65X34 18 24 3/15 0.296 0.625 1.4 No Shielding
60644 16 AWG 4 65X34 18 24 4/20 0.296 0.625 1.4 No Shielding
60681 16 AWG 8 65X34 11 12 1/5 0.402 0.75 1.75 No Shielding
60682 16 AWG 8 65X34 11 24 2/10 0.402 0.75 1.75 No Shielding
60683 16 AWG 8 65X34 11 24 3/15 0.402 0.75 1.75 No Shielding
60684 16 AWG 8 65X34 11 24 4/20 0.402 0.75 1.75 No Shielding
60441 14 AWG 4 105X34 25 12 1/5 0.344 0.625 1.55 No Shielding
60442 14 AWG 4 105X34 25 24 2/10 0.344 0.625 1.55 No Shielding
60443 14 AWG 4 105X34 25 24 3/15 0.344 0.625 1.55 No Shielding
60444 14 AWG 4 105X34 25 24 4/20 0.344 0.625 1.55 No Shielding
60241 12 AWG 4 105X34 30 12 1/5 0.417 0.75 1.8 No Shielding
60242 12 AWG 4 105X34 30 24 2/10 0.417 0.75 1.8 No Shielding
60243 12 AWG 4 105X34 30 24 3/15 0.417 0.75 1.8 No Shielding
60244 12 AWG 4 105X34 30 24 4/20 0.417 0.75 1.8 No Shielding
