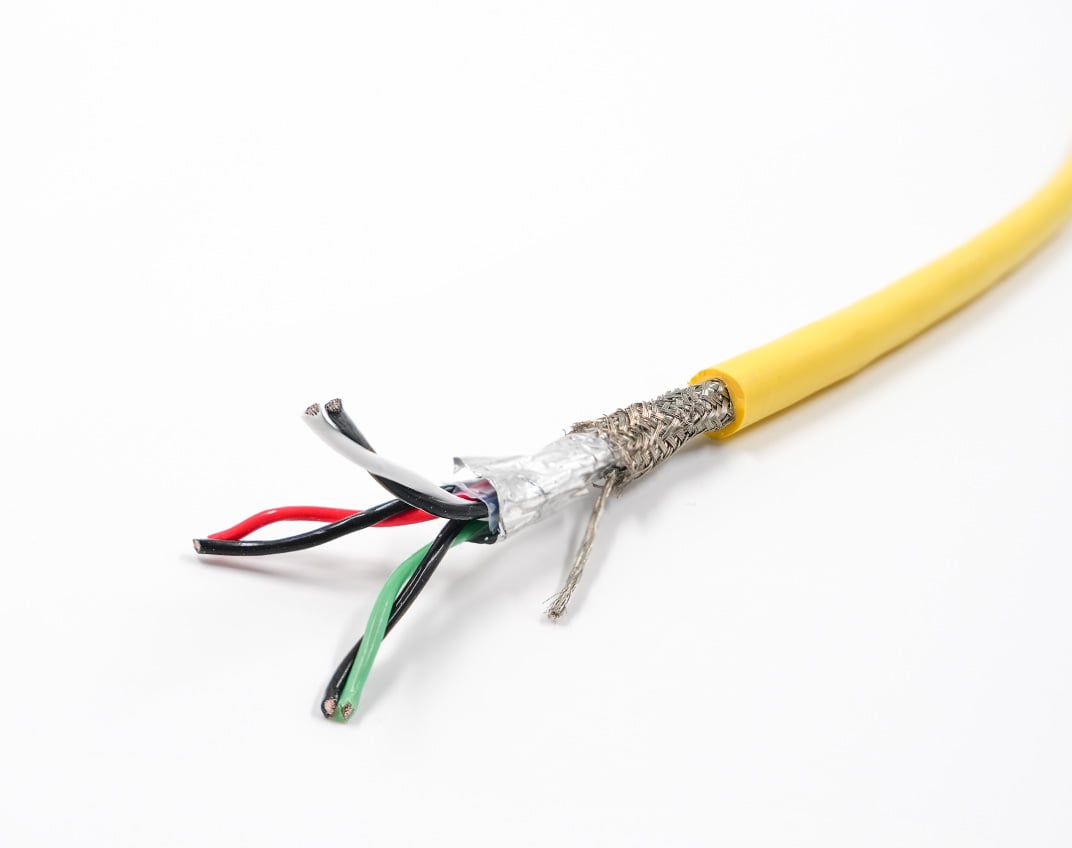

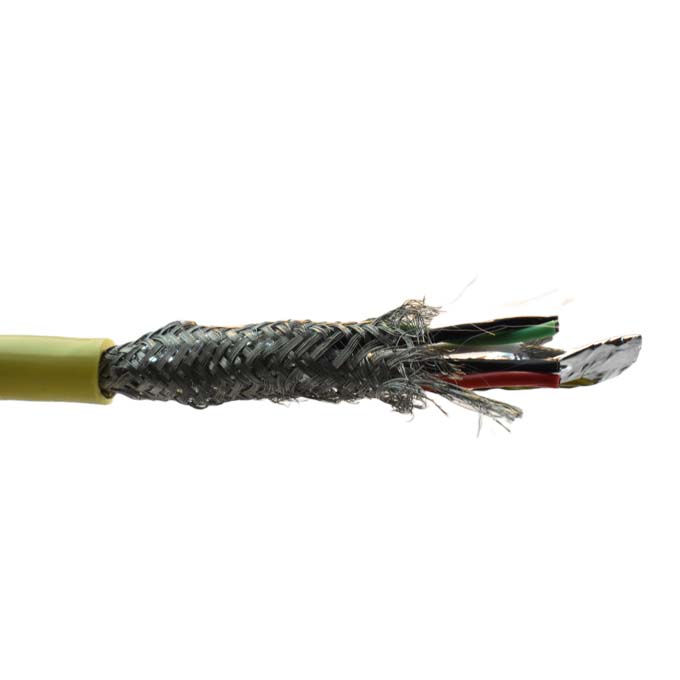

Trex-Onics® Multi-Pair Control Cable

Trex-Onics® Multi-Pair Control Cable is designed for industrial cat tracks, reeling, drop pendants, and robotics and this flexible cable shows superior resistance against abrasion, tearing, oil, UV, and most chemicals.

This control and instrumentation cable features FEP insulation and a heavy-duty security yellow polyurethane jacket. It also features Ultra-Shield construction, which includes a heavy-duty combination of tinned copper braid, foil shield, and tinned drain wire providing 100% protection from electromagnetic and radio frequency interference.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

FINELY STRANDED TINNED COPPER CONDUCTORS

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

SPECIALLY COMPOUNDED FLUOROPOLYMER INSULATION

High dielectric, tensile, and mechanical properties. Offers superior resistance to lubricating oils, coolants, cutting oils, acids, and most chemicals.

ULTRA-SHIELD TINNED COPPER BRAID SHIELD PLUS ALUMINUM/POLYESTER FOIL SHIELD CONSTRUCTION

Provides 100% protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage.”

SPECIALLY COMPOUNDED SECURITY YELLOW TPU JACKET

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone, UV exposure, and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Resources

Specsheets

Product Overview

Resource-Color Code

Trex-Onics® Multi-Pair Control Cable

Ratings / Characteristics

  • UL Recognized in the U.S. & Canada

  • CSA

  • RoHS Compliant

  • 600V

  • Max Conductor Temperature 105°C 

  • Cold Temperature Rating -40°C

  • AWM Style 20952

  • FT1 Flame Rating 

  • VW-1 Flame Rating 

  • Bend Radius (Static): 6x Cable O.D. 

  • Bend Radius (Dynamic): 8x Cable O.D. 

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. CONDUCTOR SIZE AWG Conductor Pole Count CONDUCTOR STRANDING AMPACITY OVERALL DRAIN WIRE NOMINAL O.D.
INCHES		 WT. PER 1000'
lbs		 Shielding Type
66424 24 AWG 4 19/36 7 26 AWG 0.305 53 Overall Shield
66312 20 AWG 12 19/32 8 22 AWG 0.6 225 Overall Shield
66309 20 AWG 9 19/32 8 22 AWG 0.53 172 Overall Shield
66306 20 AWG 6 19/32 11 22 AWG 0.45 130 Overall Shield
66303 20 AWG 3 19/32 11 22 AWG 0.335 70 Overall Shield
66302 20 AWG 2 19/32 13 22 AWG 0.335 66 Overall Shield
66212 18 AWG 12 19/30 6 22 AWG 0.67 298 Overall Shield
66209 18 AWG 9 19/30 7 22 AWG 0.61 240 Overall Shield
66206 18 AWG 6 19/30 7 22 AWG 0.51 175 Overall Shield
66204 18 AWG 4 19/30 9 22 AWG 0.42 110 Overall Shield
66203 18 AWG 3 19/30 11 22 AWG 0.38 93 Overall Shield
66202 18 AWG 2 19/30 14 22 AWG 0.38 88 Overall Shield
66101 16 AWG 1 19/29 18 22 AWG 0.265 56 Overall Shield
66001 14 AWG 1 19/27 25 22 AWG 0.3 70 Overall Shield
