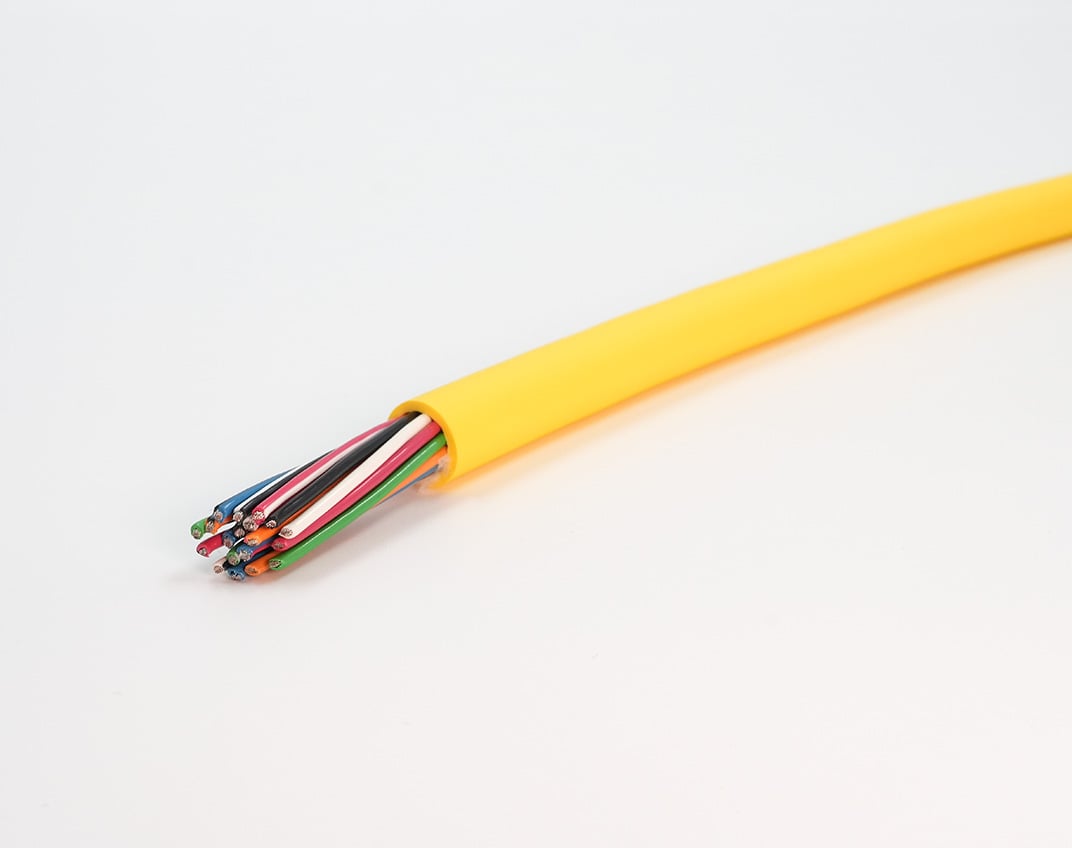

Trex-Onics® Reduced Diameter Control Cable 3QV_Web
Trex-Onics® Reduced Diameter Control Cable Side_Web

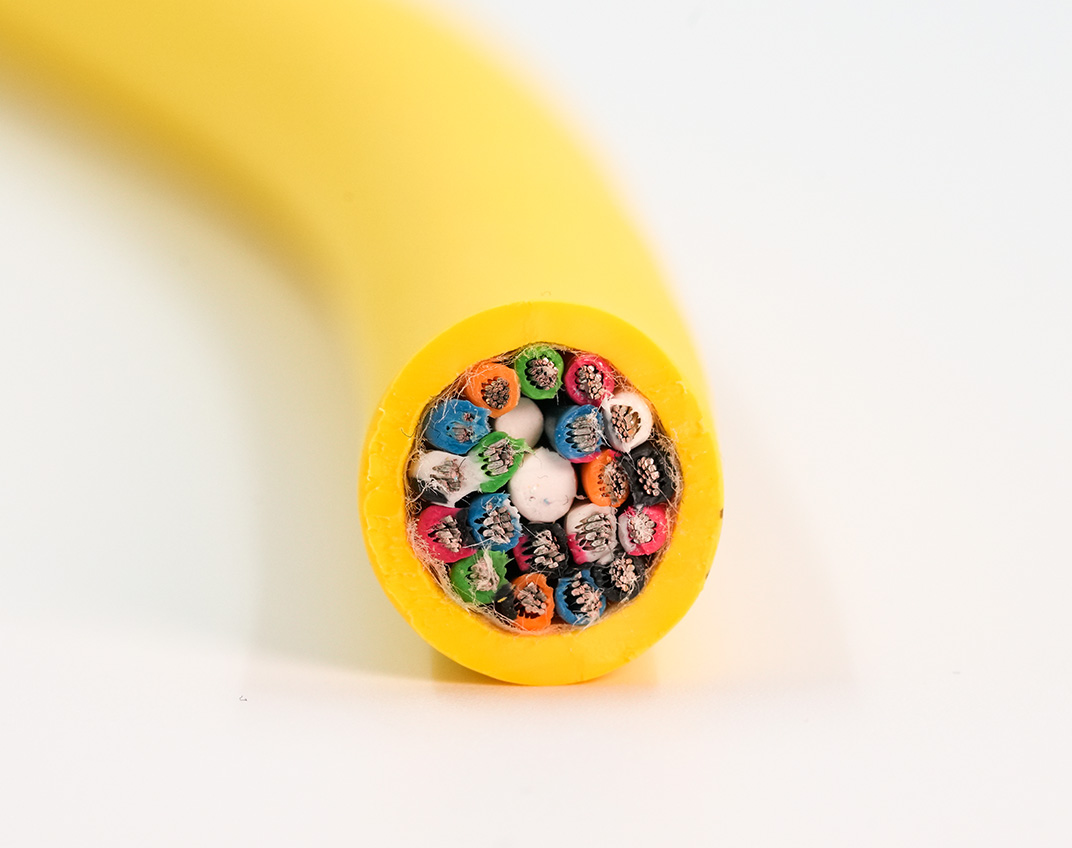

Trex-Onics® Reduced Diameter Control Cable Macro_Web

Trex-Onics® Reduced Diameter Control Cable

Trex-Onics® Reduced Diameter Control Cable is a multi-conductor unshielded control cable designed for industrial applications that require continuous flexing.

This control and instrumentation cable features a high strand count, TPE insulation, and a security yellow TPE jacket that provides excellent protection against abrasion, tearing, oil, and most chemicals.

Features

FINELY STRANDED TINNED COPPER CONDUCTORS

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

SPECIALLY COMPOUNDED TPE INSULATION

Resists effects of lubricating oils, coolants, cutting oils, acids, and most chemicals.

LOW-FRICTION, NON-WICKING FILLERS

Increase flexibility and flex-life in dynamic applications.

REVERSE LAY OF ALTERNATING BUNDLES

Increases flexibility and relieves bending and twisting stress.

HIGH FLEX TAPE SEPARATOR

Improves performance in continuous flexing applications. Allows the conductors to move freely within the jacket reducing conductor failure.

SPECIALLY COMPOUNDED SECURITY YELLOW TPE JACKET

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Resources

Specsheets

Product Overview

Resource-Color Code

Trex-Onics Reduced Diameter Control Cable

Ratings / Characteristics

  • UL Listed

  • cUL

  • RoHS Compliant

  • 600V

  • 1000V (Type WTTC for 12 – 18 AWG Only)

  • Max Conductor Temperature 90°C

  • Cold Temperature Rating -20°C

  • Type TC-ER (12 – 18 AWG Only)

  • Type WTTC (12 – 18 AWG Only)

  • FT-4 Flame Rating

  • Suitable for Class I, II, Div 2

  • Oil Resistant II

  • UV Resistant

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

abrasions-icon

Abrasion

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Ampacity Nominal O.D. (in.) Weight per 1,000 ft. (lbs.) Standard Cable Gland** Shielding
6271208 12 AWG 8 21 0.637 299 55007 No Shielding
6271212 12 AWG 12 15 0.695 386 55008 No Shielding
6271222 12 AWG 22 13 0.933 709 55012 No Shielding
6271605 16 AWG 5 14 0.369 69 55003 No Shielding
6271607 16 AWG 7 12 0.432 123 55004 No Shielding
6271612 16 AWG 12 9 0.508 182 55006 No Shielding
6271616 16 AWG 16 9 0.558 230 55006 No Shielding
6271619 16 AWG 19 9 0.621 270 55007 No Shielding
6271622 16 AWG 22 8 0.65 313 55007 No Shielding
6271625 16 AWG 25 8 0.708 369 55008 No Shielding
6271631 16 AWG 31 7 0.745 419 55008 No Shielding
6271633 16 AWG 33 7 0.745 433 55008 No Shielding
6271641 16 AWG 41 6 0.867 570 55012 No Shielding
6271649 16 AWG 49 6 0.934 661 55012 No Shielding
6271660 16 AWG 60 6 0.989 779 55012 No Shielding
6271665 16 AWG 65 6 1.056 868 55012 No Shielding
6271805 18 AWG 5 11 0.321 63 55003 No Shielding
6271812 18 AWG 12 7 0.439 127 55004 No Shielding
6271819 18 AWG 19 7 0.546 197 55006 No Shielding
6271825 18 AWG 25 6 0.621 261 55006 No Shielding
6271833 18 AWG 33 5 0.649 301 55007 No Shielding
6271847 18 AWG 47 4 0.765 419 55008 No Shielding
6271849 18 AWG 49 4 0.785 442 55008 No Shielding
6271865 18 AWG 65 4 0.924 608 55012 No Shielding
6272005 20 AWG 5 9 0.275 44 55003 No Shielding
6272012 20 AWG 12 8 0.364 84 55003 No Shielding
6272019 20 AWG 19 6 0.453 130 55004 No Shielding
6272025 20 AWG 25 6 0.508 169 55006 No Shielding
6272033 20 AWG 33 4 0.541 200 55006 No Shielding
6272047 20 AWG 47 4 0.644 280 55007 No Shielding
6272065 20 AWG 65 4 0.744 385 55008 No Shielding

Available for special order in all red, all blue, or all black conductors. MOQ may apply.
