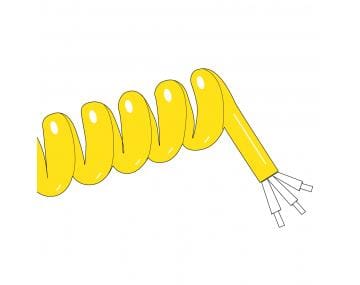

Trex-Onics® Retractable Power Cord

Trex-Onics® Retractable Power Cord is uniquely designed to be lightweight, abrasion, heat and moisture resistant, and is built to withstand the harsh industrial environments where boilers and furnaces are found. Ideal for industrial boiler and furnace cleaning, high pressure water lance cleaning, blowers for air/water heaters, steam distribution systems, selective catalytic reduction and boiler tube cleaners.

Our Retractable Power Cords are available in a wide range of extension lengths and lead lengths. OEM coil cords are often sold in left-hand or right-hand versions. Our Retractable Power Cord cable fits either orientation and eliminates the need for two separate part numbers, allowing for better inventory control and spend.

Features

FULLY MOLDED CONNECTORS

Designed for ease of installation. These connectors offer a secure connection and protection against environmental hazards.

CONSTRUCTED WITH LOW-WEIGHT DURABLE MATERIALS

Allows for a smaller, tighter coil that is 30% lighter than competitive products, making for safer, easier installation.

SPECIALLY COMPOUNDED TPE INSULATION

Resists effects of lubricating oils, coolants, cutting oils, acids, and most chemicals.

SPECIALLY COMPOUNDED BLACK TPE JACKET

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals. The ultra-smooth jacket gently slides along the sootblower guide wire.

OPTIONAL EXTENDED LEADS

Available with 2 ft. leads on both ends, allowing for customization to application.

Resources

Resource-Color Code

Trex-Onics® Retractable Power Cable

Video

Trex Onics® Retractable Power Cable Video

Ratings / Characteristics

  • 600V

  • IP67 Rated

  • IP68 Rated

  • Max Conductor Temperature 90°C

  • Excellent Abrasion Resistance

  • Excellent Moisture Resistance

Applications

abrasions-icon

Abrasion

heat-icon

High Temperature

Part Numbers

Part No. (STANDARD) PART NO. (EXTENDED LEADS) Conductor Size Conductor/Pole Count Ampacity RETRACTED TO EXTENDED COIL LENGTH
feet
NOMINAL O.D.
inches
Shielding Type
604416 Custom 14 AWG 4 20 2 to 16 0.365 No Shielding
604425 604425-24 14 AWG 4 20 2 to 25 0.365 No Shielding
604445 604445-24 14 AWG 4 20 3 to 45 0.365 No Shielding
604456 604456-24 14 AWG 4 20 4.5 to 56 0.365 No Shielding
