HY-TREX® DeviceNet™ Cable - Thick

HY-TREX® DeviceNet™ Cable - Thick

HY-TREX® DeviceNet® Thick cable options are used with DeviceNet systems as a trunk cable, also known as a trunk line. Applicable in industrial automation applications to talk between controllers and devices such as motors, meters, sensors.


Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Conductors

Power Pair: 14 AWG, 105x34 stranding
Communication Pair: 18 AWG, 41x34 stranding.

Insulation

Power Pair: Special formulation TPE
Communication Pair: Polypropylene (PP).

Insulation Color Code

Power Pair: Black & Red.
Communication Pair: White & Blue.

Shielding

Aluminum/Mylar Foil Shield over each pair, tinned copper braid overall shield, braid shield over cable core.

Jacketing

Extruded TPE jacket, color grey.

Twisted Pairs

Quantity two (2) twisted shielded pairs.

IMPEDANCE

120 +/- 12 Ohms Single-Ended.

CAPACITANCE

12 pF/Ft. Cond-Cond 24 pF/Ft. Cond-Shield.

PROPAGATION DELAY

1.47 nSec/FT. Nominal.

Resources

Specsheets

Product Overview

Catalog

HY-TREX Product Catalog

Video

HY-TREX® Wire and Cable

Ratings / Characteristics

  • UL 13: Power Limited Circuit Cables, Type CL3

  • UL 758: AWM Style 20207

  • 300 V

  • OPERATING TEMPERATURE: -25°C to 80°C

  • MINIMUM BEND RADIUS: 4.0 inch

Applications

flexing-icon

Flexing

abrasions-icon

Abrasion

Part Numbers

Part No. Cond Size AWG Conductor/Pole Count Stranding NOM O.D.
(in.)		 WEIGHT
(LBS/1000')		 Shielding Type
DN220-1814-2STP-SB 14 AWG 1 105x34 0.5 198 Overall Shielded, Individually Shielded Pairs
DN220-1814-2STP-SB
 18 AWG 1 41x34 .5 198 Overall Shielded, Individually Shielded Pairs

Related Products

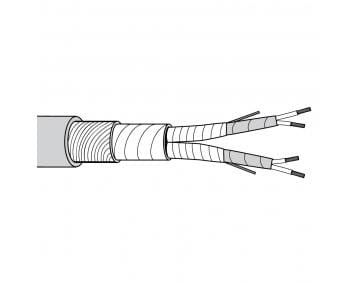

flex-net-thin-high-performance-cable_0 (1)
