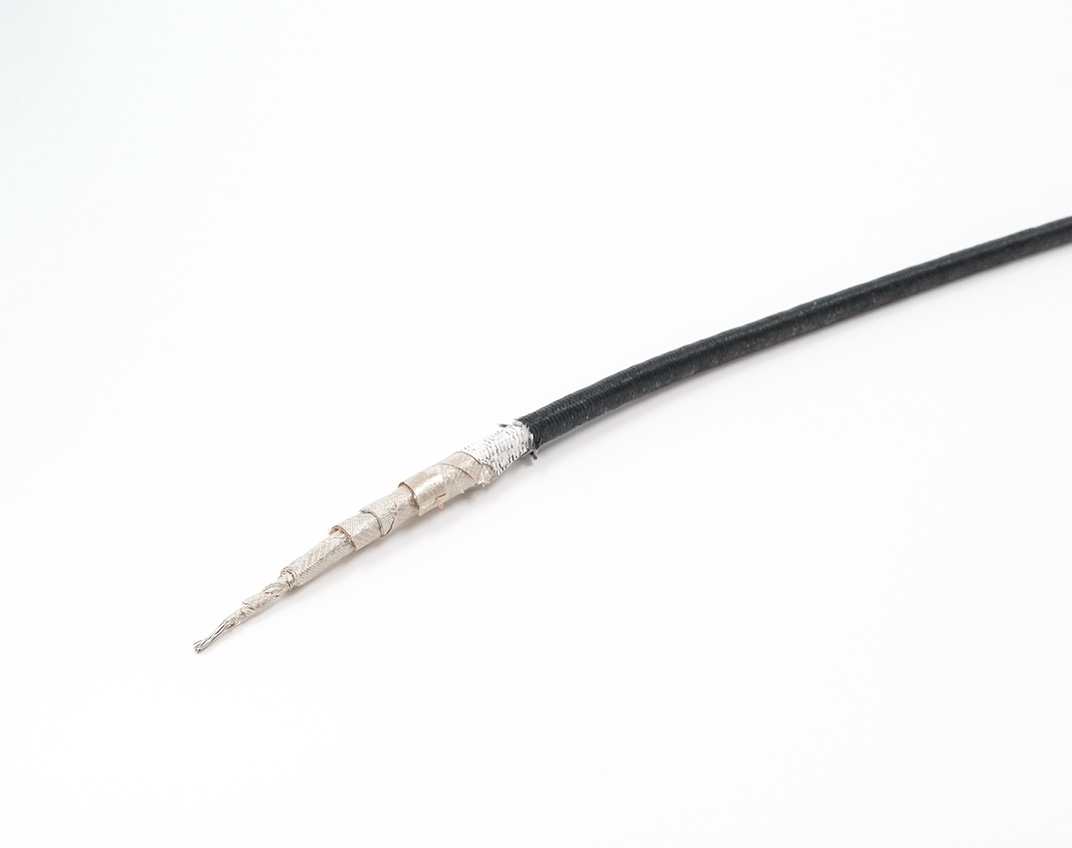

Thermo-Trex® Igniter Wire with Fiberglass Jacket 3QV_Web

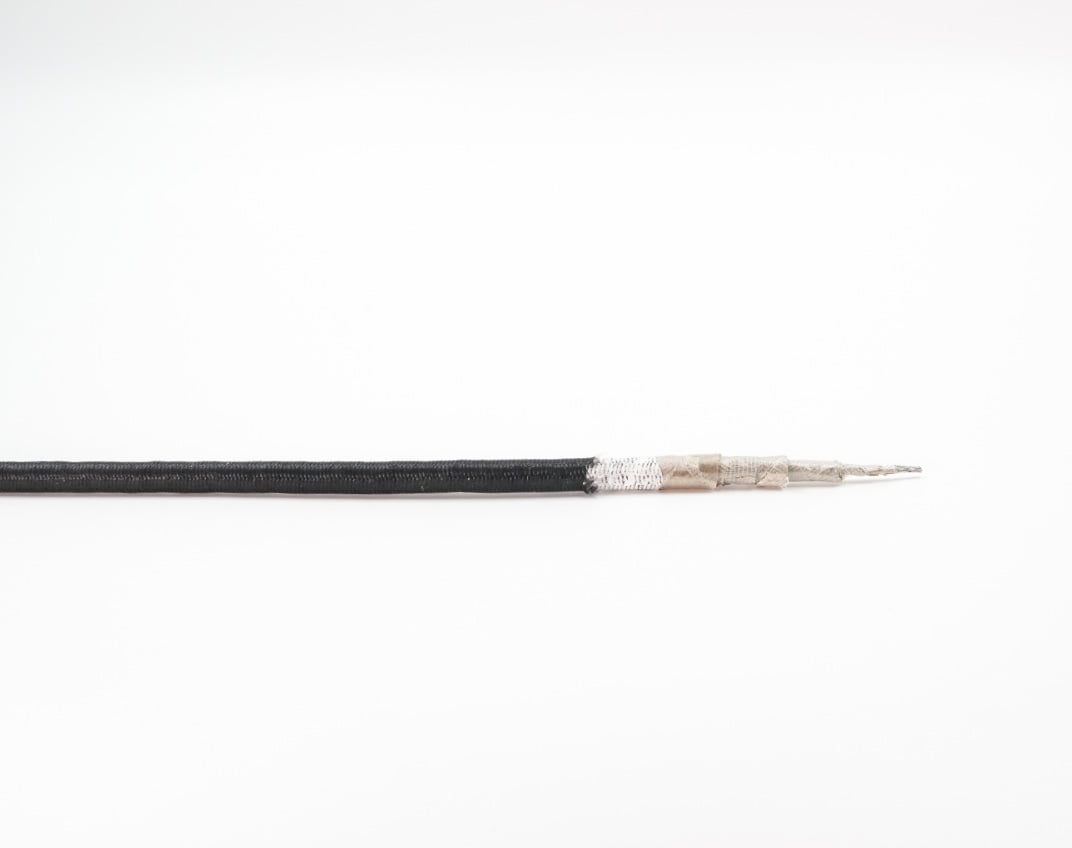

Thermo-Trex® Igniter Wire with Fiberglass Jacket Side_Web

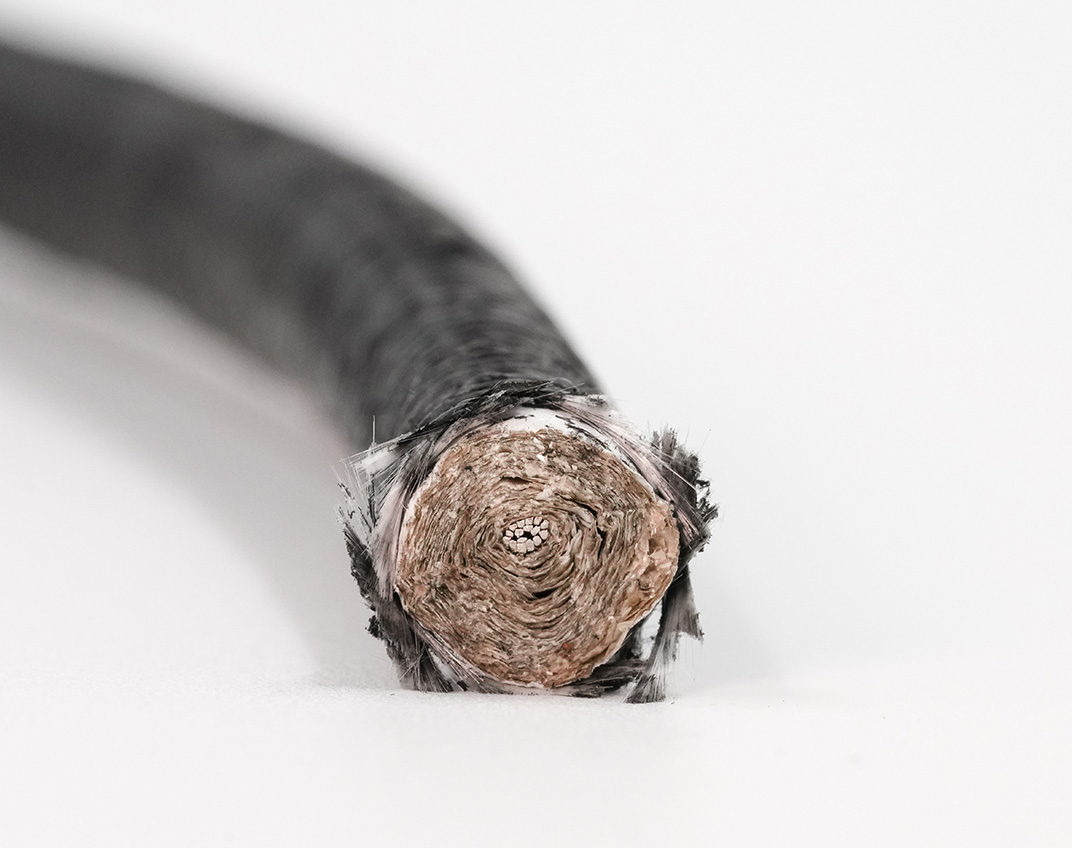

Thermo-Trex® Igniter Wire with Fiberglass Jacket Macro_Web

Thermo-Trex® Igniter Wire with Fiberglass Jacket

Thermo-Trex® Igniter Wire with Fiberglass Jacket is a high-temperature resistant flexible cable that can withstand a maximum conductor temperature of 538°C / 1,000°F.

This igniter wire is voltage rated to 25kVDC / 17kVAC and features a braided fiberglass jacket with a Fluoropolymer coating that provides protection and aids in installation.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

NICKEL-PLATED COPPER CONDUCTORS

Nickel-plated conductors allow for high heat resistance.

MULTI-LAYERED MICA TAPE WRAP INSULATION WITH PTFE MOISTURE BARRIER

Provides abrasion and high heat resistance for long-term durability.

SPECIALLY DESIGNED FIBERGLASS BRAID JACKET

Braided fiberglass jacket impregnated with high-temp finishing compounds to prevent fraying. Provides first line defense against abrasion and high heat.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • 25kVDC / 17 kVAC

  • Max Conductor Temperature 538°C

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

heat-icon

High Temperature

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count STRANDING VOLTAGE TEMPERATURE JACKET NOMINAL O.D.
inches		 WT. PER 1000'
lbs		 Shielding Type
40100 18 AWG 1 16/30 25 kVDC/17 kVAC 1000°F / 538°C Black (Fiberglass Braid) 0.339 50.13 No Shielding

Related Products

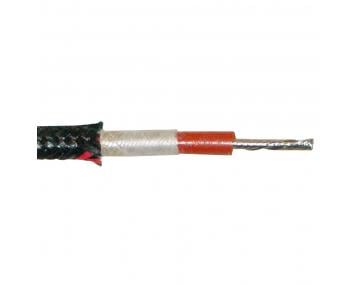

flare-stack-cable_1
