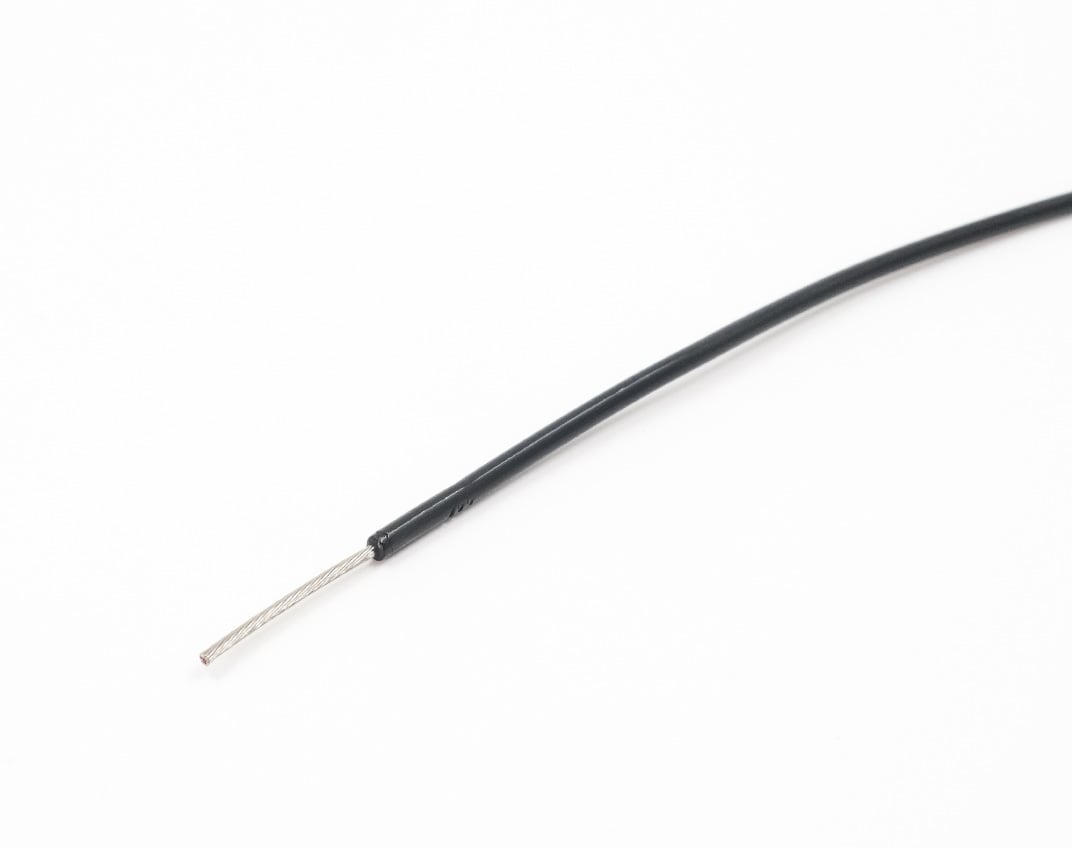

Thermo-Trex® Igniter Wire with Fluoropolymer Jacket 3QV_Web

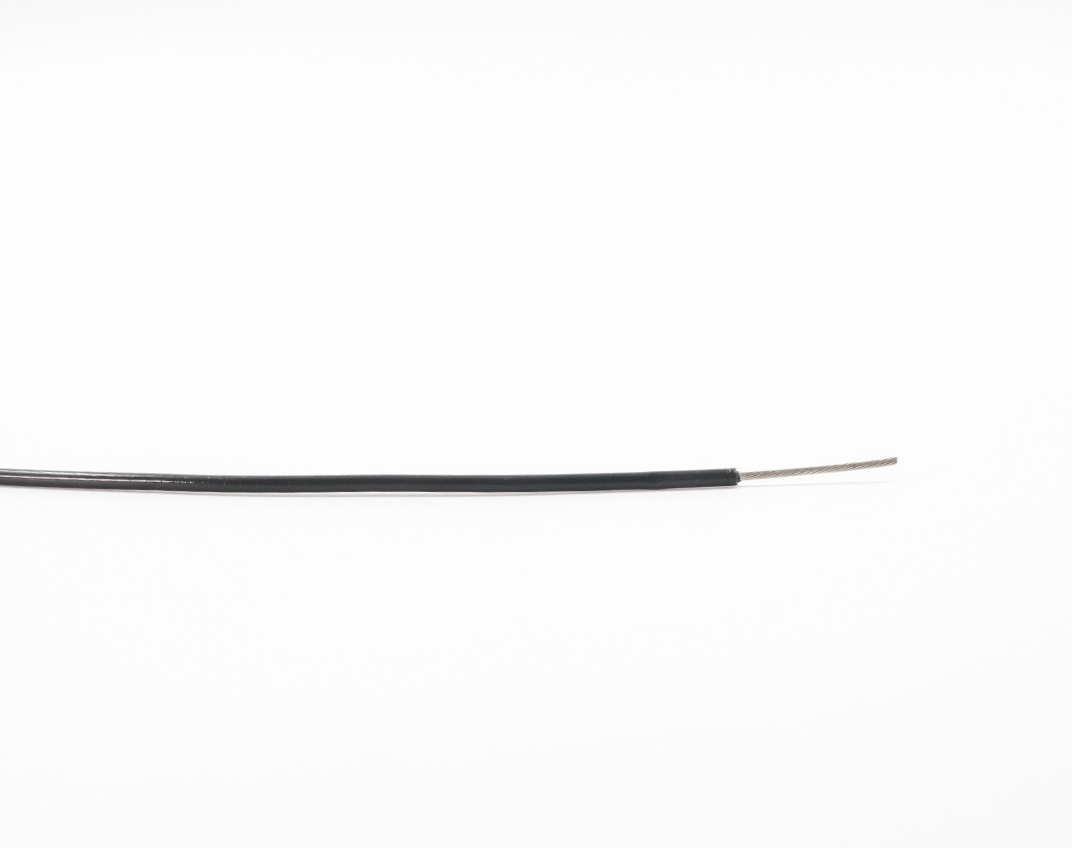

Thermo-Trex® Igniter Wire with Fluoropolymer Jacket Side_Web

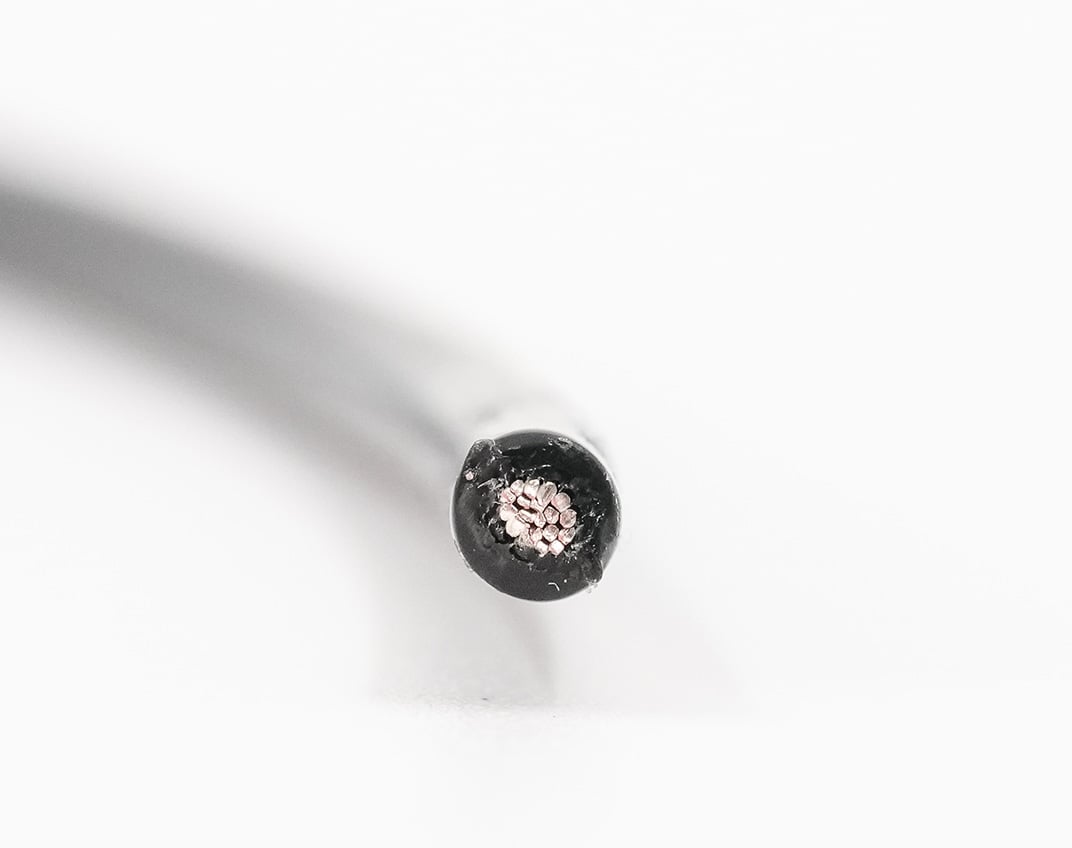

Thermo-Trex® Igniter Wire with Fluoropolymer Jacket Macro_Web

Thermo-Trex® Igniter Wire with Fluoropolymer Jacket

Thermo-Trex® Igniter Wire with a Fluoropolymer Jacket is a high-temperature resistant flexible cable that can withstand a maximum conductor temperature of 250°C / 482°F.

This igniter wire is voltage rated to 25kVDC / 17kVAC and features a Fluoropolymer Jacket that provides protection and aids against cutting and abrasion.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Nickel-Plated Copper Conductors

Nickel-plated conductors allow for high heat resistance.

Specially Compounded Fluoropolymer Jacket

Ideal for environments where harsh chemicals are present. Superior resistance to oils, acids, solvents, and chemicals. Excellent defense against cutting and abrasion.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • UL-Rated

  • 25kVDC / 17 kVAC

  • AWM Style 1911

  • Max Conductor Temperature 250°C

  • Bend Radius (Static): 12x Cable O.D.

  • Bend Radius (Static): 15x Cable O.D.

Applications

heat-icon

High Temperature

flexing-icon

Flexing

chemicals-icon

Chemicals

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count STRANDING VOLTAGE TEMPERATURE JACKET NOMINAL O.D.
inches		 WT. PER 1000'
lbs		 Shielding Type
40200 18 1 19 x .0092 25 kVDC/17 kVAC 482°F / 250°C Black (Fluoropolymer) 0.098 41 No Shielding
