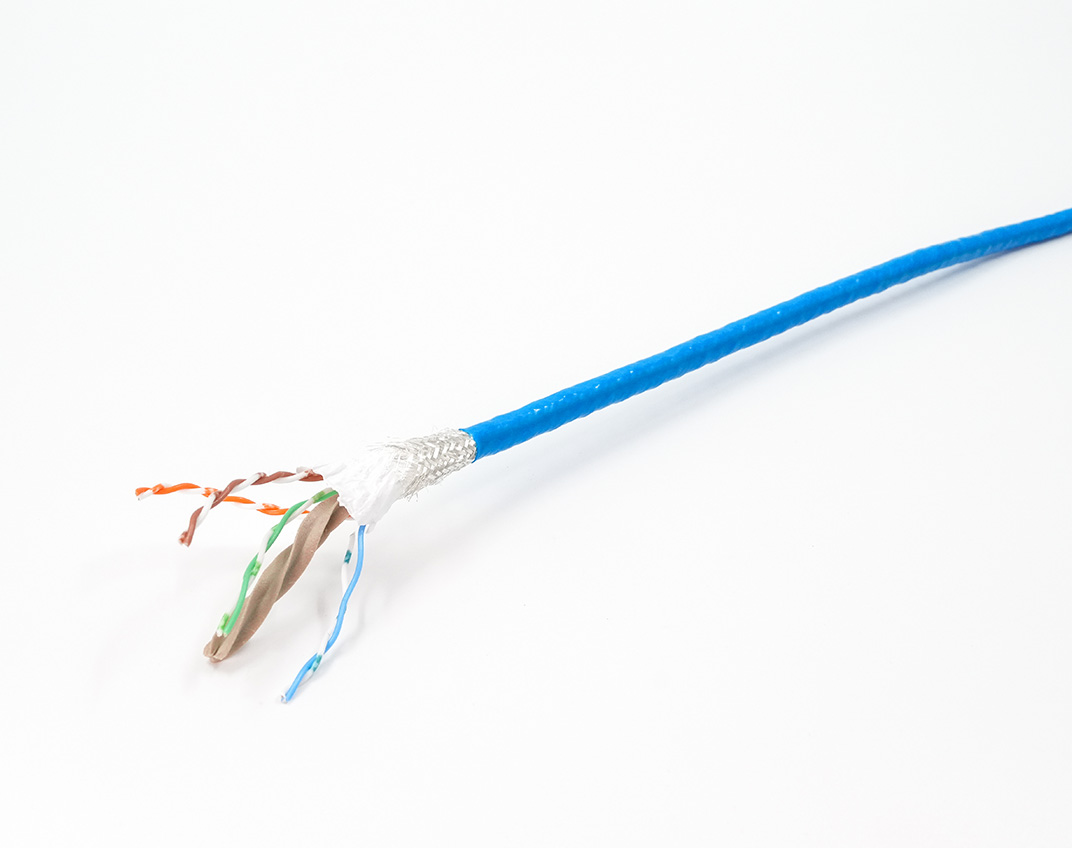

Chem-Gard® 200 °C CAT6 Industrial Ethernet Horizontal Cable 3QV_Web

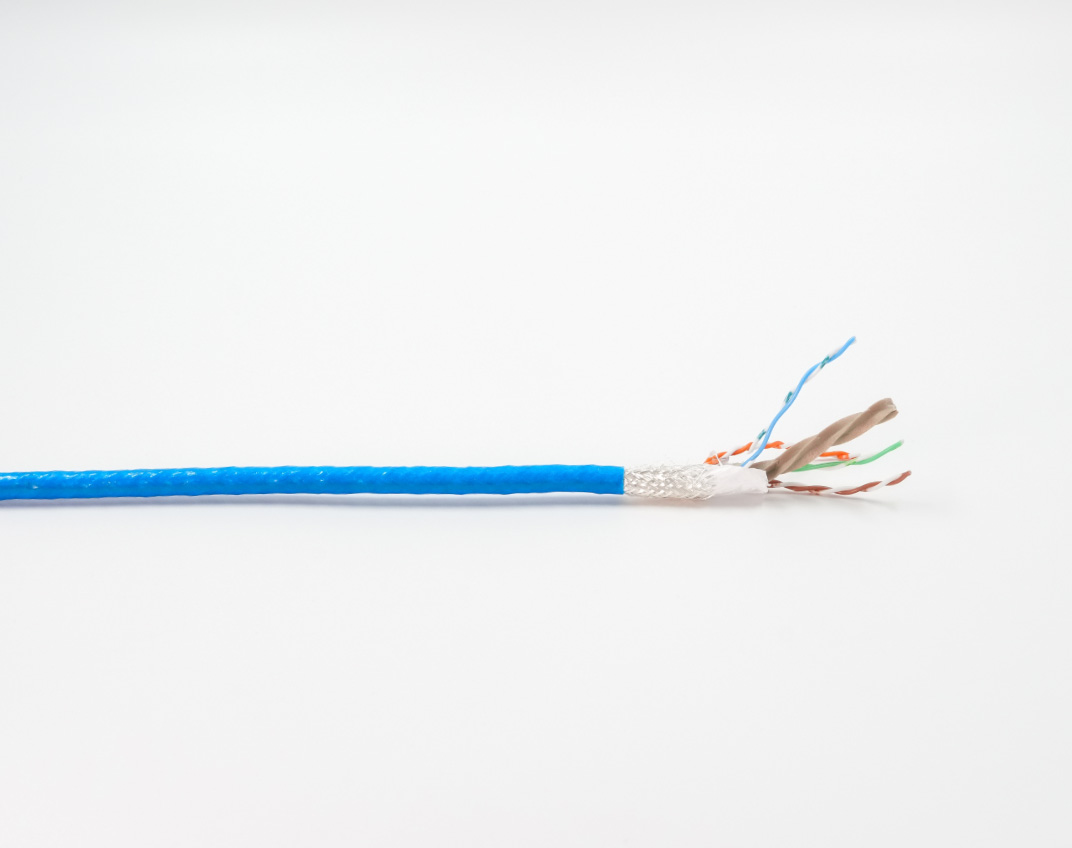

Chem-Gard® 200 °C CAT6 Industrial Ethernet Horizontal Cable Side_Web

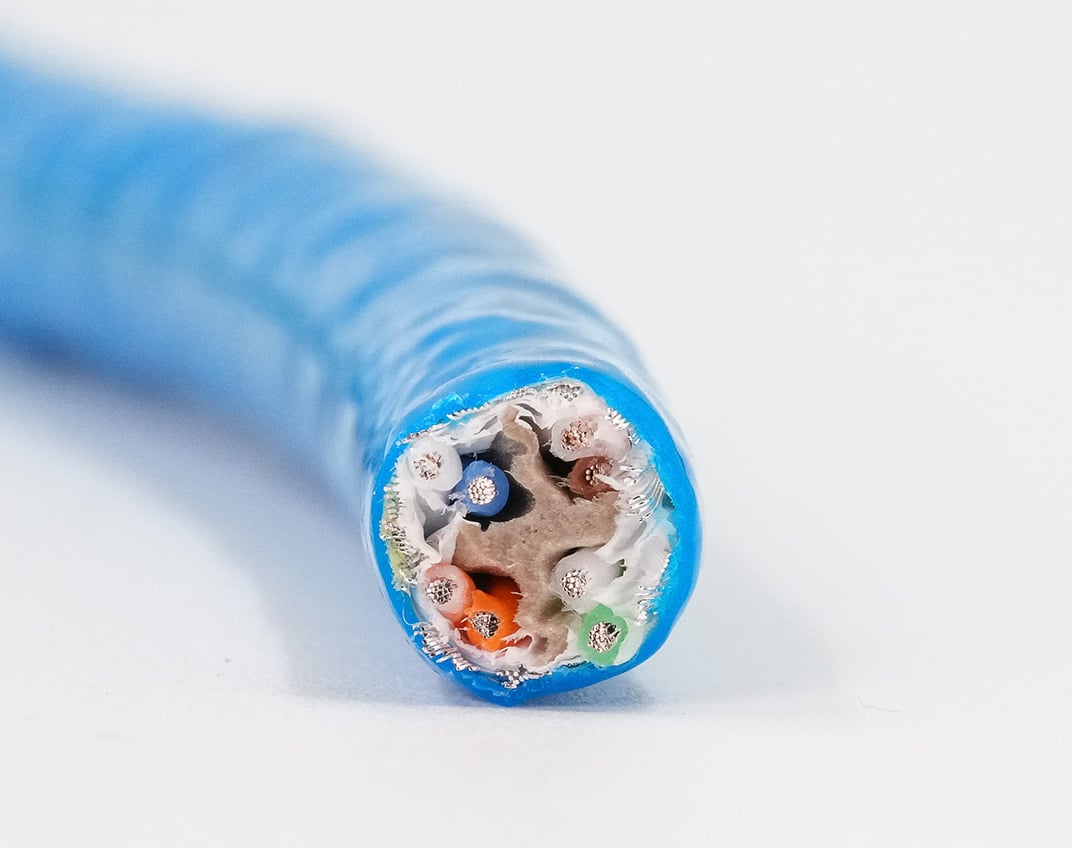

Chem-Gard® 200 °C CAT6 Industrial Ethernet Horizontal Cable Macro_Web

Chem-Gard® 200°C CAT6 Industrial Ethernet Horizontal Cable

Chem-Gard® 200°C CAT6 Industrial Ethernet Horizontal Cable is built for performance in the harshest of environments, including those in the metals industry. It is built to withstand a maximum conductor temperature of 200°C / 392°F.

This ethernet cable features a fluoropolymer jacket that provides excellent resistance to cutting, abrasion, oil and chemicals and is available in both shielded and non-shielded options.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

FINELY STRANDED SILVER ALLOY CONDUCTORS

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Silver alloy conductors provide excellent electrical and high heat performance.

SPECIALLY COMPOUNDED FLUOROPOLYMER INSULATION

High dielectric, tensile, and mechanical properties. Offers superior resistance to lubricating oils, coolants, cutting oils, acids, and most chemicals.

CENTER X-WEB SPLINE WITH PTFE WRAP

Keeps conductors separated and in their proper lay. Improves performance in flexing applications and provides an additional thermal barrier to extend product line in extreme temperature environments.

HEAVY-DUTY 95% COVERAGE SILVER PLATED COPPER BRAID SHIELD (OPTIONAL – PART NO. 60063)

Silver-plated copper braid shield provides protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage”.

SPECIALLY COMPOUNDED ETFE JACKET

Ideal for environments where harsh chemicals are present. Superior resistance to oils, acids, solvents, and chemicals. Excellent defense against cutting and abrasion.

Resources

Video

Product Showcase - Chem-Gard® Cables

CustomCable

30805 Installation Instructions

WireCableFinderGuide

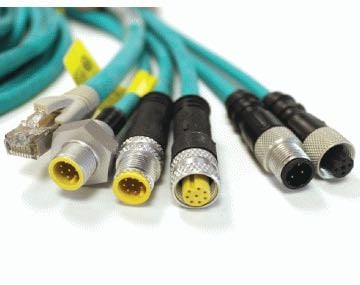

Build Your Own Ethernet Cable Assemblies

Resource-Color Code

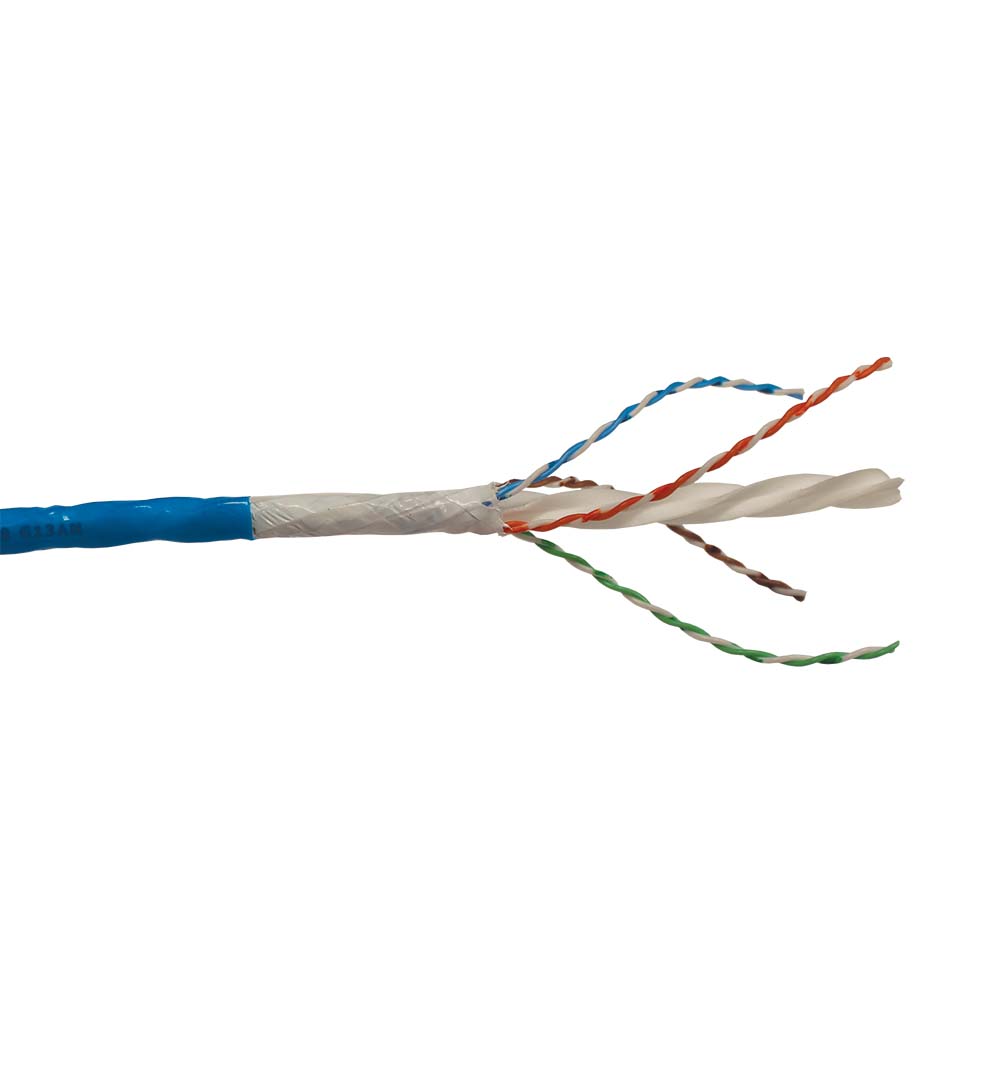

Chem-Gard® 200 °C CAT6 Industrial Ethernet Horizontal Cable

Video

RJ45 Field Installable Connector Instructional Guide for Large Ethernet Cables

Ratings / Characteristics

  • TIA/EIA 568-B-2 CAT6

  • 300V 

  • Max Conductor Temperature 200°C   

  • Cold Temperature Rating -60°C  

  • Maximum Cable Length: Up to 100 meters (328 ft.) Horizontal cable

  • Capacitance: 14.5pF/ft Conductor to Conductor

  • Impedance: 100 Ohms

  • Bend Radius (Static): 12x Cable O.D.   

  • Bend Radius (Dynamic): 15x Cable O.D.   

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

heat-icon

High Temperature

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count STRANDING OVERALL SHIELD NOMINAL O.D. WT. PER 1000'
lbs
60064 24 AWG 4 19 x 36 NO 0.255 38
60063 24 AWG 4 19 x 36 YES 0.33 55
