HY-TREX® CAT5E Profinet

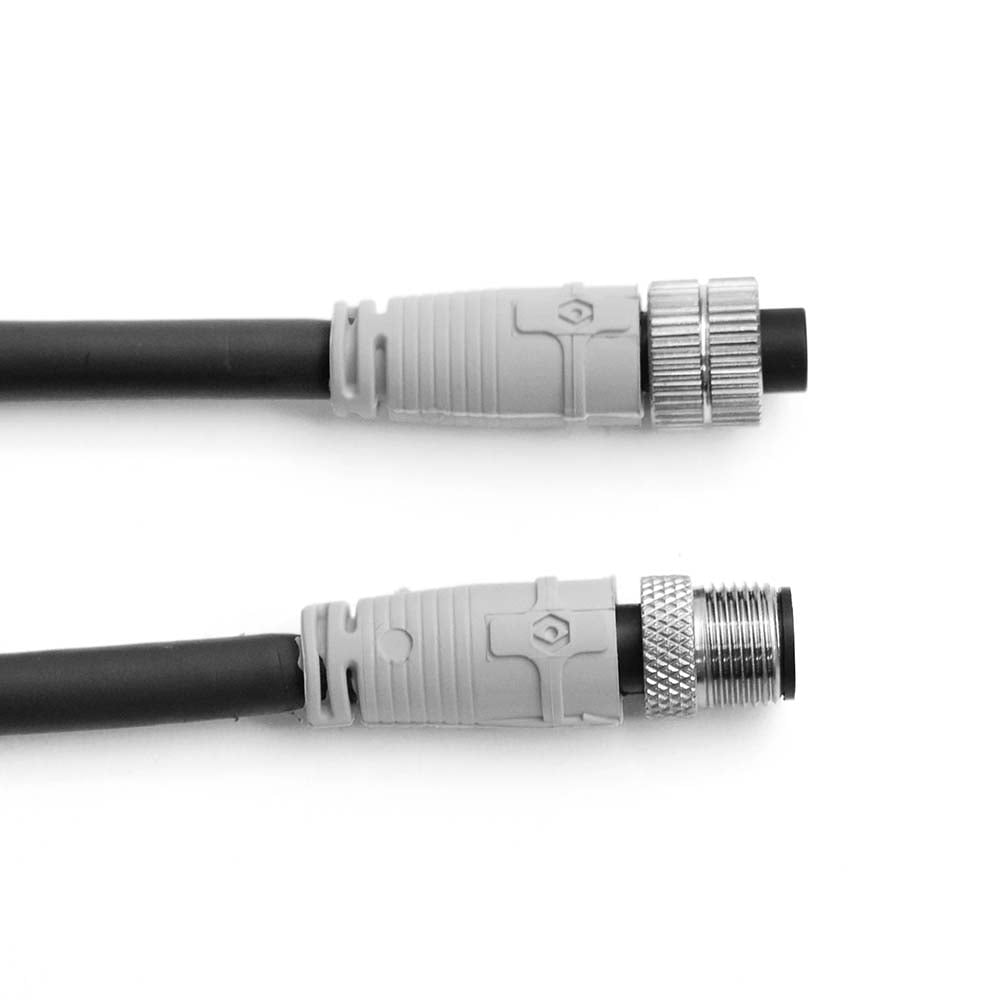

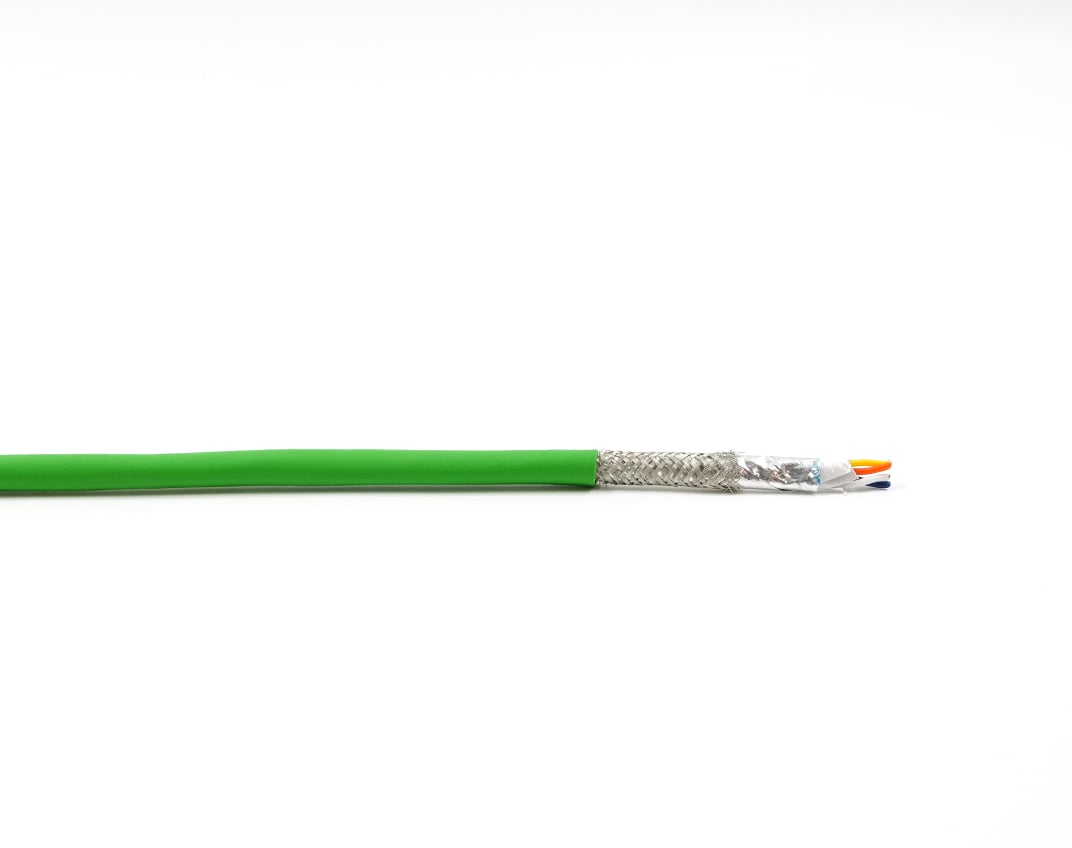

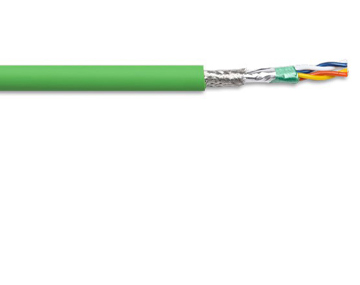

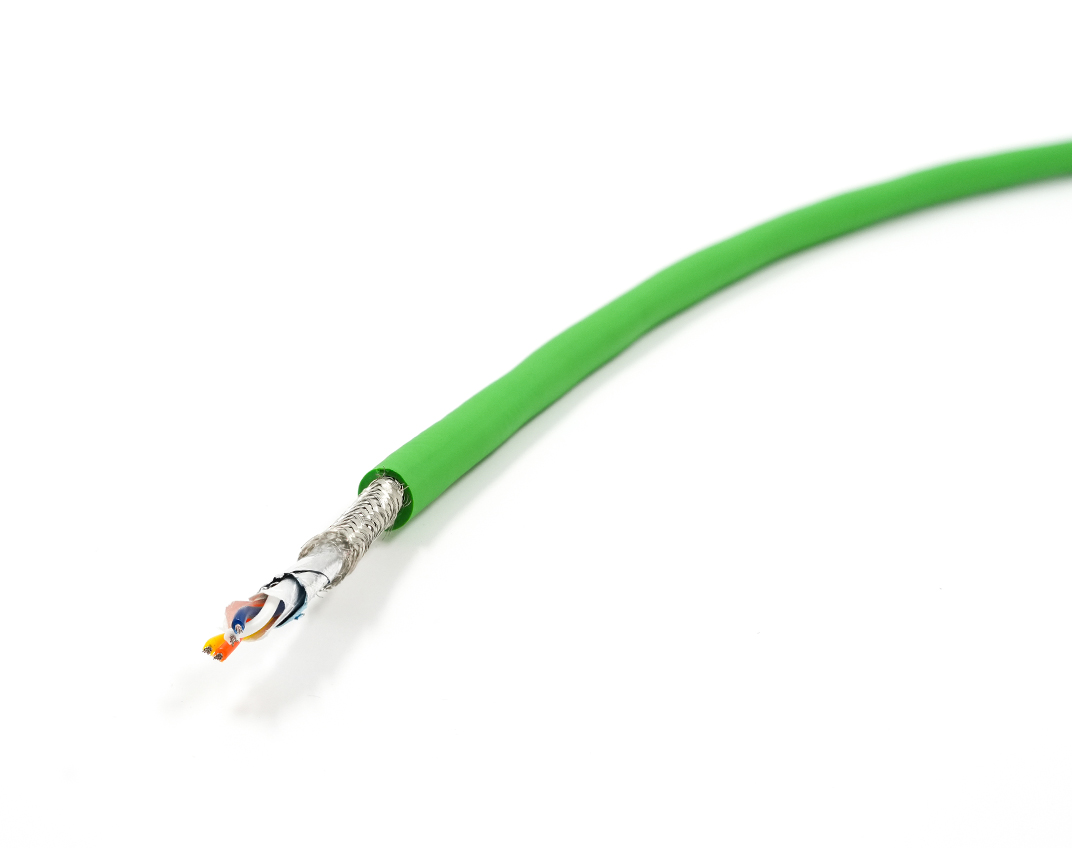

HY-TREX® CAT5E Profinet is a communication cable designed for flexible installations and special applications. It allows for movement and dynamic environments that consist of motion and vibration. This communication cable features an insulated with High-Density Polyethylene (HDPE) and is covered with an extruded TPE jacket.

Request a Quote Download Spec Sheet

Conductors

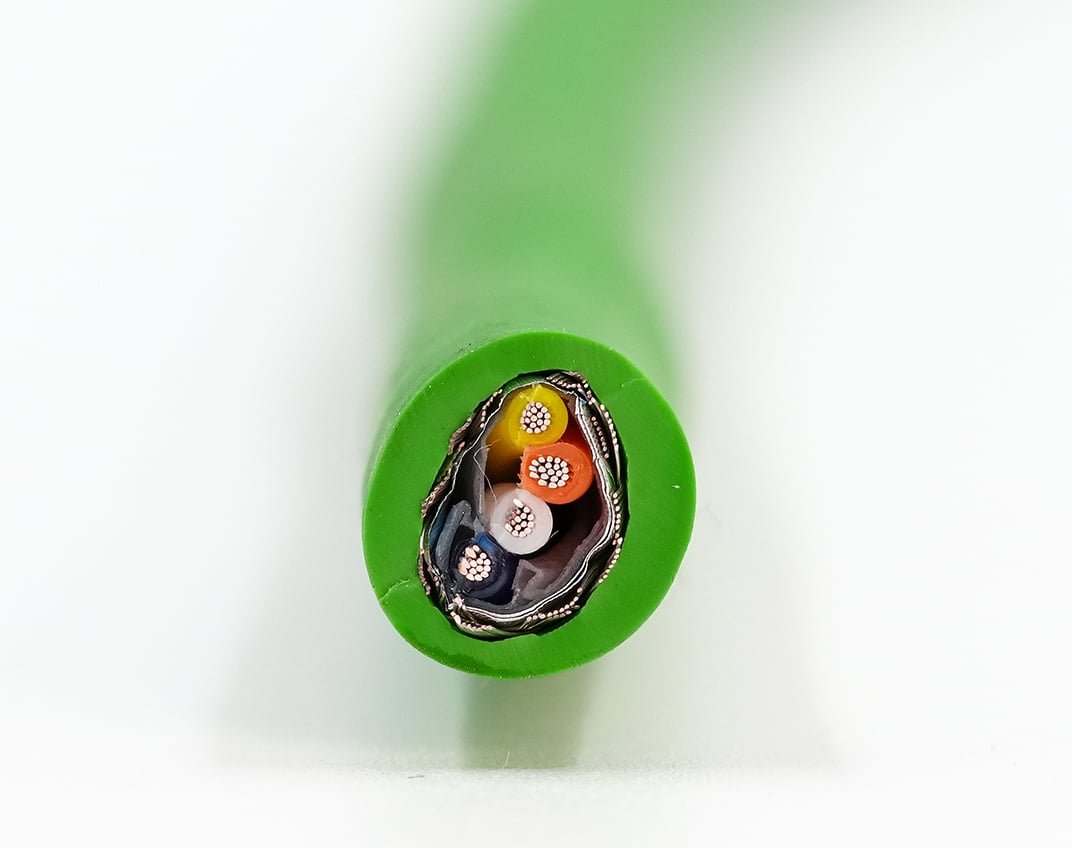

Tinned copper, 22 AWG, 19 strands.

Insulation

High Density Polyethylene (HDPE).

Insulation Color Code

Pair 1: White, Blue.
Pair 2: Yellow, Orange.

Shielding

Aluminum/Polyester Foil Shield + Overall tinned copper braid, 75% coverage, Foild braid shield over cable core.

Jacketing

Extruded TPE jacket, color green.

Twisted Pairs

Quantity two (2) twisted pairs with varying lays

HY-TREX Product Catalog

View Catalog

Product Overview

View Spec Sheet

HY-TREX® Wire and Cable

Watch Now

UL 1685: Vertical-Tray Fire- Propagation and Smoke-Release Test for Electrical Cables
UL 444: Communication Cables
UL 13: Power Limited Circuit Cables
UL 1277: Electrical Power & Control Tray Cables
UL 758: AWM Style 2463
ISO/IEC 11801: Category 5 Transmission
ISO/IEC 11801: Category 5 Transmission
600 V
OPERATING TEMPERATURE: -40°C to 80°C
COLD BEND TEST: -40°C
OIL RESISTANCE: II per UL 1277
SUNLIGHT RESISTANCE: Yes
Type: PLTC, ITC, CM, CMX
ABRASION: 75 cycles/1.5lb. load per UL 255
FLEX LIFE TORSIONAL: 3 million cycles, +/- 180°
FLEX LIFE CABLE-CHAIN: 35 million cycles, 5-inch bend radius
MINIMUM BEND RADIUS: 2.5 inch

Cold Temperature

Tension

Abrasion

Part No.	Conductor Size (AWG)	Conductor/Pole Count	Stranding	NOM O.D. (in.)	WEIGHT (LBS/1000')	Shielding Type
PN150-022-2UTP-SFB	22 AWG	1	19	0.31	46	Overall Shield
