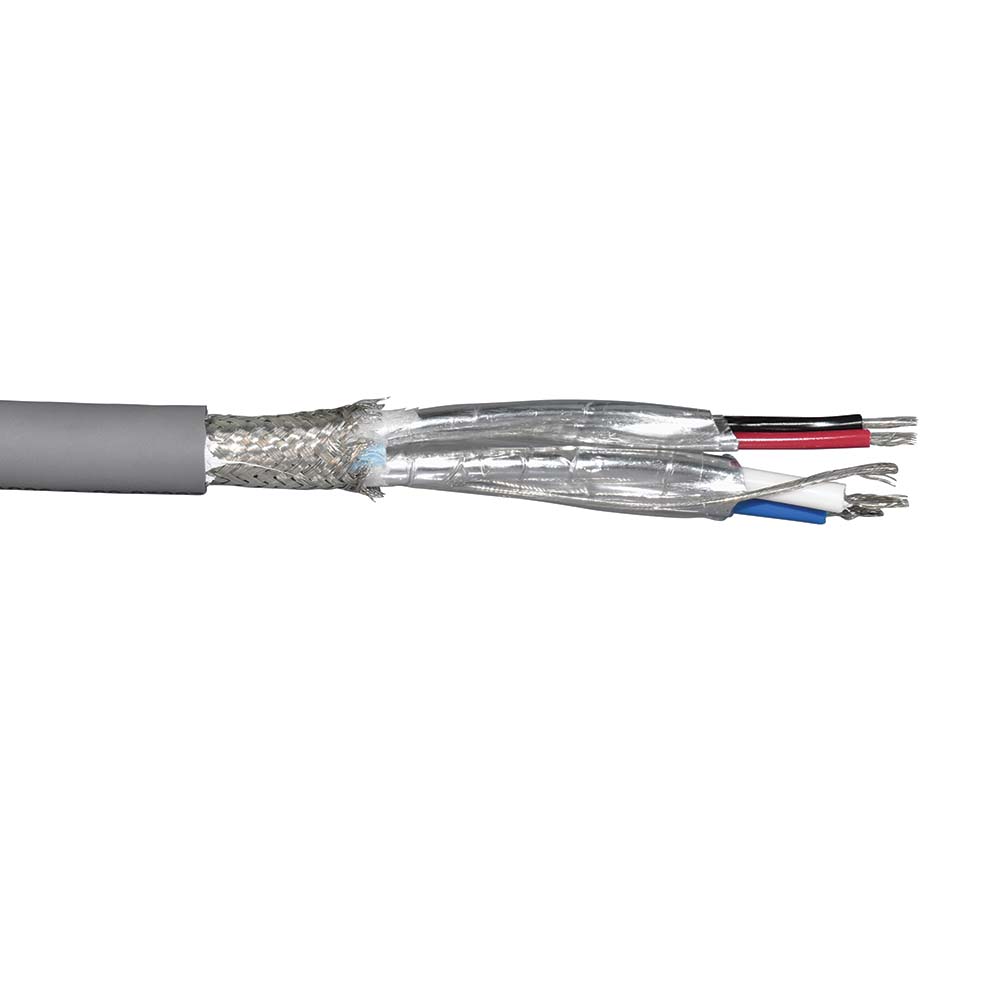

HY-TREX® DeviceNet® Cable - Thin is a communication cable for industrial automation applications to communicate between controllers and field devices such as motors, sensors, and actuators. DeviceNet Thin cable is installed from the Thick (Trunk) line to peripheral devices, also known as a drop line.


Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Conductors

Power Pair: tinned copper, 22 AWG, 19x34 stranding.
Communication Pair: tinned copper, 24 AWG, 19x36 stranding.

Insulation

Power Pair: Special formulation TPE.
Communication Pair: Polypropylene (PP).

Insulation Color Code

Power Pair: Black & Red.
Communication Pair: White & Blue.

Shielding

Aluminum/Mylar Foil Shield over each pair, tinned copper braid overall shield, braid shield over cable core.

Jacketing

Extruded TPE jacket, color grey.

Twisted Pairs

Quantity two (2) twisted shielded pairs.

Resources

Specsheets

Product Overview

Catalog

HY-TREX Product Catalog

Video

HY-Trex® Wire and Cable

Ratings / Characteristics

  • UL 13: Power Limited Circuit Cables, Type CL3

  • UL 758: AWM Style 20207

  • IMPEDANCE: 120 +/- 12 Ohms Single-Ended

  • CAPACITANCE: 12 pF/Ft. Cond-Cond 24 pF/Ft. Cond-Shield

  • PROPAGATION DELAY: 1.47 nSec/FT. Nominal

  • 300 V

  • OPERATING TEMPERATURE: -25°C to 80°C

  • MINIMUM BEND RADIUS: 2.8 inch

Applications

flexing-icon

Flexing

abrasions-icon

Abrasion

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Stranding NOM O.D.
(in.)		 WEIGHT
(LBS/1000')		 Shielding Type
DN220-2422-2STP-SB 24 AWG 1 19x34 0.345 65 Overall Shielded, Individually Shielded Pairs
DN220-2422-2STP-SB
 22 AWG 1 19x36 0.345 65 Overall Shielded, Individually Shielded Pairs

Related Products

flex-net-thick-cable_0 (1)

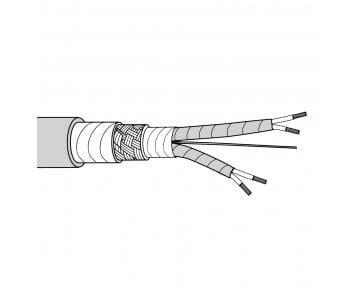

Hy-Trex DeviceNet Cable Thick
aluminum-grip-seal-for-flat-festoon_0

Grip Seals Aluminum Cable Glands
kord-gard-mesh-cord-grip_1

Kord-Gard Aluminum Mesh Strain Relief
Trex-Onics-DeviceNet-Flex-Net-Thin-High-Performance-Cable-Side Profile

Trex-Onics DeviceNet Flex-Net Cable
