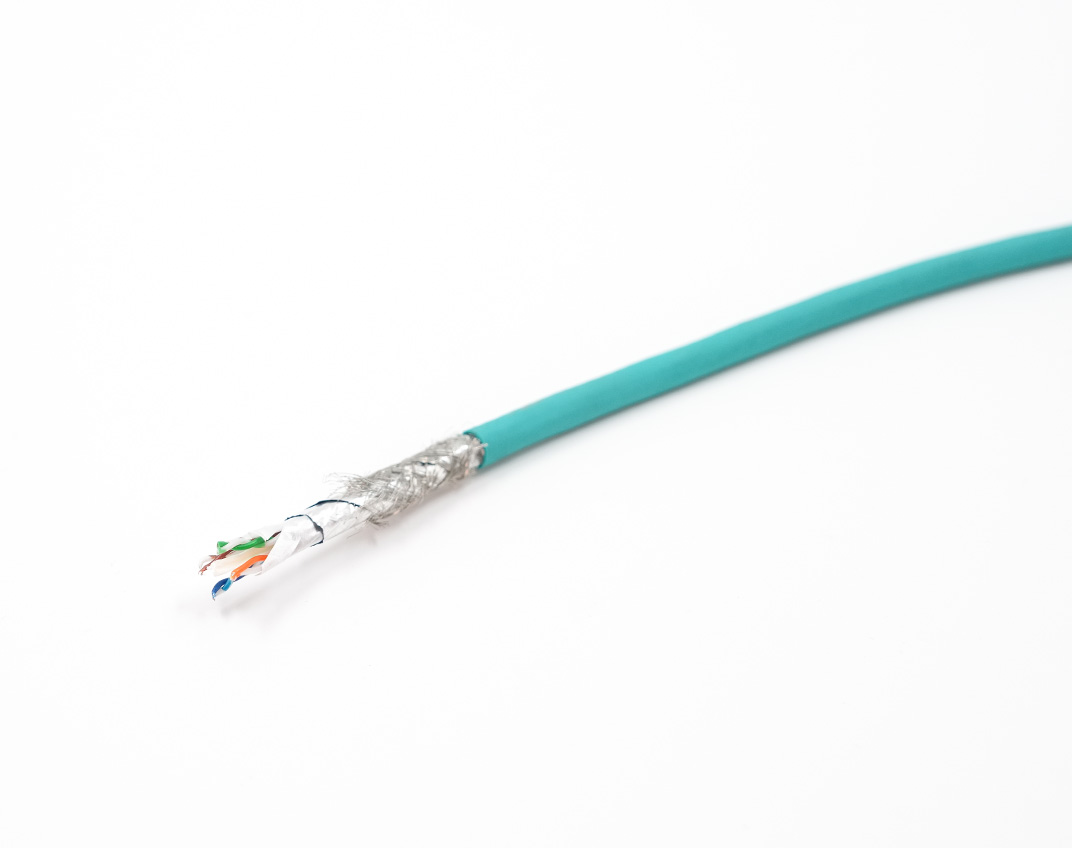

HY-TREX® Industrial Ethernet CAT6A 3QV_Web

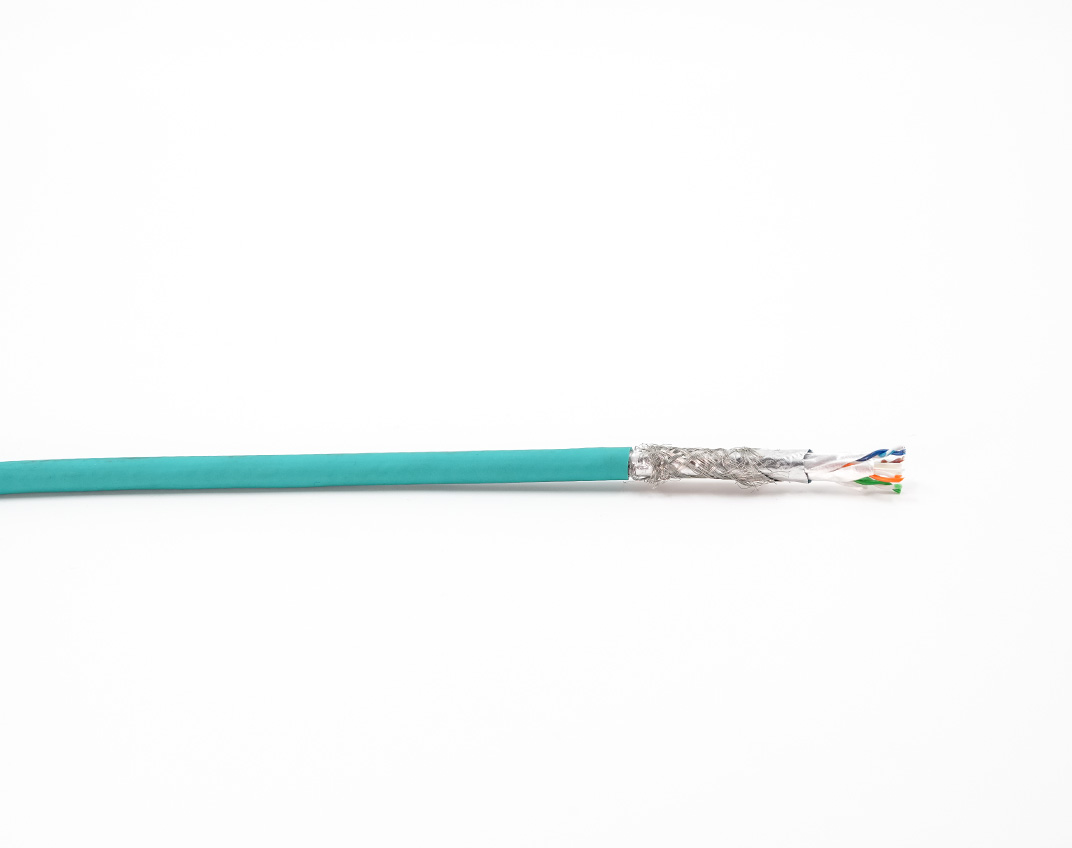

HY-TREX® Industrial Ethernet CAT6A Side_Web

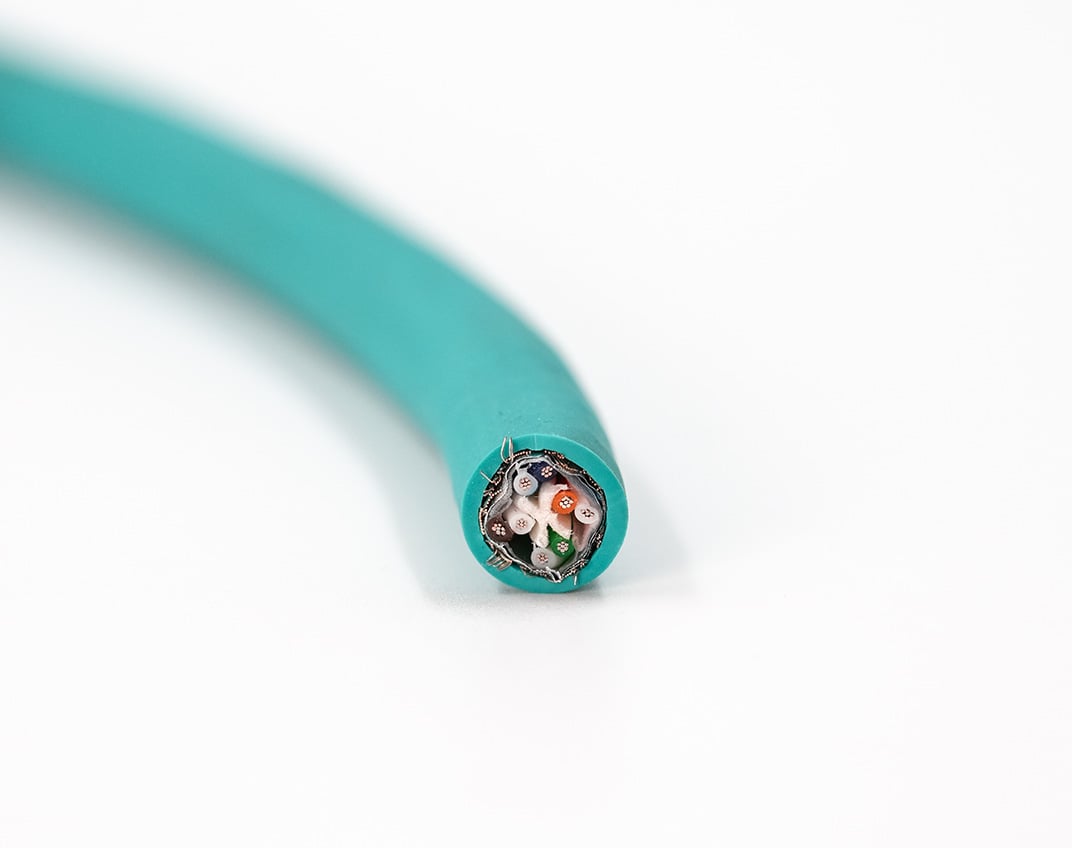

HY-TREX® Industrial Ethernet CAT6A Macro_Web

HY-TREX® Industrial Ethernet CAT6A

Intended for CAT6A Ethernet connectivity up to 83 meters, the HY-TREX® Industrial CAT6A Ethernet horizontal cable, 24 AWG/4-Pair, holds a voltage rating of 600 volts. This 600 volt rated ethernet cable can mix with power cables in cable trays without needing to add extra conduit.



Features

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Specially Compounded High-Density Polyethylene (HDPE) Insulation System

Provides excellent dielectric and insulation properties.

Combination of Cellular Insulation and Individually Shielded Pairs

Provides superior electrical performance to meet CAT6 and Ethernet/IP requirements.

75% Coverage Tinned Copper Braid Shield Plus Aluminum/Polyester Foil Shield Construction

Provides protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage."

Specially Compounded Teal TPE Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Backward Compatibility

Fully interchangeable with CAT5E and CAT6 cables.

Resources

Specsheets

Product Overview

Video

HY-TREX® Wire and Cables

Resource-Color Code

HY-TREX® Industrial Ethernet CAT6A

Video

RJ45 Field Installable Connector Instructional Guide for Large Ethernet Cables

Ratings / Characteristics

  • UL Listed

  • UL Recognized

  • 600 V

  • Max Conductor Temperature 80°C

  • Type CMX Outdoor

  • Type CMR

  • AWM Style 2463

  • ISO/IEC 11801: Category 6A Transmission

  • ANSI/TIA-568.2-D: Category 6A Transmission

  • ODVA Ethernet/IP™: Compliant Category 5E

  • COLD BEND TEST: -40°C

  • OIL RESISTANT

  • SUNLIGHT RESISTANT

  • TENSILE PULL STRENGTH: 40 Lbs.

  • ABRASION: 75 cycles/1.5lb. load per UL 255

  • FLEX LIFE TORSIONAL: 3 million cycles, +/- 270°

  • Flex Life Cable-Chain: 35 million cycles, 5-inch bend radius

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

  • Max Run Distance: 83 Meters (272 feet)

Applications

flexing-icon

Flexing

cold-icon

Cold Temperature

tension-icon

Tension

abrasions-icon

Abrasion

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Stranding NOM O.D.
(in.)
WEIGHT
(LBS/1000')
Shielding Type
EN650H-024-4UTP-SFB 24 AWG 1 7 x 32 0.322 48 Overall Shield
